93 stock rebuild pics
#1
93 stock rebuild pics

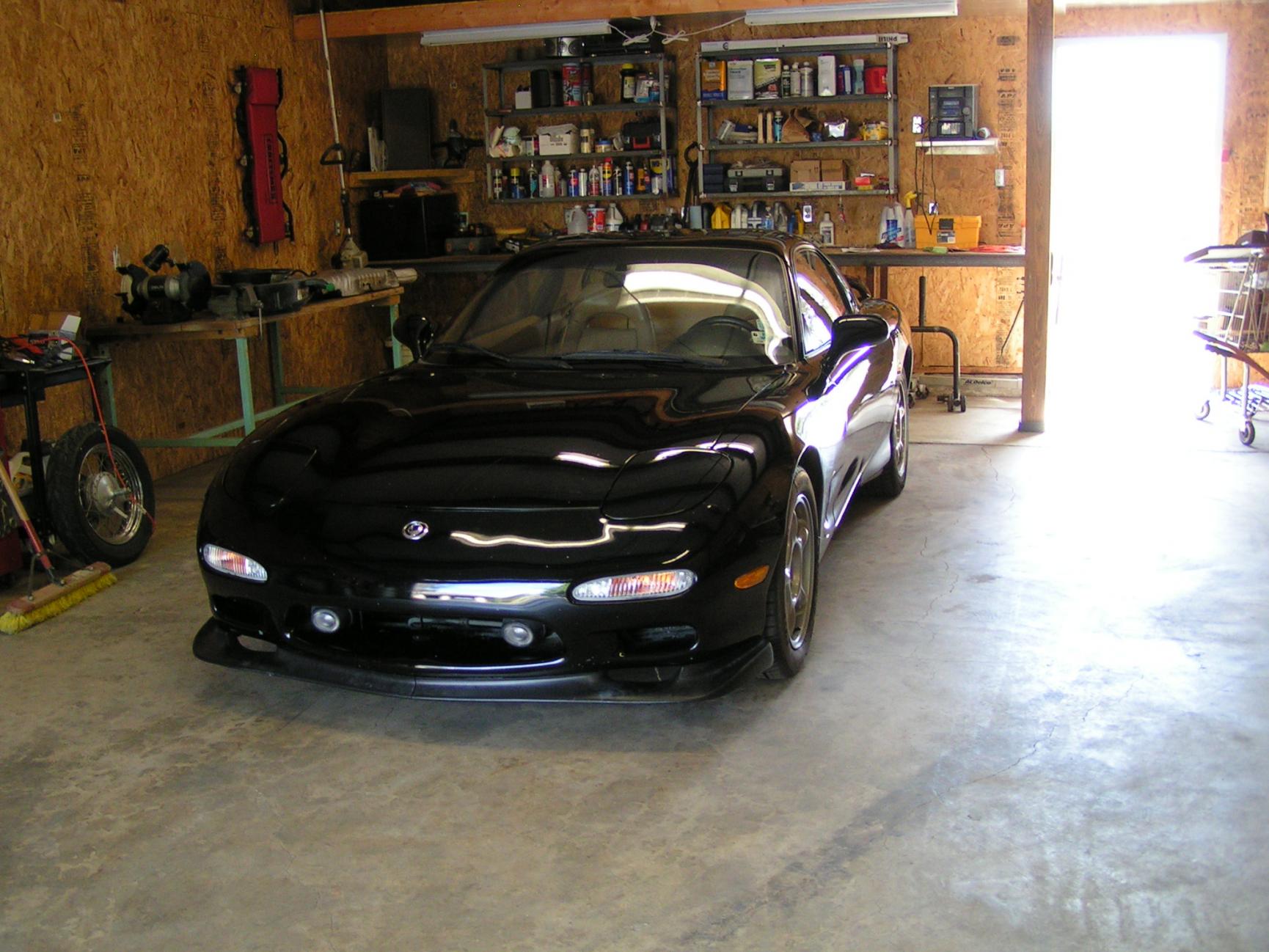

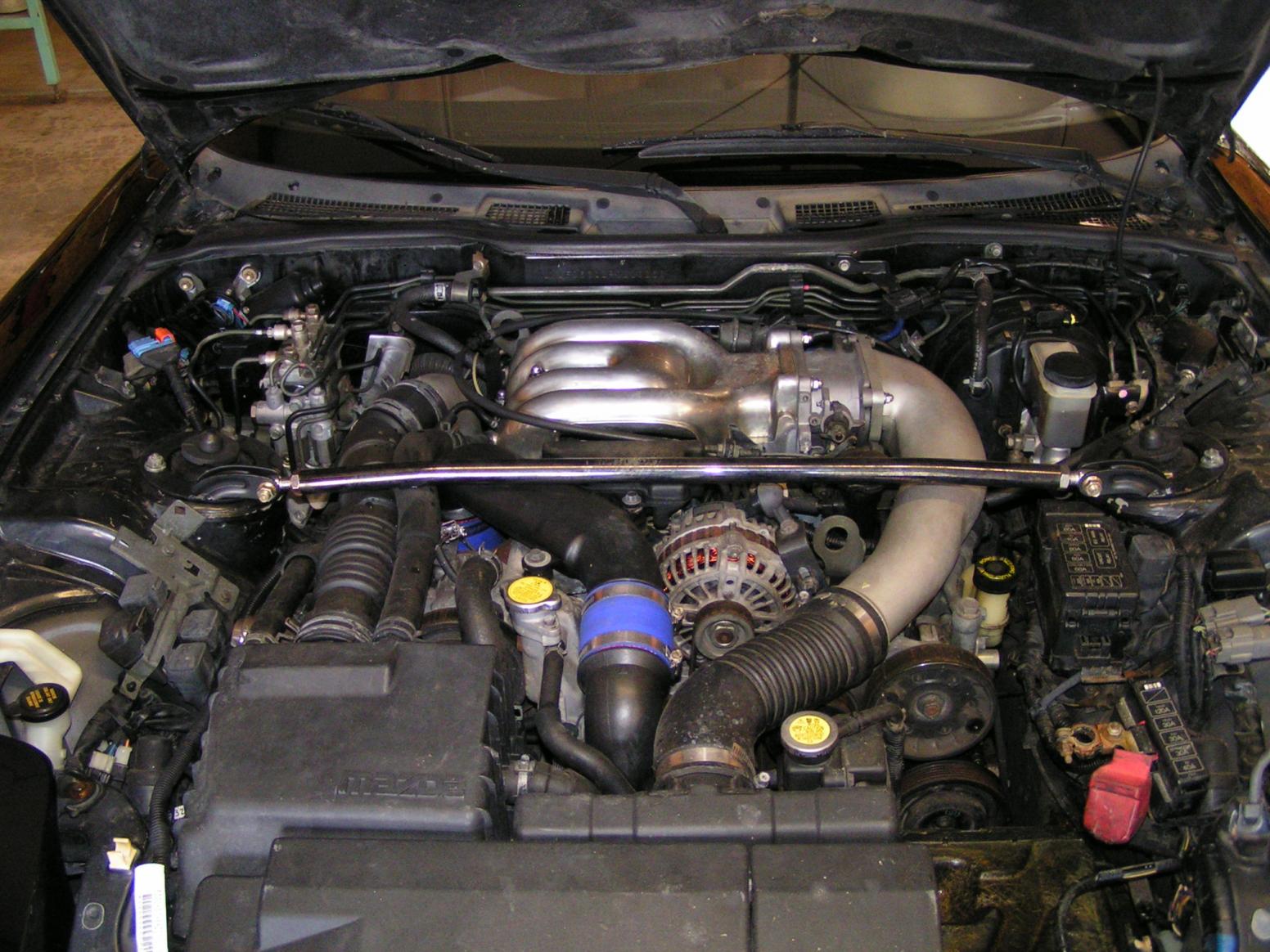

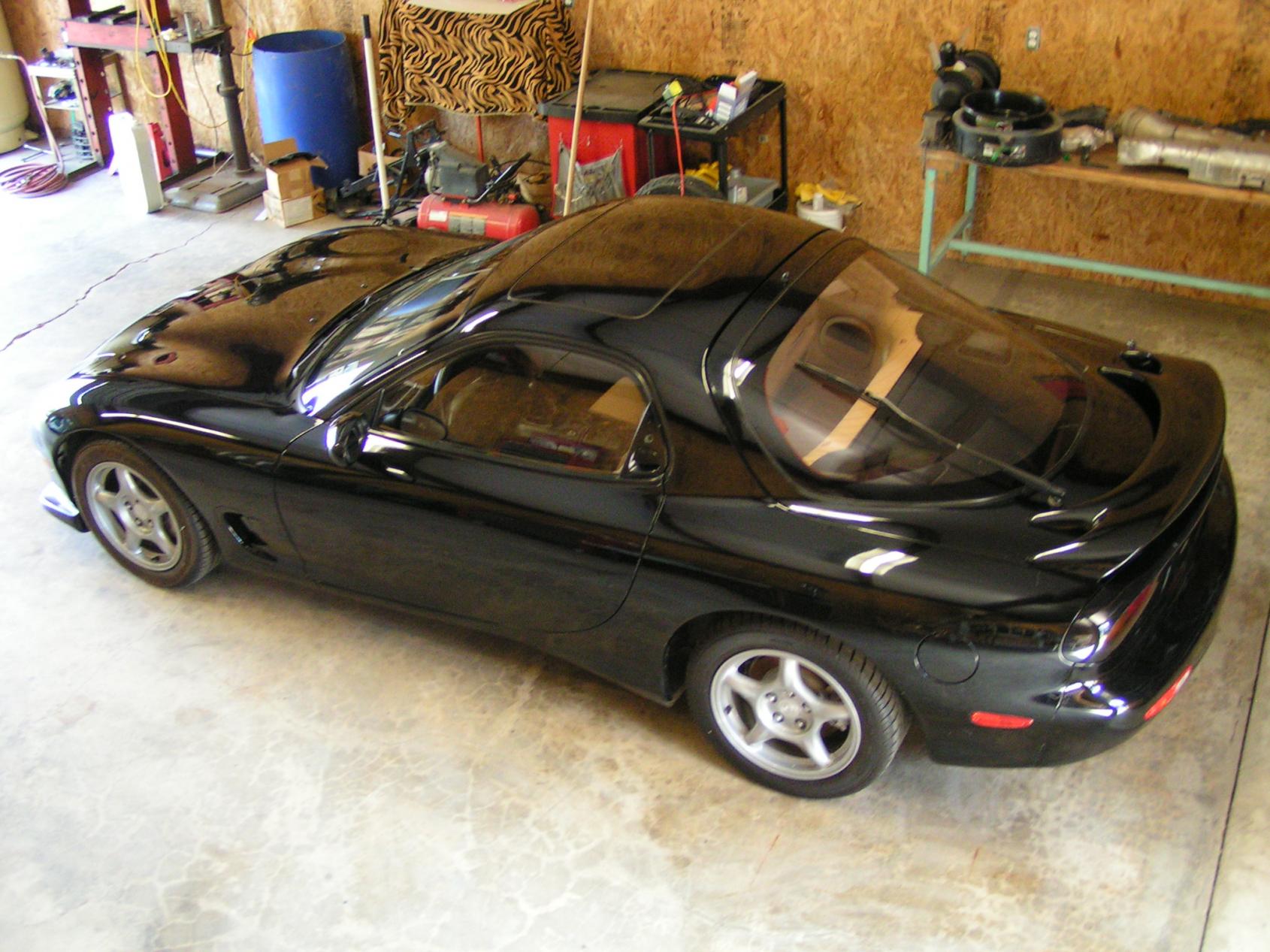

Well, here is my fall/winter project. Car has been sitting in a barn for 5 years ever since it started smoking/low compression. Car is stock except full turbo back exhaust. This is my first rotary rebuild experience so I am taking my time and posting pics as I go. Car has 101,000 miles on, I think, the original engine.
#2

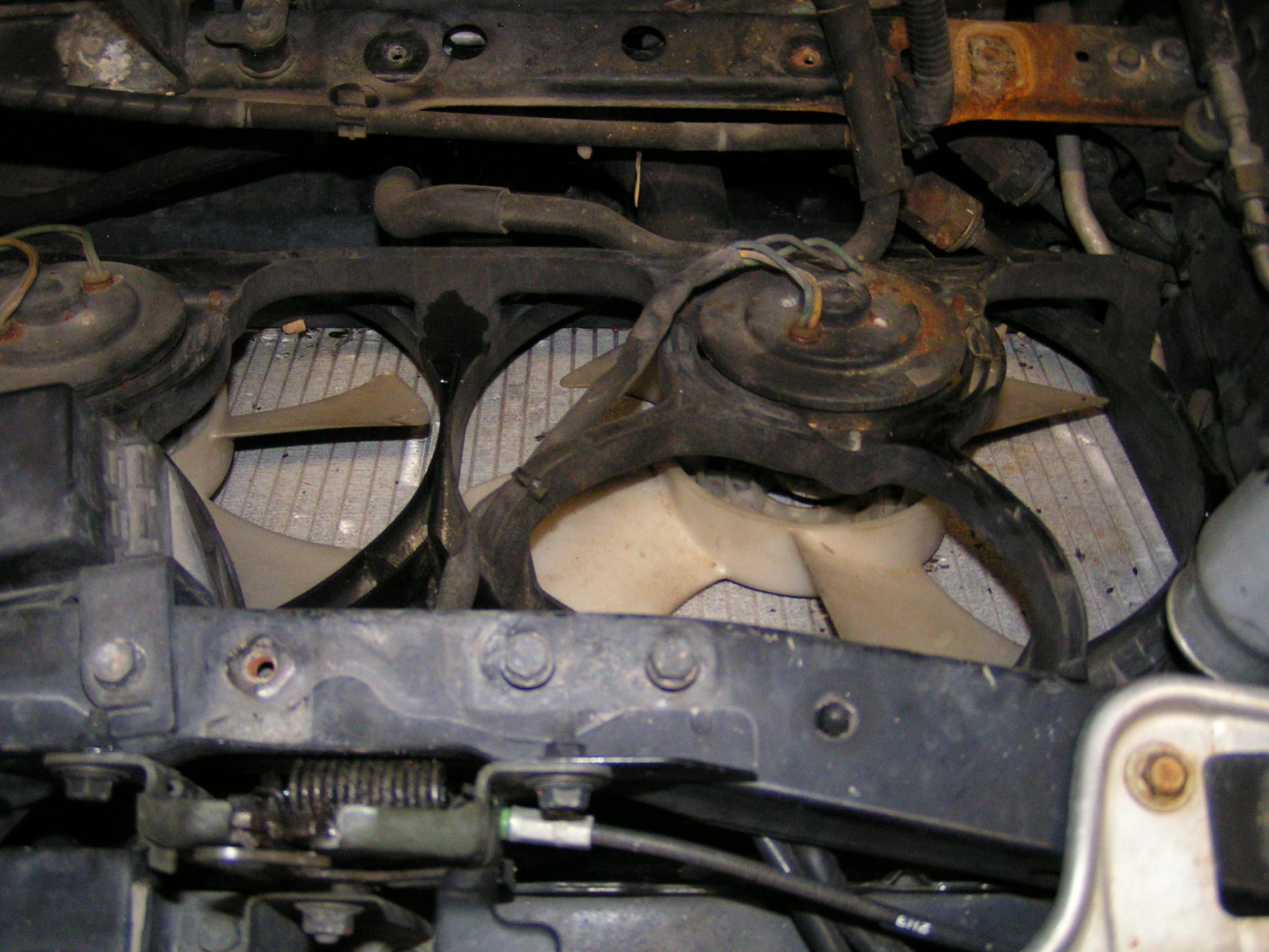

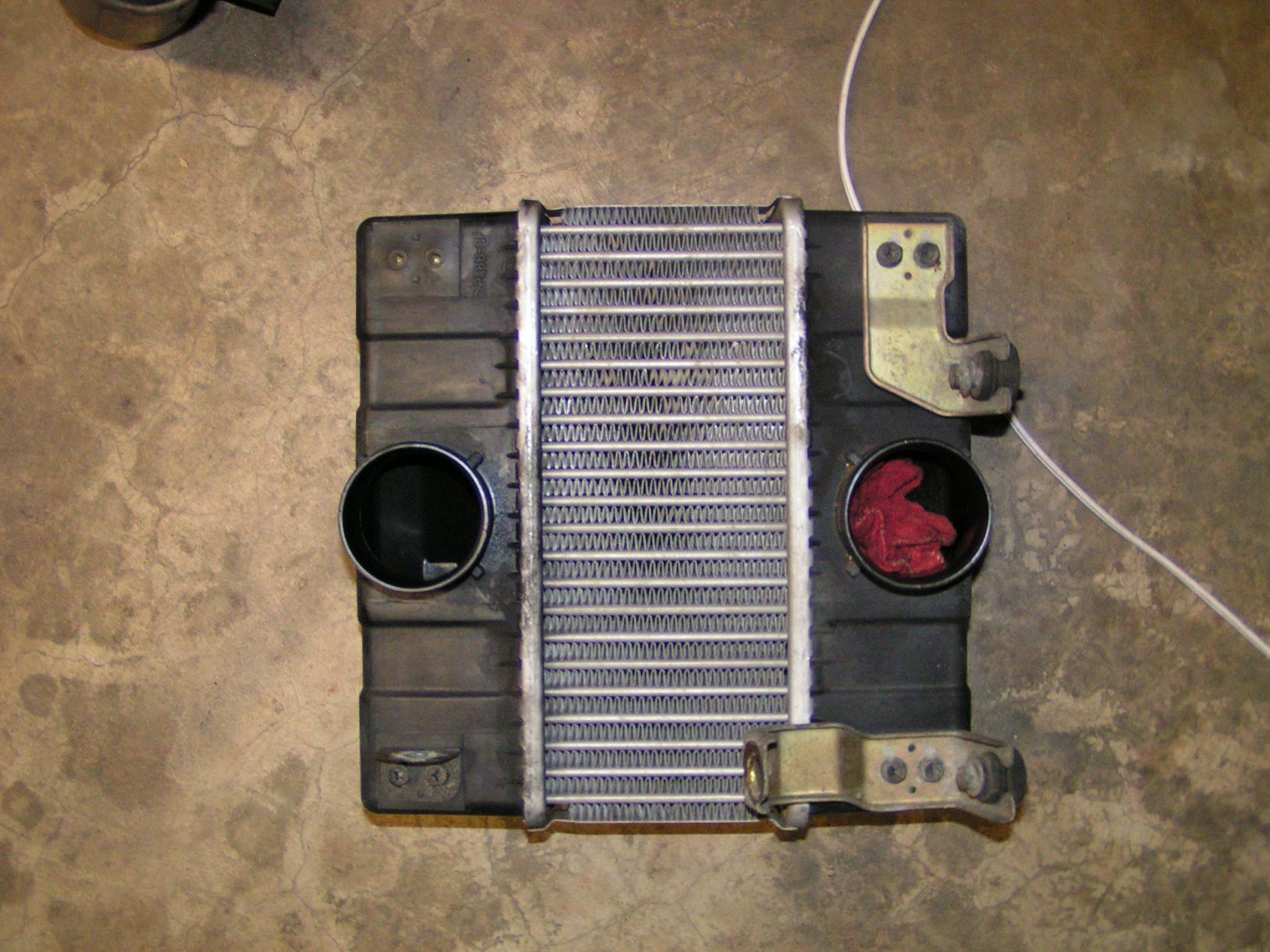

First update: Found a radiator fan just laying on top of the radiator... Maybe that's why it was running hot that last summer in traffic. Also, check out this rag in the intercooler! Do you think this is an accident or an unconventional way to manage boost creep?! I would imagine it would reduce the efficiency of the intercooler at any rate. Just goes to show that you can't always trust the local rotary repair shop.
#3
Sharp Claws
iTrader: (30)
First update: Found a radiator fan just laying on top of the radiator... Maybe that's why it was running hot that last summer in traffic. Also, check out this rag in the intercooler! Do you think this is an accident or an unconventional way to manage boost creep?! I would imagine it would reduce the efficiency of the intercooler at any rate. Just goes to show that you can't always trust the local WalMart service center.
#5
Snowboarding Whistler!
iTrader: (24)
Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,285
Likes: 0
Received 0 Likes
on
0 Posts
Quote:
Originally Posted by sc_frontier
First update: Found a radiator fan just laying on top of the radiator... Maybe that's why it was running hot that last summer in traffic. Also, check out this rag in the intercooler! Do you think this is an accident or an unconventional way to manage boost creep?! I would imagine it would reduce the efficiency of the intercooler at any rate. Just goes to show that you can't always trust the local WalMart service center.
Originally Posted by sc_frontier
First update: Found a radiator fan just laying on top of the radiator... Maybe that's why it was running hot that last summer in traffic. Also, check out this rag in the intercooler! Do you think this is an accident or an unconventional way to manage boost creep?! I would imagine it would reduce the efficiency of the intercooler at any rate. Just goes to show that you can't always trust the local WalMart service center.
#9

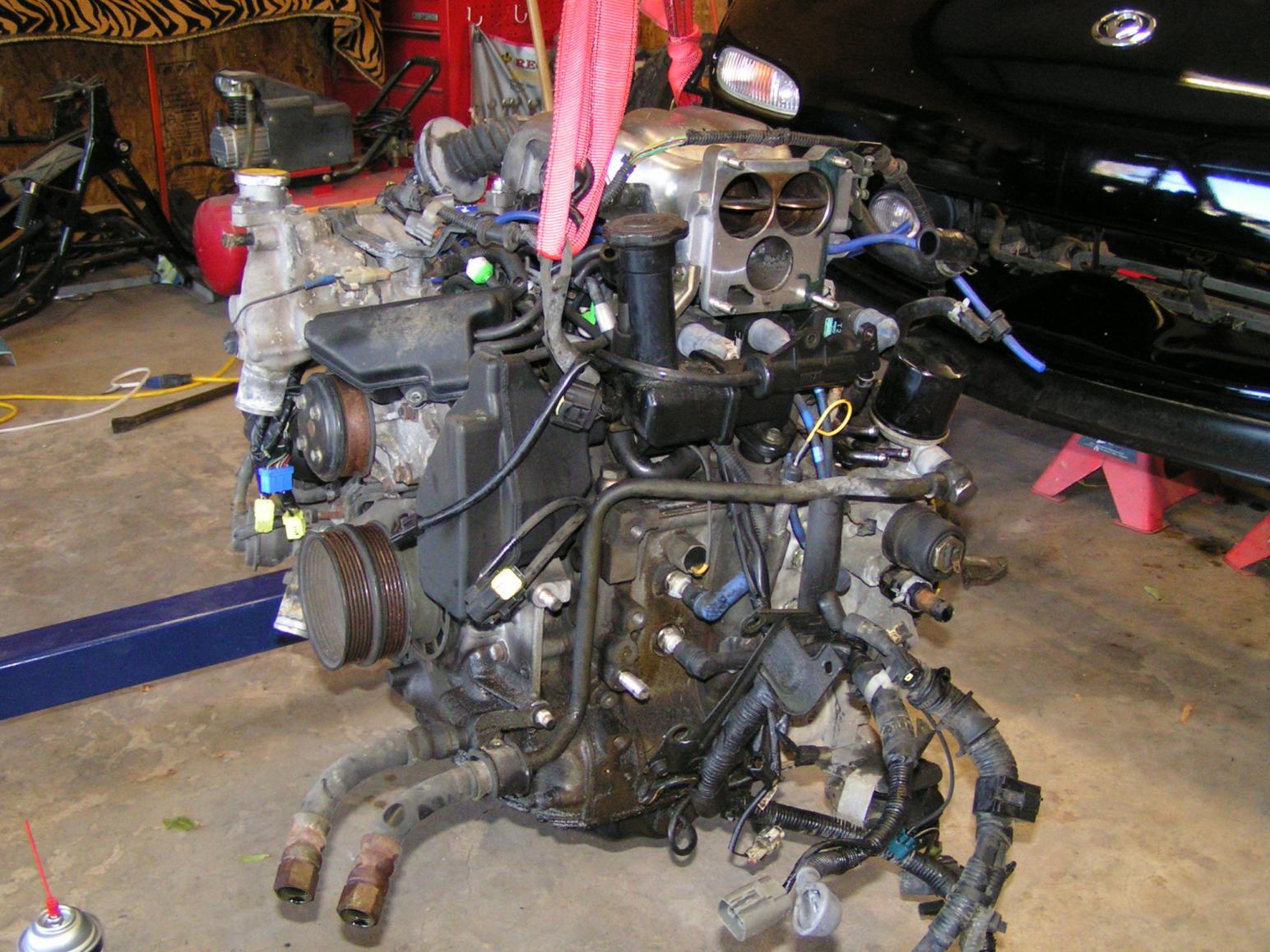

Whoever said that it is easier to take the downpipe off after the engine is pulled is crazy. I had to fight this thing the whole time and couldn't get it off until the engine was completely out because it was jammed against the bell housing. But, alas, success
#11
Snowboarding Whistler!
iTrader: (24)
Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,285
Likes: 0
Received 0 Likes
on
0 Posts
I'm a big fan of the area below the stereo if you aren't running a double din. Otherwise a center speaker pod on the dash is a good option. Not really a fan of the pillar pods as they deninish your lines of sight a bit more then other options.
#15
Snowboarding Whistler!
iTrader: (24)
Join Date: Nov 2002
Location: Whistler, BC
Posts: 1,285
Likes: 0
Received 0 Likes
on
0 Posts
I hear you, have had a few problems over the years on this end. Should be fine though, if not they are insured . Let me know when you recieve them!
#16

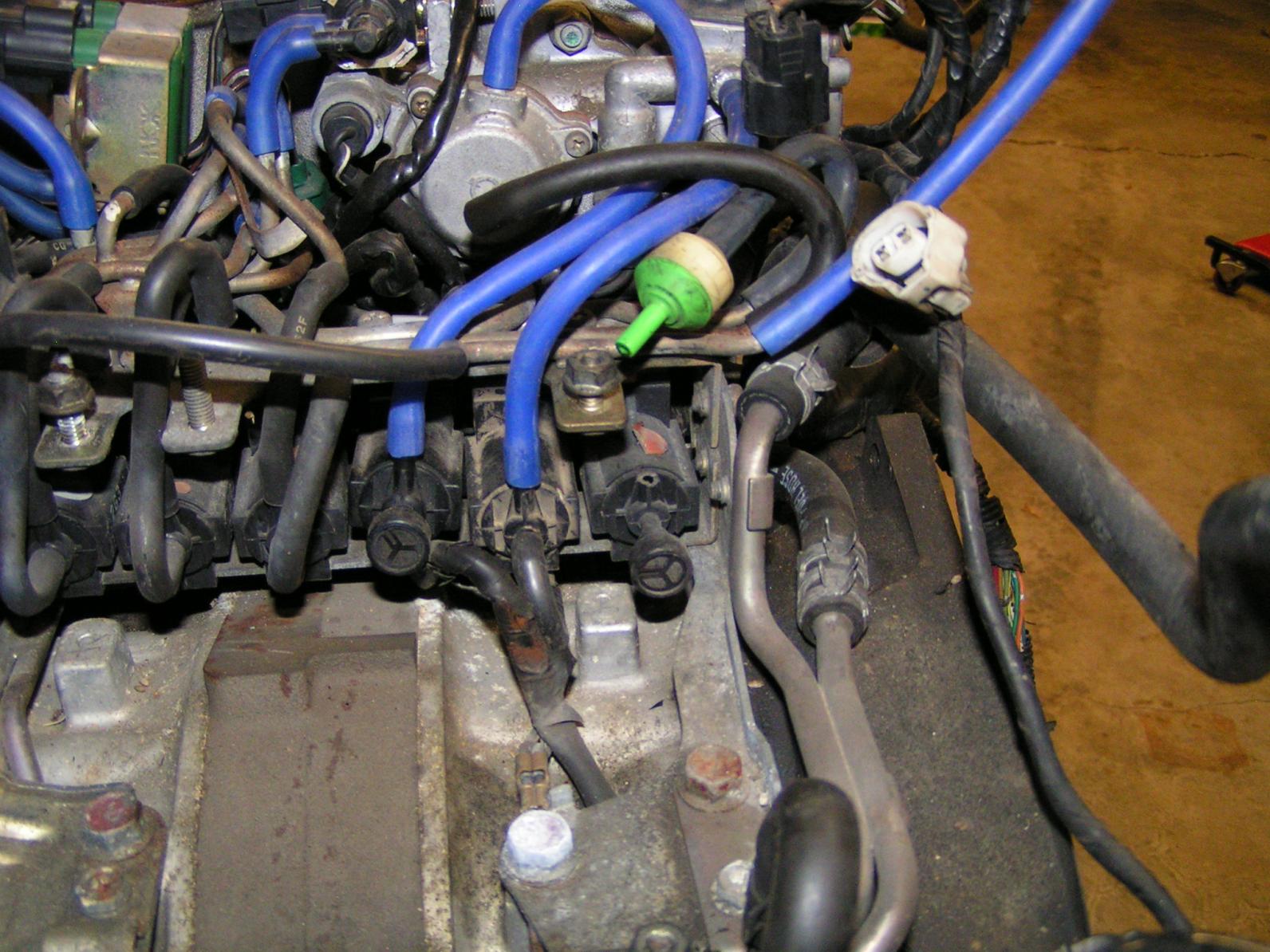

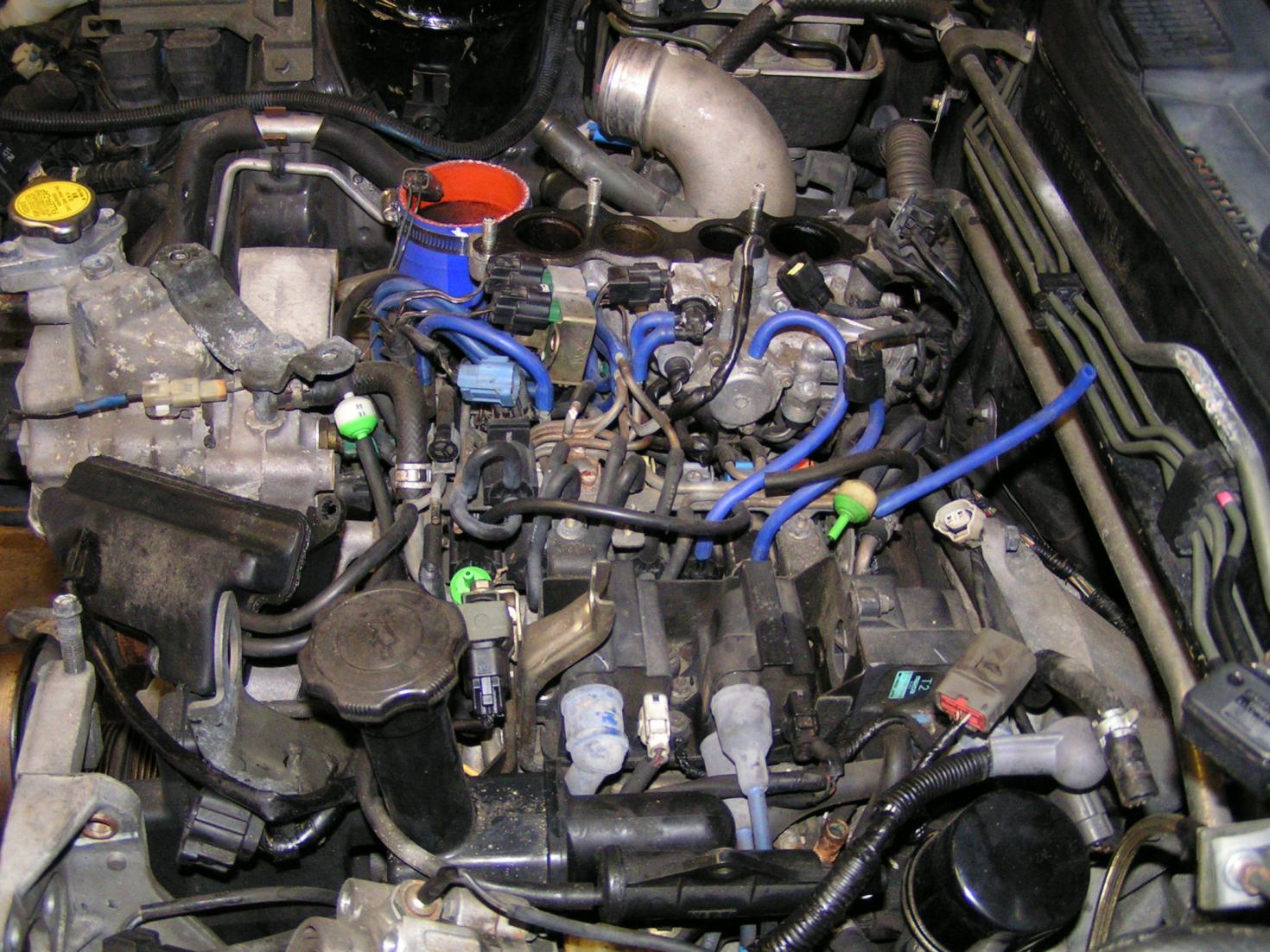

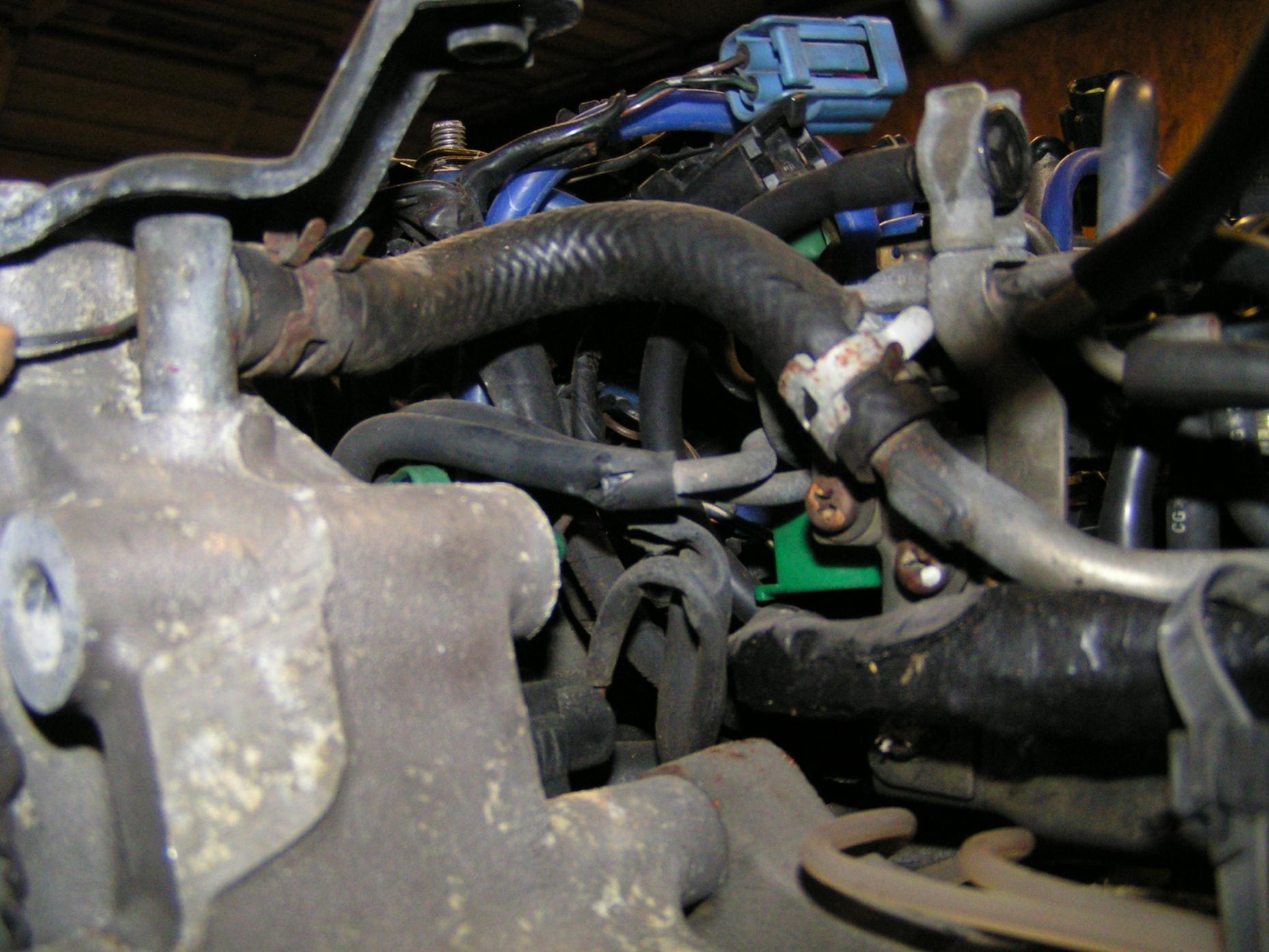

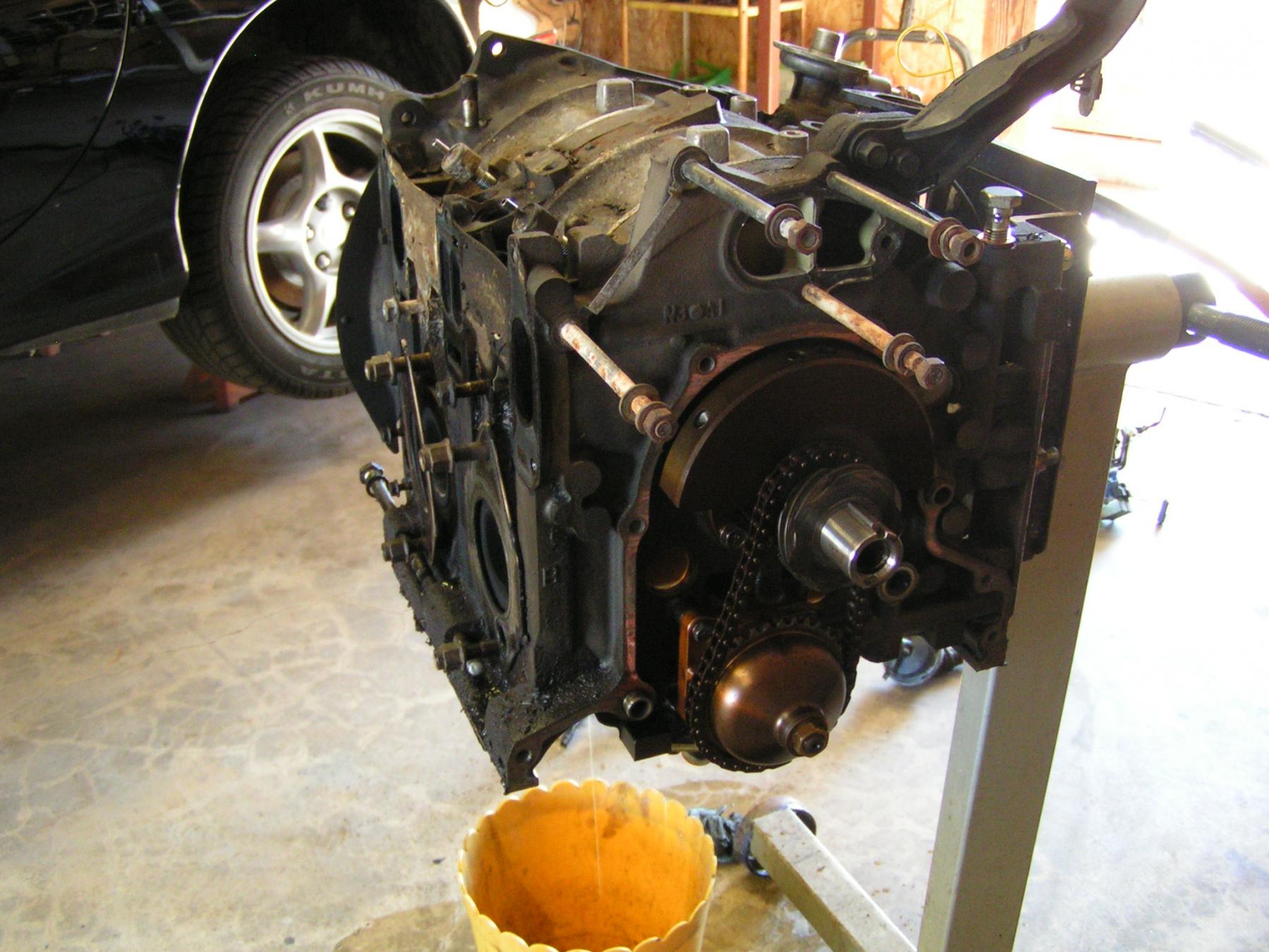

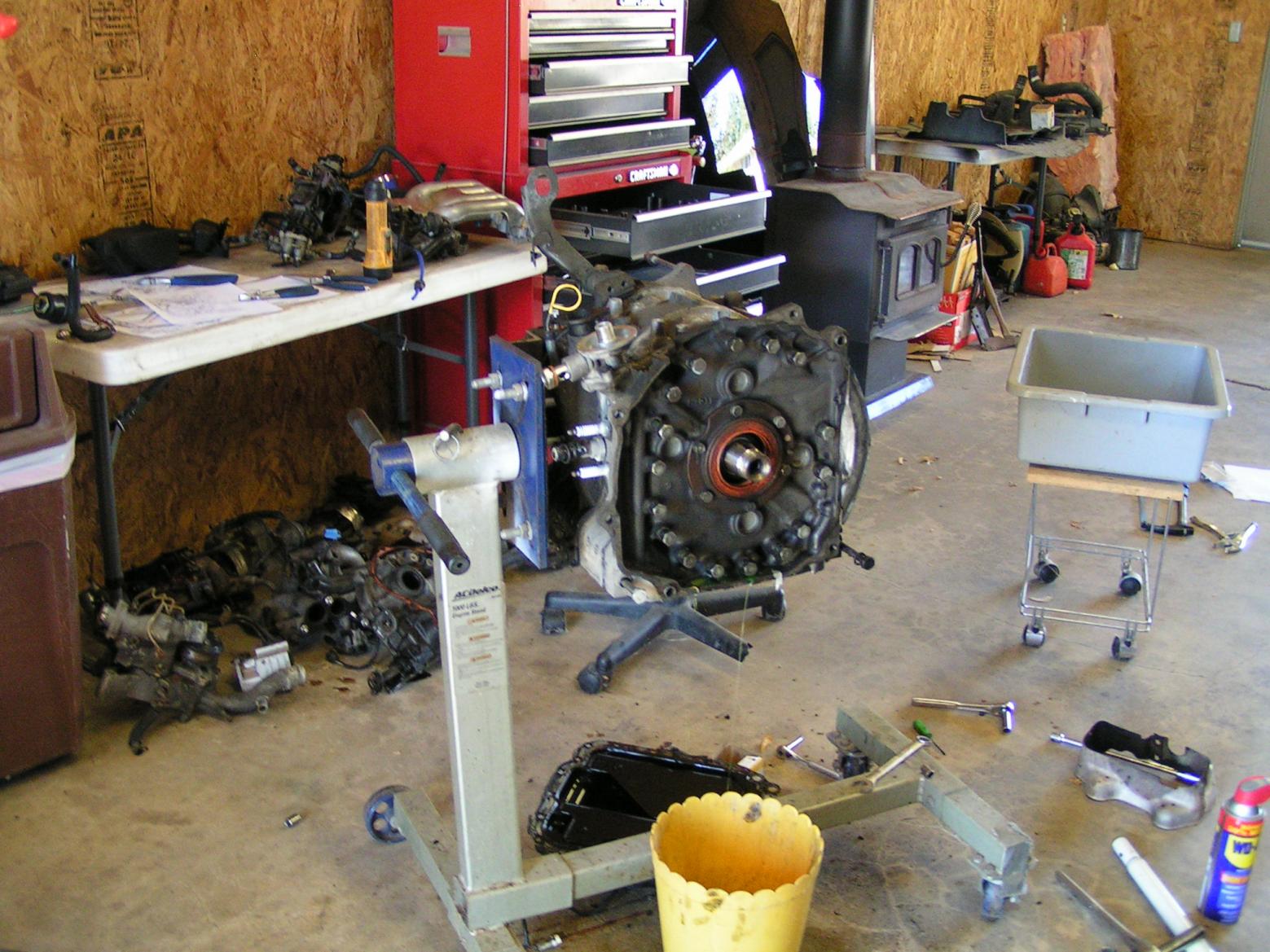

The saga continues First, my oil control rings fit very loosely in the rotors, is this normal (they fall out)? I am going to replace them, but am more curious if this is the source of smoke. Second, my oil pump chain looks loose. Will have to see what the service manual says about this thing. Finally a broken vacuum hose here, and a broken pressure regulator solenoid. The pressure regulator solenoid isn't hooked up to the pressure regulator, nor is there a nipple for a hookup...hmm
#20
SABBC
iTrader: (4)
Join Date: Feb 2009
Location: hootawuah, On
Posts: 255
Likes: 0
Received 0 Likes
on
0 Posts

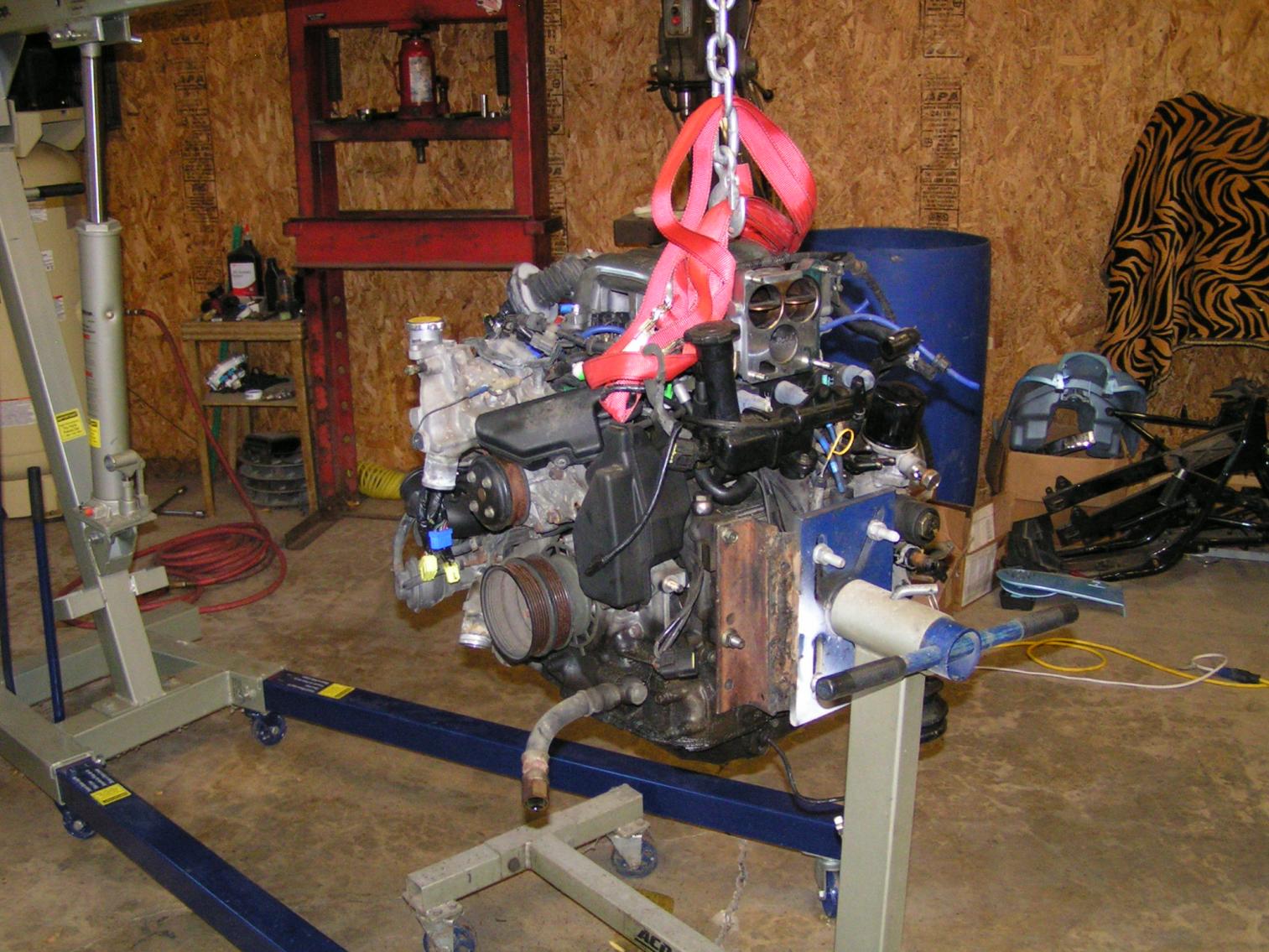

when you rig your engine to lift it up, i suggest you use slings and shackle, not some bunjee cords and you should put a shackle on the hook or the eye of a sling on it. it will avoid the rope you use to slip because of the center of gravity of the engine not at the good spot and if that happen you might hurt yourself or the engine. its just a frendly tip when you gonna put back the engine in the car. except that good luck on your rebuild
#23

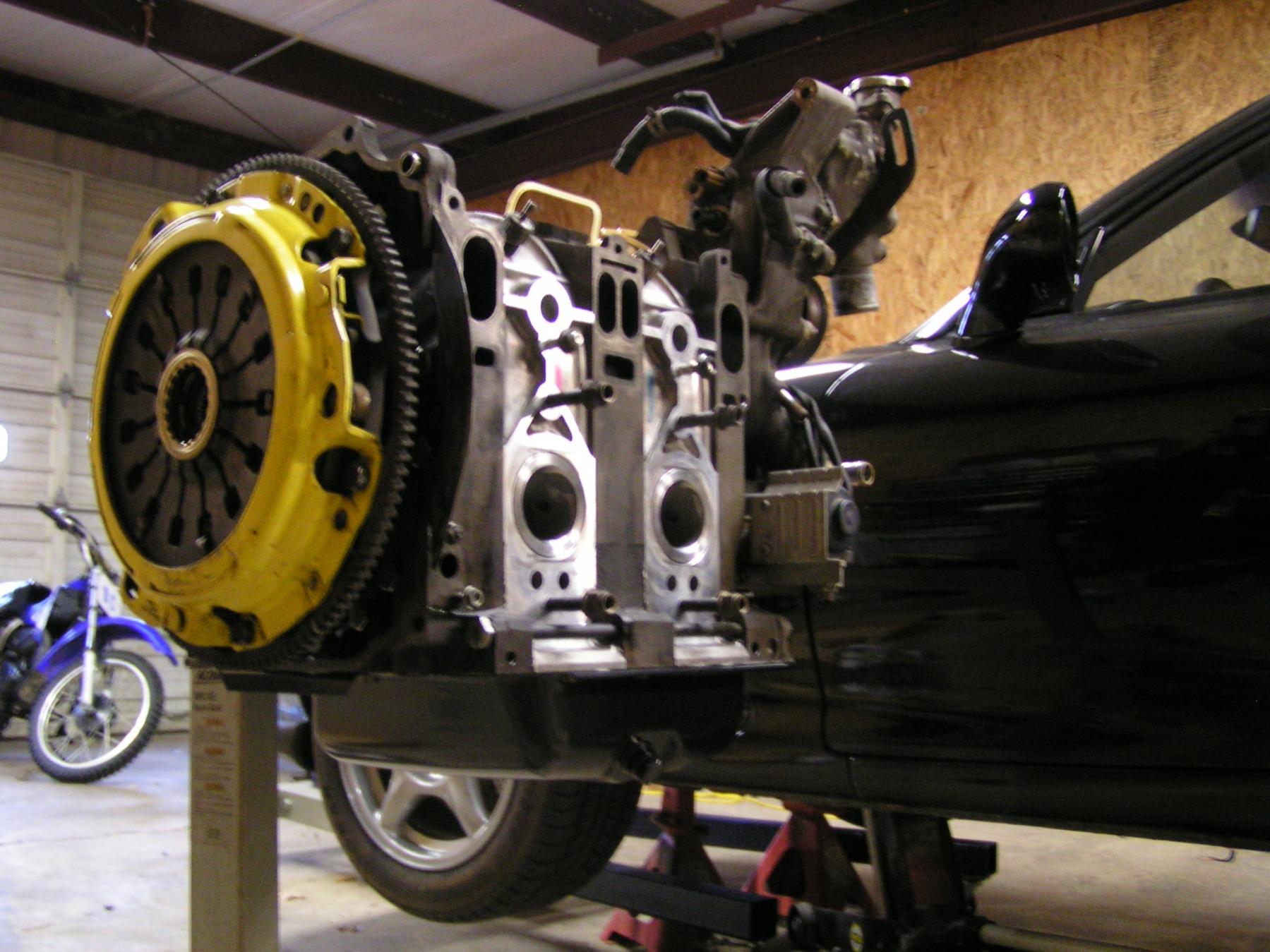

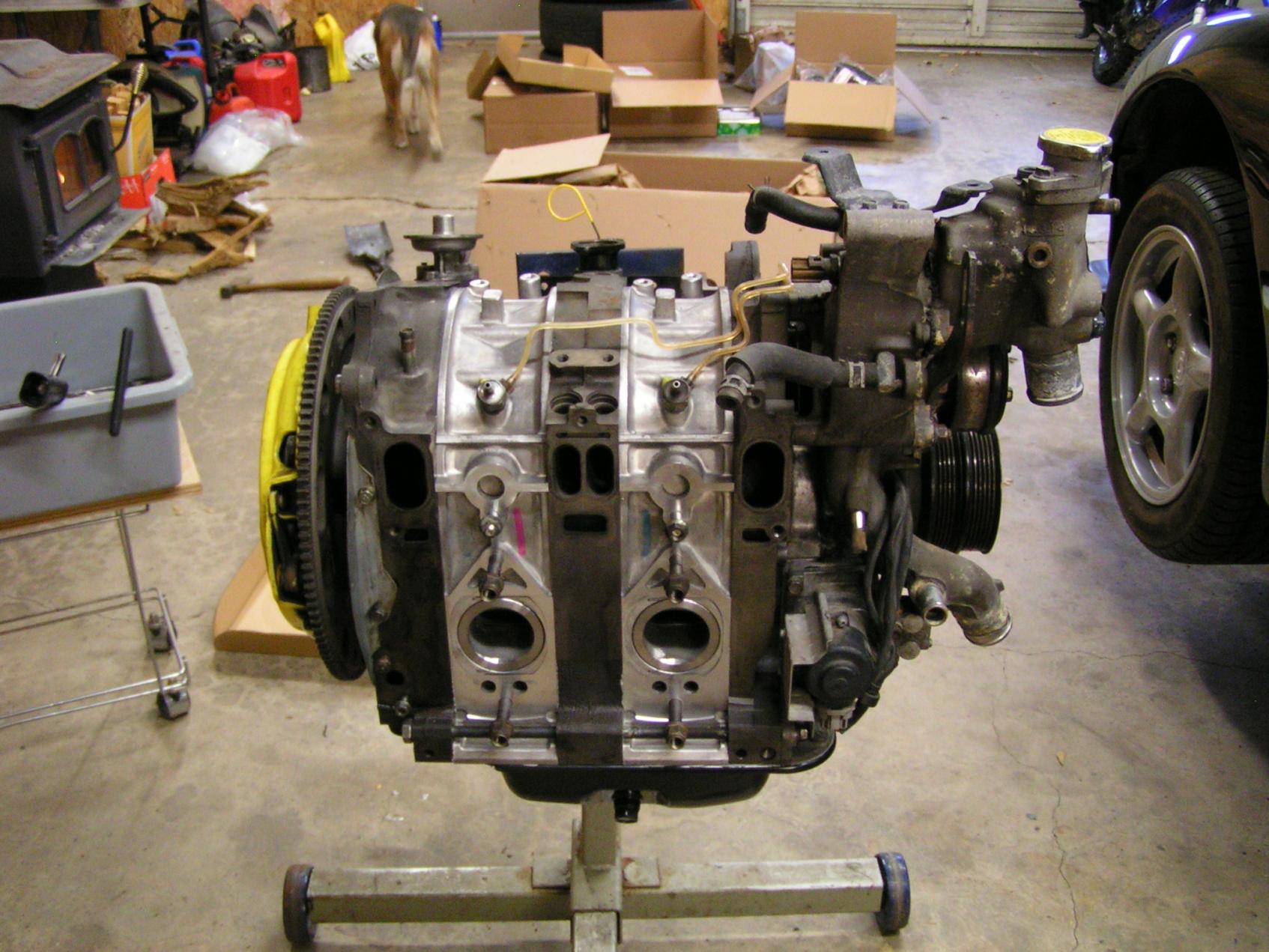

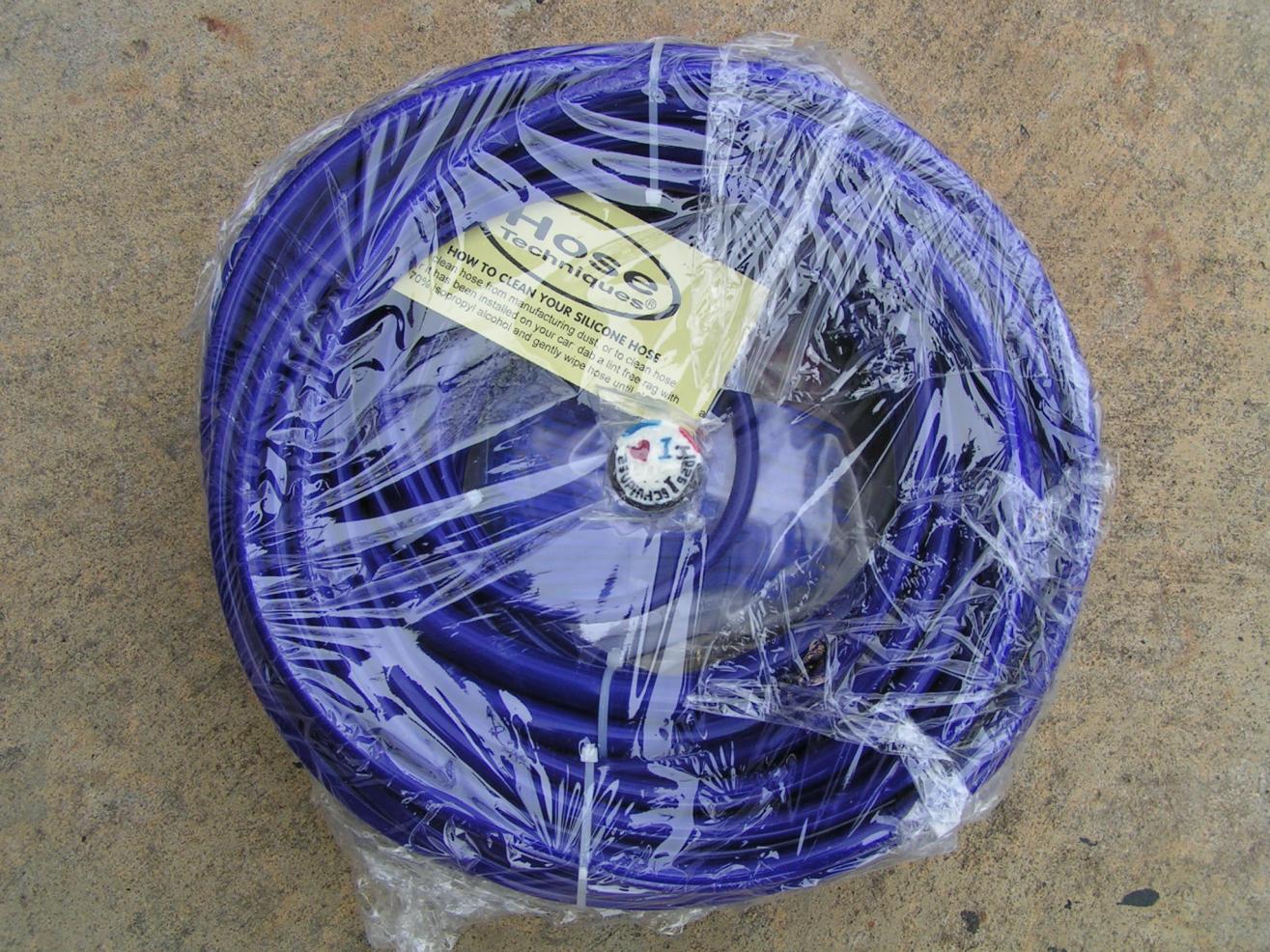

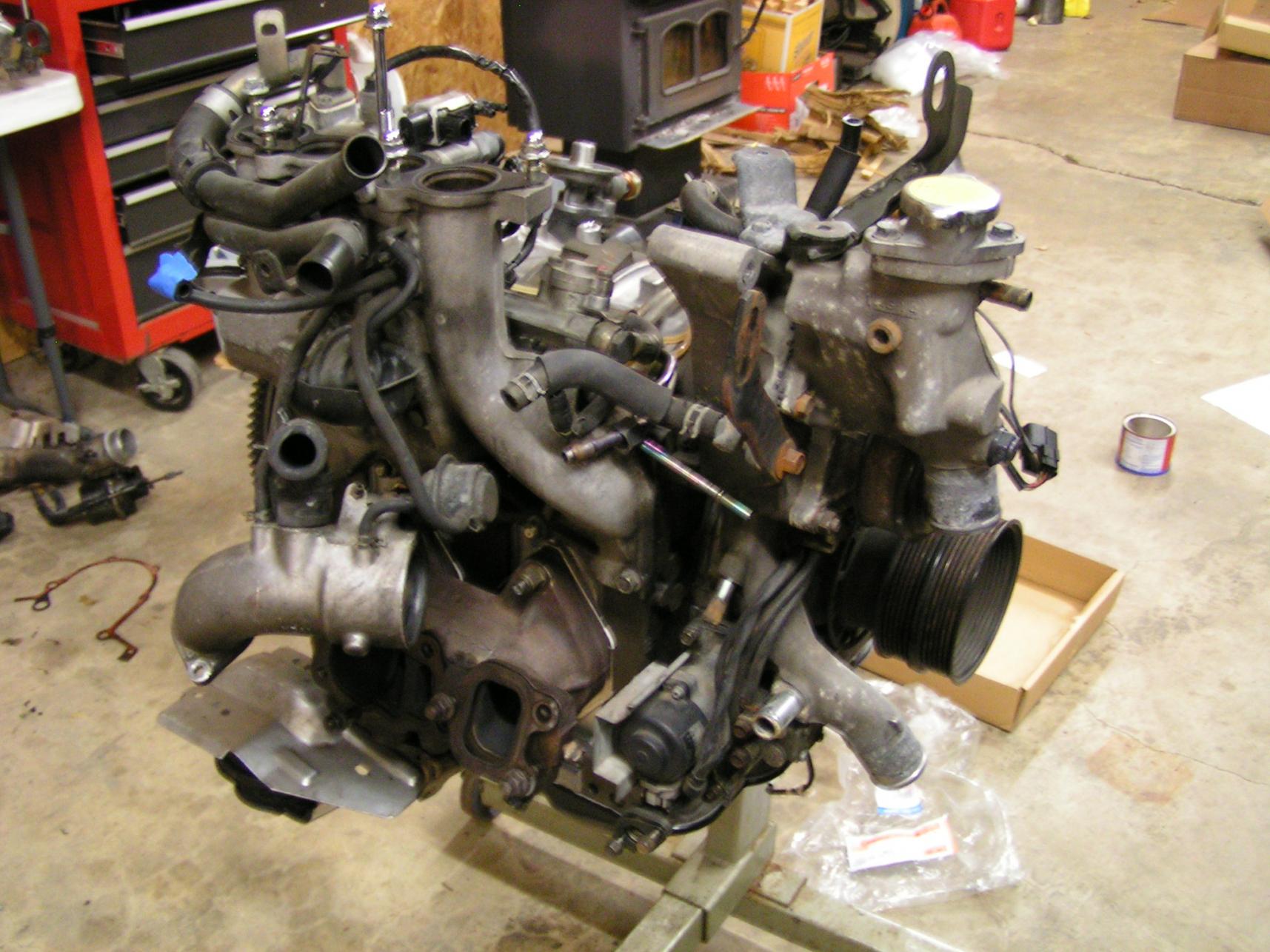

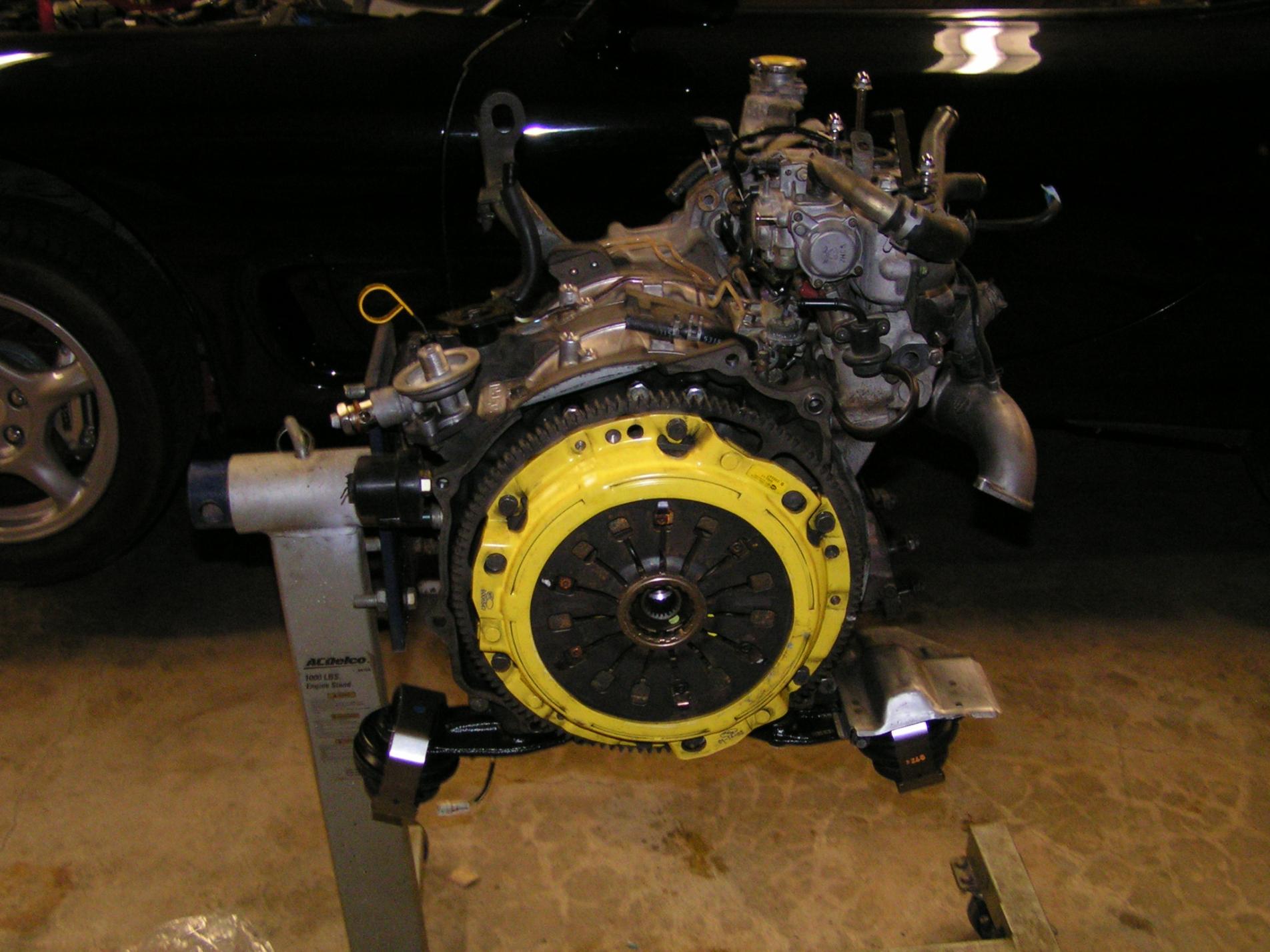

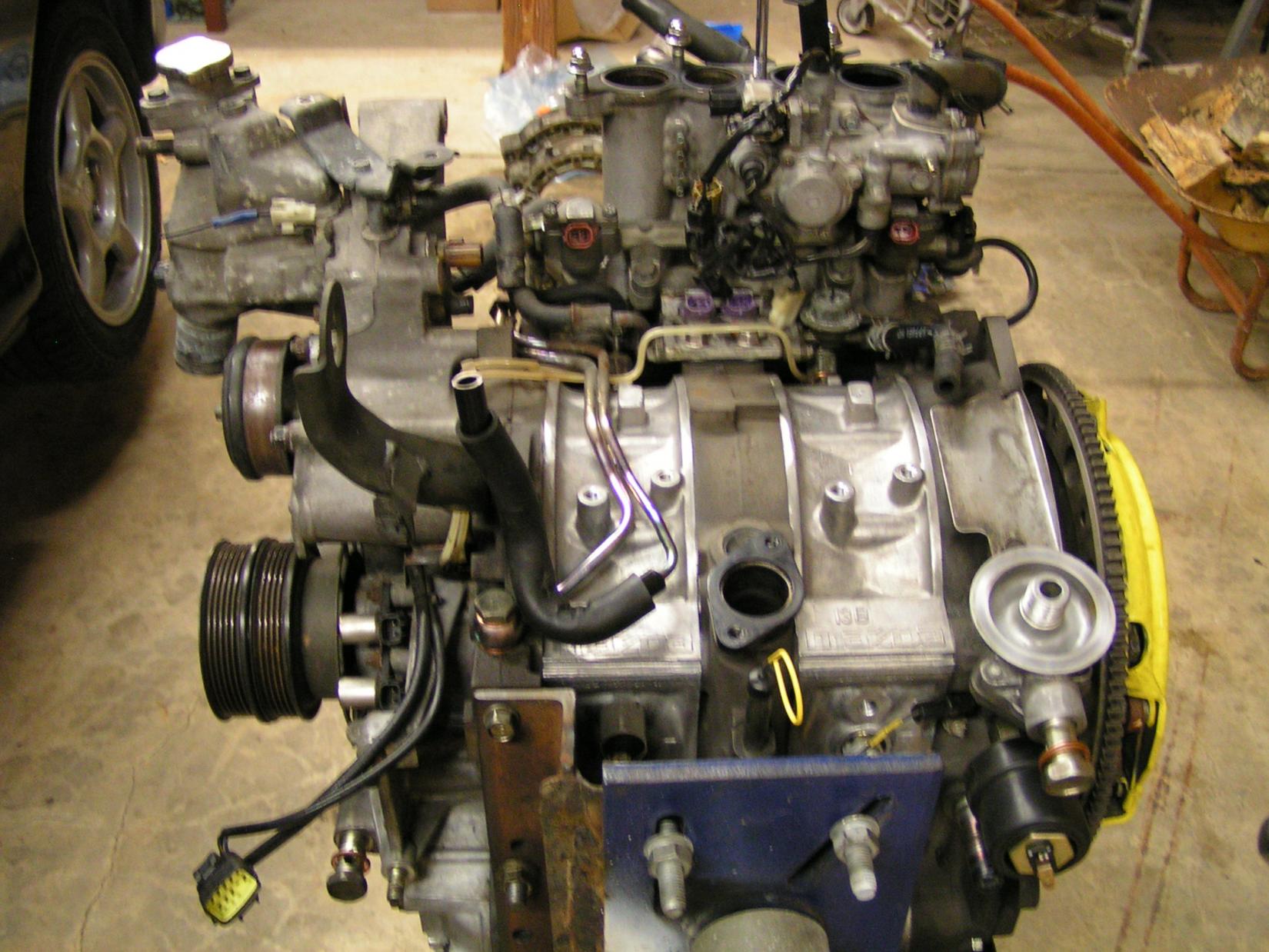

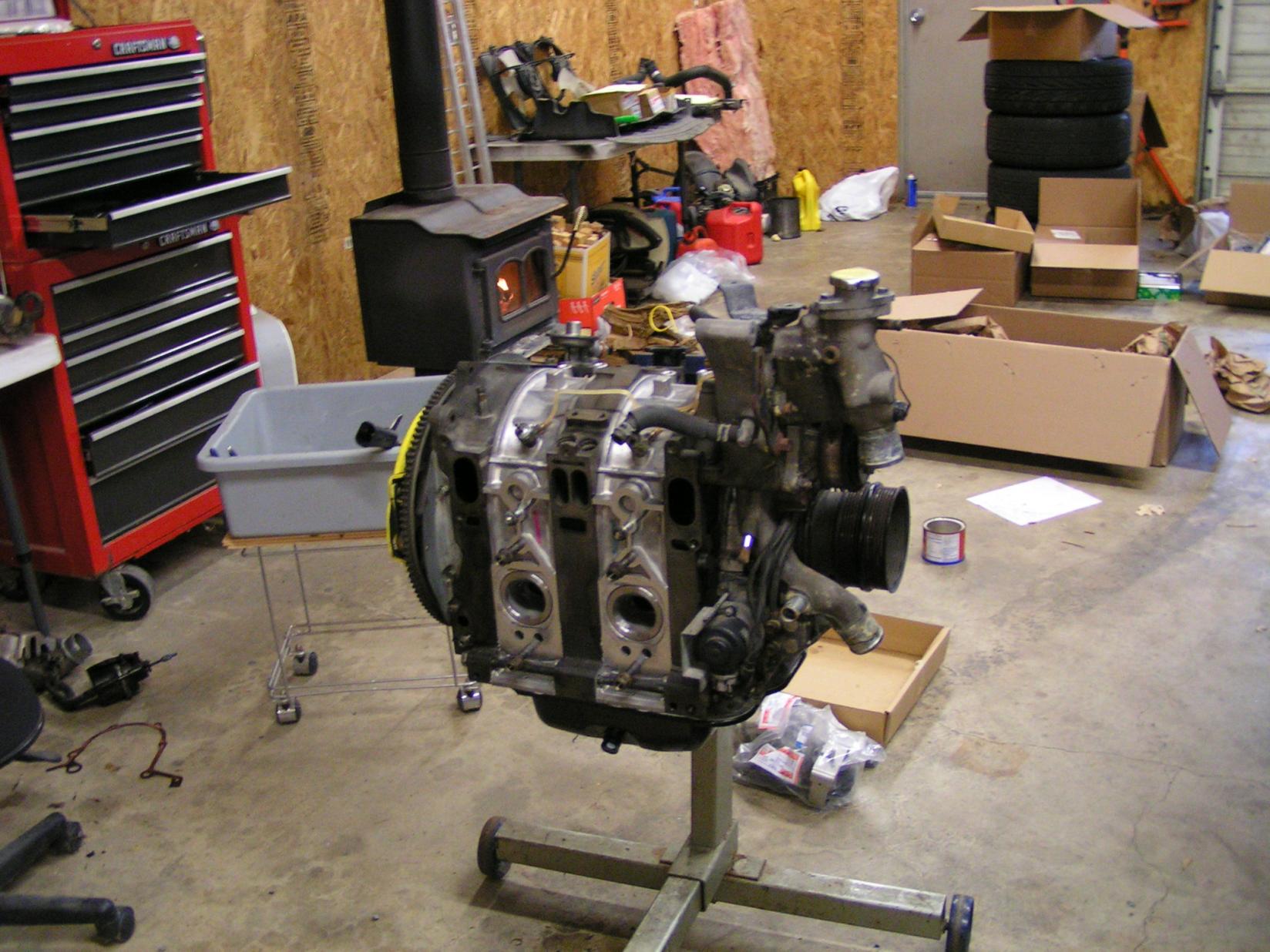

And this is it at the end of the day. Waiting on a silicon vacuum hose kit from www.hosetechniques.com So far so good, just cleaning everything up and taking my time. The car has an 11lb flywheel and act clutch. Not sure if I will mod much, considering spraying meth sometime in the future, but most likely I will just accept that it is not the fastest car on the road and enjoy it.
#25
Engine installed and runs well, but new oil pan leaks. Dropped the cross member, pulled the pan, and looks like the rtv grey sealant did not stick to pan very well, I assume because of the paint on the pan. Part of the problem could have been that I installed the engine mounts after the pan had already set for a day, and could have disrupted the sealant. I did not use the oil pan gasket. Hopefully, the car will be ready after this setback. Also installed new toe link bushings and shifter bushings. Car has two cycle oil in the tank since the oil injection pump lines are dry.
