WOW! just WOW!!!!



It's been a while since I've posted an update. My fabricator has take longer then expected.

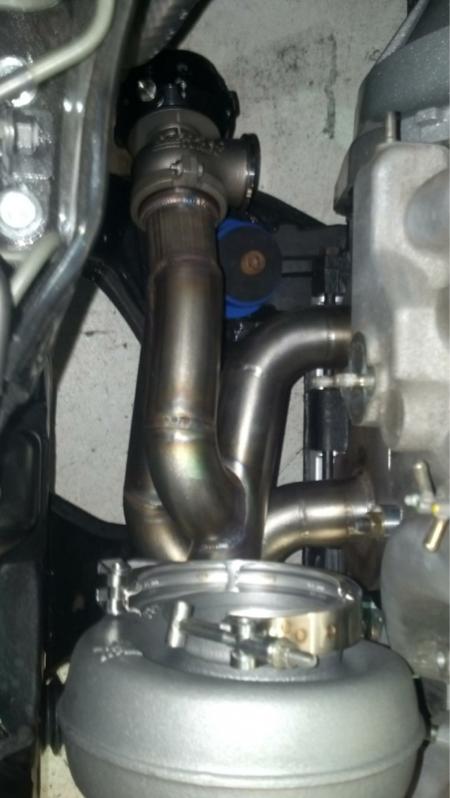

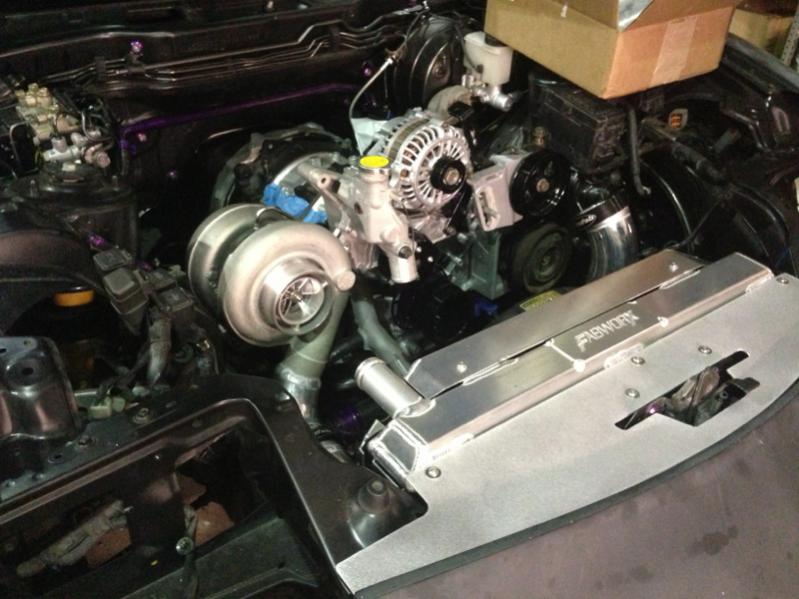

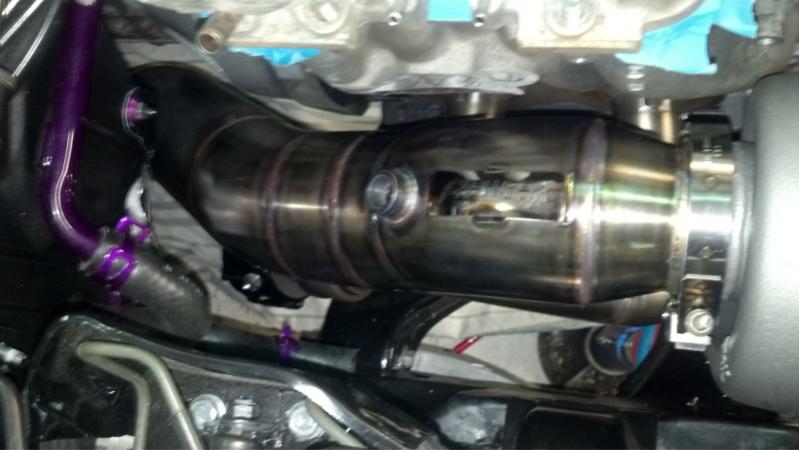

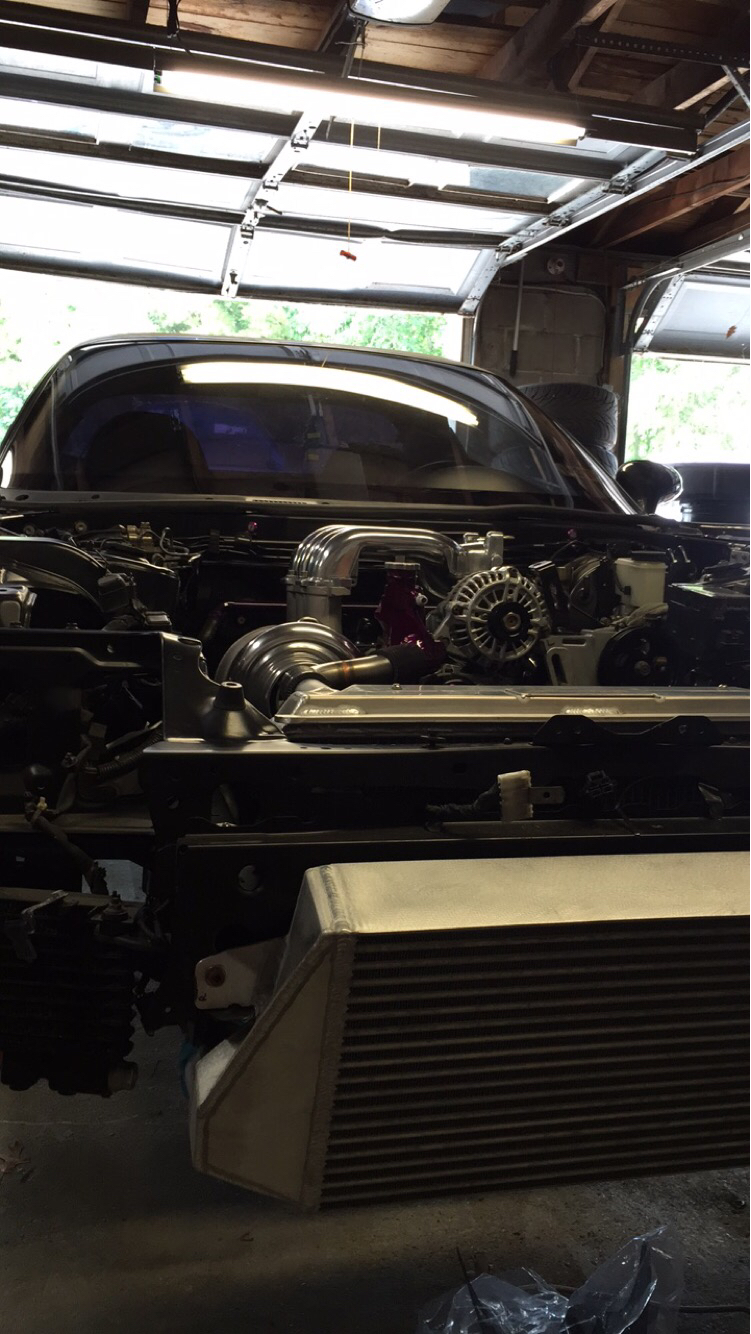

I had a custom FMIC, Radiator, Manifold, and Dump tube built. All the vacuum lines are going to be stainless.

I'm highly considering running a proEFI w/ flexfuel sensor. Has anyone here had experience with that ecu and/or E85? Anyway, here's the pictures:

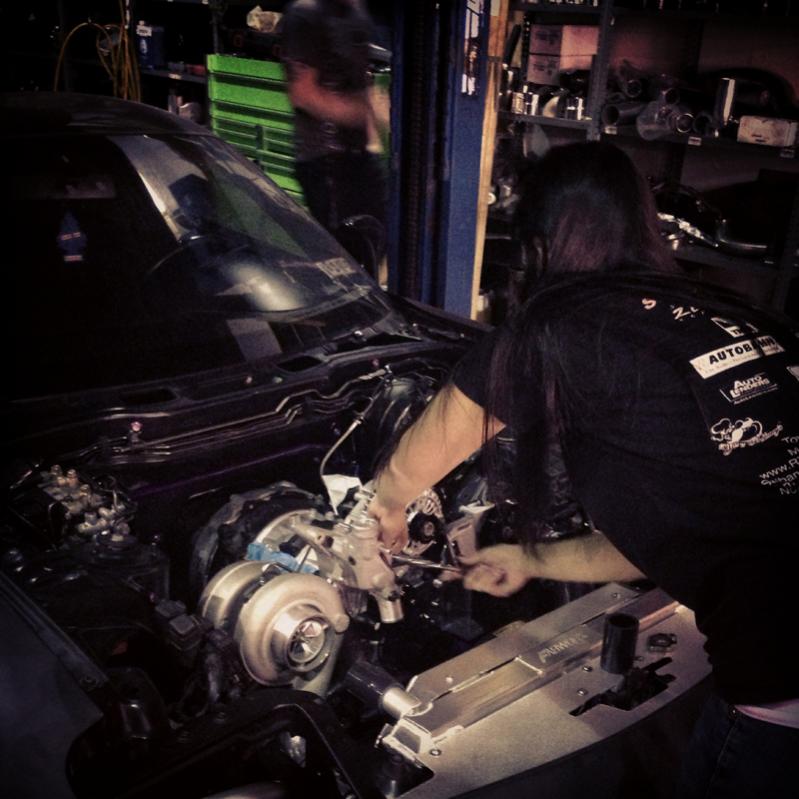

Had the girlfriend helping out again



Love the quality and attention to detail of this build. Good job bro!

Are you going with the RA classics or super seals?



They are the Super Seals. Hopefully they work. I've decided to go with the ProEFI with a flex fuel sensor to try out E85.

If anyone needs an Apexi AVCR or PowerFC let me know.



I'm curious as to what made you decide on the ProEFI.

I've a PFC right now but I've been thinking when I do upgrade, it'll be an adaptronic when I want to run higher boost and have it control the water/meth.



I've always been curious about E85 and wanted to test the waters. The ecu can basically do anything I need it to it just what sensors you want installed $$$ so it gets pricey.
The other leading factor is the guy I spoke with had great success with the unit on another rx7 plus he's a reputable shop and local so if anything went wrong I don't have to go far. The only down fall is it gets expensive.

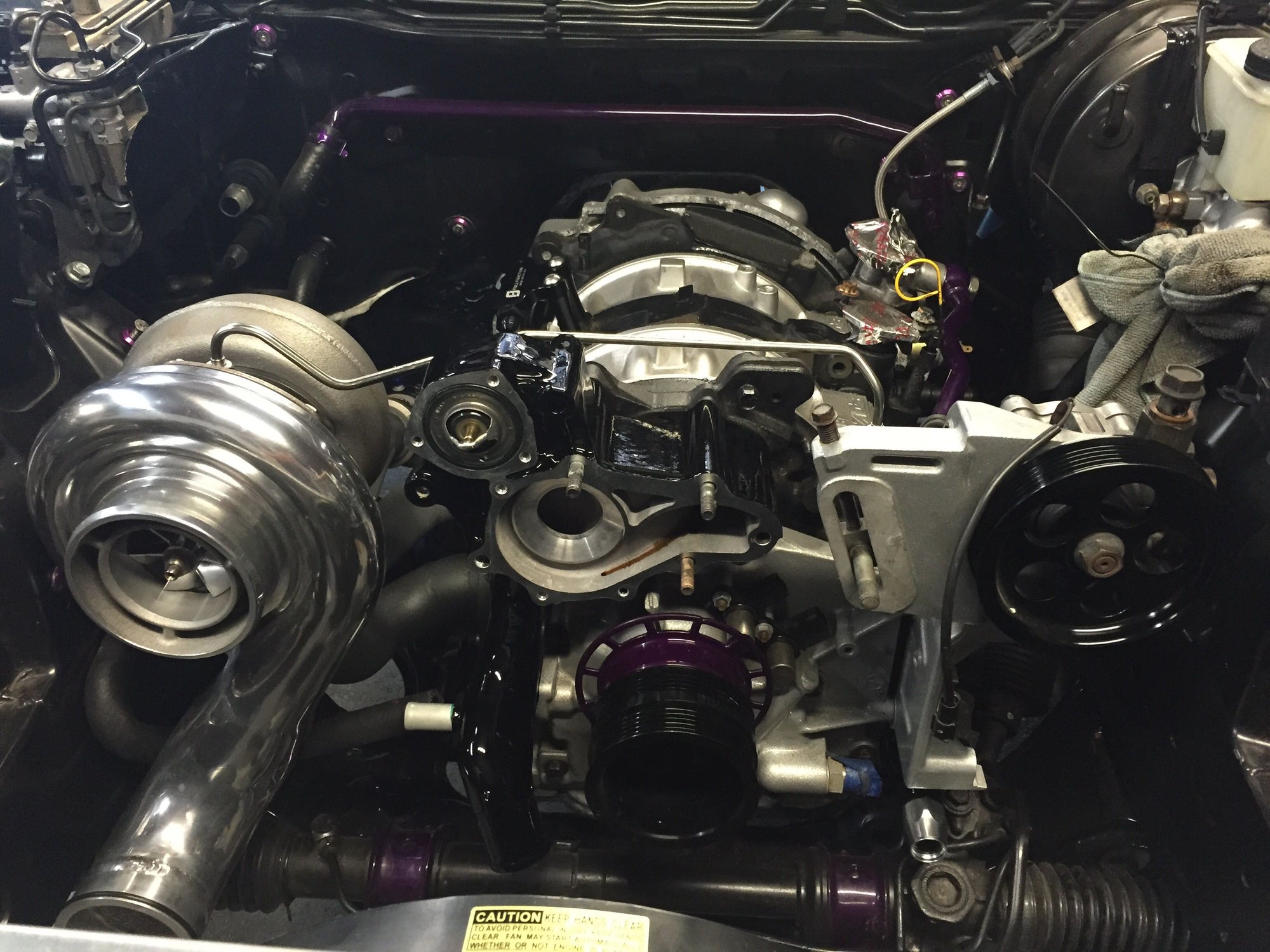

So.. I've been back at the project again making headway on the fuel system. I'm running -10 as a feed and -8 as my return which will feed 2x ID850 Primaries and 4x ID2000's Secondaries in a eXcessive LIM with FFE fuel rails. I've got to say the only thing better then quality of FFE rails is their customer support. Billy has been a huge help.

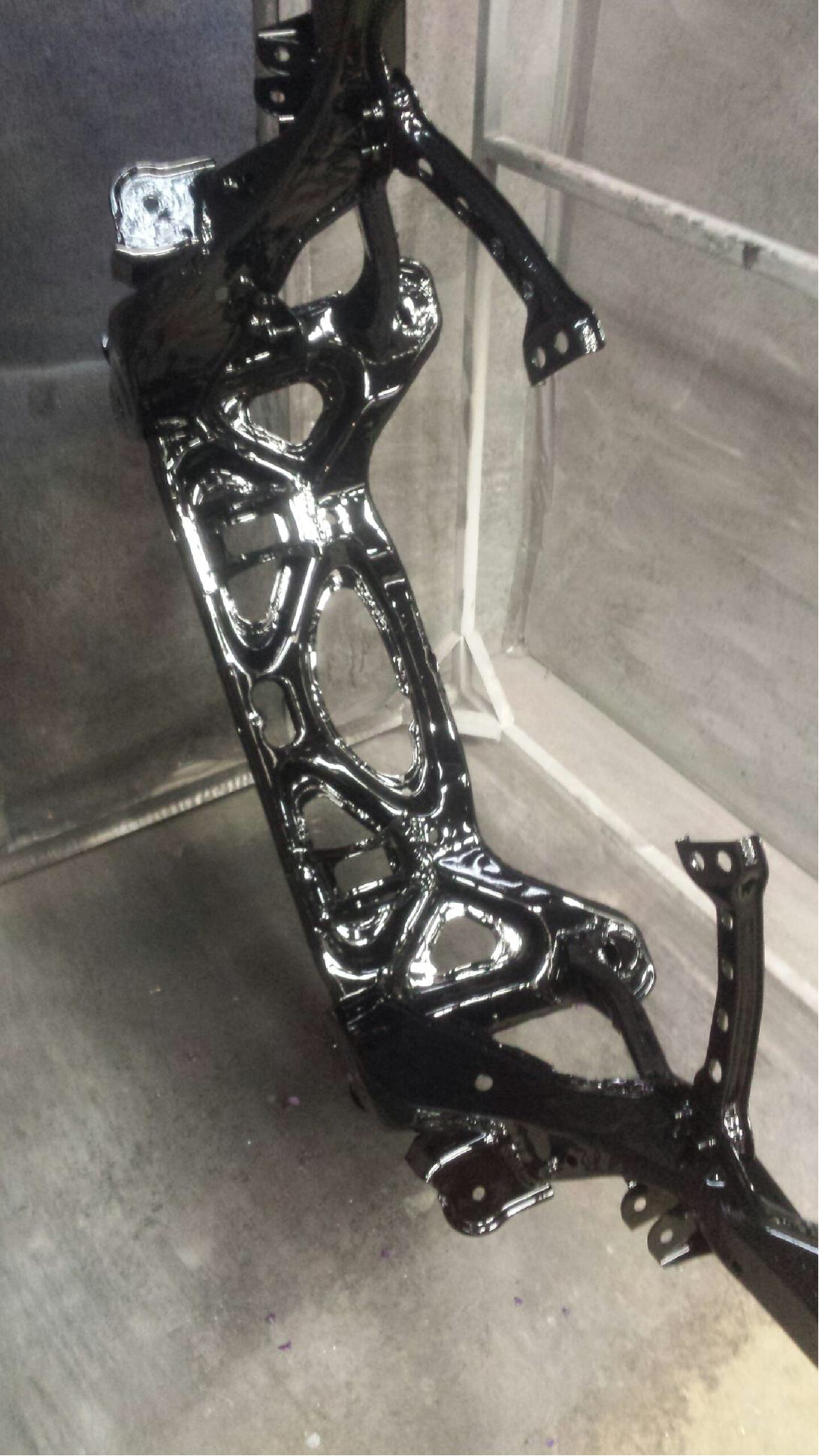

I pulled the rear to free up some space for routing fuel lines, etc. so I had the rear sub frame along with all the control arms powder coated, and rebuilt with OEM bushings and pillow *****. I decided to ditch the factory Torsen diff and went with a KAZZ 1.5 w/ stock gearing. the diff cover and housing were also powder coated. I'll get more pics of the rear as it gets closer to being done.

Here's some pics of progress.



I also decided to break down and stop loading my car onto a 7ton equipment trailer.. I bought a trailer for my car.. I feel that every rotary owner should have one. Haha



Thanks, I appreciate it. It definitely takes a little more time, money, and a few more beers. Haha

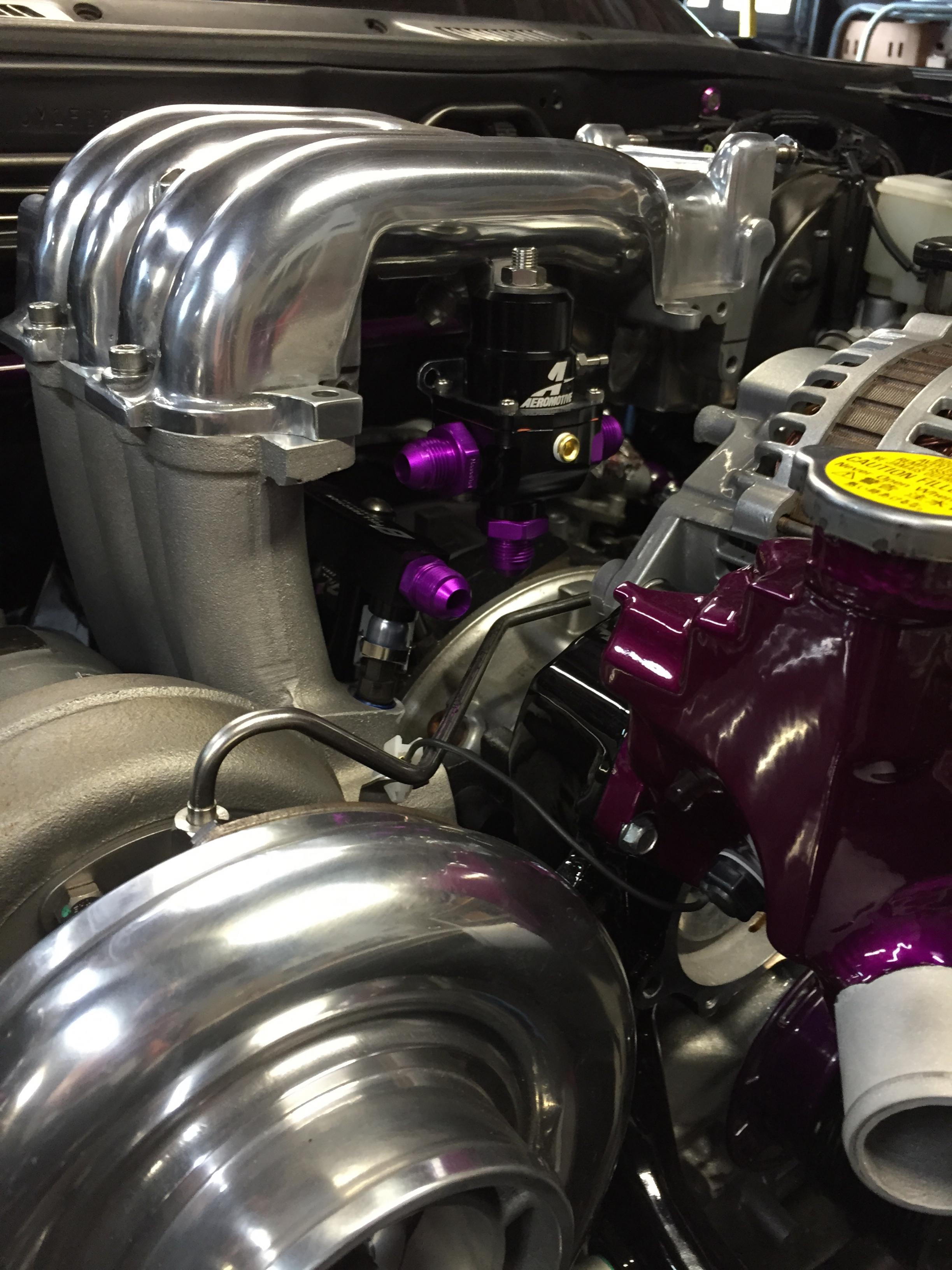

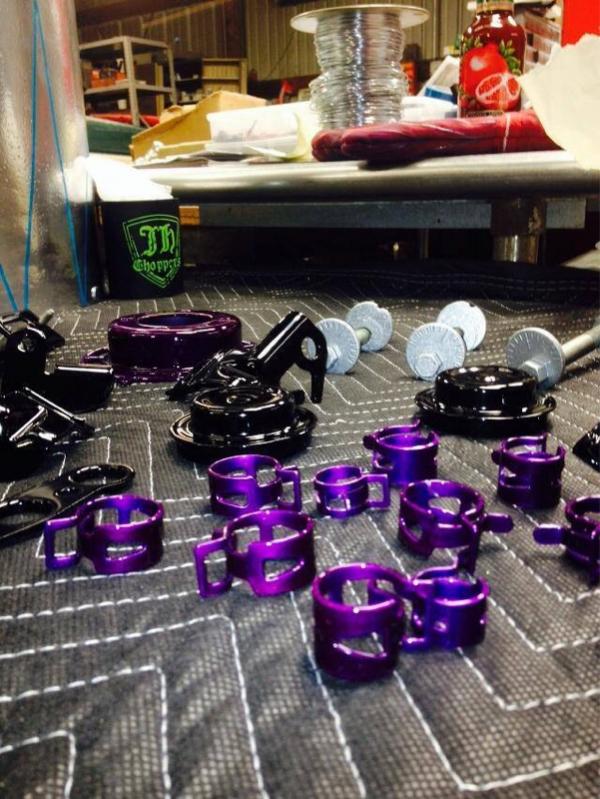

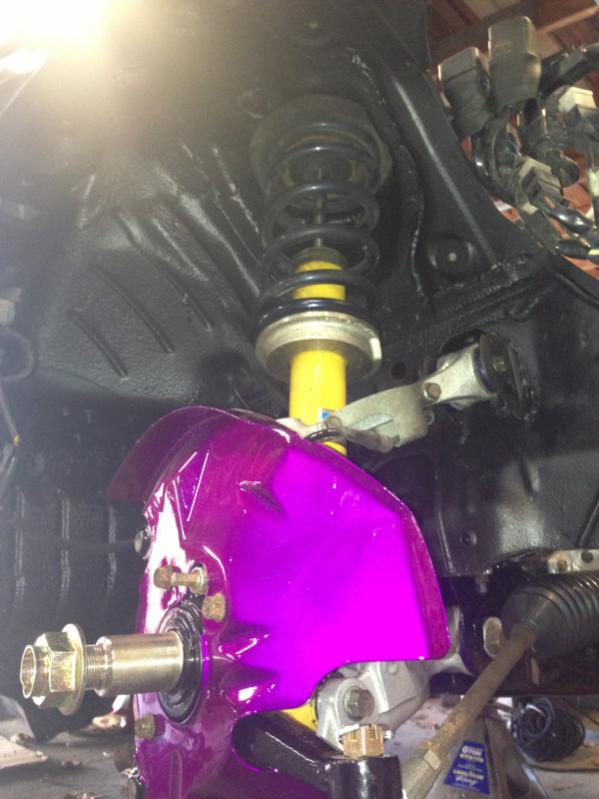

I was surprised I liked it too. Purple wasn't in the plans but my guy who powder coats showed me it, my girlfriend liked it and you know how that goes. I think I'm done with the purple because I'm just using it as an accent, but I'm undecided on what to do with the UIM, and LIM... Powder coat, Polish, etc. any suggestions?

I wish I could build that plenum l. I have a guy locally that welds for me.

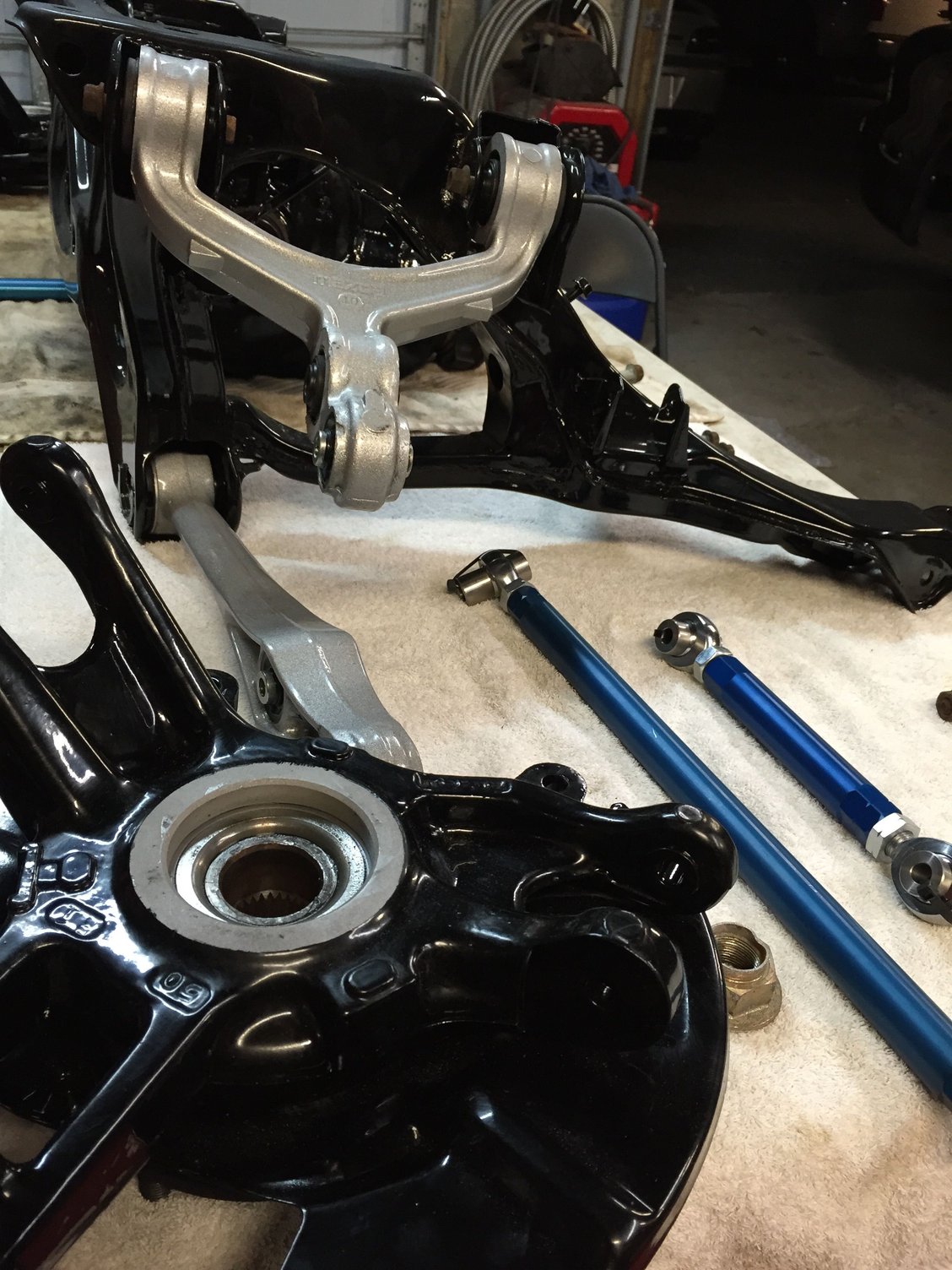

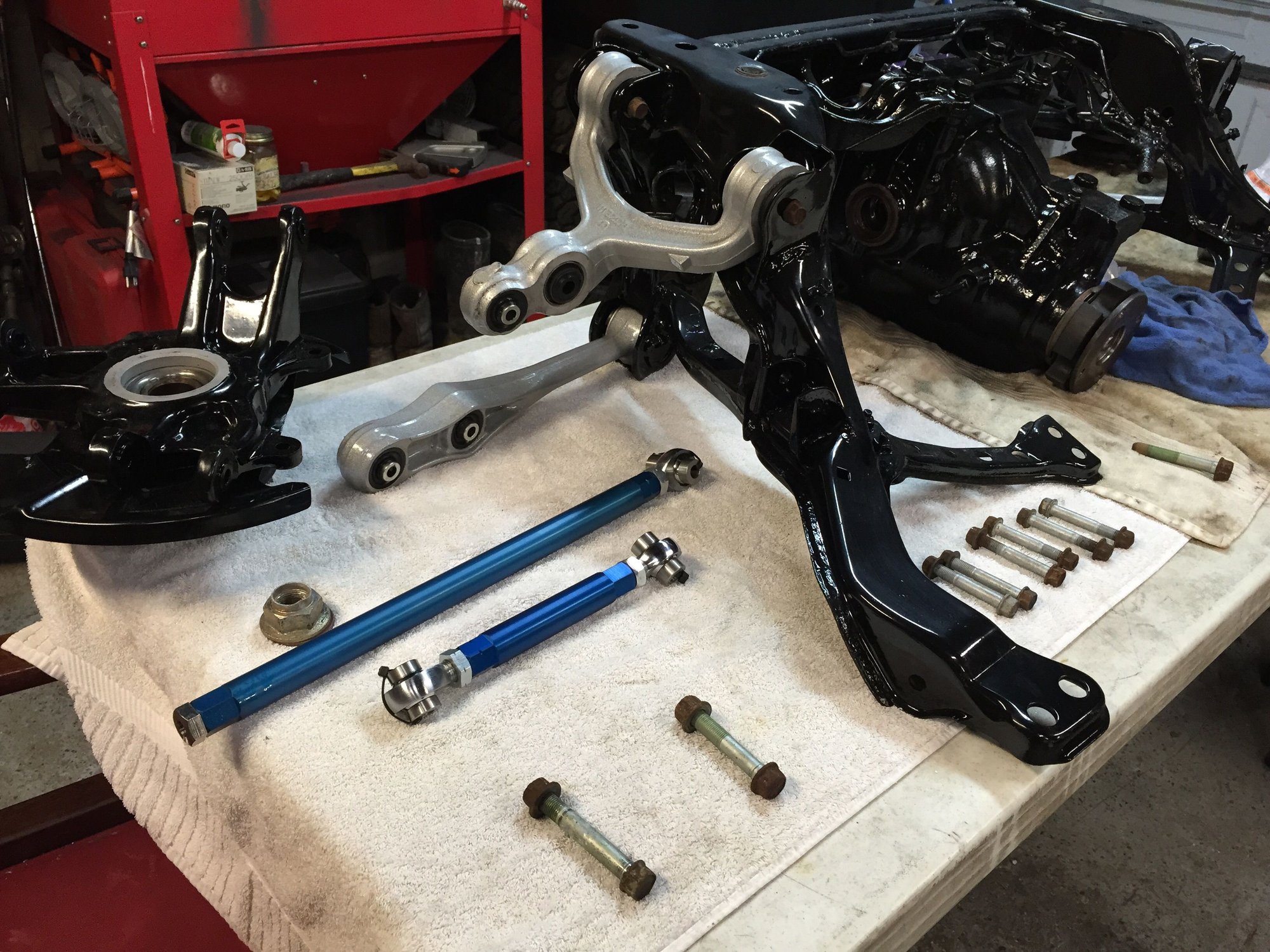

Just a few pics of the rear suspension components, subframe, diff housing/cover before everything gets pressed in.

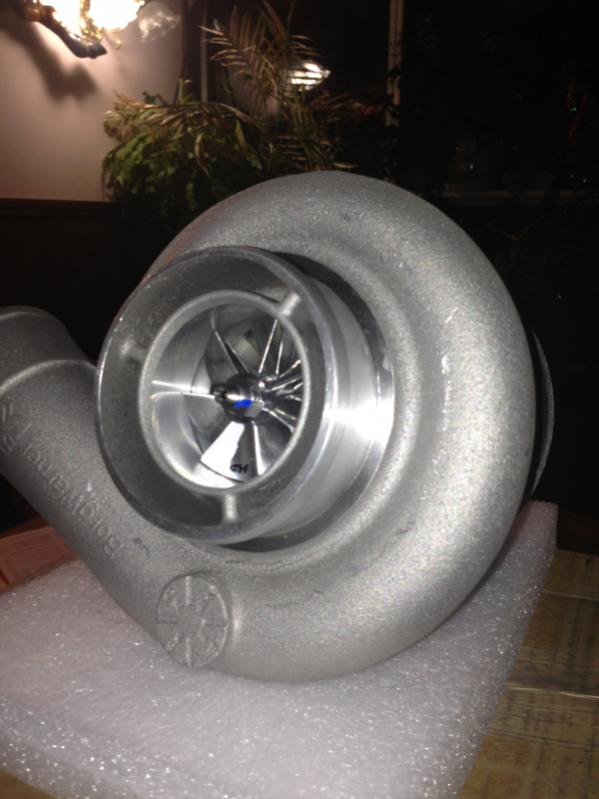

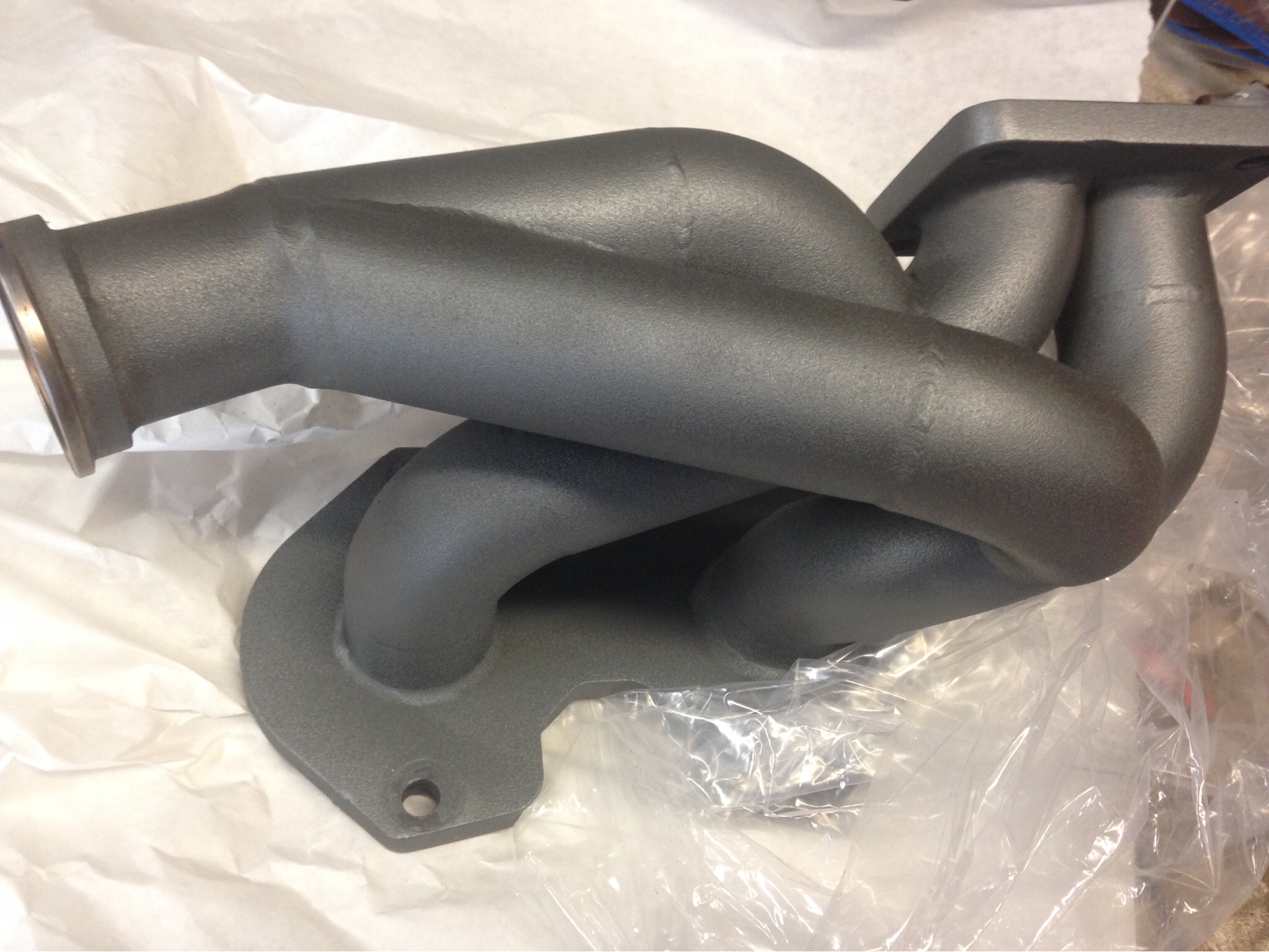

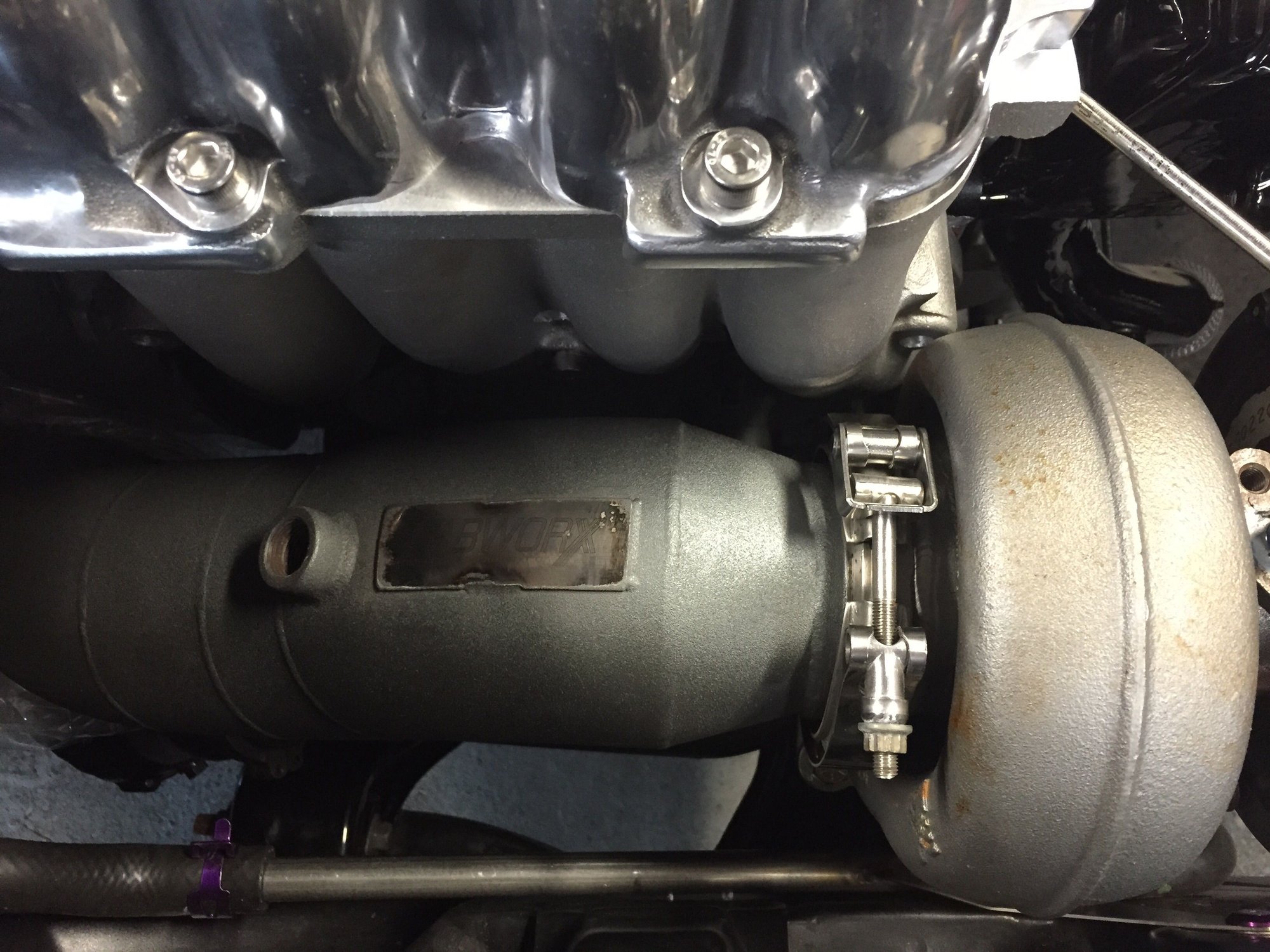

I had my manifold, down pipe, and turbo jet hot coated, and I went with Jet Hot 2500, hopefully it holds up I've heard mixed reviews.
My down pipe and hot side of the turbo will be wrapped in an inconel, it's expensive but I heard it works.. We'll see.
Can't have too much heat protection.



I want to see more on your tb elbow. It looks neat as far as I can tell.



I like the purple powder coat. It all looks very nice.

I see you got the differential cover coated already. Did you know you could use the rx8 cover as an upgrade with more cooling? It had a heat sink that hangs into the airflow.

Keep up the good work!
Vince



I have heard of guys using rx8 differentials because the housings are stronger, but that's about it.. I didn't hear about swapping covers.. With that.. Powder coated purple FD diff cover f/s



Made a little more progress..

Picked up all the bearings and seals for the diff. Along with the bushings, pillow *****, etc. for the rear from the dealer. That got expensive.. Fast

The Aeromotive A1000 I bought has -6 ports on it and I felt like that wasn't enough for my goals. So, I bought the new Aeromotive X1 that has 3x -8 ports on it and can flow a ton of fuel. I haven't used it yet, but I test fit it today and I'm happy with how it looks, hopefully it performs.

-J



Great build, Do you in you think youll have it done in time for Wekfest in Edison this August?



This build is beautiful!!!



I hope so, but you never know.. It looks like it's gonna be a good show. Will you be there?

Thanks, I appreciate it. Definitely take more time getting things cleaned, polished, powder coated, etc. than it does to actually build it.



I spent some time today working with the SakeBomb Ignition kit. The instructions are good, but I didn't like having two connectors.. That did the same thing, so I cut them off and soldered them together leaving just one plug incase I ever had to remove the ignition harness for some reason.



I really need to get that kit, but after the rebuild and with a baby on the way its a bit out of my price range! I love your attention to detail, even down to the bolts!



It's a very clean install with minimum work i haven't fired them up yet but it's definitely clean. Thanks, for the compliments.

I finally got everything ran to the back(including the battery), and it definitely frees up some room.

I had a chance to grab a pic of my Kaaz before the diff cover was bolted on. I'm souped to finally put the rear together.





Progress of the battery relocation.








Nothing special.. Just thought it looked cool.





Kaaz 1.5



All new rear pillowballs, bushings, and the rx7 drag link kit are all ready to be assembled.

Last night was busy at work and haven't got much sleep so not much else was done, but I just wanted to update the thread.

More progress tomorrow



Worked on the rear until 2am last night and got the rear finished up.

All the fuel lines cleared the sub frame and the fuel filter is easily accessible. Surprisingly the rear went in easy, it's just very heavy. Thank god for ATV Jacks.



More updates:

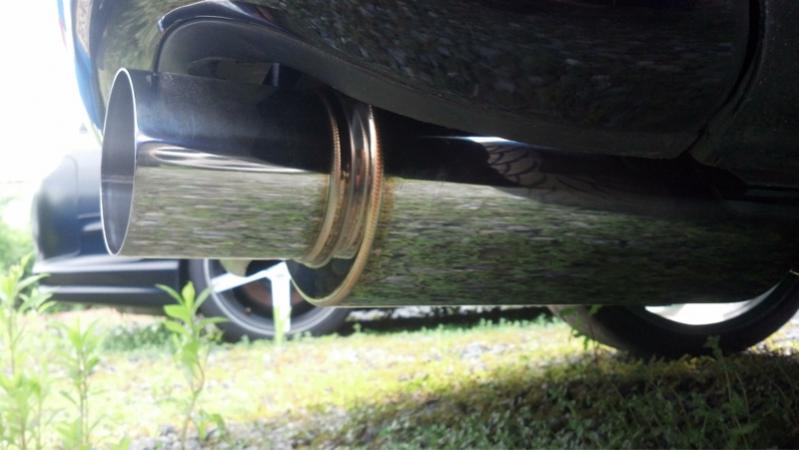

The Sub Frame is bolted in, PPF, drive shaft and the exhaust is installed. Making decent progress, I hope to have it running within a few months.

The next step is to have the fuel lines hard lined.



In my best Borat voice, "Very nice!".



Update: She's back on all 4 tires. It looks so much better seeing her on the ground and not hovering 2ft in the air on jack stands

Hard Stainless fuel lines are being made this week so the FFE Rails will be connected to something other than air.

I finally got to use my trailer for something other then hauling my buddies cars around.
