Hello all, i have converted the pfc basemap for 9.0 compression (13B-REW v5.08) posed by ARGHX in this thread for ( https://www.rx7club.com/haltech-foru...altech-969764/ )

Please let me know if anything looks wildy wrong or if there is a fundamental flaw in the conversion,


Please dont just open the file on your ecu, edit the load and rpm points and then import maps only from ecu file.


Thanks

Mike



Hi Mike

I'm not sure what u are trying to say at the end as a warning. If I download your file and open in Wari and write to my Ecu I should have the PFC baseman for an RX-7 Fd correct? Or are u saying to manually edit the rpm points from the pic you provided then write to ecu

Johm
​​​



Use the import maps only feature in wari or Eugene. First set the load points and the rpm points then "import maps only"

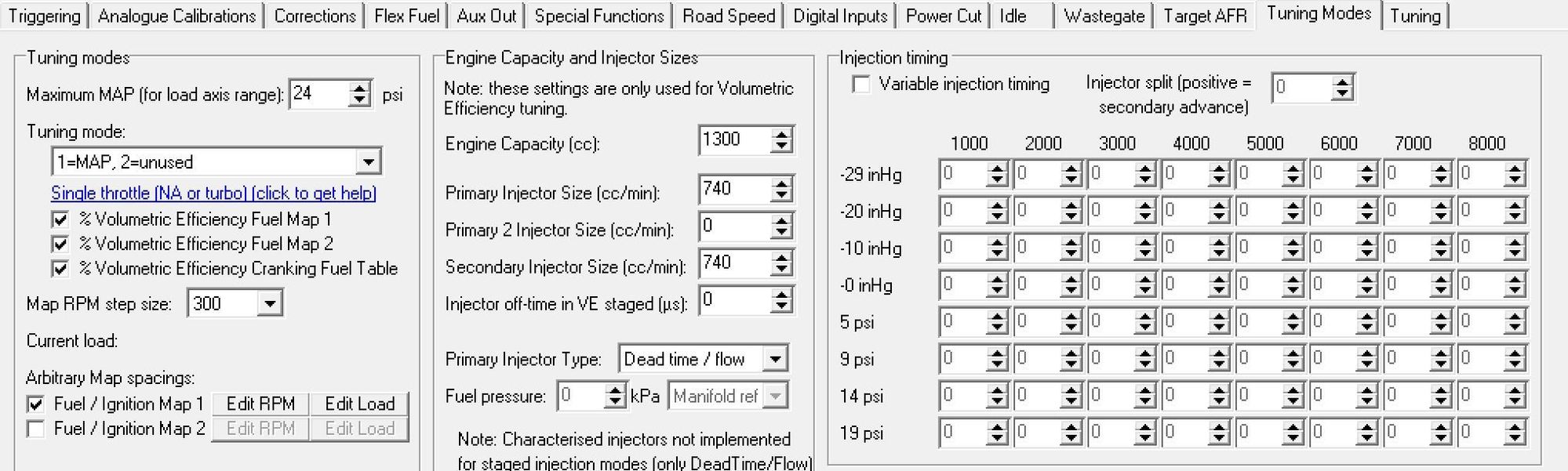

opened up wari and loaded your ecu file why are your injectors 740 for primary and secondary?




Here are my fuel and ignition after loading the file, so they look correct?



I have a different injector setup as well as trigger, I do not have an FD.
