OkBlue_FD

I see some people with fmic have moved there radiators upright as apposed to the stock mount slanted forward. I do have a koyo aluminum radiator with fan upgrade. In order to fit my fmic will i need to turn my radiator upright or what is the purpose of this? Some one please educate me?

tom tim

there is no room if you leave the radiator in the stock placement.

flexwithme101

i would just like to know how to used this forum how to post a question and lot more thank u

OkBlue_FD

ok how do i turn it upright? Is there a kit?

Upgrayedd

iTrader: (1)

Usually if you buy an FMIC the relocation brackets and hoses come with the FMIC kit. My HKS FMIC was that way.... When you pick a FMIC find out if it comes with everything to relocate the radiator.

OkBlue_FD

Yeah i didnt buy a name brand intercooler kit so i guess im going to have to do some custom work to relocate the radiator. Unless some one knows where i can get the new hoses and brackets.

WolfpackFD3S

For the radiator hoses, you can try cutting the stock ones or just go to an auto parts store and pick up some radiator hoses that look like they might work if they are cut. Probably have to get the brackets custom fabricated unless you can cut metal and know how to weld.

BuckyFD3

Does the rad work better V mounted or upright??? I have the choice of either but would like to do it the best way.

I'm running a chargecooler so space isn't a problem.

spekdah

surely there is sqadillions of threads covering this going back to like 1897, do a search

RX7LINK

iTrader: (3)

can i trouble u to post a picture of ur engine bay how the radiator and IC piping look w/ your HKS IC setup. Thanks in advance

OkBlue_FD

I Can weld and cut metal but would rather try to find brackets it would make evertythin g a lot easier. Alsoj a few weeks ago i tried removing the radiator because i had a leak. I got everything out except for the radiator. It seemed loose and it wasnt bolted in i just couldnt get it out of the stock mount position. Anyone know how to get it out?

Montego

iTrader: (1)

that's actually not true. I was at my mechanic's this weekend and there was this customer's car with a FMIC and had a stock radiator in the stock location. It was being worked on so I don't know the final configuration but it sure does fit.

The radiator is moved upright for better airflow (in the FMIC configuration).

HAI-TEK7

iTrader: (31)

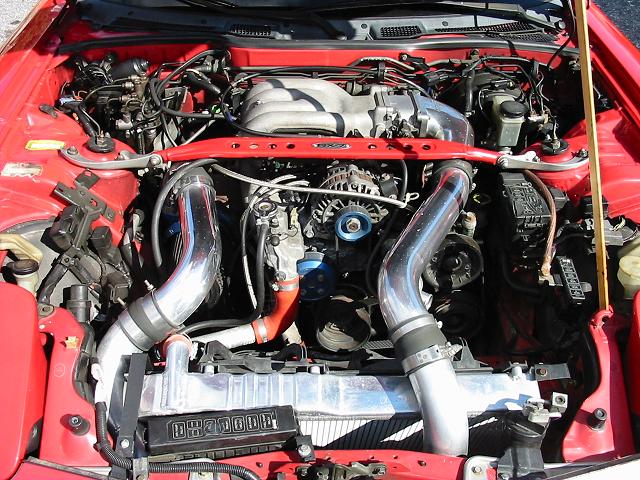

Mines not an HKS, its a Greddy. The kit did come with all the brackets, but i still had to cut the brackets and bent them to get it right.

Hope it helps

Hai

fastcarfreak

I have the old rx7 fashion intercooler setup with the apexi core. It allows for the radiator to be stock mounted.
