Where to find this brand of resistors (see pic)

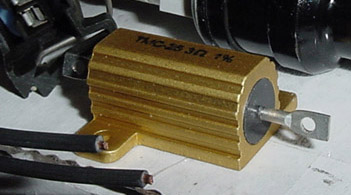

Earlier today I broke a wire off one of the Radio Shack resistors I was using on my injectors when I was moving the harness around. I want to replace them with something more robust and I noticed that k2rd includes a nice looking set with their injector kits. I have attached a picture of the resistors below. If anybody knows who makes them and where I can purchase them please let me know.
Best,
Chris C.
Best,
Chris C.
Hooray For Boobies!!!
Joined: Sep 2002
Posts: 3,570
Likes: 1
From: Washington
www.digikey.com
may be able to help.
Do you have a part number or part description? If you do type that into the search bar of digikey.
Otherwise you may need to call K2RD.
Good Luck
may be able to help.
Do you have a part number or part description? If you do type that into the search bar of digikey.
Otherwise you may need to call K2RD.
Good Luck
Thread Starter
Rebreaking things
Joined: Jun 2001
Posts: 2,586
Likes: 0
From: 1 foot in Boston 1 in NJ
Thanks. I actually looked at that site before posting. I wasn't able to find the resistors there, but I don't have much information to search with yet. My first call will be to K2RD. My only reservation about buying from them is that they aren't always prompt at processing orders. Since my car is down I really don't want to wait any longer than I have to.
Last edited by LetsGO7; Sep 12, 2004 at 10:56 PM.
You can buy them here from Mouser for about $2.20ea. The resistor in the pic is 3 Ohm, 1%, 25-Watt, so the part number would be 284-HS25-3.0F
That said, it seems to me that the value should be around 10 Ohms since that's roughly the resistance difference between hi and low impedance injectors. You might want to do a search or call a reputable shop before deciding on the value, though.
That said, it seems to me that the value should be around 10 Ohms since that's roughly the resistance difference between hi and low impedance injectors. You might want to do a search or call a reputable shop before deciding on the value, though.
Thread Starter
Rebreaking things
Joined: Jun 2001
Posts: 2,586
Likes: 0
From: 1 foot in Boston 1 in NJ
Originally Posted by patriick
You can buy them here from Mouser for about $2.20ea. The resistor in the pic is 3 Ohm, 1%, 25-Watt, so the part number would be 284-HS25-3.0F
That said, it seems to me that the value should be around 10 Ohms since that's roughly the resistance difference between hi and low impedance injectors. You might want to do a search or call a reputable shop before deciding on the value, though.
That said, it seems to me that the value should be around 10 Ohms since that's roughly the resistance difference between hi and low impedance injectors. You might want to do a search or call a reputable shop before deciding on the value, though.
Trending Topics
Originally Posted by CCarlisi
I just ordered a set of 10ohm, 10watt resistors from Mouser. They were $1.92 a piece. Thanks for the link.
Full Member
Joined: Apr 2007
Posts: 51
Likes: 0
From: Dallas, TX
doesnt www.rx7store.net and www.kgparts.com carry them? i thought you guys knew, i bought a set from www.rx7store.net.....fast shipping m'fers i gotta tell ya!!!
