Watsup,

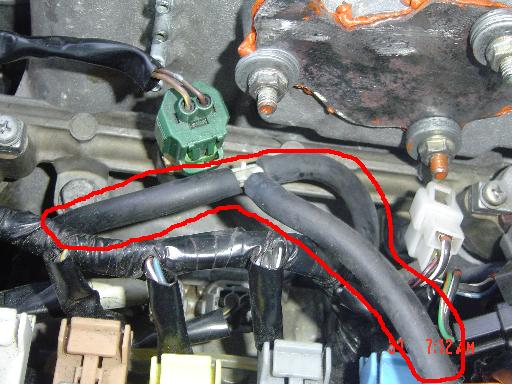

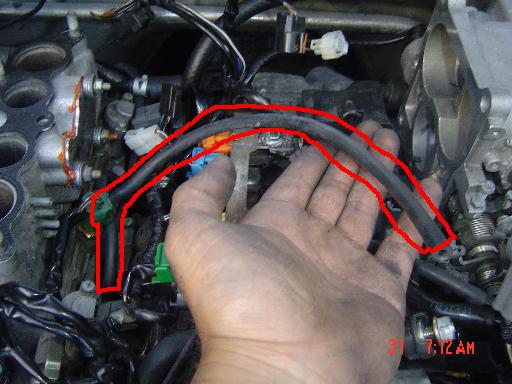

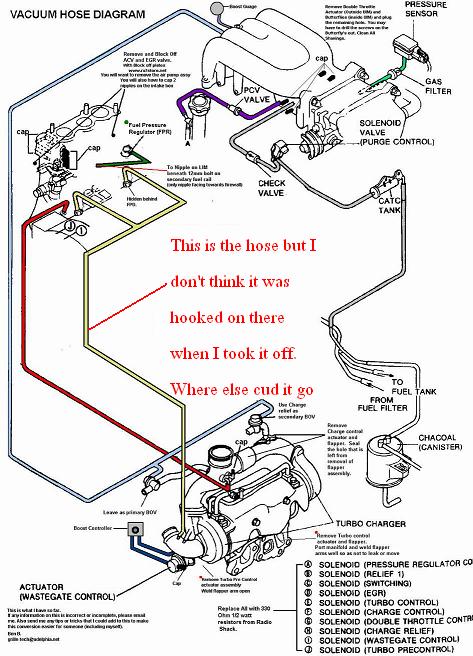

I need some help figuring out where this hose goes. Refer to Hose_Diagram pic, you will see which hose i'm talking about. I know in the diagram it says it goes in the turbo elbow but i don't recall taking it off from there. I am running a non-sequential set up right now so could it go somewhere else or is it just there to vent out?

Another question i have is i made a block off plate for AWS. Now my question is do i still hook the connector up? And which hose hooks up to the accuator, if there even is a hose.

Sorry for all the question, my first time working on my car. I appreciate any help i can get.

Thanks

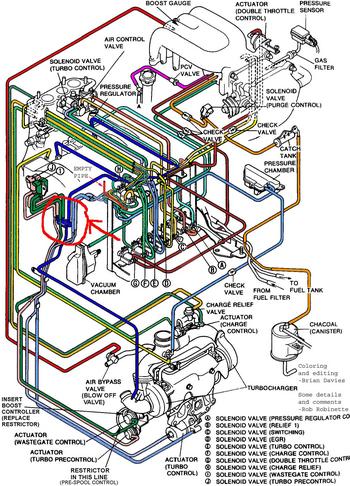

Right mate,,,basically it used to go to fancy T joint where the turbo control solenoids where, but if your running no-sequential that diagram is probably correct and that hose goes straight to the vacuume side of the turbo (it the oil injector control pipe by the way) check this digram here to confirm.



oh k soo it does hook to the elbow of the turbo right mate?



yup thats correct :-)



awsome thanks! so i made the block off plate for aws but now do i still have to connect that with connectors?
