Where does this connector go?

Thread Tools

Search this Thread

Old Nov 21, 2011 | 11:46 AM
  #1
7 POWER's Avatar
Thread Starter
FD
Tenured Member 15 Years

Joined: Jul 2002
Posts: 16
Likes: 0
From: Texas
Where does this connector go?

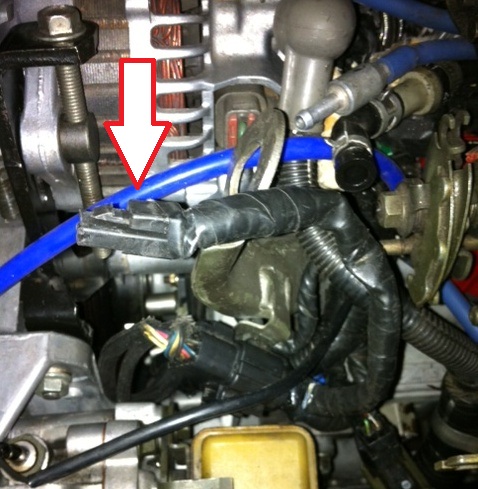

Need help finding where this one goes. It comes off harness near OMP connector. Looks like a ground. Yes I'm guilty...Car has been down so long I forgot where things go. Thanks.
Attached Thumbnails Where does this connector go?-photo.jpg
Reply
Old Nov 21, 2011 | 12:54 PM
  #2
Force13B's Avatar
No more G6
Tenured Member: 20 Years
iTrader: (19)

Joined: May 2005
Posts: 1,935
Likes: 1
From: Nipomo, California
It looks like the coolant level disconnect, and it connects to the starter harness.
Reply
Old Nov 21, 2011 | 01:00 PM
  #3
RotaryEvolution's Avatar
Sharp Claws
Tenured Member 15 Years
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 50
From: Central Florida
Originally Posted by Force13B
It looks like the coolant level disconnect, and it connects to the starter harness.
winner!

follow the harness from the alternator down behind the power steering pump to just above the rear of the a/c compressor and you will fine a white and black connector that match that one, obviously plug it into the black connector. the white one down there is for the a/c clutch.
Reply
Old Nov 21, 2011 | 06:25 PM
  #4
7 POWER's Avatar
Thread Starter
FD
Tenured Member 15 Years

Joined: Jul 2002
Posts: 16
Likes: 0
From: Texas
Winner confirmed!!
Connector's mate found hiding alongside harness described.
Great exhibition of FD knowledge. Thanks for the help.
