Where do you connect the boost controller solenoid on seq turbos

Thread Tools

Search this Thread

Old 03-14-11, 04:48 PM
  #1
Who say's i need a Van

Thread Starter
iTrader: (18)

Hotwheelz's Avatar

Join Date: Feb 2009
Location: Whatsittoya
Posts: 609
Likes: 0
Received 0 Likes on 0 Posts
Question Where do you connect the boost controller solenoid on seq turbos
I searched 11 pages for an answer that i did'nt find...but just as title says, I have a standard electronic boost controller solenoid and the directions show a install for a single turbo. I need to know where to attach the solenoid for the sequential twins. Any help would be awesome...thanks
Hotwheelz is offline
Reply Like
Old 03-14-11, 07:30 PM
  #2
Mr. Links

iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,595
Received 40 Likes on 26 Posts

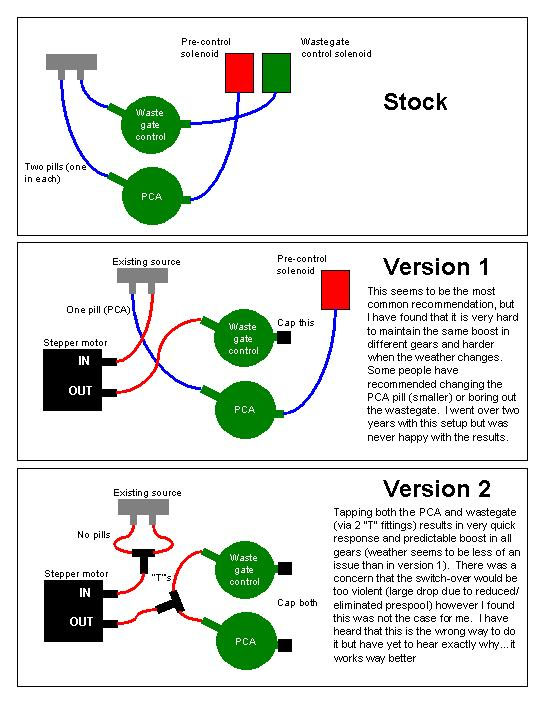

Attached is the diagram which has been referenced for the Greddy install. It should be similar for most boost control setups:
Attached Thumbnails Where do you connect the boost controller solenoid on seq turbos-boost_controller_install.jpg
Mahjik is offline
Reply Like
Old 03-14-11, 07:39 PM
  #3
rotorhead

iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 16,182
Received 429 Likes on 263 Posts
very few boost controllers use stepper motors now. Only some HKS EVC models do. So you will most likely have a 3 port boost control solenoid.
arghx is offline
Reply Like
Old 03-14-11, 07:57 PM
  #4
Who say's i need a Van

Thread Starter
iTrader: (18)

Hotwheelz's Avatar

Join Date: Feb 2009
Location: Whatsittoya
Posts: 609
Likes: 0
Received 0 Likes on 0 Posts
it is a 3 port boost control solenoid...but im confused as to were to connect on my seq twins. Does anyone have a snap shot of this?
Hotwheelz is offline
Reply Like
Old 03-14-11, 08:11 PM
  #5
Mr. Links

iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,595
Received 40 Likes on 26 Posts
The concept is the same, just remove the words "stepper motor" out of the diagram....


https://www.rx7club.com/3rd-generation-specific-1993-2002-16/greddy-profec-b-help-needed-643492/
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/greddy-profec-b-spec-2-intall-help-407914/
Mahjik is offline
Reply Like
Old 03-14-11, 08:49 PM
  #6
Who say's i need a Van

Thread Starter
iTrader: (18)

Hotwheelz's Avatar

Join Date: Feb 2009
Location: Whatsittoya
Posts: 609
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Mahjik
The concept is the same, just remove the words "stepper motor" out of the diagram....


https://www.rx7club.com/showthread.php?t=643492
https://www.rx7club.com/showthread.php?t=407914

Exactly what i was looking for......maybe those pages were past page 11 on the search lol

Thanks
