Need to bleed the cooling system were the hell is the throttle body coolant line any one got pics, cos i dont want to **** it up.

any help would be great cheers

https://www.rx7club.com/newthread.ph...ewthread&f=16#
Frown

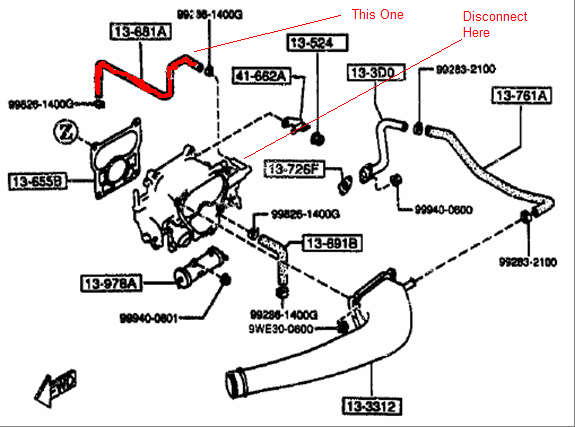

The TB hoses and the part # reference so you can tell what is what are shown in the following pics:

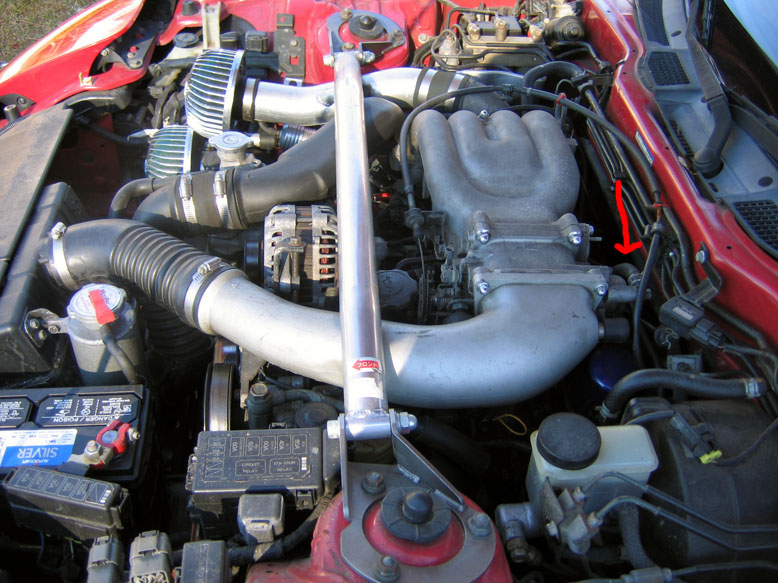

How can you not see it? It's on the firewall side of the tb, close to the top. The only high pressure hose on the tb.



if your FD is modified you might not even have it running there, by the sounds of things that is your case, belive me, if its their you wouldnt have a hard time at all of finding it



Just look at the diagram that DaveW attached above, and it's the hose labelled #13-681A.

You can see there's a nipple from the throttle body leading to it. If you have a disabled wax rod assembly like me, the hose bypasses the throttle body and goes below. You'll have to remove the TB to see it.



.



This site has the URLs to download the Mazda manuals which you should spend more time with than your ........

DAPDAS!



Here



yes



Well, you can't ask for any more help than that



yer it was moddified, n lower down, thanks for putting the effort in lads cheers



thats for the idle system... the wax rod. is this acually needed??? lol i was thinking of removing that nasty hardline from under the coil packs and saw it goes from the thermostat housing to the wax rod then out to the rear iron. is it possible to remove meaning that it wont effect the cooling system. has anyone capped both ends?
