Water Temperator Sender Adaptor for Temp Gauge

So, I'm installing a water temp gauge in my fd, was going to tap the tb coolant hose.
What size adapter do I need, where are you guys getting them?

Thx in advance

Jun 10, 2012 | 05:38 PM

RENESISFD

Wastegate John

iTrader: (13)

Joined: Feb 2008

Posts: 2,979

Likes: 9

From: Long Island NY 11746

I think most people get barbed fittings and a tee from the hardware store.

You can just bring the hose with you and match up the size at the store.

Jun 10, 2012 | 07:18 PM

Sgtblue

Urban Combat Vet

iTrader: (16)

Joined: Oct 2003

Posts: 12,160

Likes: 983

From: Mid-west

-----> Pictures didn't copy. If you want them check DC's post#36 here: https://www.rx7club.com/showthread.p...highlight=temp

Quote:

Originally Posted by DaleClark

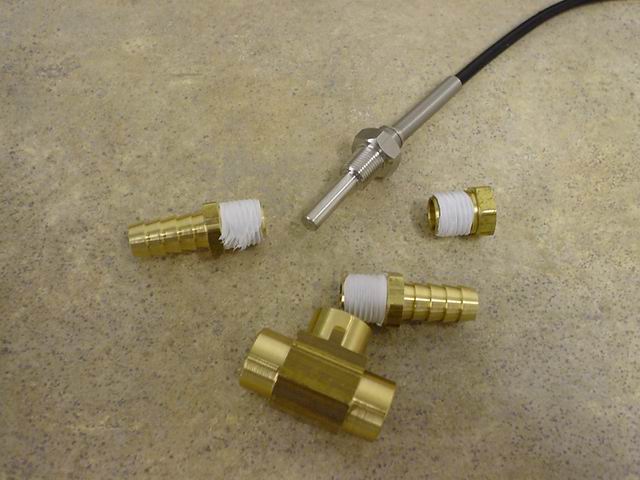

OK, got some pics of the brass T I used. I got all this stuff from Lowe's. Can't remember total cost - probably $5-10 or so.

Parts I used -

Brass T with 1/4" NPT ports
2 1/4" NPT hose barbs with (I think) 5/16" hose barbs. The hose barbs were just the size that fit on the TB hoses - I just eyeballed it

. The only other sizes were obviously too big or too small.
1/4" NPT to 1/8" NPT adapter/bushing.

As you can see in the pics, teflon tape up the fittings and screw it together. I used the 1/4" NPT to 1/8" NPT adapter to space the water temp sensor up and away. If I would have used a 1/8" NPT brass tee, the tip of the sensor would have interfered with the opposite side of the tee - best case it would have touched the brass and possibly give a false reading, worst case it wouldn't screw in enough to make a watertight seal at the threads.

BTW, all the Japanese temp sensors are 1/8" NPT - I'm not sure what Autometer is, I'm guessing 3/8" NPT. You're on your own there

.

Dale
