Vaccum Mod complete - odd boost issue
#26
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
I guess you can't edit posts on here?

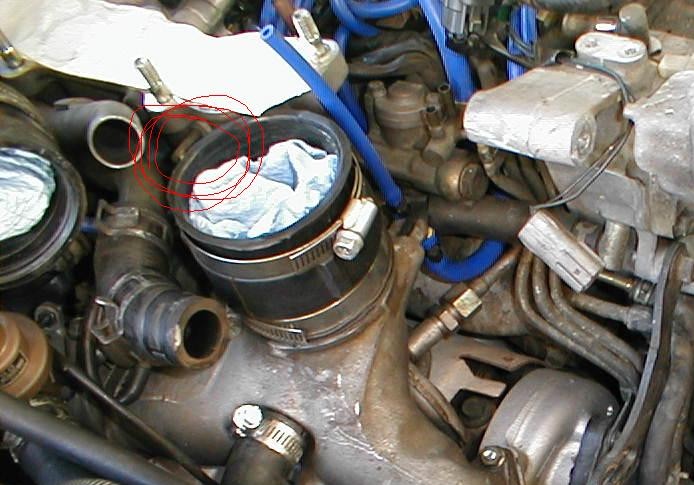

So, I just want to point out WHICH line I as referring to in the above post. I'm borrowing this one from Dave's site...
That blue line sticking up there is the one that the boost reduction diagram does not mention. Can someone tell me where this line runs to?
Thanks
So, I just want to point out WHICH line I as referring to in the above post. I'm borrowing this one from Dave's site...
That blue line sticking up there is the one that the boost reduction diagram does not mention. Can someone tell me where this line runs to?
Thanks
#27
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dgeesaman
The orange hose looks like it should go into the top of the 4 pass-thru fittings of the LIM. On the other side of the pass-thru it feeds into the pressure chamber.
Last edited by KyleH; 09-05-05 at 12:36 PM.
#29
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the help Dave.
My esteemed colleague was working on that side. On the nipple that was supposed to be for "orange" line (coming out of the LIM), he had hooked to this nipple a line that ran just a few inches down below to a... what looks like either an FPR, or some sort of EGR piece. So now this "piece" which is attached to the intake manifold it appears, has a vacuum line hooked to nothing. I can't find this part on the vac diagram. Is it okay to just cap it off? Or does it run somewhere. If a picture would help, I can supply, I just unfortunately don't have the abillity to host.
Thanks.
My esteemed colleague was working on that side. On the nipple that was supposed to be for "orange" line (coming out of the LIM), he had hooked to this nipple a line that ran just a few inches down below to a... what looks like either an FPR, or some sort of EGR piece. So now this "piece" which is attached to the intake manifold it appears, has a vacuum line hooked to nothing. I can't find this part on the vac diagram. Is it okay to just cap it off? Or does it run somewhere. If a picture would help, I can supply, I just unfortunately don't have the abillity to host.
Thanks.
#31
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Well, thanks Dave.
I took it for a spin. Due to a crack in the coupler for the intercooler pipe, right above the turbo's, I got a temporary fix from autozone. 10psi later, the fix is gone. I guess I'll be ordering a coupler soon enough.
In the mean time, the charge control valve is still not closing at idle, and I can't figure out why. I get no boost until about 4,500, then it comes on strong.
Garsh!
I took it for a spin. Due to a crack in the coupler for the intercooler pipe, right above the turbo's, I got a temporary fix from autozone. 10psi later, the fix is gone. I guess I'll be ordering a coupler soon enough.
In the mean time, the charge control valve is still not closing at idle, and I can't figure out why. I get no boost until about 4,500, then it comes on strong.
Garsh!
#32
Recovering Miataholic
KyleH,
My apology for the "less than insightful" comment on your lack of restrictors. In fact, the ID of the restrictors is calibrated to optimize the response of the first & second turbos. Larger ID leads to sluggish response and lower boost, as I understand it. The 6 mm ID of those hoses is considerably larger than the restrictor IDs.

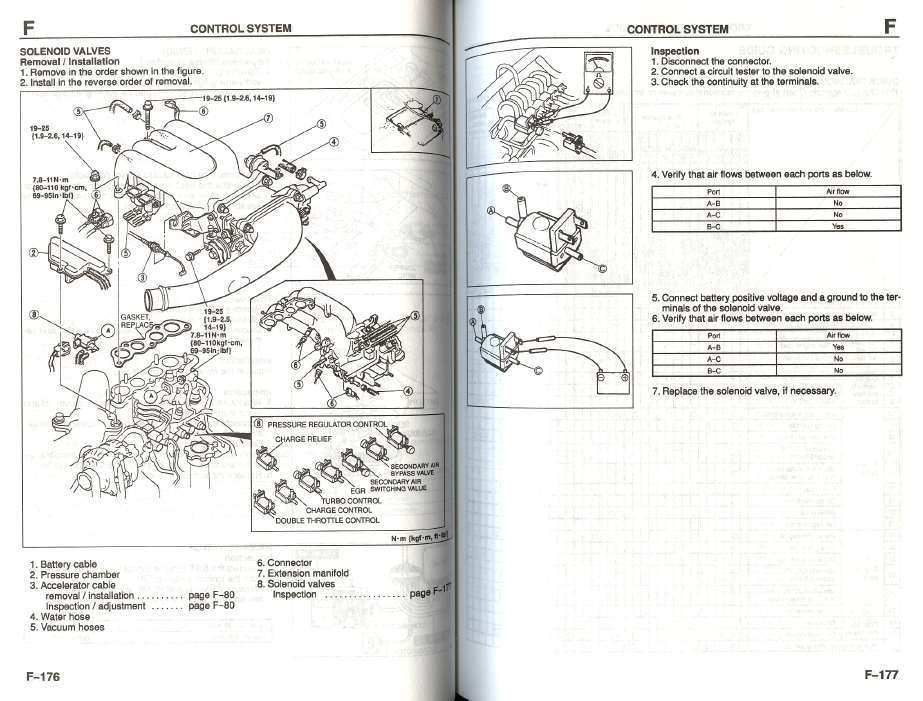

Regarding your charge control solenoid, there is a test on p. F-177 of my 1994 RX-7 workshop manual. A pic from the manual is attached; hopefully this will help. (You may have the vacuum lines hooked up incorrectly to this solenoid.)
My apology for the "less than insightful" comment on your lack of restrictors. In fact, the ID of the restrictors is calibrated to optimize the response of the first & second turbos. Larger ID leads to sluggish response and lower boost, as I understand it. The 6 mm ID of those hoses is considerably larger than the restrictor IDs.
Regarding your charge control solenoid, there is a test on p. F-177 of my 1994 RX-7 workshop manual. A pic from the manual is attached; hopefully this will help. (You may have the vacuum lines hooked up incorrectly to this solenoid.)
Last edited by wstrohm; 09-05-05 at 09:44 PM.
#34
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Bill, Dave,
Thanks.
Bill, I have since put a boost controller on the wastegate, and an inline manual valve on the pre-control to make up for my erroneous ways.
I have the boost controller cranked wide open (max boost) and have tried every combination of the valve control with bad results.
With that being said, I can't say anything with certainty at this time, given the massive boost leak (coupler b/w the top of the turbo & Upper I/C pipe is torn badly), other than to say I am still amused at the charge control valve acts the way it does.
I'll dive back into it in a day or two when the new nylon couplers show up.
Dave, thank for the confirmation.
Thanks.
Bill, I have since put a boost controller on the wastegate, and an inline manual valve on the pre-control to make up for my erroneous ways.
I have the boost controller cranked wide open (max boost) and have tried every combination of the valve control with bad results.
With that being said, I can't say anything with certainty at this time, given the massive boost leak (coupler b/w the top of the turbo & Upper I/C pipe is torn badly), other than to say I am still amused at the charge control valve acts the way it does.
I'll dive back into it in a day or two when the new nylon couplers show up.
Dave, thank for the confirmation.
#35
Moderator
iTrader: (7)
Originally Posted by KyleH
Bill, I have since put a boost controller on the wastegate, and an inline manual valve on the pre-control to make up for my erroneous ways.
I have the boost controller cranked wide open (max boost) and have tried every combination of the valve control with bad results.
I'll dive back into it in a day or two when the new nylon couplers show up.
I have the boost controller cranked wide open (max boost) and have tried every combination of the valve control with bad results.
I'll dive back into it in a day or two when the new nylon couplers show up.
The precontrol is extremely sensitive, and not easy to tune. If you can drop in a stock pc pill I would do that until the wastegate is well dialed-in.
In any case, it's not worth worrying about until the couplers are installed.
Dave
Last edited by dgeesaman; 09-07-05 at 10:32 PM.
#36
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
This boost controller works opposite of normal. Back the screw up and it raises the boost... don't ask, it's only borrowed at the moment b/c of my current predicament.
#37
What's your point ?
Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by KyleH
Thank you, I will have a look.
I suppose it is worth mentioning that before I did this mod the boost was falling off at the top end. It would come on strong (normal) down in the lower RPMs. After the mod, the low rpms are totally dead, but it does pull strong to redline if and when it actually does boost.
I suppose it is worth mentioning that before I did this mod the boost was falling off at the top end. It would come on strong (normal) down in the lower RPMs. After the mod, the low rpms are totally dead, but it does pull strong to redline if and when it actually does boost.
#38
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Vacuum is all good. No, I didn't replace the large hoses. And yes, I did throw out the pills for the WG/Prespool lines. Hopefully the couplers will be here early next week and I can get back to it.
#39
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
What a difference 6 days makes... or not.
Got the couplers on.
Running from a roll to WOT, @ 4,700 RPM the boost will go from 0-3psi (random) up to 8 psi and then drop back to 2 or so psi by redline. Horrible.
If I "hotwire" the control valve solenoid straight off the T that should run to the charge control solenoid, then the valve will "shut" at idle, allowing me to spool the turbo. Then when I drive, I will get anywhere from about 12 to 15psi depending on the gear, in low RPMs. After about 4,800 RPMs, the boost falls off to about 2 or 3 by redline.
I've tested all the solenoids, and all are working fine. Here's what I don't understand. WHAT MAKES THE SOLENOIDS TURN "OFF" AND "ON"?
The problem I'm trying to solve is to make the control valve "shut" at idle. When I "hotwire" it, and bypass the solenoid, I have no problem making it shut at idle... because vacuum is present. So obviously, the charge control solenoid is not letting vacuum pass through the ports on to the valve. What has to happen in order for this solenoid to do this? It's not a broken solenoid... perhaps a certain signal that should be reaching the solenoid is in fact not.
Anything would be helpful. As soon as I solve for this, I will either A: Solve many other things, or B: At least be able to move on to why the boot doesn't work at the top end either.
So if I haven't gotten this straightened out by next month, I think I'll have a bonfire, complements of the 7.
Thanks.
Got the couplers on.
Running from a roll to WOT, @ 4,700 RPM the boost will go from 0-3psi (random) up to 8 psi and then drop back to 2 or so psi by redline. Horrible.
If I "hotwire" the control valve solenoid straight off the T that should run to the charge control solenoid, then the valve will "shut" at idle, allowing me to spool the turbo. Then when I drive, I will get anywhere from about 12 to 15psi depending on the gear, in low RPMs. After about 4,800 RPMs, the boost falls off to about 2 or 3 by redline.
I've tested all the solenoids, and all are working fine. Here's what I don't understand. WHAT MAKES THE SOLENOIDS TURN "OFF" AND "ON"?
The problem I'm trying to solve is to make the control valve "shut" at idle. When I "hotwire" it, and bypass the solenoid, I have no problem making it shut at idle... because vacuum is present. So obviously, the charge control solenoid is not letting vacuum pass through the ports on to the valve. What has to happen in order for this solenoid to do this? It's not a broken solenoid... perhaps a certain signal that should be reaching the solenoid is in fact not.
Anything would be helpful. As soon as I solve for this, I will either A: Solve many other things, or B: At least be able to move on to why the boot doesn't work at the top end either.
So if I haven't gotten this straightened out by next month, I think I'll have a bonfire, complements of the 7.
Thanks.
#41
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Can you explain what the parameters the ECU has to see before it know when to click the solenoids (in particular the charge control)? A certain RPM? There are in fact 3 vacum hoses on these solenoids, not just 2... so is there a vacuum input that triggers the solenoids, or is it all controlled by the ECU off of voltage readings somewhere?
Also, should the pressure chamber have pressure coming out of it all the time? Or only when the car is under boost?
Also, should the pressure chamber have pressure coming out of it all the time? Or only when the car is under boost?
Last edited by KyleH; 09-17-05 at 10:45 AM.
#42
Recovering Miataholic
KyleH,
Maybe I'm wrong, but it seems to me you have not checked out the possibility that you have the vacuum hoses crossed right at the rack solenoid valve. Earlier, you wrote this: "The rod stayed out all the time except when i shut the car off (it would go in and pop right back out when the ignition was shut off). " That is exactly what would happen if you had the hoses hooked so that the vacuum passed through only when the solenoid was inactivated but was blocked when the solenoid was activated. That is just the opposite of how it should work.
IMHO the PCME is doing exactly what it should but you need to switch the hoses at the solenoid valve. Please refer to the attached manual page in my reply above and check to see if this might be the case!
Maybe I'm wrong, but it seems to me you have not checked out the possibility that you have the vacuum hoses crossed right at the rack solenoid valve. Earlier, you wrote this: "The rod stayed out all the time except when i shut the car off (it would go in and pop right back out when the ignition was shut off). " That is exactly what would happen if you had the hoses hooked so that the vacuum passed through only when the solenoid was inactivated but was blocked when the solenoid was activated. That is just the opposite of how it should work.
IMHO the PCME is doing exactly what it should but you need to switch the hoses at the solenoid valve. Please refer to the attached manual page in my reply above and check to see if this might be the case!
#43
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Well you may be on to something. I have taken that manifold off at least 25 times in the past month, and rechecked all hoses. I know I have the solenoids hooked up right. But, you may be on to something... if it seems to be working backwards, why not just hook up the solenoid backward, so that the air flows the right way at the right time instead of the right way at the wrong time as it is now...
#45
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Well, I have the car apart right now... Just wondering if I can find some help on where a certain line goes. It's the aqua-blue/green line that runs from the turbo inlet up to the metal piping where it's then split off into 3 lines. 1 goes to turbo pre control, one to wastegate control, then there's a 3rd line that runs to a T and then hooks in two places somewhere...?? I see a nut at the termination of these lines. Previously I had this plugged off, but can someone tell me/show me what it is that this line plugs onto?
Here's the image, I apologize for the size.
Here's the image, I apologize for the size.
#46
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Okay, I found the nipples that those nuts represented. (Someone could really make something of that last statement.. )
Anyway, I tore the car apart... took the mani completely off, and verified all hoses... every single one. Had a partner with me, to check me. All hoses are now correctly hooked up. I have no boost leaks.
Here's the verdict.
This applies to all gears. If I go WOT below 4,500 rpm, as soon as I hit 4500 rpm, the car will come on with 7 or 8 psi of boost (remember, I have no pills nor a boost controller anymore, just a line connecting, so 7 psi should result from what I've read) that holds and then drops off to 4 - 5 psi by redline. Next gear, I get 0 - 1 psi of boost to redline.
This is the way it works for all gears. Not very exciting.
Also, STILL, I am not getting the charge control valve to shut at idle. PLEASE HELP!
Thanks
Kyle
Anyway, I tore the car apart... took the mani completely off, and verified all hoses... every single one. Had a partner with me, to check me. All hoses are now correctly hooked up. I have no boost leaks.
Here's the verdict.
This applies to all gears. If I go WOT below 4,500 rpm, as soon as I hit 4500 rpm, the car will come on with 7 or 8 psi of boost (remember, I have no pills nor a boost controller anymore, just a line connecting, so 7 psi should result from what I've read) that holds and then drops off to 4 - 5 psi by redline. Next gear, I get 0 - 1 psi of boost to redline.
This is the way it works for all gears. Not very exciting.
Also, STILL, I am not getting the charge control valve to shut at idle. PLEASE HELP!
Thanks
Kyle
#47
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
I did some testing. Here are the results from the solenoid(s) that should have an effect on the charge control valve. It would be really helpful if someone could at least tell me their thoughts on the following picture.
Obviously since no vacuum is passing through the charge control solenoid at idle, the charge control valve does not shut. What kills me is that when i shut off the engine, the valve then opens to allow vacuum to pass through and shuts the valve. Argh. Why?
Obviously since no vacuum is passing through the charge control solenoid at idle, the charge control valve does not shut. What kills me is that when i shut off the engine, the valve then opens to allow vacuum to pass through and shuts the valve. Argh. Why?
#49
I am struggling with a similar problem here in the UK, and I found this table very handy. It will anser your question as the what the ECU uses to decide when to switch the solenoid(s) on or off.
http://www.autosportracetech.com/RX-...erOverview.htm
http://www.autosportracetech.com/RX-...erOverview.htm
#50
Full Member
Thread Starter
Join Date: May 2005
Location: Arkansas
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the help fellas. I said screw it, and went with the parallel system.
It doesn't suck, but I'd have rather had sequential. Oh well, when I get a DP/high flow cat it will spool a lot quicker. At least now I have dependable boost... although as you read my other thread you see I've got new, but less problematic issues.
It doesn't suck, but I'd have rather had sequential. Oh well, when I get a DP/high flow cat it will spool a lot quicker. At least now I have dependable boost... although as you read my other thread you see I've got new, but less problematic issues.
