the car is a 96 rhd, and it has no airpump, or ac. apart from that its pritty standed.

first off, where does this one go? its under the elbow. does it go to here (2nd pic)




this one i have no idea

same as above

this was just lose under there.

does the hose in the above pic go from here to the boost sensor? the boost sensor has no hose on it.

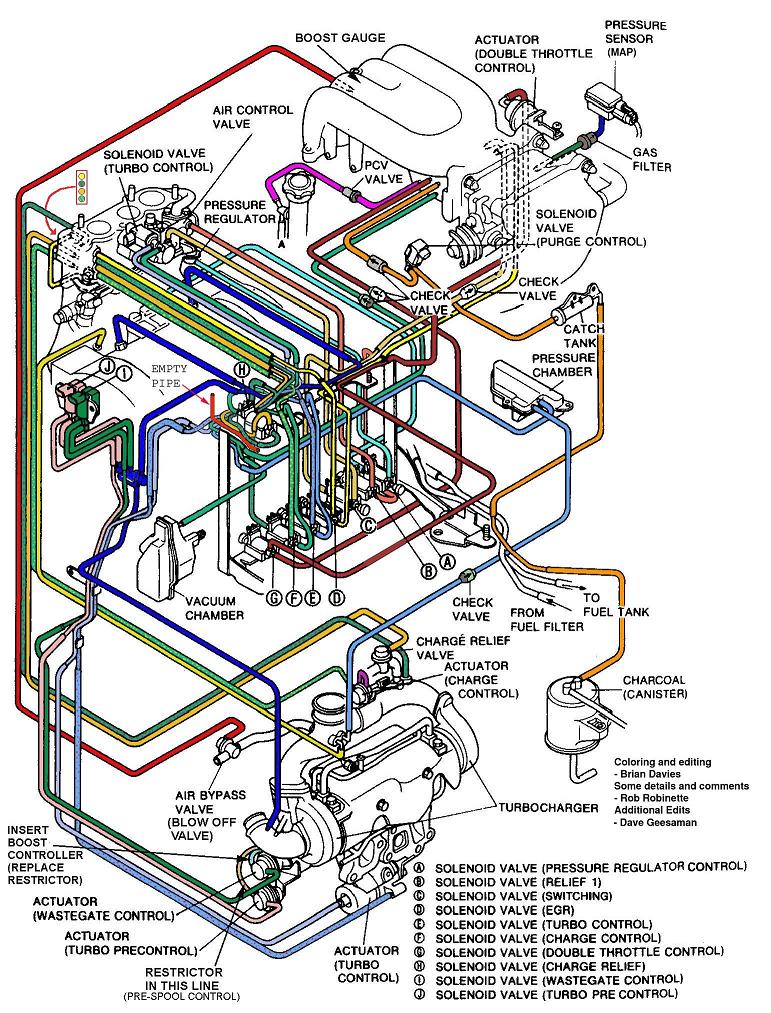

i tryed looking for the diagram but had no luck in finding it. im not to good at following it but if someone could post that up for me.

thanks for any help.



Easy nuff ! Now help yourself.

PS - you'd better put some shop rags in those LIM runner openings less you find yourself up **** creek upon startup when a fastener or #2 philips stubby finds it way down in there Then you'll forget all about vac hoses.


Later



Best to have someone with the same setup FD come to your FD to reference where your vac hoses connect to.

Next time tape and number each hose before and after removing, that way you'll know where they belong when reinstalling it. The check valve is one directional and goes only one way.
