twin turbo

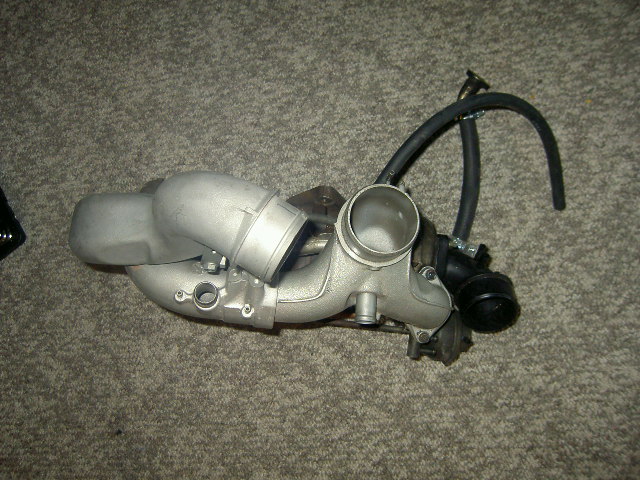

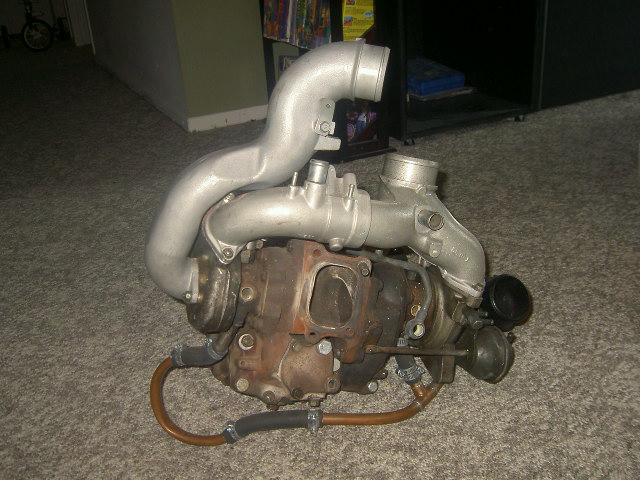

I GOT EM they are the stock ones off of a 1993 twin turbo rx7 3rd gen

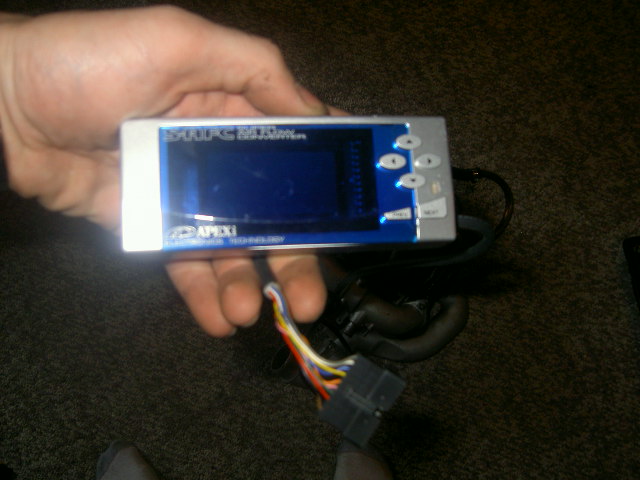

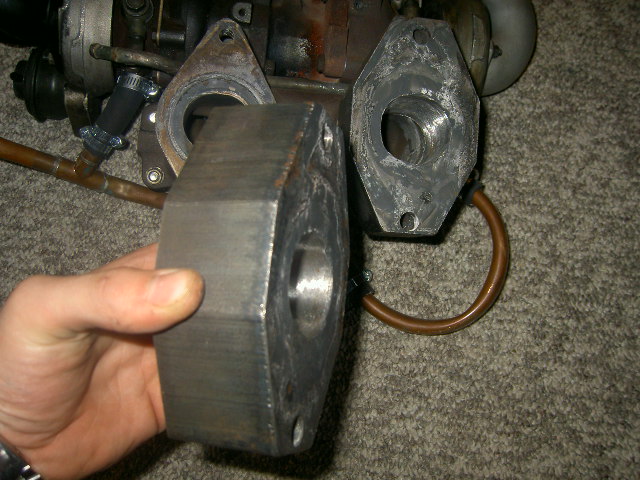

i also got a 4" down pipe and the S.A.F.C.
Now this is not going onto a 3rd gen it is going on a 2nd gen N/A but they told me i should come to this part because of the setup because you will no more about it then they can tell me i just need to know stuff like injector size? if the S-AFC is enough with the stock turbo ECU etc...
Attached Thumbnails twin turbo-rx7-101.jpg   twin turbo-rx7-102.jpg   twin turbo-rx7-105.jpg   twin turbo-rx7-110.jpg   twin turbo-rx7-114.jpg

Reply
Old Apr 22, 2006 | 09:31 PM
  #2
Rxmfn7's Avatar
Do a barrel roll!
Tenured Member 20 Years
iTrader: (4)

Joined: Oct 2001
Posts: 7,529
Likes: 2
From: Lower Burrell, PA
What ECU will you be using? By the S-AFC, I am thinking you will be attempting this with the stock N/A ECU (N326)? What do you plan on doing about timing under boost, etc?
Reply
Old Apr 22, 2006 | 09:38 PM
  #3
gray_86's Avatar
Thread Starter
ThE_CaRbOn_GuRu
Tenured Member 05 Years

Joined: Jan 2005
Posts: 221
Likes: 0
From: lucan
NO the stock turbo ECU
Reply
Old Apr 22, 2006 | 09:54 PM
  #4
Rxmfn7's Avatar
Do a barrel roll!
Tenured Member 20 Years
iTrader: (4)

Joined: Oct 2001
Posts: 7,529
Likes: 2
From: Lower Burrell, PA
OK, just make sure you have all associated things you will need with that. T2 pressure sensor, knock control box, etc.. Plus the stock ECU doesnt do any timing retard after 9psi. IMO is would be a much better ideal to run a Haltech or Microtec ECU, especially dealing with higher compression and higher CFM of these turbos. Anyway though, stock FD injectors are 550/850cc, usually good for a bit above 300RWHP until you start seeing upper 90% duty cycles.
