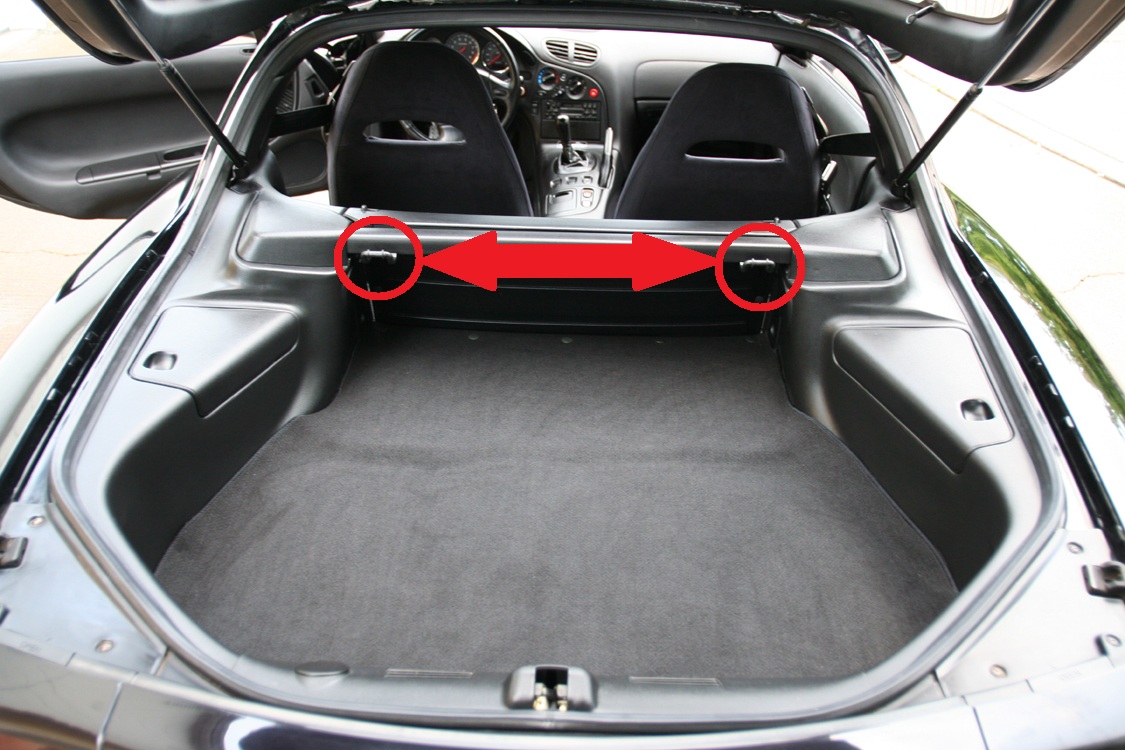

Ok, so I've been looking at a parts manual for a while now & I am unable to find the part #'s for these. They are the trunk privacy cover brackets that attach to the rear strut tower bar for the cover to attach too. I am also wondering what holds the nubs in the rear hatch trim (for the lift strings) as mine keep falling out! I am sick of having that cover laying in there & I'd like to get the parts to have it installed correctly. Please help!

Thanks



The nubs are FD01-68-301-02 for $2.89 each. Found on page 3-L5 in the parts manual. The hinges are FD01-68-305 for $12.19 each. Found on page 2-N12.



The screws to mount the hinges are 99865-0512B. For $1.57 each. I believe you need 3 per hinge.



Thank you! Apparently I am just damn blind! Do the nubs have something that hold them into the trim (like a metal clip or something)? I have the plastic nubs, but they keep falling out of the hatch trim.



They have little plastic "wings" that break easily. New ones will clip into place and be held by friction.



Ok, thank you very much. I feel very dumb that I did not see them!



call Ray @ Malloy Mazda...although I swear someone told me earlier this year they were NLA but they could have been wrong.



I will be giving him a call with in the next few days haha. I guess if they are NLA I'll need to score some used.



I have the brackets the rear privacy cover clips on to and all 6 screws. Pm me if you are interested.

Thanks!



PM Sent



I seem to remember reading that as well somewhere.



Nubs are still available. Not sure about the strut bar brackets.
