stickmantijuana

iTrader: (1)

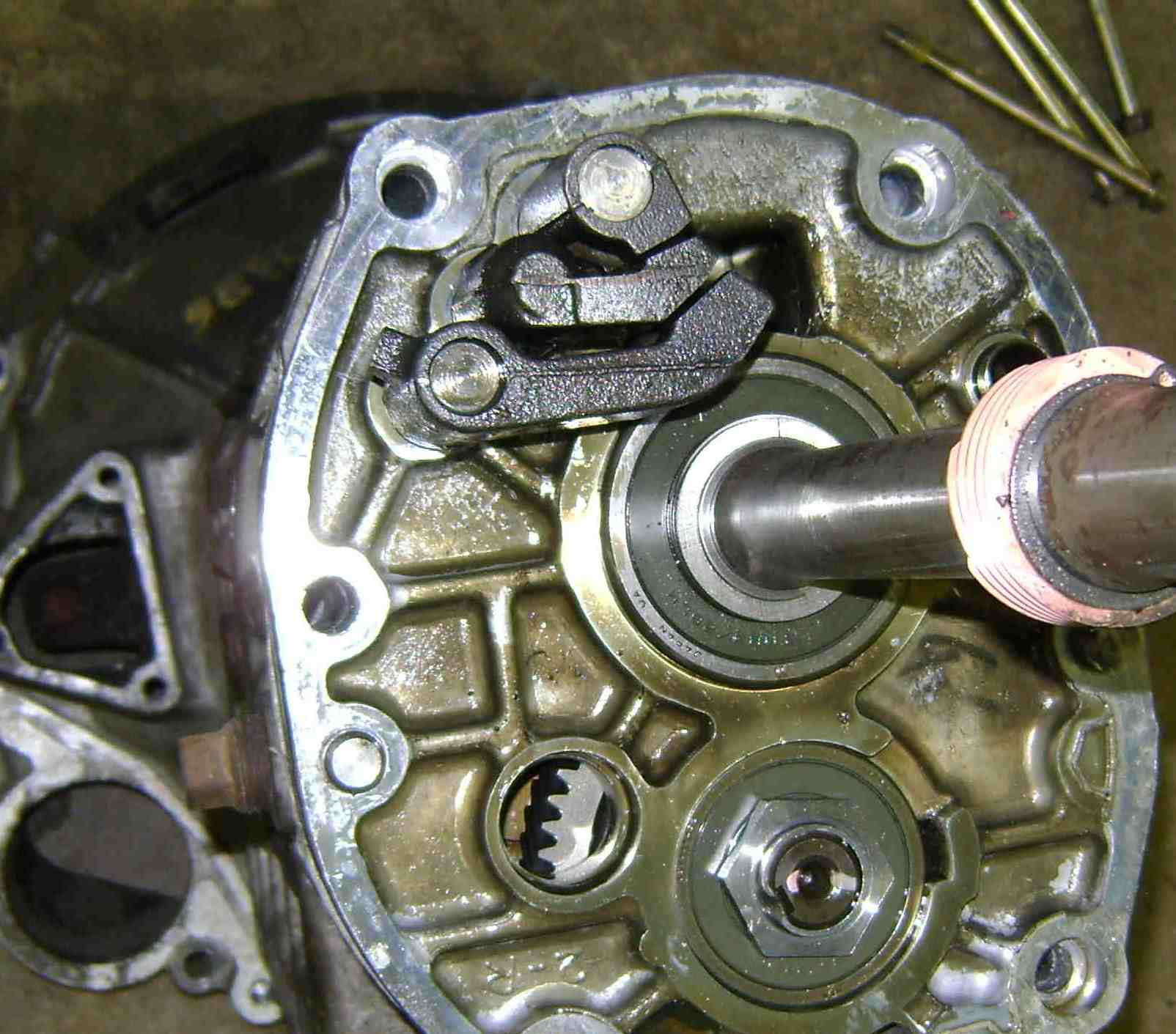

i have FD transmission and what looks like an FC shifter housing mated together. the original shop that did this went bankrupt, so I really appreciate your help.

can someone tell me how to make the shifter linkage complete here? I'm guessing I need some shaft.. if there's any pic of what it should look like in the end, I really appreciate it.

thanks!

wstrohm

Not sure what final result you want. If you are looking to make it a stock FD transmission, go to this PDF file and scroll down to page 73 of 116, and on down from there if necessary. The parts breakdown is shown for a stock '94 FD.

dgeesaman

iTrader: (7)

The extension housing has the shift rod and selector pawl all in one assembly. By your pictures, that's what you're looking for. I don't think you want to buy one new from Mazda as it will be way into 3 figures.

I happen to have a fragged tranny all taken apart, so if you're interested I can sell you an FD extension housing. If you want I can include all of the sensors, select spindle, oil guide, etc. The damage was in the main gear housing so the extension housing end is in perfect shape.

Dave
