anyone try these, im interested on a set but it says on this page none turbo, it that just bad japanese, or was there a non turbo 93-96 rx-7. http://www.tein.com/stech.html

also how are the spring rates? ill be using stock shocks with these

Application: Tein Part #: SKM50-AUB00

Mazda RX-7 93-96 None Turbo



:: Body: FD3S

:: Spring Rate Front: 7.8/436 (gf/mm, lbs/in)
:: Spring Rate Rear: 5.8/324 (gf/mm, lbs/in)
:: Ride Height Front: -36 (mm), -1.4 (inch)

:: Ride Height Rear: -33 (mm), -1.3 (inch)
Reply
Old Feb 7, 2006 | 12:58 AM
  #2
axr6's Avatar
Senior Member
Tenured Member 05 Years

Joined: Dec 2005
Posts: 340
Likes: 0
From: Auburn, CA

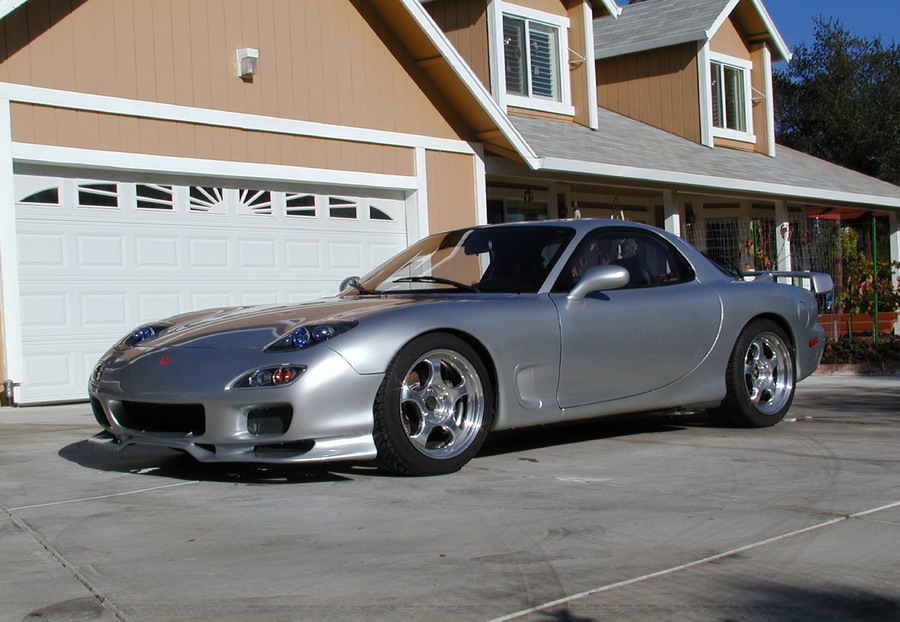

I put them on about a couple of months back, still with the stock shocks. They lower the car a lot, as seen in the picture below. The spring rates are definitely stiffer than stock, you are going to feel the difference. They seem to keep me from bottoming over regular road imperfections even with a passenger.

I feel the need to upgrade the shocks soon, as they feel insufficient against the higher rebound rates of these springs.

If you like your car low, these will work for you.
Attached Thumbnails tein s-tech springs-project-1.jpg
Reply
Old Feb 7, 2006 | 07:00 AM
  #3
vha27's Avatar
Thread Starter
Junior Member
Tenured Member 05 Years

Joined: Apr 2004
Posts: 41
Likes: 0
From: nj
nice, so they do fit my 93 rx-7 turbo, and im guessing the "none turbo" is a typo from tein that the seller copied info from, i do like it low, would u have switched to another spring if u had a choice? are there springs that get lower than this? also how neccessary is it to get realigned, seems like 1-1.4 inches isnt that big of a deal, 2 inches and more yeah then i see a cause to go for a realignment, am i out of line here?
Reply
Old Feb 7, 2006 | 09:22 AM
  #4
Mahjik's Avatar
Mr. Links
Tenured Member 20 Years
iTrader: (1)

Joined: Aug 2001
Posts: 27,595
Likes: 43
From: Kansas City, MO
Originally Posted by vha27
nice, so they do fit my 93 rx-7 turbo, and im guessing the "none turbo" is a typo from tein that the seller copied info from, i do like it low, would u have switched to another spring if u had a choice? are there springs that get lower than this? also how neccessary is it to get realigned, seems like 1-1.4 inches isnt that big of a deal, 2 inches and more yeah then i see a cause to go for a realignment, am i out of line here?

Any height adjustment and you should have the car realigned.

IMO, for the money the RSR Race springs are the best buy. However, whether you go for Tein S-Tech's or the RSR Race springs, both of them are fairly stronger than the stock springs. I would recommend replacing the stock shocks at the same time with something like the Koni's or Tokico's.
Reply
Old Feb 7, 2006 | 05:10 PM
  #5
PhatManBUD's Avatar
Rotary Enthusiast
Tenured Member 10 Years

Joined: Oct 2002
Posts: 1,468
Likes: 0
From: S.Cali, OC!
i like my teins springs, it was the drop i was looking for. but now at 135k my shocks are going out so im looking for replacements. im using them temporarly til the body and engine is all done, then ill spring for some adj. coilovers
