Support braces and trim for OEM and 99 spec front bumper
#1
Eats, Sleeps, Dreams Rotary
Thread Starter
Support braces and trim for OEM and 99 spec front bumper
I originally purchased the 99 spec bumper from JT-imports first GB way back when. I had sold my OEM bumper but after the install I noticed it seemed different.

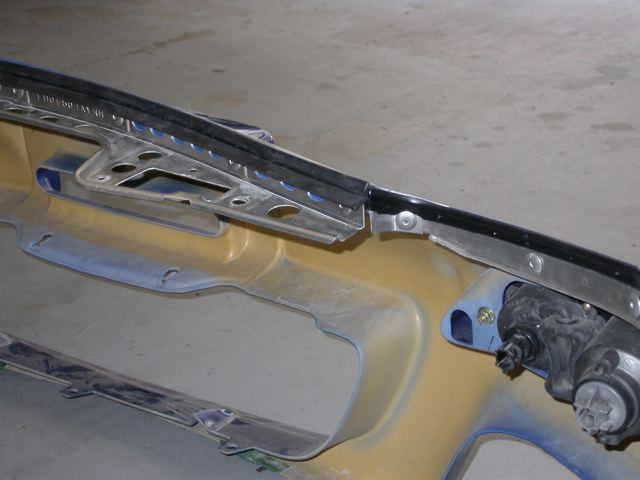

Thats when I realized I was missing the rubber trim that ran around the top edge of the bumper and the ones around the headlights. I purchased them and pop riveted them into place and thought all was good.

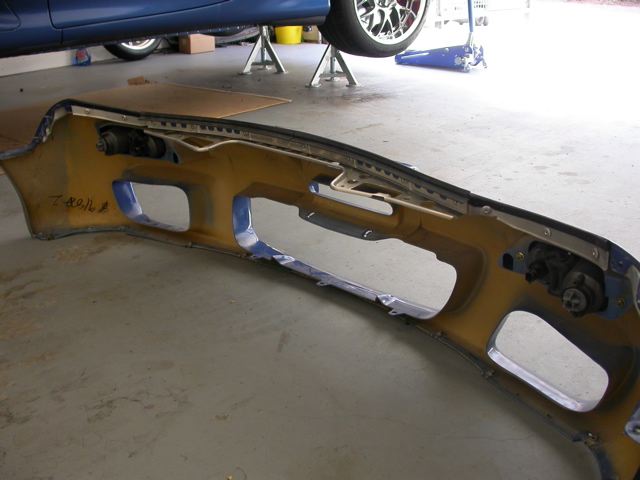

See here:
That's when jimlab brought to my attention that I was missing a bolt (bolt #1 in his pic) for the front bumper in this thread.
https://www.rx7club.com/forum/showth...t=front+bumper

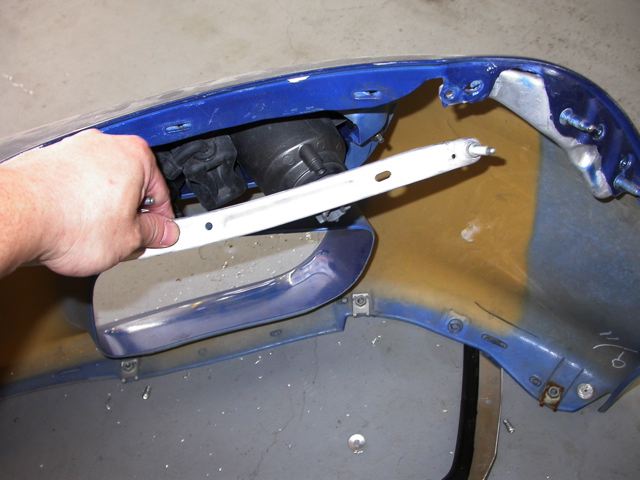

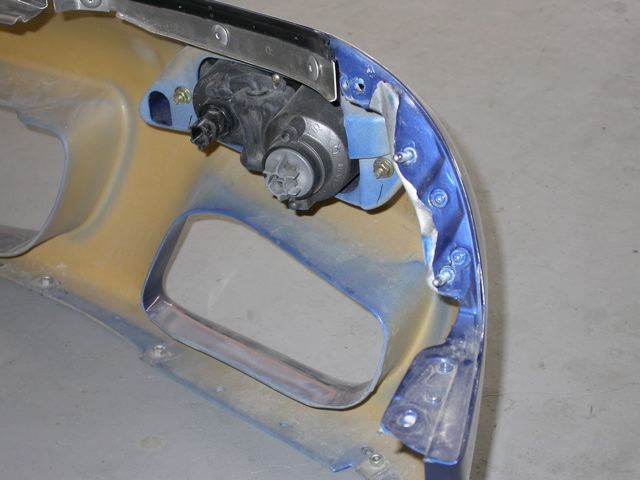

Searching through the parts fische, there is a support bar that helps sandwich the urethane lip with the aluminum/rubber edge trim.
The part number for the support bars are:
FD01-50-0KXA
FD01-50-0K0A
for the bolt: 9994-00-603B
If your missing any of the other trim, you can find the rest in the parts fische.
Thats when I realized I was missing the rubber trim that ran around the top edge of the bumper and the ones around the headlights. I purchased them and pop riveted them into place and thought all was good.
See here:
That's when jimlab brought to my attention that I was missing a bolt (bolt #1 in his pic) for the front bumper in this thread.
https://www.rx7club.com/forum/showth...t=front+bumper
Searching through the parts fische, there is a support bar that helps sandwich the urethane lip with the aluminum/rubber edge trim.
The part number for the support bars are:
FD01-50-0KXA
FD01-50-0K0A
for the bolt: 9994-00-603B
If your missing any of the other trim, you can find the rest in the parts fische.
Last edited by 7racer; 04-09-05 at 08:38 PM.
#2
Full Member
iTrader: (1)
Join Date: Sep 2004
Location: Pacific Northwest
Posts: 168
Likes: 0
Received 0 Likes
on
0 Posts
Do you think that most people are missing this support bar on either side? Did you just happen to lose the bolt #1 after you got rid of your OEM bumper skin, or is it one that was not necessary with the old OEM skin?
