Strange Secondary Turbo Behavior from New J-Spec Twins
05-19-03, 08:41 PM
#1
Lives on the Forum
Thread Starter
Strange Secondary Turbo Behavior from New J-Spec Twins
My secondary turbos (new J-spec twins) are behaving strangely after the 4500-rpm switchover. The secondaries don't seem to come online with full boost; they only make 5 psi boost after the switchover. If I lift off of the gas after the switchover 4500 rpm, then squeeze down on the gas again, the secondaries come online like they're supposed to, up to full boost to 8000 rpm. The Power FC is set to 0.95 kg/cm2, 86% duty cycle for both primary and secondary turbos. The strange behavior happens with 0.85 kg/cm2, 76% wastegate solenoid duty cycle; and 0.80 kg/cm2, 74% wastegate solenoid duty cycle. Is this a bad secondary turbo blow-off valve? A sticking wastegate spring? Wierd Power FC behavior? I'm frustrated! I've searched, but the difference with my problem is that the secondaries DO make boost AFTER backing out of the gas, and then squeezing back down on the gas to get the proper boost pressure built up to redline (8000 rpm). See my sig for mods. FWIW, the J-spec twin turbos are only 5000 miles old. The hose job has already been done. The motor is only 5000 miles old. All the gaskets are NEW. I have a new Efini Y-pipe
Last edited by SleepR1; 05-19-03 at 08:49 PM.
05-19-03, 08:46 PM
#2
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Manny, this could be your problem:
(this is from http://www.autosportracetech.com/RX-...leshooting.htm )
Vacuum Chamber
This is a black plastic tank that is buried between the alternator and power steering pump. Kind of difficult to see, removing the Pressure Chamber helps to see it, has one hose connection, and should have a hose attached, (Engine View Picture). This hose comes from the rats nest of metal tubes, and there is a one-way check valve between the rats nest of tubes and the Intake, (the only check valve located between Throttle Body and the Firewall). This one-way check valve can start to leak after a while, causing loss of vacuum to various controls when under boost for a while. A way to troubleshoot this one-way valve leaking is to note a gradual loss of boost and then drop the throttle long enough for your boost gauge to indicate at least 20 inHg of vacuum then slam the throttle back down again. If boost is back up to what it should be then replace this one-way check valve. Basically what this does is "recharge" the vacuum chamber when you let off the gas, allowing actuators to operate properly while the vacuum is still present.
The vacuum one-way check valve goes from the Intake manifold to the Vacuum Chamber via the rats nest of tubes, (Mazda Part# N390-13-995A). This has a layer of three paper like filters on each end for separating any oil from the air.
(this is from http://www.autosportracetech.com/RX-...leshooting.htm )
Vacuum Chamber
This is a black plastic tank that is buried between the alternator and power steering pump. Kind of difficult to see, removing the Pressure Chamber helps to see it, has one hose connection, and should have a hose attached, (Engine View Picture). This hose comes from the rats nest of metal tubes, and there is a one-way check valve between the rats nest of tubes and the Intake, (the only check valve located between Throttle Body and the Firewall). This one-way check valve can start to leak after a while, causing loss of vacuum to various controls when under boost for a while. A way to troubleshoot this one-way valve leaking is to note a gradual loss of boost and then drop the throttle long enough for your boost gauge to indicate at least 20 inHg of vacuum then slam the throttle back down again. If boost is back up to what it should be then replace this one-way check valve. Basically what this does is "recharge" the vacuum chamber when you let off the gas, allowing actuators to operate properly while the vacuum is still present.
The vacuum one-way check valve goes from the Intake manifold to the Vacuum Chamber via the rats nest of tubes, (Mazda Part# N390-13-995A). This has a layer of three paper like filters on each end for separating any oil from the air.
05-19-03, 08:53 PM
#3
Lives on the Forum
Thread Starter
Originally posted by rynberg
A way to troubleshoot this one-way valve leaking is to note a gradual loss of boost and then drop the throttle long enough for your boost gauge to indicate at least 20 inHg of vacuum then slam the throttle back down again. If boost is back up to what it should be then replace this one-way check valve. Basically what this does is "recharge" the vacuum chamber when you let off the gas, allowing actuators to operate properly while the vacuum is still present.
The vacuum one-way check valve goes from the Intake manifold to the Vacuum Chamber via the rats nest of tubes, (Mazda Part# N390-13-995A). This has a layer of three paper like filters on each end for separating any oil from the air.
A way to troubleshoot this one-way valve leaking is to note a gradual loss of boost and then drop the throttle long enough for your boost gauge to indicate at least 20 inHg of vacuum then slam the throttle back down again. If boost is back up to what it should be then replace this one-way check valve. Basically what this does is "recharge" the vacuum chamber when you let off the gas, allowing actuators to operate properly while the vacuum is still present.
The vacuum one-way check valve goes from the Intake manifold to the Vacuum Chamber via the rats nest of tubes, (Mazda Part# N390-13-995A). This has a layer of three paper like filters on each end for separating any oil from the air.
05-19-03, 09:55 PM
#4
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Heh, even from Mazda, the check valves are less than $40 -- which is a damn cheap repair for this car! I hope that's your problem because that check valve is easy to get to and replace.
05-19-03, 11:10 PM
#5
Lives on the Forum
Thread Starter
rynberg,
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).
Last edited by SleepR1; 05-19-03 at 11:13 PM.
05-20-03, 07:08 AM
#6
Eats, Sleeps, Dreams Rotary
Originally posted by SleepR1
rynberg,
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).
rynberg,
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).

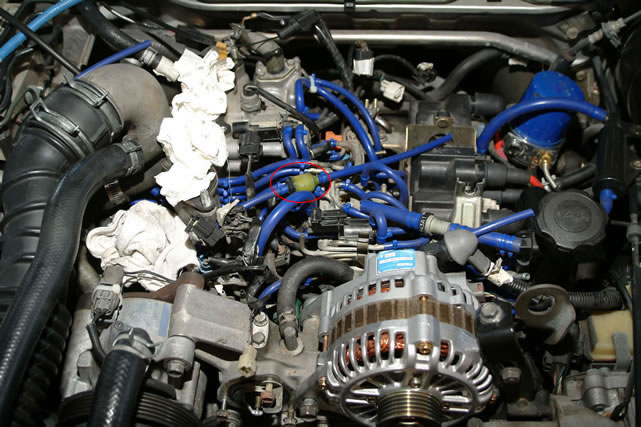

here's the little biatch with crazy glue smothered all over it
05-20-03, 07:13 AM
#7
Lives on the Forum
Thread Starter
apneablue,
I can't open the pic, just a little red x in the corner of a big square?
Which check valve was bad? The pressure tank or the vacuum chamber?
I can't open the pic, just a little red x in the corner of a big square?
Which check valve was bad? The pressure tank or the vacuum chamber?
Trending Topics
05-20-03, 07:19 AM
#8
Lives on the Forum
Thread Starter
Originally posted by rynberg
The vacuum one-way check valve goes from the Intake manifold to the Vacuum Chamber via the rats nest of tubes, (Mazda Part# N390-13-995A). This has a layer of three paper like filters on each end for separating any oil from the air.
The vacuum one-way check valve goes from the Intake manifold to the Vacuum Chamber via the rats nest of tubes, (Mazda Part# N390-13-995A). This has a layer of three paper like filters on each end for separating any oil from the air.
05-20-03, 07:31 AM
#9
Eats, Sleeps, Dreams Rotary
Originally posted by SleepR1
rynberg,
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).
rynberg,
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).
here's the little biatch with crazy glue smothered all over it
05-20-03, 07:31 AM
#10
Eats, Sleeps, Dreams Rotary
Originally posted by SleepR1
rynberg,
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).
rynberg,
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).
here's the little biatch with crazy glue smothered all over it
BTW, the the vacuum chamber doesn't have a check valve...So you'll only have to spend $40 not $80
Here's the Vac Hose Diagram for reference.
Last edited by apneablue; 05-20-03 at 07:35 AM.
05-20-03, 07:31 AM
#11
Eats, Sleeps, Dreams Rotary
Originally posted by SleepR1
rynberg,
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).
rynberg,
I looked under the pressure tank. Lo and behold I'm missing the other half of the check valve. It's apparently in two pieces. One half is attched to the pressure tank. The check valve half shows the three paper filters that filter out the oil. I'm not sure where the other half of the check valve went. It must have blown off of the rat's nest nipple, which is missing a hose, so this must be the culprit. That explains the whistling sounds under high boost too!
Anyhow, I'll replace the pressure tank check valve, and perhaps the vacuum chamber check valve (not sure where that one is located though).
here's the little biatch with crazy glue smothered all over it
05-20-03, 08:01 AM
#14
Lives on the Forum
It's either the pressure tank, vacuum chamber or one way valve problem.
Oops, looks like you figured it out already!
I can finally remove this bag from my head!
Oops, looks like you figured it out already!
I can finally remove this bag from my head!
Last edited by DamonB; 05-20-03 at 08:17 AM.
05-20-03, 08:25 AM
#15
Eats, Sleeps, Dreams Rotary
Originally posted by fd3virgin
and it's free if i have it. hope i didn't throw it out.
and it's free if i have it. hope i didn't throw it out.
EDIT: Sorry for the tripple post above...as you can see, our stupid @$$ satelite internet is acting up today. Mahjik, could you delete the unnecessary ones pweeeeesssse? danka!
Last edited by apneablue; 05-20-03 at 08:28 AM.
06-22-03, 10:53 PM
#16
Lives on the Forum
Thread Starter
Originally posted by DamonB
It's either the pressure tank, vacuum chamber or one way valve problem.
Oops, looks like you figured it out already! I can finally remove this bag from my head!
It's either the pressure tank, vacuum chamber or one way valve problem.
Oops, looks like you figured it out already!
I can finally remove this bag from my head!
06-23-03, 06:20 AM
#17
Eats, Sleeps, Dreams Rotary
Originally posted by SleepR1
Actually not yet. I do plan to replace the vacuum chamber...any ideas on how to go about that? I'll have the part in midweek...
Actually not yet. I do plan to replace the vacuum chamber...any ideas on how to go about that? I'll have the part in midweek...
06-23-03, 02:20 PM
#19
Hi Powr FD's
Join Date: Oct 2002
Location: OKC
Posts: 806
Likes: 0
Received 0 Likes
on
0 Posts
Man, I was just about to give up on my recent boost leak. Ive check all the hoses, zip tied anything questionable. But never looked at the check valve to the vacuum chamber. *fingers crossed, hopefully thats it.
I think it is.
I think it is.
