Simplified sequential vs stock

Hi guys,

I've searched and couldnt find what Im looking for.

What is the difference between the simplified sequentials and the stock sequentials?

Is it just less lines? Different spools times? No longer sequential?

I couldnt find any definitive answers

Thanks in advance
Old 08-31-14, 02:53 PM
  #2
Boilermakers!

iTrader: (157)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 3,690
Received 359 Likes on 263 Posts
Remove all the emission stuff.
Old 08-31-14, 06:08 PM
  #3
Rotary Enthusiast

iTrader: (33)

Spalato's Avatar

Join Date: Jul 2004
Location: US/EU
Posts: 1,084
Received 112 Likes on 65 Posts
If you want to get a visual idea of the difference just look the the stock vacuum hose diagram and then take a look at the simplified vacuum hose diagram.

Name:  vacuum_hose_diagram2.jpg
Views: 1082
Size:  144.3 KB

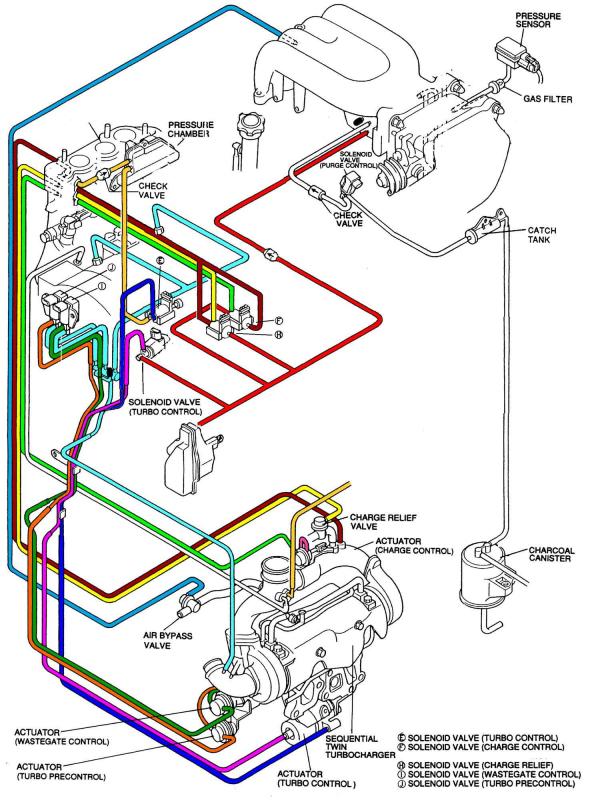

Name:  SimplifiedSeq.jpg
Views: 708
Size:  100.8 KB


Its less vacuum lines, less solenoids, no emission stuff (Air pump, EGR, ACV) people remove the AWS (accelerated warm up system) and they also remove the double throttle

So your twin turbo systems stays untouched, and yes it remains still in sequential form. Non-sequential is a whole different story that you can search about...
Old 08-31-14, 08:28 PM
  #4
Junior Member
Thread Starter

Shobby's Avatar

Join Date: Aug 2014
Location: BC
Posts: 31
Likes: 0
Received 0 Likes on 0 Posts
That was great. Thanks a lot guys
