Separating HVAC front panel from control box
I'm repainting all my plastic interior parts and have pulled the HVAC panel and controls. I've unscrewed the 5 screws attaching the control box the the the front panel and removed the front 3 control dials.

However, I cannot separate the front panel from the rear section. What I am missing?

TIA


moconnor is offline
Reply Like
Old 12-21-21, 09:31 PM
  #2
Senior Member

iTrader: (16)

gdub29e's Avatar

Join Date: Apr 2011
Location: Millersville Md
Posts: 678
Received 213 Likes on 112 Posts
Did you remove the one at the plug connection holding the printed circuit board? I can’t remember if it’s under that piece of tape or not, it’s been a while.
gdub29e is offline
Reply Like
Old 12-21-21, 09:41 PM
  #3
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (14)

moconnor's Avatar

Join Date: Jul 2003
Location: Bay Area, CA
Posts: 4,660
Received 82 Likes on 49 Posts

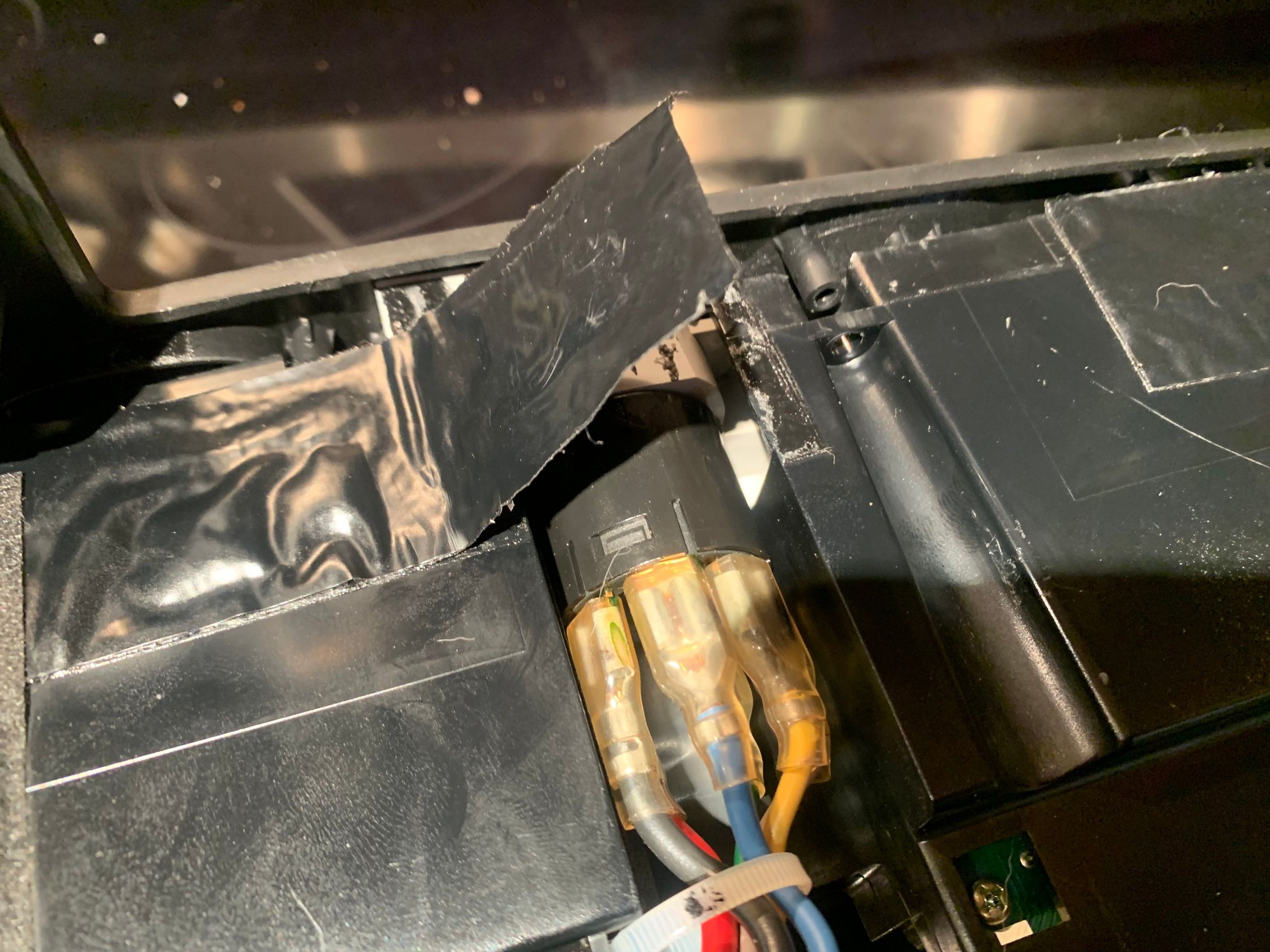

I removed the tape (which I was hoping not to do) and it separated. Thanks!


moconnor is offline
Reply Like
The following users liked this post:
gdub29e (12-21-21)
Old 12-22-21, 09:04 AM
  #4
Sponsor
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts
Theres 2 screws holding the circuit board.
IRPerformance is offline
Reply Like
Old 12-22-21, 02:39 PM
  #5
RX-7 Bad Ass

iTrader: (55)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 15,399
Received 2,438 Likes on 1,509 Posts
FYI it's a pain in the butt to do that, it's a giant floppy pile of wiring and crap. Just take your time with it.

Dale
