secondary turbo
Anybody know why I can't get my manual boost controller to control my secondary boost. I've used 2 controllers 1 from primary the other on transition, bypassed solenoid, made sure arrows face actuators and made sure dial is to 'boost -'
Really annoying yet probably somethin simple
Thanks
Really annoying yet probably somethin simple
Thanks
06-19-13, 05:49 AM
#2
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
How exactly do you have them installed? Pictures of your routing would do wonders.
For MBC's, remove the line that runs from the compressor to the actuator and install the MBC, then run another line back to the actuator. Take the other line off and cap the other nipple on the actuator. Then remove/cap that line you just removed.

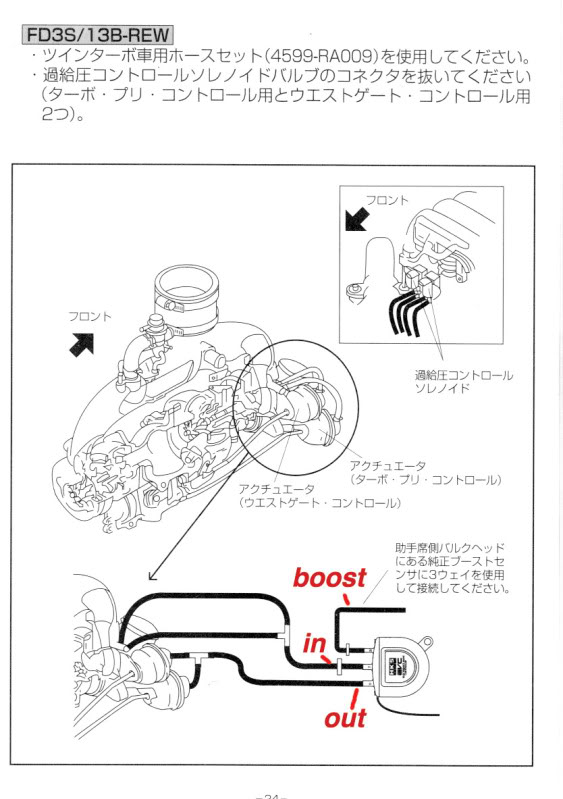

Here's an example of what I mean from the EVC EBC install:
For MBC's, remove the line that runs from the compressor to the actuator and install the MBC, then run another line back to the actuator. Take the other line off and cap the other nipple on the actuator. Then remove/cap that line you just removed.
Here's an example of what I mean from the EVC EBC install:
06-19-13, 07:19 AM
#3
Junior Member
Thread Starter
Join Date: Aug 2011
Location: swansea uk
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts

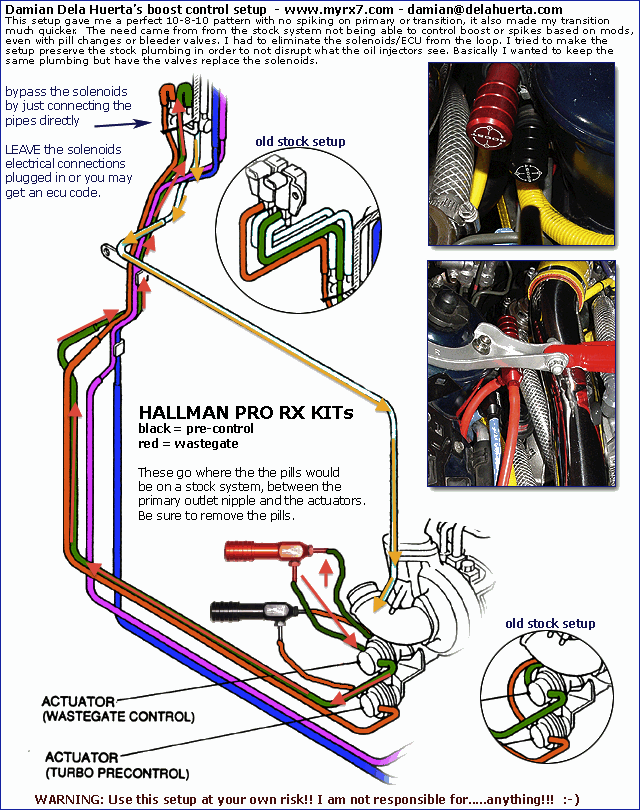

http://www.myrx7.com/images/damian_setup.gif
This is how my set up is. Sorry for no pictures phone won't let me upload
This is how my set up is. Sorry for no pictures phone won't let me upload
06-19-13, 07:41 AM
#4
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
That diagram is very confusing. Basically, what it is doing is openly venting any pressure it sees back through the light blue line.
Follow the arrows on my modified picture. Essentially any air you send to the wastegate or precontrol will simply flow right back through the piping into the inlet duct. This would make the wastegate nearly completely inoperable. Unless I'm missing something, that would be VERY unsafe.
To remedy the situation, simply remove the green and orange lines coming off each actuator (that runs to the stock solenoids) and cap them off with some good quality caps.
Follow the arrows on my modified picture. Essentially any air you send to the wastegate or precontrol will simply flow right back through the piping into the inlet duct. This would make the wastegate nearly completely inoperable. Unless I'm missing something, that would be VERY unsafe.
To remedy the situation, simply remove the green and orange lines coming off each actuator (that runs to the stock solenoids) and cap them off with some good quality caps.
