RX-8 spare tire and BBK
#1
Rotary Enthusiast
Thread Starter
iTrader: (32)
RX-8 spare tire and BBK
So I have been driving around for awhile with a Racing Brake F/R BBK on my FD, but these brakes won't clear the OEM 16" spare tire (I tried it...even the rear won't clear) Since the RX8 comes with a 17" spare tire as an option I thought it would be worthwhile to pick one up and put it to the test.
The results are better than my expectation - the RX8 spare wheel will clear both the front and rear brakes. Really all I was hoping for was to be able to mount it on the rear, and if needed swap tires rear to front in a pinch if I had a front blowout. But the RX8 wheel easily clears both ends. It also fits nicely in the spare tire well, although it may stand proud a few mm higher than the OEM 16" spare. A small price to pay for the peace of mind that if I have a blowout, I can actually fit a spare tire to my car and at least limp home or to a tire shop. I highly recommend this mod if you have a BBK front and rear.

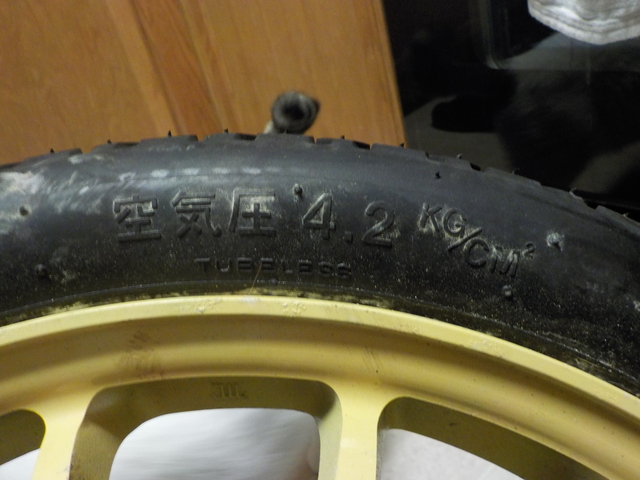

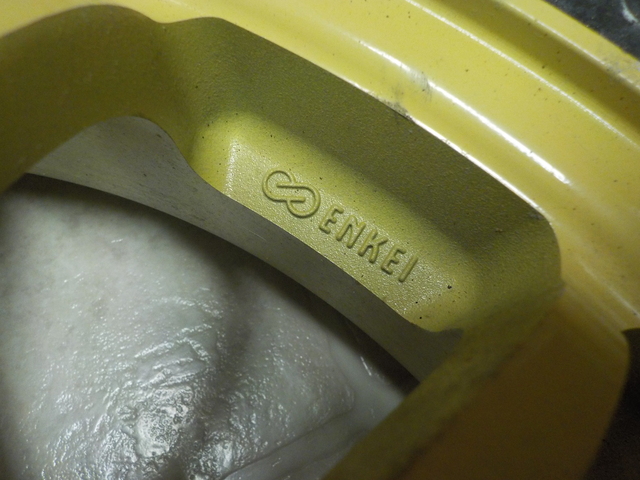

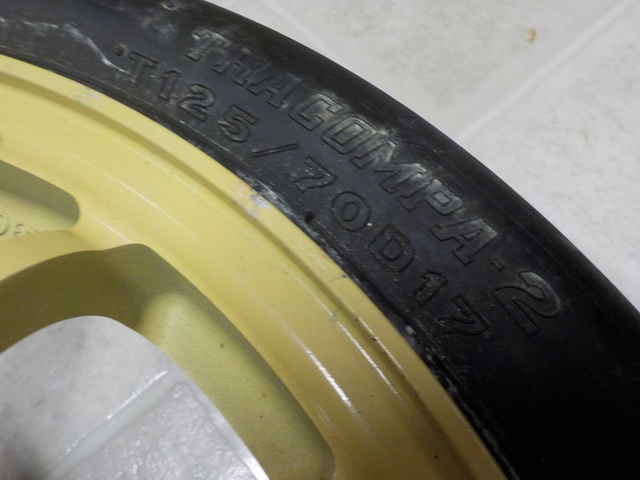

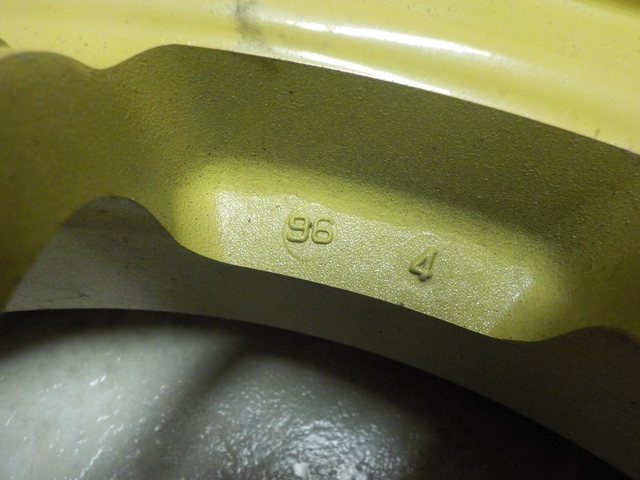

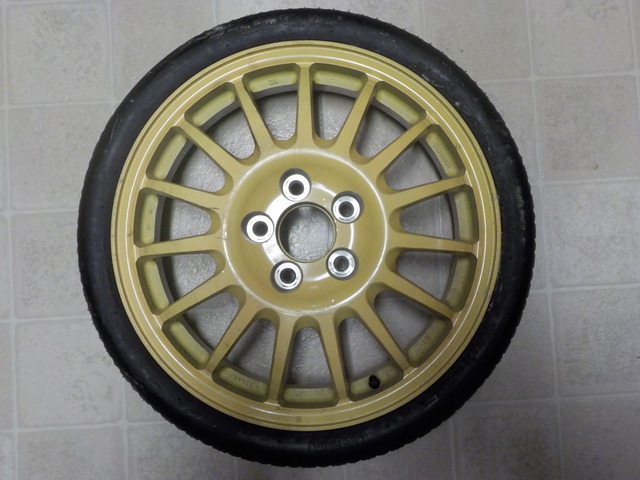

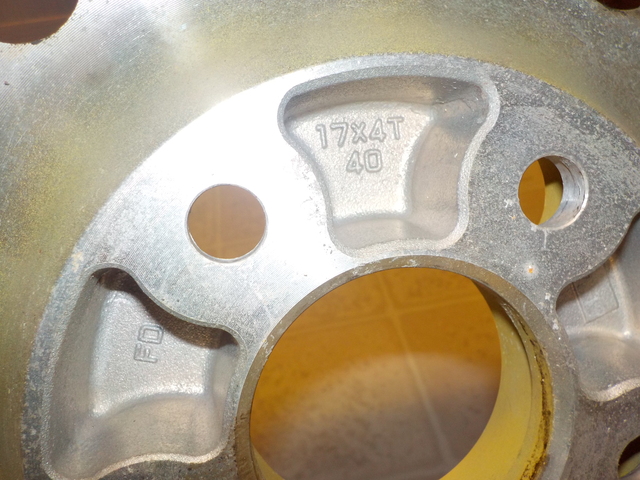

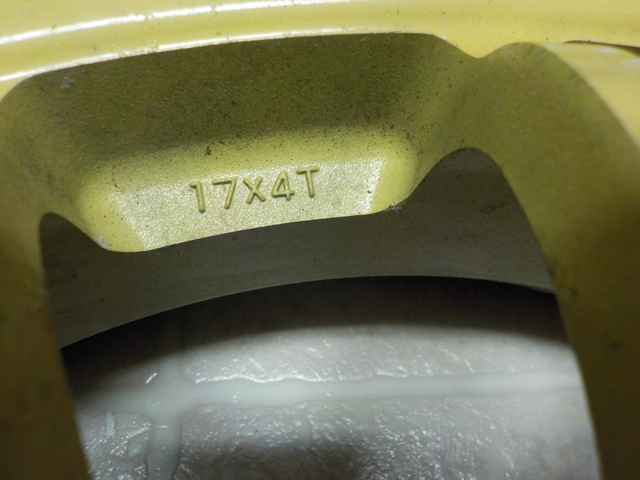

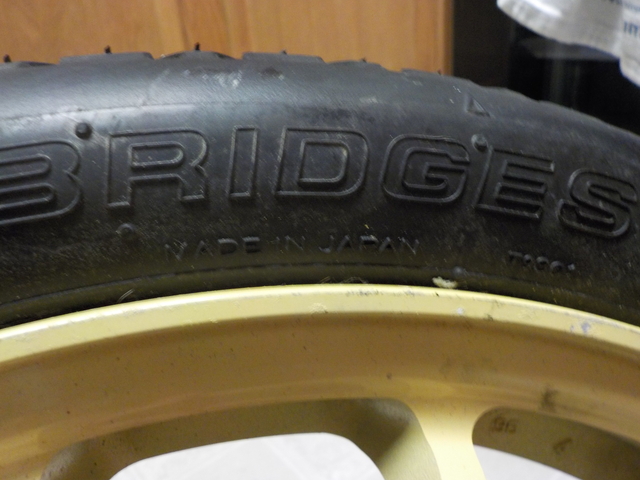

Here are a few pics of the fitment
First, the rear axle:
Tons of clearance:
Front, again no problem with caliper clearance:
This may be common knowledge already, but I did not find anything in a search so I thought I'd post my results.
The results are better than my expectation - the RX8 spare wheel will clear both the front and rear brakes. Really all I was hoping for was to be able to mount it on the rear, and if needed swap tires rear to front in a pinch if I had a front blowout. But the RX8 wheel easily clears both ends. It also fits nicely in the spare tire well, although it may stand proud a few mm higher than the OEM 16" spare. A small price to pay for the peace of mind that if I have a blowout, I can actually fit a spare tire to my car and at least limp home or to a tire shop. I highly recommend this mod if you have a BBK front and rear.
Here are a few pics of the fitment
First, the rear axle:
Tons of clearance:
Front, again no problem with caliper clearance:
This may be common knowledge already, but I did not find anything in a search so I thought I'd post my results.
Last edited by jza80; 01-24-16 at 02:16 AM.
The following users liked this post:
gracer7-rx7 (08-07-21)
#4
Original Gangster/Rotary!
iTrader: (213)
Evidently many/most RX-8s came with the can of aerosol glop and no spare--- the spare was an option, and a pricey one at that. These aren't as easy to come by as I had originally thought.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,778
Received 2,564 Likes
on
1,824 Posts
that is correct, the Rx8 came with a can of fix a flat. the spare tire came in a kit, which was $$ and useless. perhaps there is another mazda with a 17" spare, the 6 has the same 5x114 bolt pattern
#6
Rotary Enthusiast
Thread Starter
iTrader: (32)
The spare tire was an accessory option, there are always people selling the complete kit on eBay or whatever but that has a lot of unneeded parts like the mounting frame etc. I found that there are sellers of just the rim and tire that were coming up from time to time in the $200 range on eBay, I located mine from a Nor Cal RX8 owner who was selling the wheel setup plus the cover bag on craigslist as he was converting his RX8 for track duty. Picked it up for $170 shipped, which is a premium over a comparable FD spare for sure. But it was brand new, and priceless to have on hand when you have that flat tire IMO.
Good idea about looking for a different Mazda with a 17" spare though!
Good idea about looking for a different Mazda with a 17" spare though!
Last edited by jza80; 01-24-16 at 12:54 PM.
#8
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,778
Received 2,564 Likes
on
1,824 Posts
i just looked a bit, and i think you're correct. it lists a 17" spare, for the 2300cc engine, which i think is the Mazdaspeed only? also the 14 and 15 6's have a 17" spare option. the miata had a fix a flat kit, like the Rx8.
i should maybe add that a 17" spare wheel in a 5x114 bolt pattern shouldn't be too hard to find, outside of Mazda.
if it matters the stock spare is 16x4 with a 40 offset
i should maybe add that a 17" spare wheel in a 5x114 bolt pattern shouldn't be too hard to find, outside of Mazda.
if it matters the stock spare is 16x4 with a 40 offset
Last edited by j9fd3s; 01-24-16 at 02:09 PM.
#18
Rotary Enthusiast
Thread Starter
iTrader: (32)
Yes, with some room to spare. The only change point is that the wheel center seems to protrude slightly above the body trunk sheetmetal - so the spare tire cover floats a bit above the surrounding trunk area. But you really can't tell once the rear carpet is back in place. That is the only negative to this change.
I'll shoot a picture of it fitted to the spare tire well and post it later.
I'll shoot a picture of it fitted to the spare tire well and post it later.
#21
Spoolin'
iTrader: (6)
Seems like RX8 spare tires are going for $200 now and shipping from Japan for a 17inch FD spare is an arm and a leg.
I ended up getting a spare from a 2019 Mustang for $40.
It's the same diameter as the stock spare 125/70R17 and fits in the spare tire well in the FD.
Another option for people with BBKs.
I ended up getting a spare from a 2019 Mustang for $40.
It's the same diameter as the stock spare 125/70R17 and fits in the spare tire well in the FD.
Another option for people with BBKs.
#22
Rotary Enthusiast
Thread Starter
iTrader: (32)
Seems like RX8 spare tires are going for $200 now and shipping from Japan for a 17inch FD spare is an arm and a leg.
I ended up getting a spare from a 2019 Mustang for $40.
It's the same diameter as the stock spare 125/70R17 and fits in the spare tire well in the FD.
Another option for people with BBKs.
I ended up getting a spare from a 2019 Mustang for $40.
It's the same diameter as the stock spare 125/70R17 and fits in the spare tire well in the FD.
Another option for people with BBKs.
