Question: Nuts and Bolts diagram listing?
#1
Senior Member
Thread Starter
Join Date: Nov 2004
Location: dallas, TX 75228
Posts: 605
Likes: 0
Received 0 Likes
on
0 Posts
Question: Nuts and Bolts diagram listing?
Hi, Is there a place where I can find the thread/pitch/length of all nuts/bolts on the FD?
Mainly need those to bolt clutch/flywheel/trans/starter up and a few for the fd front end as well.
Thanks guys.
Mainly need those to bolt clutch/flywheel/trans/starter up and a few for the fd front end as well.
Thanks guys.
#2
Rotary Enthusiast
iTrader: (33)
The FC guys have a good thread about the bolts and thread pitch for the FC. It would also be helpful to have something similar for the FD.
So most hex heads/nut sizes on the FD are 8, 10, 12, 14, 17, 19, and 21mm
08mm hex head/nut = M5 x ???
10mm hex head/nut = M6 x 1.0
12mm hex head/nut = M8 x 1.25
14mm hex head/nut = M10 x ???
17mm hex head/nut = M12 x ???
19mm hex head/nut = M14 x ???
21mm hex head/nut = ???
So these number above are just assumptions, I'm going from the standard sizes used for metric bolts and nuts.
If someone could fill in the above list it would be very useful!
My FD is not near me now so I cant go into my garage and measure anything. I actually wanna buy a set of nice thread chasers to fix nuts and bolts when I get back on working on my FD and knowing the exact thread pitch would be very helpful.
So most hex heads/nut sizes on the FD are 8, 10, 12, 14, 17, 19, and 21mm
08mm hex head/nut = M5 x ???
10mm hex head/nut = M6 x 1.0
12mm hex head/nut = M8 x 1.25
14mm hex head/nut = M10 x ???
17mm hex head/nut = M12 x ???
19mm hex head/nut = M14 x ???
21mm hex head/nut = ???
So these number above are just assumptions, I'm going from the standard sizes used for metric bolts and nuts.
If someone could fill in the above list it would be very useful!
My FD is not near me now so I cant go into my garage and measure anything. I actually wanna buy a set of nice thread chasers to fix nuts and bolts when I get back on working on my FD and knowing the exact thread pitch would be very helpful.
Last edited by Spalato; 02-23-16 at 07:05 PM.
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
check out page 1-I2, its about 9 pages in. they explain the parts numbering system for some of the standard pars, of which nuts and bolts are mostly a part of.
http://foxed.ca/rx7manual/manuals/pa...000A-4600A.pdf
the gotcha is that the number isn't the actual size, its relative. so it doesn't SAY its a 6mm bolt that is 20mm long, but if you know that the bolt that goes somewhere is a 6mm x20mm (which will be by default a 1.0 thread), and the other spot uses a 30mm bolt, you will then know that the part number goes from 9979-12-820 to 9979-12-840.
the bolt style refers to if it has a washer, or not, or a lock washer.
quickest example is a stationary gear bolt, 9080-12-820 is the one for the rear, the front, which is longer is a 9080-12-825. then the intake manifold bolt, is the same length, but does not have the captive lockwasher, is 9979-60-825, and of course we know these are all 8x1.25 bolts.
a 6mmx1.0 bolt, which i just grabbed at random is, 9978-00-612.
there are nuts/bolts that are specific to the FD and catalogued like any other part, so those wouldn't have the size in the part number.
http://foxed.ca/rx7manual/manuals/pa...000A-4600A.pdf
the gotcha is that the number isn't the actual size, its relative. so it doesn't SAY its a 6mm bolt that is 20mm long, but if you know that the bolt that goes somewhere is a 6mm x20mm (which will be by default a 1.0 thread), and the other spot uses a 30mm bolt, you will then know that the part number goes from 9979-12-820 to 9979-12-840.
the bolt style refers to if it has a washer, or not, or a lock washer.
quickest example is a stationary gear bolt, 9080-12-820 is the one for the rear, the front, which is longer is a 9080-12-825. then the intake manifold bolt, is the same length, but does not have the captive lockwasher, is 9979-60-825, and of course we know these are all 8x1.25 bolts.
a 6mmx1.0 bolt, which i just grabbed at random is, 9978-00-612.
there are nuts/bolts that are specific to the FD and catalogued like any other part, so those wouldn't have the size in the part number.
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
The FC guys have a good thread about the bolts and thread pitch for the FC. It would also be helpful to have something similar for the FD.
So most hex heads/nut sizes on the FD are 8, 10, 12, 14, 17, 19, and 21mm
08mm hex head/nut = M5 x ???
10mm hex head/nut = M6 x 1.0
12mm hex head/nut = M8 x 1.25
14mm hex head/nut = M10 x ???
17mm hex head/nut = M12 x ???
19mm hex head/nut = M14 x ???
21mm hex head/nut = ???
So these number above are just assumptions, I'm going from the standard sizes used for metric bolts and nuts.
If someone could fill in the above list it would be very useful!
My FD is not near me now so I cant go into my garage and measure anything. I actually wanna buy a set of nice thread chasers to fix nuts and bolts when I get back on working on my FD and knowing the exact thread pitch would be very helpful.
So most hex heads/nut sizes on the FD are 8, 10, 12, 14, 17, 19, and 21mm
08mm hex head/nut = M5 x ???
10mm hex head/nut = M6 x 1.0
12mm hex head/nut = M8 x 1.25
14mm hex head/nut = M10 x ???
17mm hex head/nut = M12 x ???
19mm hex head/nut = M14 x ???
21mm hex head/nut = ???
So these number above are just assumptions, I'm going from the standard sizes used for metric bolts and nuts.
If someone could fill in the above list it would be very useful!
My FD is not near me now so I cant go into my garage and measure anything. I actually wanna buy a set of nice thread chasers to fix nuts and bolts when I get back on working on my FD and knowing the exact thread pitch would be very helpful.
#7
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
most of the time the 14mm head is 10mmx1.25, but the exhaust is all 10x1.5, and the tension bolts are 10x1.0 with a 17mm head. the 12mm is kind of the same, for instance the wheel studs are 12x1.5...
Trending Topics
#8
Rotary Enthusiast
iTrader: (33)
So according to the JIS standards the FD should have the following common hex head, bolt and thread pitch sizes:
08mm hex head/nut = M5 x 0.8
10mm hex head/nut = M6 x 1.0
12mm hex head/nut = M8 x 1.25
14mm hex head/nut = M10 x 1.25
17mm hex head/nut = M12 x 1.25
19mm hex head/nut = M14 x 1.5
The only one I can't find is the
21mm hex head/nut = ???
And obviously there are exceptions.
The only exception that I know of is the brake line flare nut which is 10mm hex and M10 x 1.0
Please correct any of this if its wrong
08mm hex head/nut = M5 x 0.8
10mm hex head/nut = M6 x 1.0
12mm hex head/nut = M8 x 1.25
14mm hex head/nut = M10 x 1.25
17mm hex head/nut = M12 x 1.25
19mm hex head/nut = M14 x 1.5
The only one I can't find is the
21mm hex head/nut = ???
And obviously there are exceptions.
The only exception that I know of is the brake line flare nut which is 10mm hex and M10 x 1.0
Please correct any of this if its wrong
#12
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
so i use the steering wheel nuts to hold my engine to the engine stand, and i've seen lugnuts on the cat before...
the chassis may have some M12x1.25, as those get torqued tighter
#13
Rotary Freak

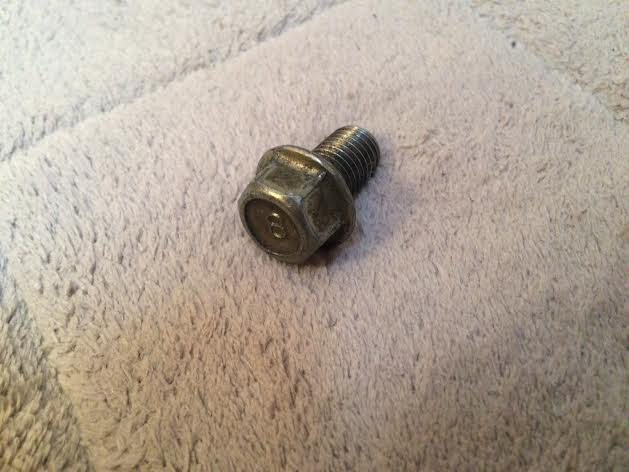

I don't think you can make that assumption unfortunately. You'll find similar numbers on a variety of fasteners from the various OEMs, which don't correspond with any grade standard if it was true - if anything, a production line thing.
#14
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
or the guy making the bolt is named 9
#16
Rotary Freak
7 is common on a fair few Japanese vehicles, not a known grade afaik. It does give you a standard torque value - and I suspect a quick visual confirmation the tool you're picking up at your station won't take the heads off once you pull the trigger.
