Over the weekend i installed an engine in my car. I purchased it without one and ive never seen a real one just pictures on the computer and I was wondering if you guys could post some pictures so I can figure out where some hoses go mainly on the turbo area. The guy gave me a hks intake setup but I cant figure out how it all goes together, basicly I need lots of picures so I can make sure I have as much in the right place as possible thanks for the help.
P.S. Ive searched and cant find any clear pictures of the things Im looking for.

twin7r1

iTrader: (1)

what hoses? like vacuum lines? if so use the vacuum diagram..... or the fsm to locate the missing links

AHarada

iTrader: (25)

Do you have an airpump? The hoses that hook up to the intake pipes would be one for the airpump, one for the charge relief, and one for the charge control. Basically, if you aren't sequential, and don't have emissions equipment then all of them can be capped.

Mahjik

iTrader: (1)

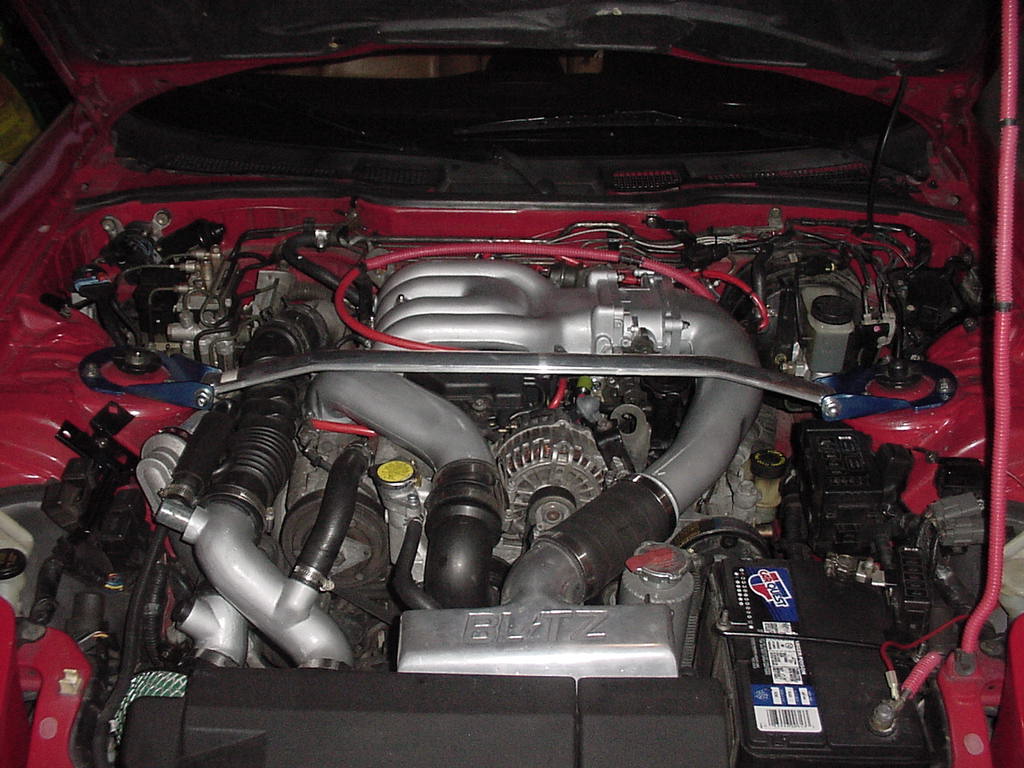

I'm assuming you have the older HKS Super Mega Flow like the one pictured above. Those were taken many years ago. I no longer have that setup so I can't take more pictures for you. Two things to note above:

1. I had the Apexi BOV installed so one of the connections to the intake is plugged
2. The line from the ACV was capped but the cap had 4 holes drilled in it. This allowed the line to vent but removed the MOOO sound which can come out of that line.

tafkamb2

thanks for the pictures Mahjik
