Hey all,

Can someone take a picture of their clutch pedal, more specifically the rod that pushes in the master cylinder? For an unfortunate reason I have to look into fabricating that rod for my own pedal set up. If you could capture both the part where it joins the actual pedal and where it pushes in the master cylinder, that would be great. As many pictures as possible would be greatly appreciated!

Thanks!



Does anyone know if Mazda will actually sell this peice separate from the clutch pedal assembly that is $400+?!

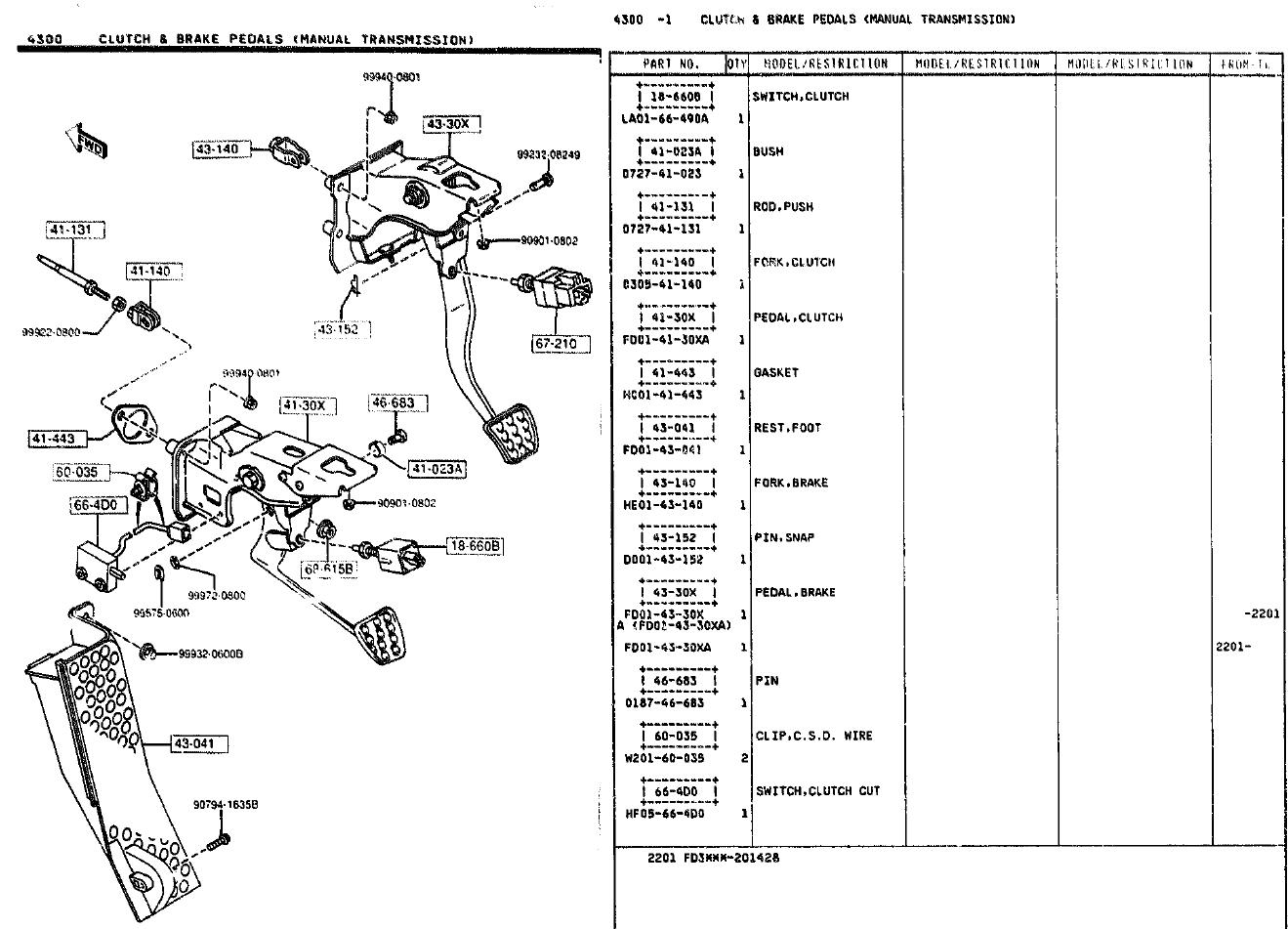

in the FSM they refer to it as the "Push Rod Assembly"

since they use the word assembly, does that mean that I'll be lucky enough to where they sell it separate? haha



Part # 072741131
its about 3.50 at any dealer





^ You, good sir, are the man!!!



You can come over and look at mine any time you like



Thanks Adam! I didn't want to bother you about something so small, but it did cross my mind, since you practically live across the street. Maybe when I'm done making a mess of my car I can show you.
