pics of my fd
#28
Who Dey?
Thread Starter
Join Date: Jun 2004
Location: Cincinnati
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
I got the intercooler from www.fatboygarage.com. Great customer service. It's actually advertised as an FD v-mount but you have to do some custom work to mount it. Thanks again guys.
#31
Originally Posted by bdennis
I got the intercooler from www.fatboygarage.com. Great customer service. It's actually advertised as an FD v-mount but you have to do some custom work to mount it. Thanks again guys.
#32
Who Dey?
Thread Starter
Join Date: Jun 2004
Location: Cincinnati
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
This is the same guy I got mine from. Exact same intercooler. http://cgi.ebay.com/ebaymotors/RX7-F...spagenameZWDVW
#33
i love boost
Join Date: Sep 2002
Location: St. Albert Alberta
Posts: 803
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by $_RXHEAVEN_$
he said it was a custom one at the start of the tread. didnt u read it? it cost him like $500.
Would really like to see your pics of the Vmount setup. Get them pics up!
#34
Where has my $ gone?
iTrader: (12)
Join Date: Feb 2004
Location: Bay Area, Cal/Phoenix, AZ
Posts: 1,654
Likes: 0
Received 7 Likes
on
2 Posts
Originally Posted by herblenny
I would think like any other Vmount set up except he's using the stock rad.
#35
I speak Japanglish
Originally Posted by MakoRacing
Yeah but i dont think itll flow as good through the IC(compaired to other vmounts) because the lack of angle.
Last edited by RE Suzuki; 01-31-06 at 12:38 AM.
#36
u should make some brackets and sell them to us/ me cause i want a v-mount but dont wanna spend a small fortune on a rotary extreme unit. not to mention im not all that handy when it comes to fabricating.
#37
Who Dey?
Thread Starter
Join Date: Jun 2004
Location: Cincinnati
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
I could definetly get some brackets made. Are you talking about the radiator brackets or the intercooler brackets? I could make a few sets and see how people like them.
#40
Who Dey?
Thread Starter
Join Date: Jun 2004
Location: Cincinnati
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
I just made a call to the guy that made them for me. He had a drawing with all the dimensions and where to mount them on the intercooler. If he has them on file still I will just post the drawings. It shouldn't cost too much for you to get them made yourself if you have the exact dimensions you need, which will be in the drawing. If you'd rather me get them made I can but it will probably be cheaper just to print the drawings and take them to a machine shop. As soon as I get the file from him I will post them.
#41
thanx a lot bdennis, there is a guy near where i live that said he could help me with the setup and those diagrams would be very helpful and much appreciated, thanx buddy
#42
Don't worry be happy...
iTrader: (1)
Originally Posted by bdennis
I just made a call to the guy that made them for me. He had a drawing with all the dimensions and where to mount them on the intercooler. If he has them on file still I will just post the drawings. It shouldn't cost too much for you to get them made yourself if you have the exact dimensions you need, which will be in the drawing. If you'd rather me get them made I can but it will probably be cheaper just to print the drawings and take them to a machine shop. As soon as I get the file from him I will post them.
#50
Who Dey?
Thread Starter
Join Date: Jun 2004
Location: Cincinnati
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts

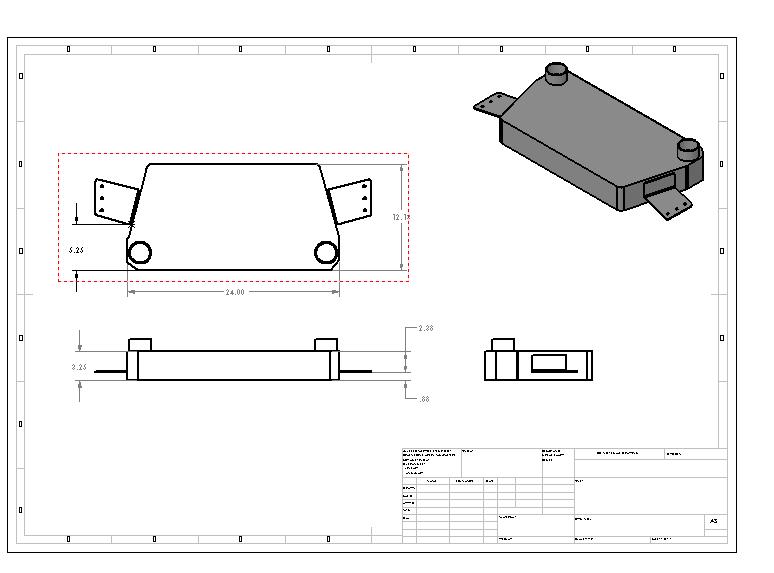

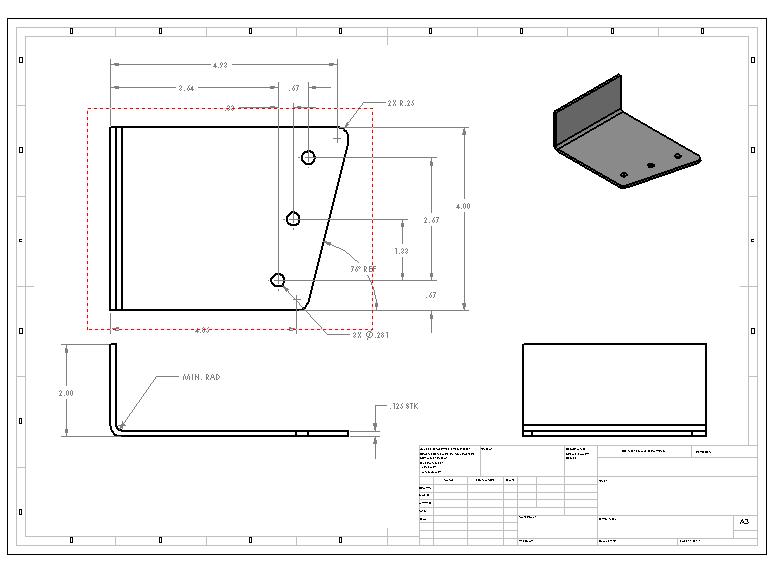

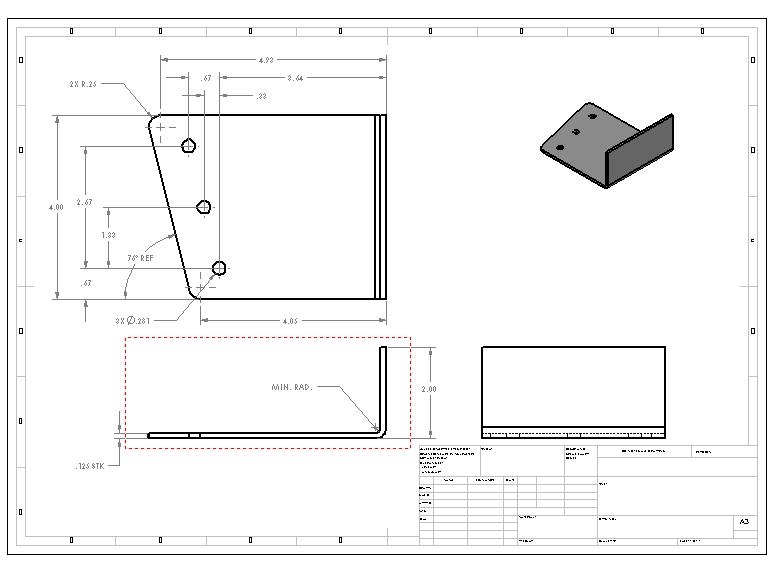

Here are the pics guys. A couple of suggestions. We made mine out of 1/8" thick stock. The brackets could be a little thicker, say 3/16". Also, the length is currently 4". The room is there to make that 5 or 6 inches. Remember, this is just what I did. I'm not saying its the best way or even the right way, but it is a way. I've had mine done for about a month and I love it. I'll try to get pictures of the radiator brackets up soon. Good Luck. P.S. It is not an original CYM.
