Painting Brake Calipers

Thread Tools

Search this Thread

Old 12-31-04, 02:14 AM
  #51
the REAL deal

iTrader: (2)

Meiogirl's Avatar

Join Date: Jun 2002
Location: South Bay
Posts: 995
Likes: 0
Received 2 Likes on 2 Posts
If i know correctly, you need to use brake caliper paint specifically. Its the only one that holds up to the brake fluid..... if/in case it leaks.
Old 12-31-04, 02:39 AM
  #52
Rotary Freak


jpandes's Avatar

Join Date: Mar 2001
Location: San Francisco, CA
Posts: 2,236
Likes: 0
Received 1 Like on 1 Post
I polished mine too. http://www.cardomain.com/memberpage/336795/4

Last edited by jpandes; 12-31-04 at 02:42 AM.
Old 12-31-04, 07:21 AM
  #53
almost done


KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
if you want the mazda letters polished a good method is first before you clean the calipers sand and polish the letters with a dremel then clean the calipers with brake cleaner and just before you paint them use a q-tip with a little oil and go over the letters then after you paint them use a razor to peel along the corners of the letters then use another q-tip with paint thinner to wipe off any paint left and last finish them off with a little mothers polish.

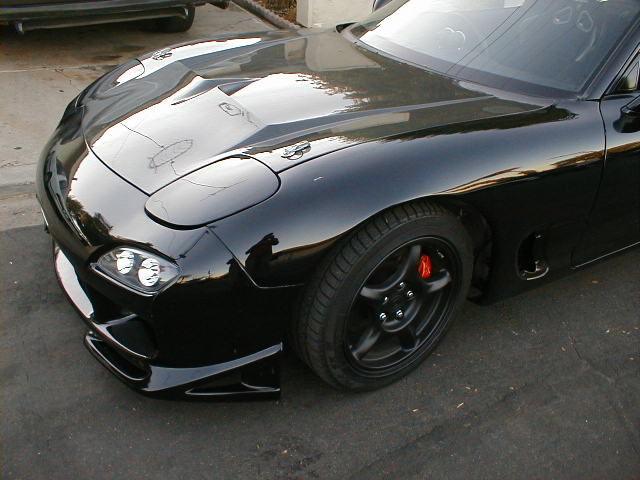

ok this one does not show the caliper but i like the pic

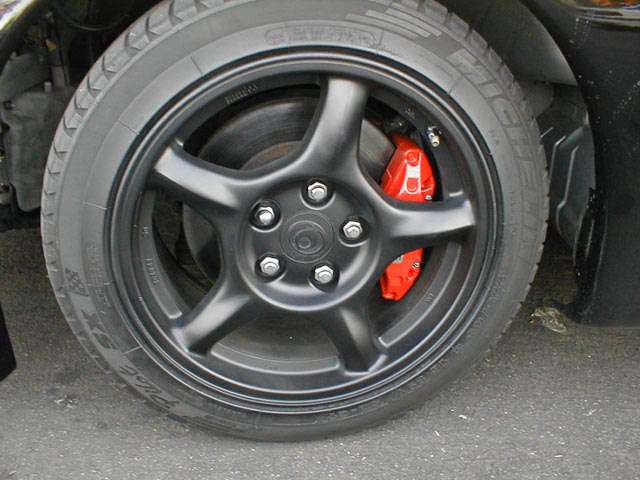

Attached Thumbnails Painting Brake Calipers-2b.jpg   Painting Brake Calipers-1b.jpg   Painting Brake Calipers-3b.jpg
Old 12-31-04, 09:30 AM
  #54
Mr. Links

iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,595
Received 40 Likes on 26 Posts
Originally Posted by The_penguin
I had my first calipers painted and the brake dust eventually trashed the finish.
Yep, ditto.



BTW, the Dupi-Color stuff sucks IMO. If you can find Plasitic-Kote, it did a much better job. I'm not sure if Plastic-Kote is gone (or maybe they became Dupi-Color since the containers looks similar). However, I had two cans of the high-temp paint from both; the Dupi-Color stuff didn't coat nearly as well as the older Plastic-Kote.
Old 12-31-04, 10:40 AM
  #55
il Cosa Nostra e vivo!!

iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by wReX

(
Jesus!!..................I had to go check my front right Rotor/Caliper assembly to make sure it was still on!!
Old 12-31-04, 10:43 AM
  #56
Banned. I got OWNED!!!

BATMAN's Avatar

Join Date: Feb 2001
Location: Silicon Valley Bay Area
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
If people insist on "colored" calipers they should have them taken apart and powder coated.

This way they will get a deep shine and a much longer lasting finish than any painted caliper out there.
Old 12-31-04, 10:49 AM
  #57
Banned. I got OWNED!!!

BATMAN's Avatar

Join Date: Feb 2001
Location: Silicon Valley Bay Area
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by KINETIK_FD3S

you don't like the shiney rims?

Old 12-31-04, 01:38 PM
  #58
Rotary Freak

iTrader: (14)

Julian's Avatar

Join Date: Jan 2004
Location: Longview, Texas
Posts: 1,857
Likes: 0
Received 5 Likes on 5 Posts
While I had my calipers torn down for a rebuild, I sent them out to be power coated. This finish holds up very well to the heat and brake dust. Also polished the Mazda, iIf you are not proud of the car Mazda made then sell the car. Those of us in competion can't just change out the brakes and besides, stock brake calipers with good pads, fluid and cooling can hold up to a lot ...
Old 12-31-04, 02:29 PM
  #59
Living the dream...

iTrader: (7)

93silverbullet's Avatar

Join Date: Oct 2003
Location: Eugene, Oregon
Posts: 1,342
Likes: 0
Received 1 Like on 1 Post

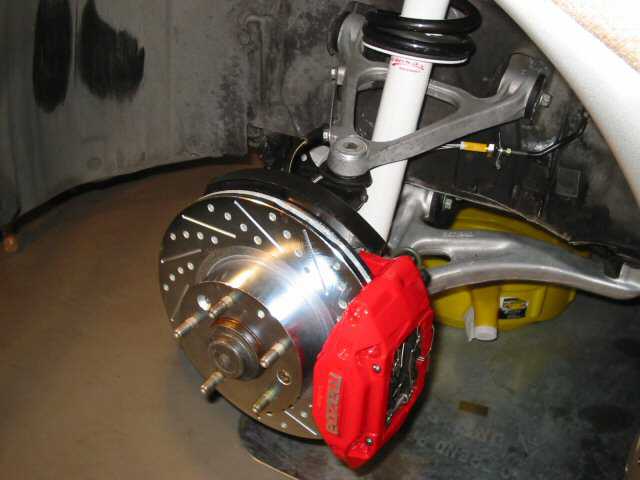

I painted mine using Plasti-Kote Brake Caliper Paint about a year ago and it's stood up pretty well. Next time I'll power coat them yellow (IMO that will work well with silver)
Attached Thumbnails Painting Brake Calipers-111_1121-640x480.jpg   Painting Brake Calipers-110_1053-640x480.jpg   Painting Brake Calipers-109_0924-640x480.jpg
Old 12-31-04, 05:42 PM
  #60
almost done


KINETIK_FD3S's Avatar

Join Date: Dec 2001
Location: 250 HZ
Posts: 1,049
Likes: 0
Received 0 Likes on 0 Posts
i like shiney aftermarket wheels but for the stock i like semi-gloss
Old 01-16-05, 11:24 PM
  #61
Obsessed


zullo's Avatar

Join Date: Sep 2003
Location: Lenexa KS
Posts: 453
Likes: 0
Received 0 Likes on 0 Posts
As a follow-up, I had posted earlier in the thread of my (red) caliper paint turning dark after several track events.

This was the Dupli-Color kit.

I recently have removed the paint (major pain in the ***) and am preparing to paint them again. And what I noticed when I dug out the can of paint is that it is only rated to 500 degrees (fine print)... well, no wonder it turned black! What a joke. How can they call that caliper paint?

Besides that, they charge a premium to include a can of brake cleaner, a crap brush, and a stir stick. Be serious.

I am going to do it right this time and get the VHT caliper paint that is rated at 1200 - 1500 degrees. I haven't seen it locally but it is available here,

http://www.raceshopper.com/brake_paint.shtml

I'll try and post some pics of the results.
