over heating issue
10-24-16, 11:40 PM
#26
Removing the thermostat will cause the engine to overheat.
The front side of the thermostat opens when warm to allow coolant to go into the radiator, if this were the only function it might be OK to remove it. But the rear side of the thermostat extends to block coolant from recirculating back into the engine, if you don't block that passage some other way the engine will overheat.
Put your thermostat in a pot of boiling water to make sure both sides work, then put it back in the engine
The front side of the thermostat opens when warm to allow coolant to go into the radiator, if this were the only function it might be OK to remove it. But the rear side of the thermostat extends to block coolant from recirculating back into the engine, if you don't block that passage some other way the engine will overheat.
Put your thermostat in a pot of boiling water to make sure both sides work, then put it back in the engine
10-25-16, 01:41 AM
#27
Interesting, is that in street driving under both stop and go and at normal cruising speeds? My oil temps in heavy stop and go can climb to between 80-90 C (176-194 F) after a long time but at cruising speeds below say 60 mph it will be about 70 C (158 F) and above 60 mph at around 60 C (140). On track it shoots up to 80-90 C pretty quickly and start to climb after 1-2 laps up to 115 C (239 F) when I start cooling it down (so I get about 15 minutes out of a session). I can manage longer if I don't redline every shift but my brakes are usually getting spongy after 15 straight minutes of hard stopping.
10-25-16, 03:02 AM
#28
Interesting, is that in street driving under both stop and go and at normal cruising speeds? My oil temps in heavy stop and go can climb to between 80-90 C (176-194 F) after a long time but at cruising speeds below say 60 mph it will be about 70 C (158 F) and above 60 mph at around 60 C (140). On track it shoots up to 80-90 C pretty quickly and start to climb after 1-2 laps up to 115 C (239 F) when I start cooling it down (so I get about 15 minutes out of a session). I can manage longer if I don't redline every shift but my brakes are usually getting spongy after 15 straight minutes of hard stopping.
10-25-16, 06:43 AM
#29
All the temperature comparisons are interesting but probably have little to do with the OP's overheating problem. He was running no t-stat, has a big air block and heater in front of the radiator in the form of a FMIC and is running no belly pan. Change those things and I'm pretty sure the over heating goes away...if the coolant seals haven't been damaged.
10-25-16, 07:53 AM
#30
Removing the thermostat will cause the engine to overheat.
The front side of the thermostat opens when warm to allow coolant to go into the radiator, if this were the only function it might be OK to remove it. But the rear side of the thermostat extends to block coolant from recirculating back into the engine, if you don't block that passage some other way the engine will overheat.
The front side of the thermostat opens when warm to allow coolant to go into the radiator, if this were the only function it might be OK to remove it. But the rear side of the thermostat extends to block coolant from recirculating back into the engine, if you don't block that passage some other way the engine will overheat.
10-25-16, 11:51 AM
#31
All out Track Freak!
iTrader: (263)
Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,672
Received 412 Likes
on
250 Posts
Again it's the cool down problem that kills it. Ideally you'd wont to wind the car down slowly if you see anything over 115c (I don't think the PFC even registers over 117 which is around 240 and that's not good)) but these issues usually happen because of loss of coolant or some other coolant issue and it's game over.
I'm not sure what's going on with the OP but clearly there is a big issue and it's likely due to the rebuild. Something could be clogged not allowing proper flow, coolant is low and the coolant buzzer isn't working etc.... Very common for air bubbles to be in the system and lots of burping is necessary.
Easiest way to fill the engine with coolant. Disconnect the TB coolant line and fill until it overflows. Wait 10 minutes and repeat as needed. Once you have it full drive it. It will likely still need more. Take the top off when you park it and top off the fill neck after each drive for the next few days and you should be good to go.
10-25-16, 11:58 AM
#32
Easiest way to fill the engine with coolant. Disconnect the TB coolant line and fill until it overflows. Wait 10 minutes and repeat as needed. Once you have it full drive it. It will likely still need more. Take the top off when you park it and top off the fill neck after each drive for the next few days and you should be good to go.
10-25-16, 12:22 PM
#33
All out Track Freak!
iTrader: (263)
Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,672
Received 412 Likes
on
250 Posts
Anywho thanks for the compliment and didn't realize you already ess-splained this one
Last edited by Fritz Flynn; 10-25-16 at 12:25 PM.
10-25-16, 10:47 PM
#34
Removing the thermostat will cause the engine to overheat.
The front side of the thermostat opens when warm to allow coolant to go into the radiator, if this were the only function it might be OK to remove it. But the rear side of the thermostat extends to block coolant from recirculating back into the engine, if you don't block that passage some other way the engine will overheat.
Put your thermostat in a pot of boiling water to make sure both sides work, then put it back in the engine
The front side of the thermostat opens when warm to allow coolant to go into the radiator, if this were the only function it might be OK to remove it. But the rear side of the thermostat extends to block coolant from recirculating back into the engine, if you don't block that passage some other way the engine will overheat.
Put your thermostat in a pot of boiling water to make sure both sides work, then put it back in the engine
10-27-16, 10:38 PM
#44
Junior Member
iTrader: (1)
Join Date: Feb 2016
Location: Florida
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
over heating
make sure that when you burp the system (purging the air out of the system) you turn on the heater as air can be trapped in the hoses. 2, make sure that you have the correct cap on the t-stat housing (the one with out the spring) and the one with the spring on the AST.
11-01-16, 08:21 AM
#46
Junior Member
iTrader: (1)
Join Date: Feb 2016
Location: Florida
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
over heating
I should have said purge instead of burp. You need to purge all of the air out of the cooling system. In order to do that you need to turn on the heater during the process. Do you have a Lisle funnel? This makes the job much easier.
11-09-16, 11:23 PM
#47

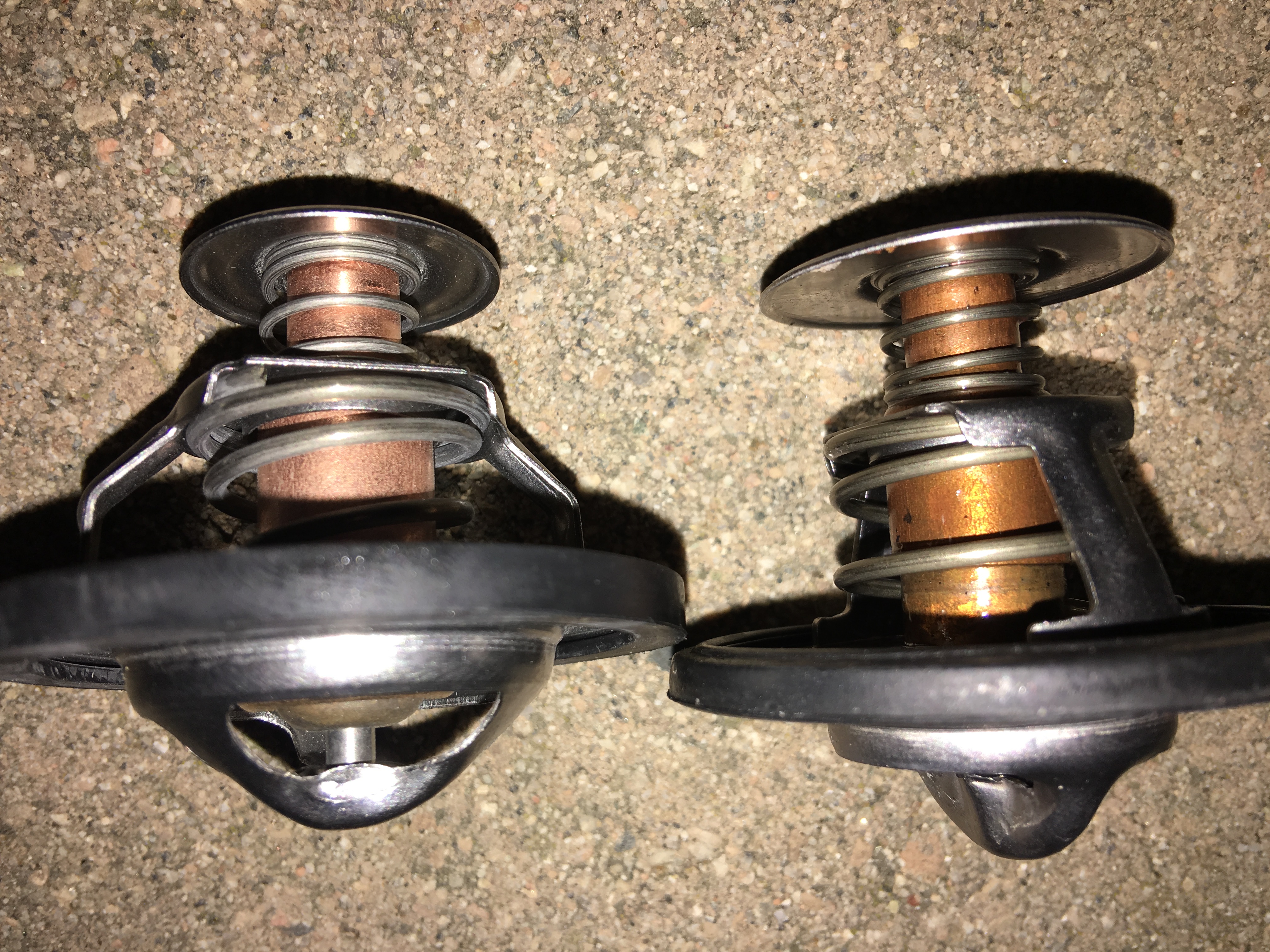

So after waiting for over a week, the local Mazda dealer finally got my thermostat in. Today I pull the thermostat that come with a car (brand new in the box) and notice significant differences between the two. The back of aftermarket t-stat is significantly bigger than oem and wondered if it was not blocking bypass. Left is the oem and right aftermarket
Last edited by Gumd02000; 11-09-16 at 11:38 PM.
11-10-16, 06:05 AM
#49
Did you install an undertray as advised?
Also, if it were me I would reinstall the AST. It helps get any trapped air out (but is probably not directly attributable to your temps)
Another also, is your oil cooler working/adequate? That will help engine temps. Are you able to measure your oil temps?
Also, if it were me I would reinstall the AST. It helps get any trapped air out (but is probably not directly attributable to your temps)
Another also, is your oil cooler working/adequate? That will help engine temps. Are you able to measure your oil temps?
