no spark on either leading coil with aem coils

Thread Tools

Search this Thread

Old Nov 19, 2016 | 01:05 PM
  #1
teamafx's Avatar
Thread Starter
Rotary Freak
Tenured Member 15 Years
iTrader: (4)

Joined: Dec 2003
Posts: 2,534
Likes: 0
From: pembroke, massachusetts
MA no spark on either leading coil with aem coils

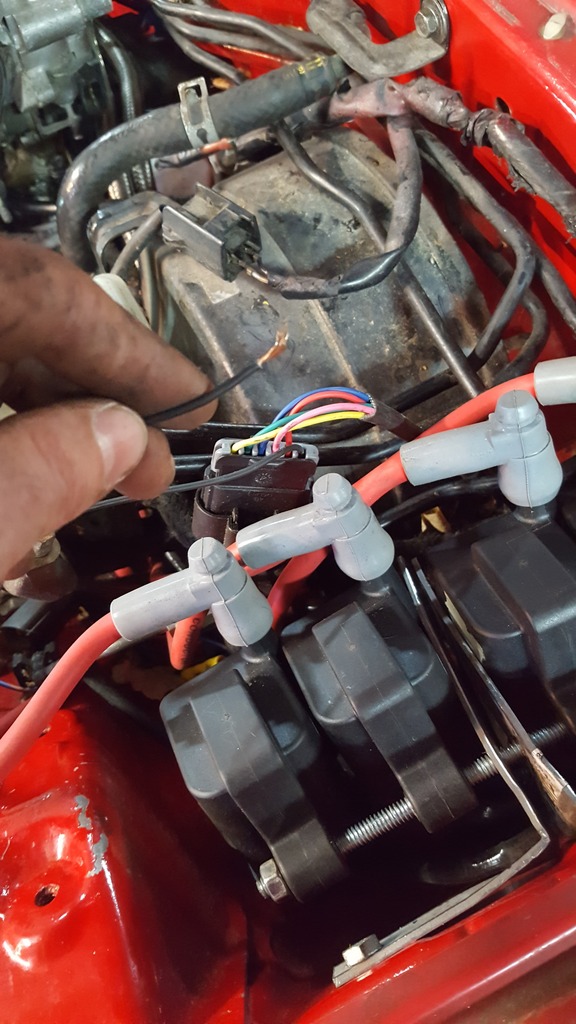

I am trying to start an engine that I recently put in, the car was completely gutted prior to me buying it so I have been slowly restoring it. I have the sakebomb ign-1a harness with aem smartcoils and an adaptronic plug and play ecu. I am not setting it up as direct fire yet, as I want to get things sorted first. I have the engine in, settings on adaptronic are for the factory ignition setup. I'm getting spark on both trailing coils but no spark on the leading coils. I wired it per the sakebomb directions. As I said before the car was gutted but I have put in all harnesses etc. The only part not on the firewall in the sakebomb directions is the condenser. Any help with this issue is appreciated. I also included a photo of one wire that I have no idea where it goes and it wasn't in the directions posted on sakebombs site.

Name:  20161119_125611_zpsgdiezxgl.jpg
Views: 175
Size:  179.4 KB
