So I need some help with some wiring, and knowing where this one part goes , any help is appreciated guys.

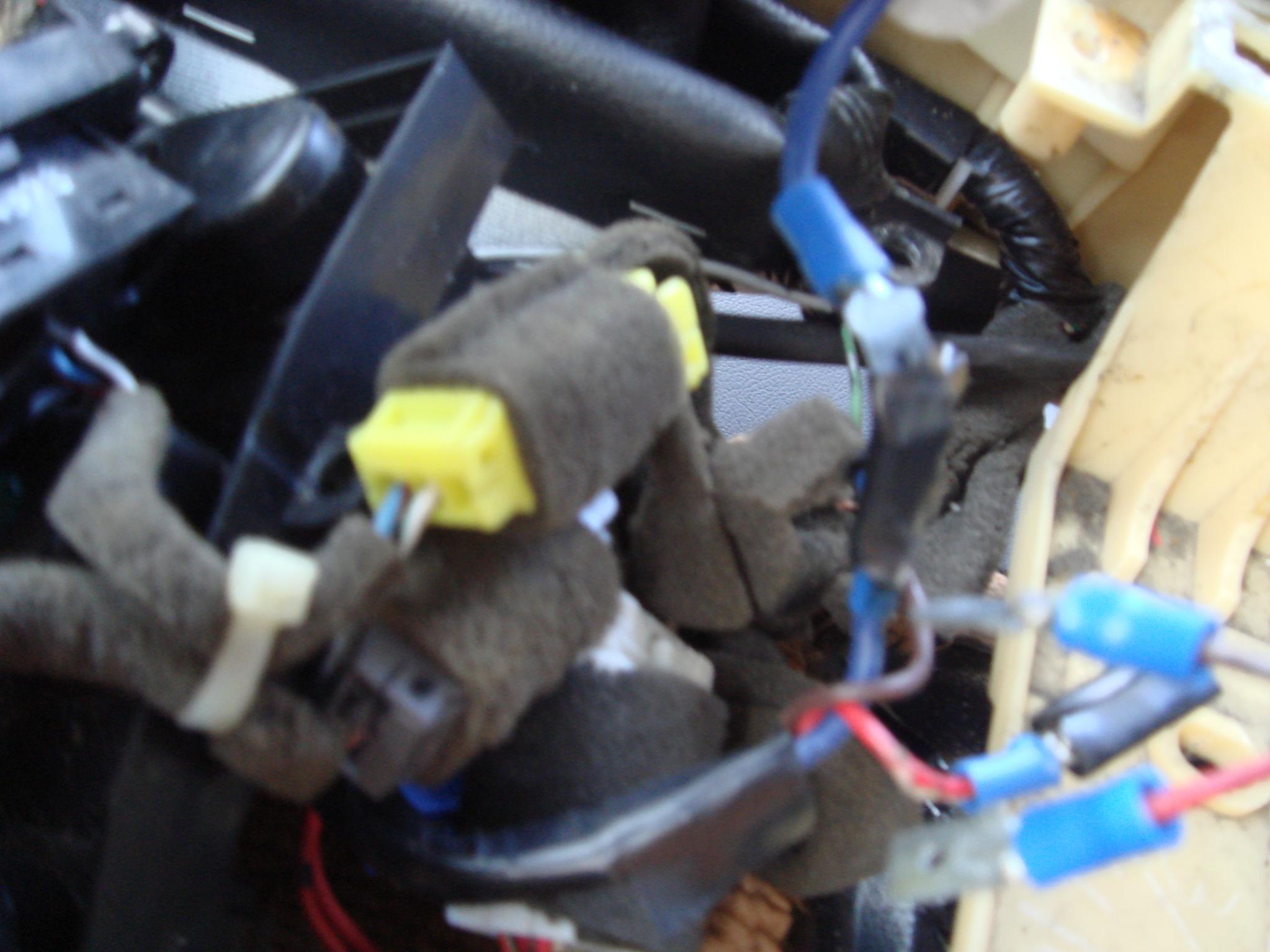

I need a picture of someone's harness under the arm rest, mine looks like this:



It's really messed up, so I need some help with that one.

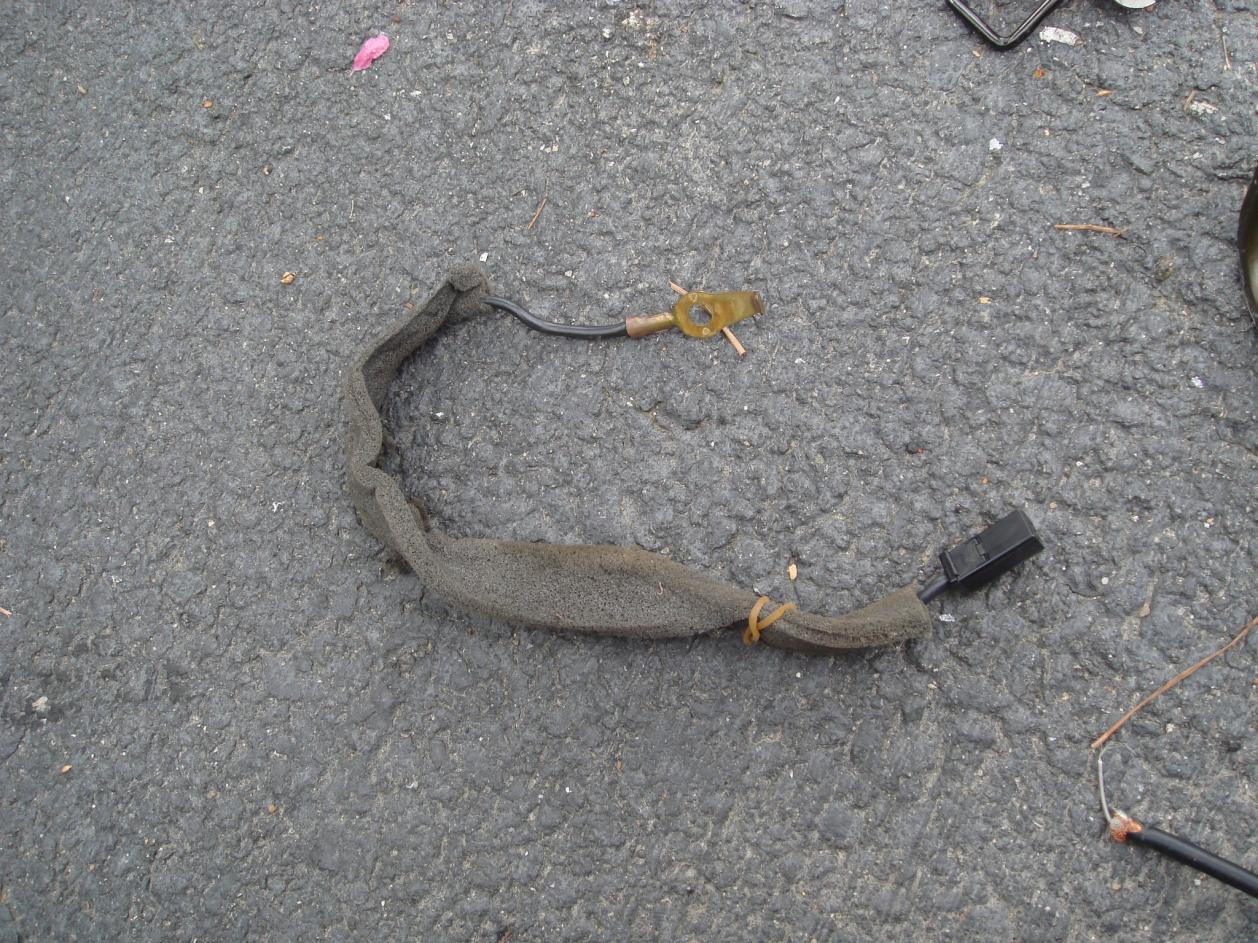

Where do these go?





All help is appreciated!!

mono4lamar

iTrader: (32)

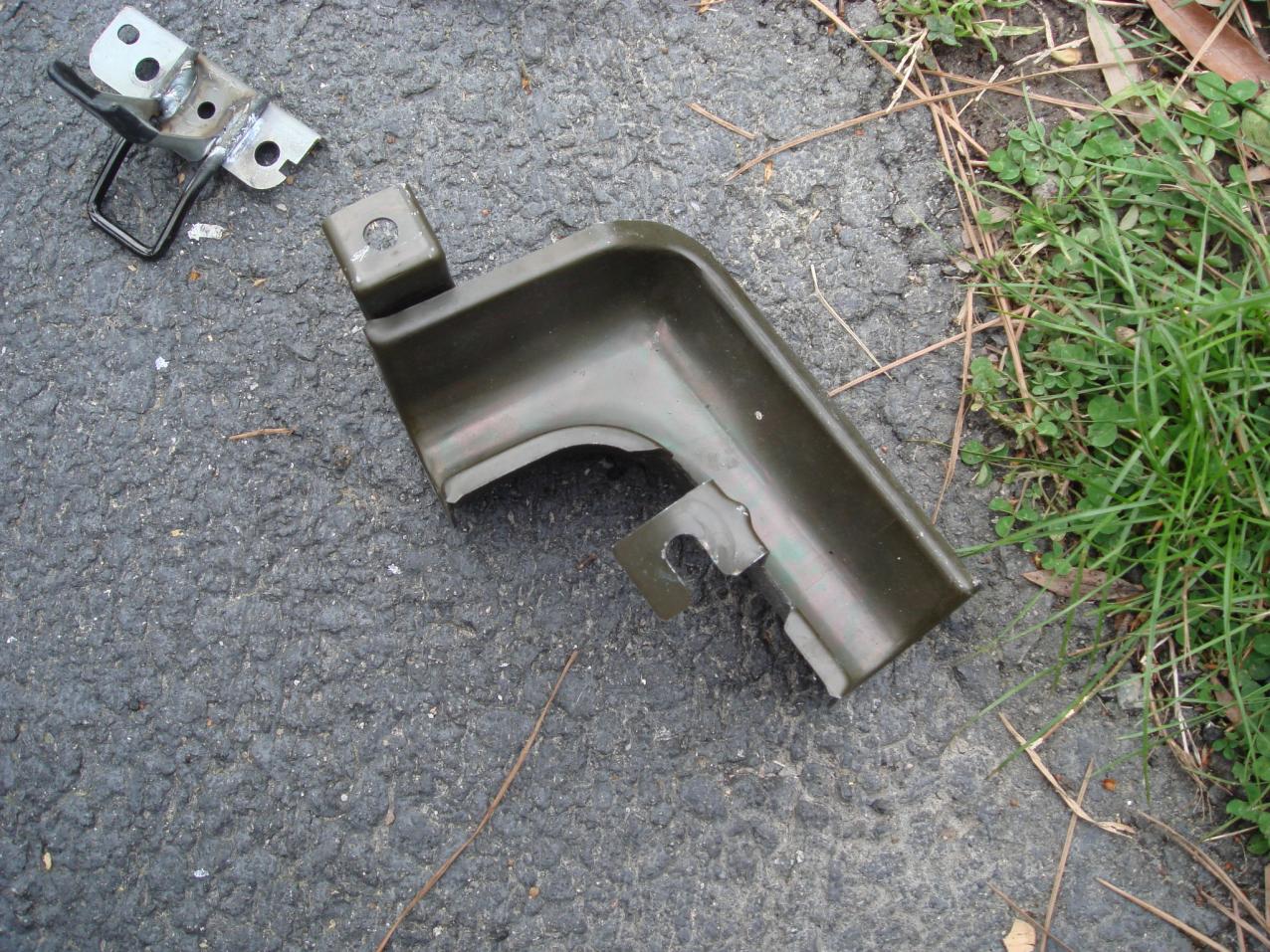

The biggest piece in the picture covers the main harness after its through the firewall by the passengers feet... The other piece looks like it's for the glovebox latch, I'm sure I could be wrong though!

proz07

iTrader: (6)

hmmm didnt know there was a cover there? and for the console only one way to plug em in and if they fit under the panel whats the problem?
z

GreatShamanGT

iTrader: (9)

thing is, mine have been spliced and cut, I really need to see someone else's harness.

When I turn on the rear defroster, my rear windshield wiper turns on. It really pisses me off, and it's even worse when my windows fog, so if anyone can help me with this, I would greatly appreciate it!

evot23

iTrader: (17)

check the electrical wiring diagram in the archives. You can trace your wires back.
