Need help with vaccum issues: picture request
04-14-05, 09:42 PM
#1
rx7 enthusiast
Thread Starter
Join Date: Oct 2004
Location: cincinnati
Posts: 313
Likes: 0
Received 0 Likes
on
0 Posts
Need help with vaccum issues: picture request

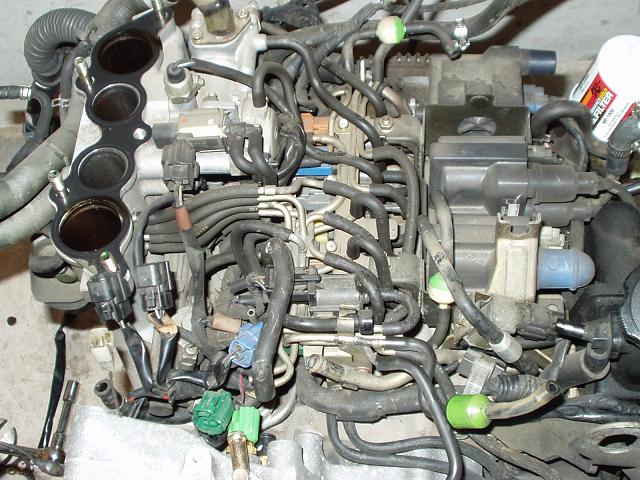

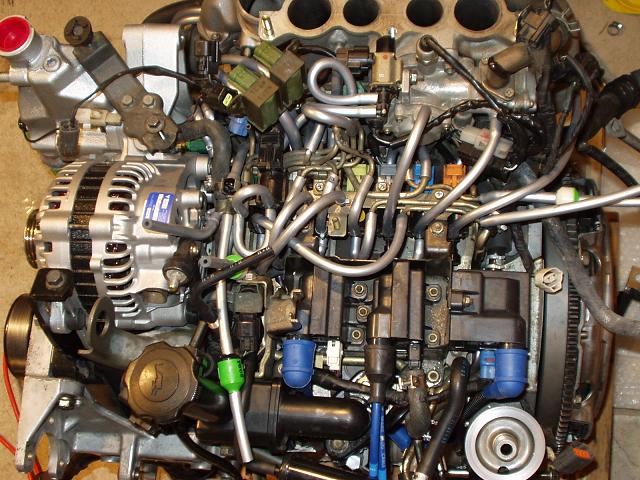

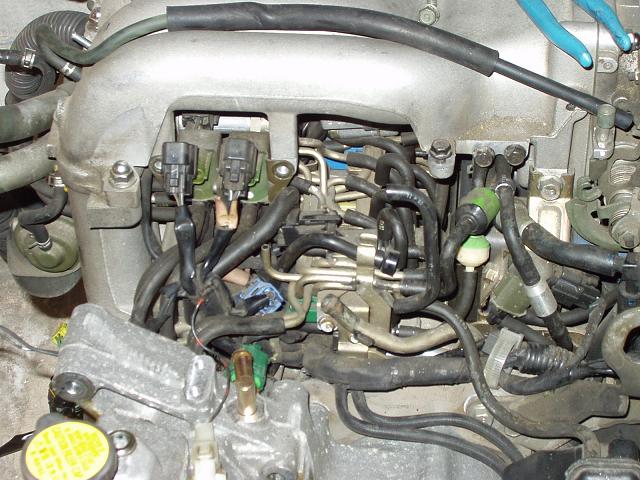

hey i am still new to the rx7 so bear with me. I am putting the upper intake man. Back on and trying to figure out where all the vaccum hoses go and having a rough time. It wouldnt be bad if i had taken it off, but the previous owner did and like i said i am pretty new to the car. Anyways, i have been looking for a pic of the area just in front of the UIM. (the area between the UIM and the Alternator) Specifically, the area where several vaccum hoses come onto the uim and there are several check valves. Im definitley a visual learner and a pic would really help me out. If you would rather email it to me my email is steve0178@yahoo.com. Thanks
04-14-05, 09:59 PM
#2
I luv my carbon footprint
Join Date: Mar 2002
Location: Indianapolis
Posts: 452
Likes: 0
Received 0 Likes
on
0 Posts
