Need help with two wires - under shifter panel and under steering column
I just reinstalled the HVAC in the interior of my car and have two remaining wires that I need help with. Any help would be greatly appreciated!

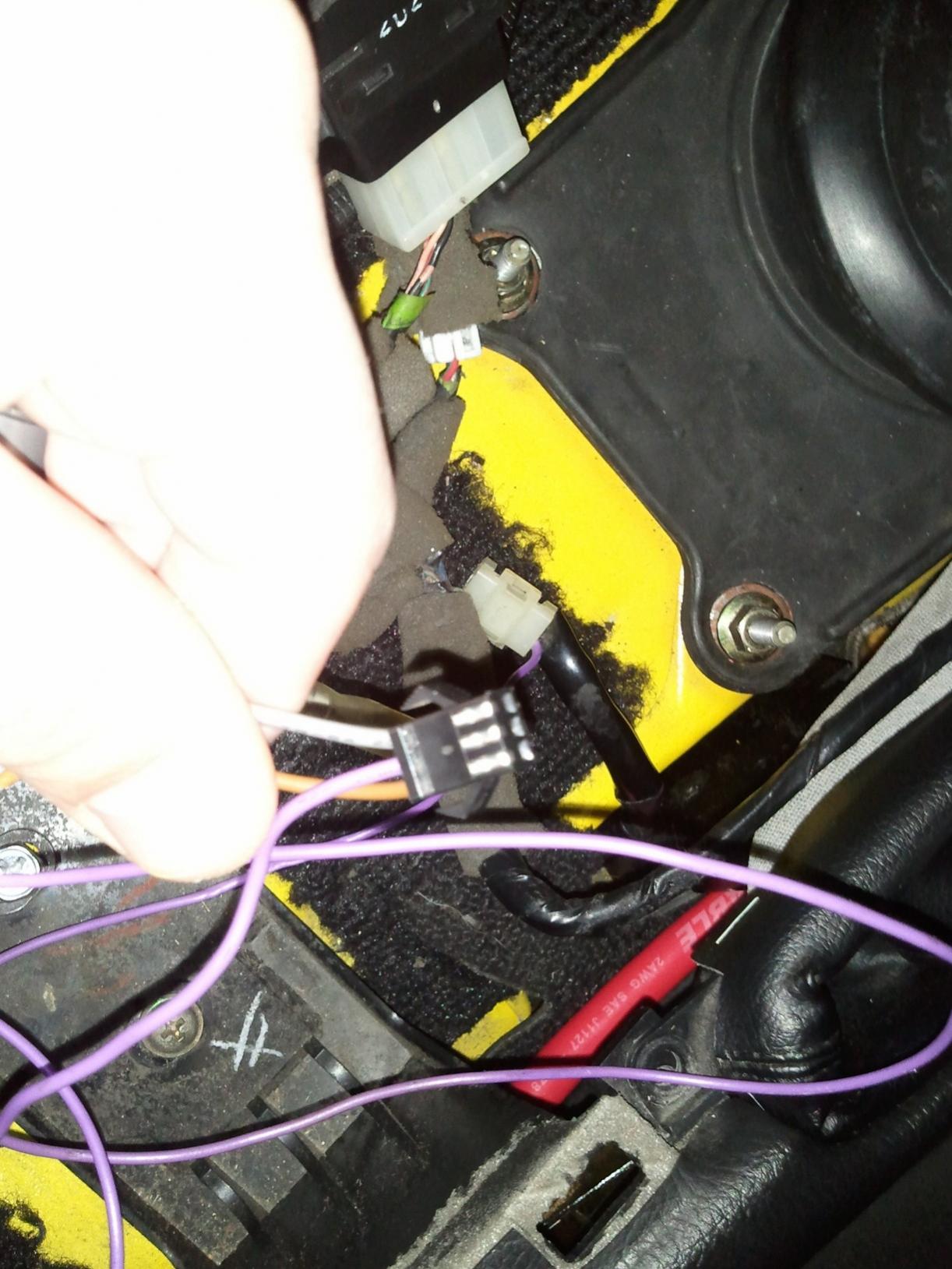

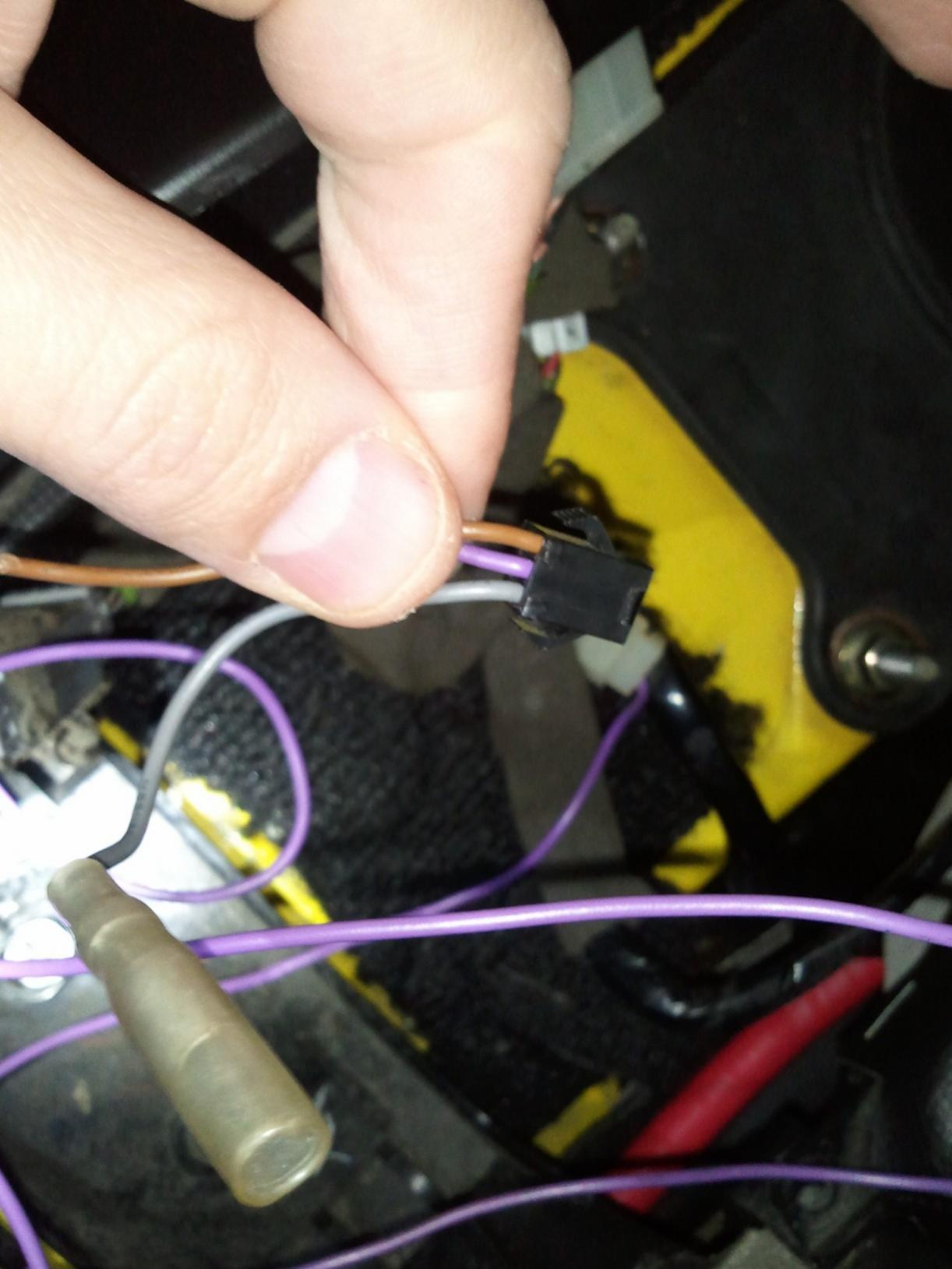

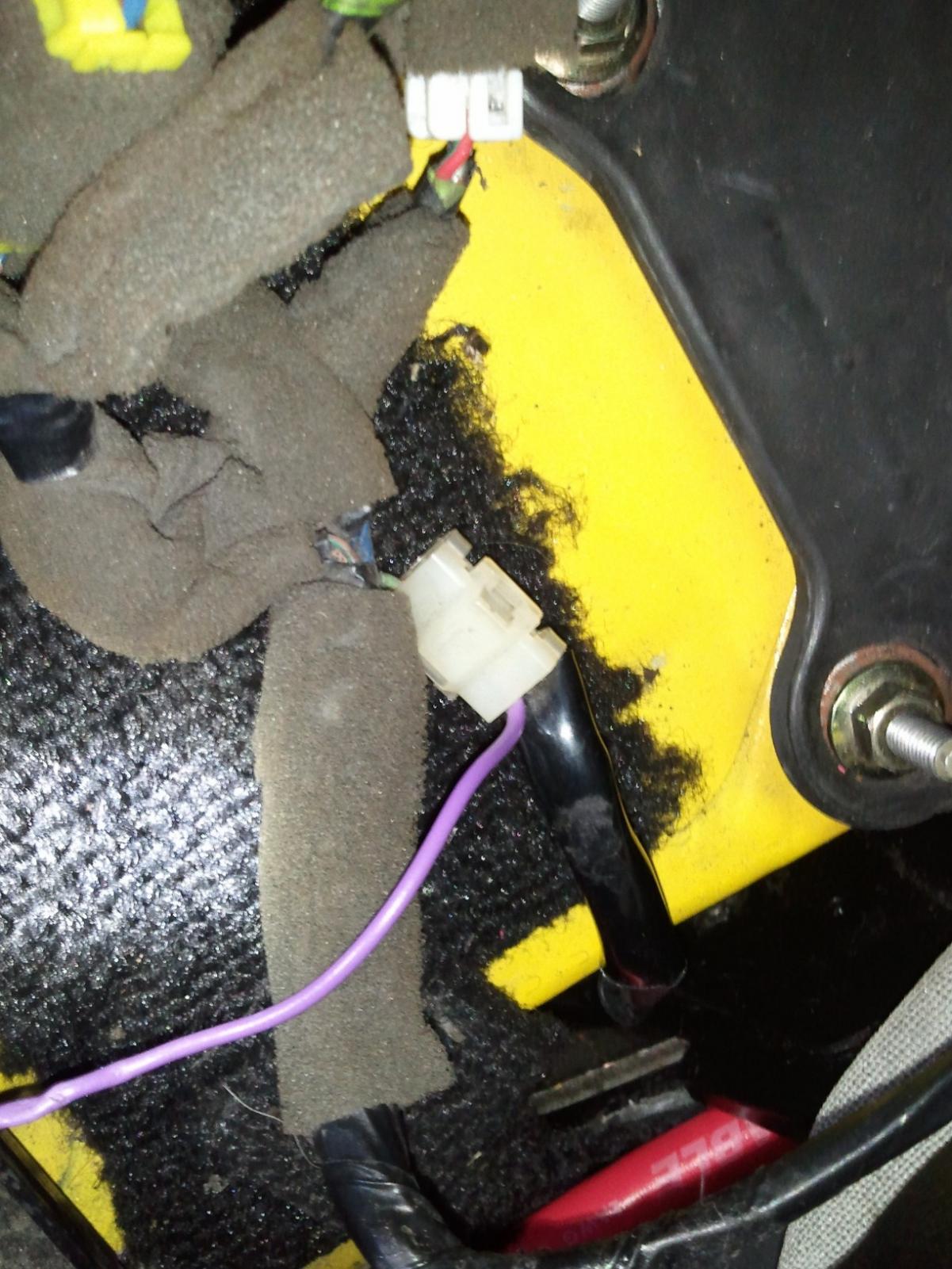

1) Under the shifter panel is a long purple wire that is tapped into the emergency brake wire. It has a small black connector on it.

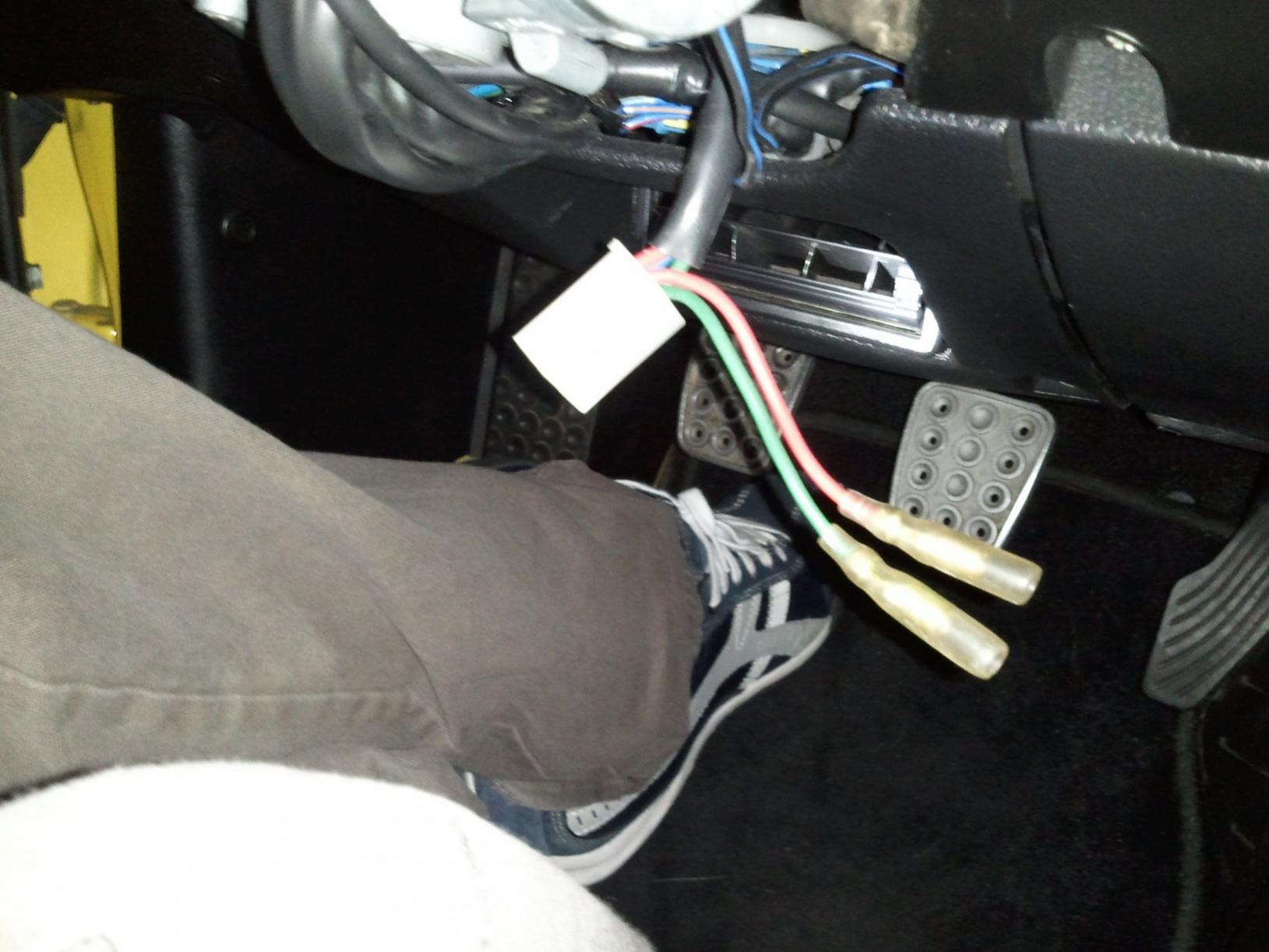

2) Under the steering column is a plug with two wires, red and green.



Attached Thumbnails Need help with two wires - under shifter panel and under steering column-wp_001285.jpg   Need help with two wires - under shifter panel and under steering column-wp_001287.jpg   Need help with two wires - under shifter panel and under steering column-wp_001289.jpg   Need help with two wires - under shifter panel and under steering column-wp_001291.jpg   Need help with two wires - under shifter panel and under steering column-wp_001303.jpg

moehler is offline
Reply Like
Old 02-17-13, 11:39 AM
  #2
Rotary Freak

Thread Starter
iTrader: (12)

moehler's Avatar

Join Date: Mar 2003
Location: South Jersey
Posts: 2,319
Received 32 Likes on 27 Posts
Ok, just found out that the car used to have a turbo timer, these are likely remanents from that...
moehler is offline
Reply Like
Old 02-17-13, 11:44 AM
  #3
Wastegate John

iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,979
Likes: 0
Received 9 Likes on 9 Posts
Yea, those are npt factory wires and it appears that the bottom pic is the clutch saftey switch.
RENESISFD is offline
Reply Like
Old 02-17-13, 12:59 PM
  #4
RX-7 Bad Ass

iTrader: (55)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 15,399
Received 2,438 Likes on 1,509 Posts
Yep it's from a turbo timer.


Dale
DaleClark is offline
Reply Like
Old 02-17-13, 03:47 PM
  #5
Rotary Freak

Thread Starter
iTrader: (12)

moehler's Avatar

Join Date: Mar 2003
Location: South Jersey
Posts: 2,319
Received 32 Likes on 27 Posts
Great thanks.
