Need help identifying some wires / connectors
If anybody can help, I appreciate it.
I suspect some of these wires were never hooked up to anything. Possibly for cruise control and other accessories my car doesn't have. In any case:
1994 R2. I pulled the motor almost 6 months ago and am just now getting her hooked back up. I followed the electrical diagrams the best I could, but I couldn't find every connector in it.

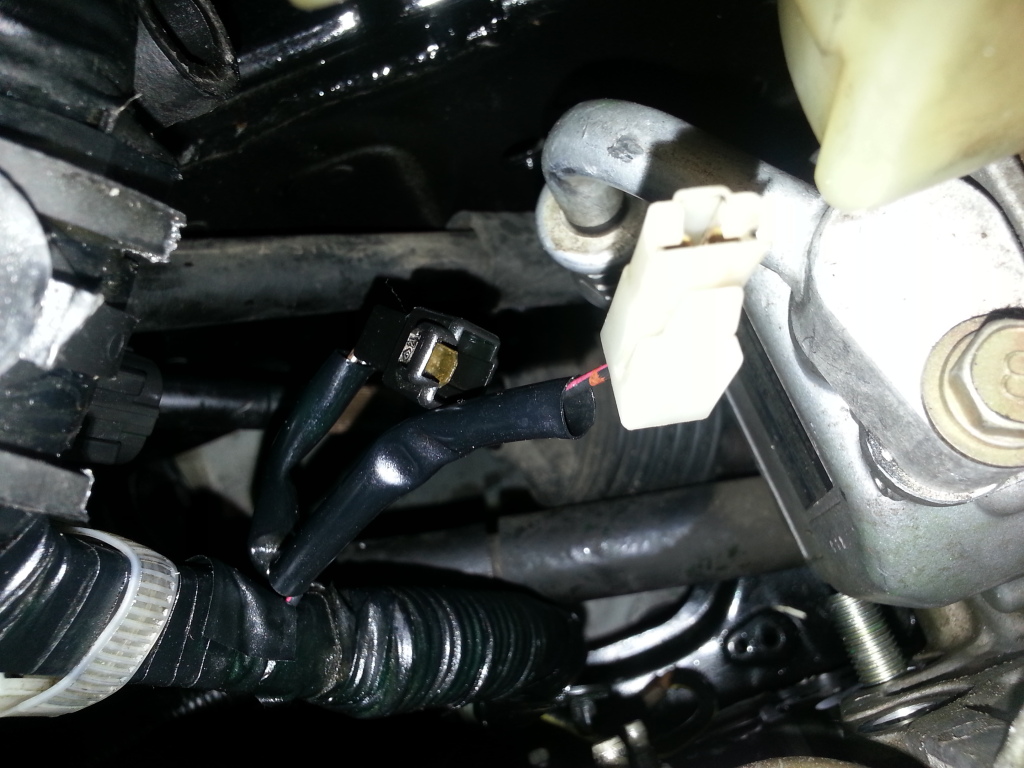

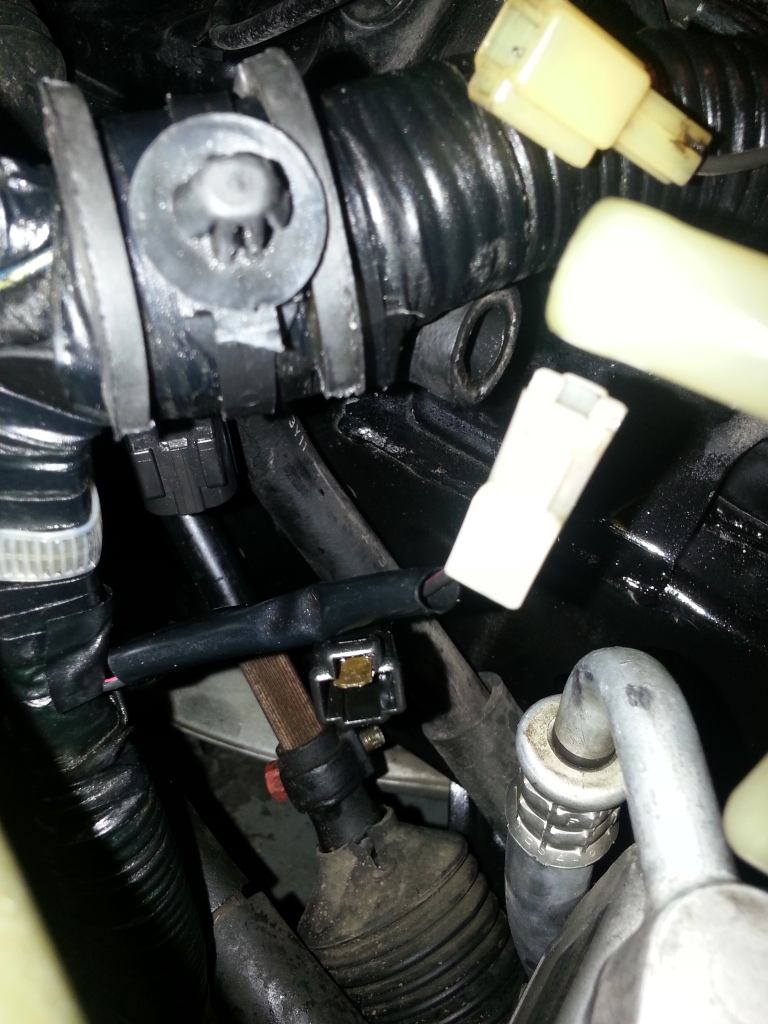

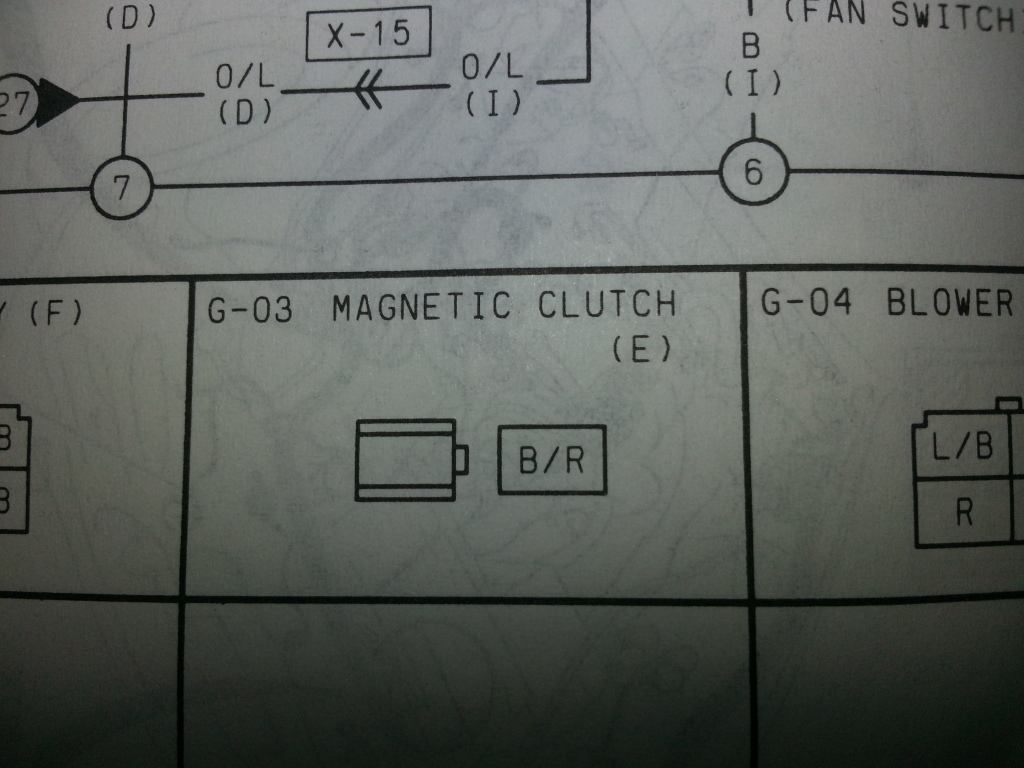

One in question was the AC clutch wire. It is described B/R. I have one wire that is black with a red stripe off the engine harness. Then (same area) I have a black wire with red stripes circling it (instead of red stripes running the length of the wire). Not sure which connects to compressor:

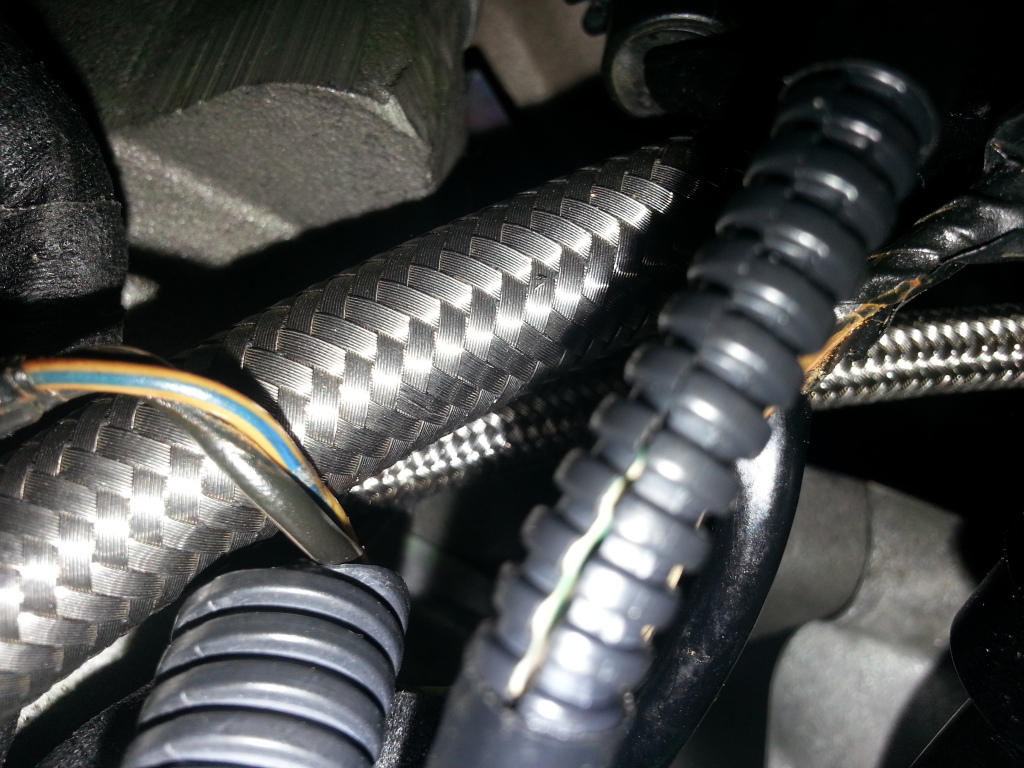

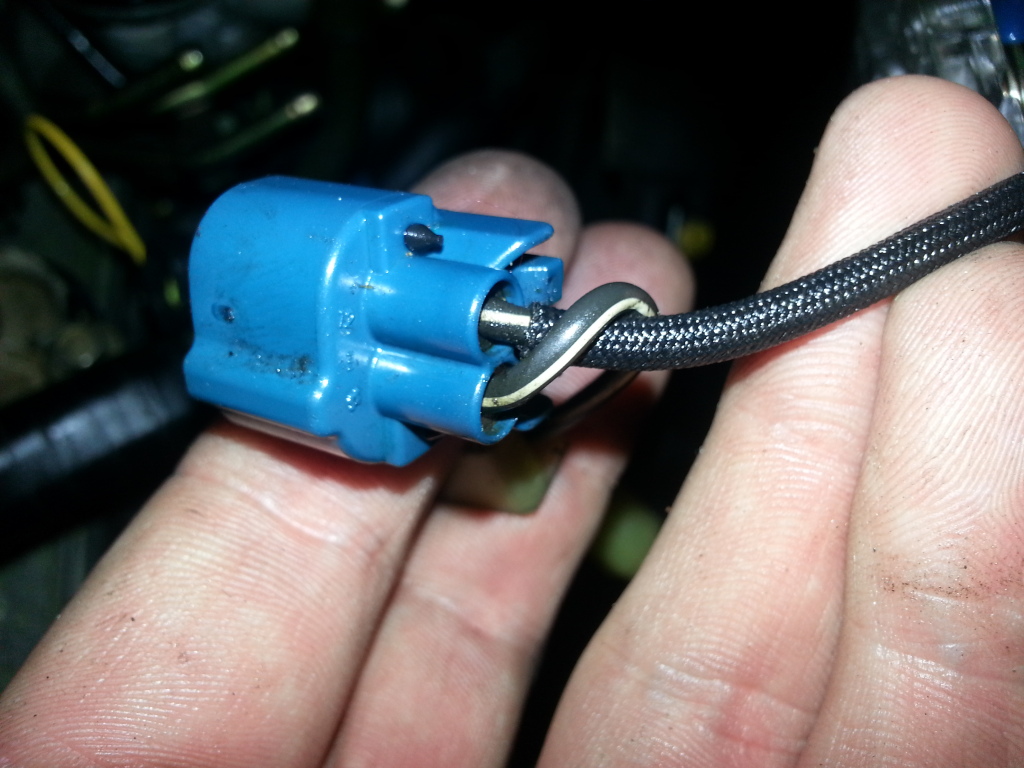

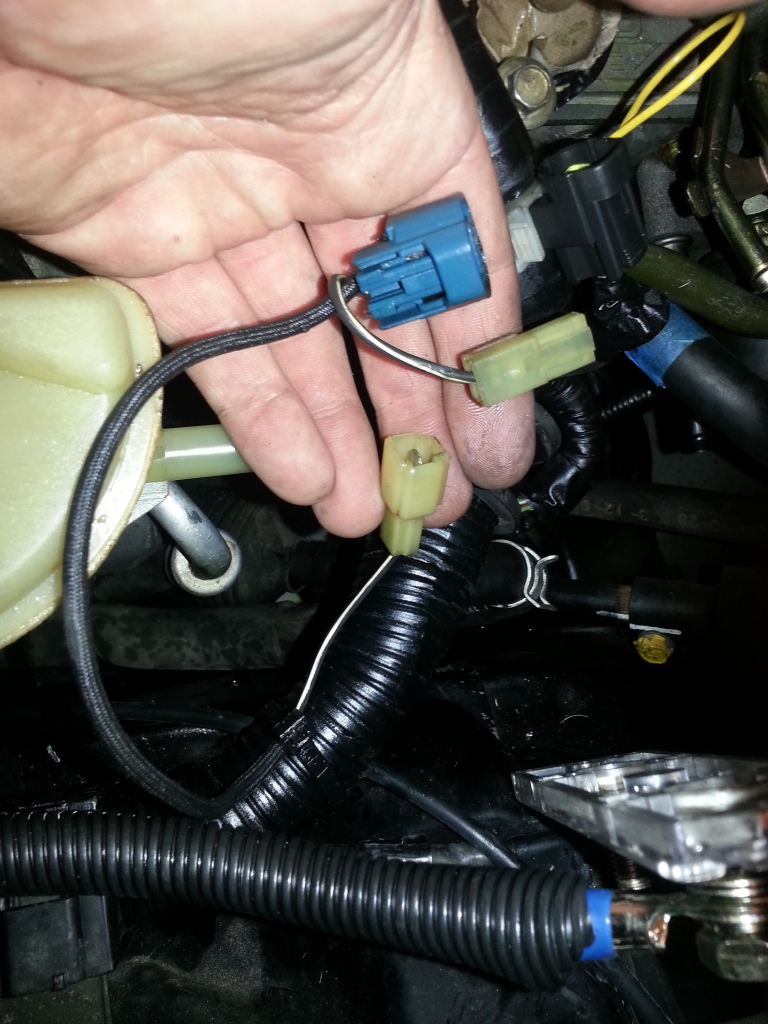

Then I have the following wires that I a not sure where they go. One of them is a harness with 1 connector on one end and another on the other end. Previous owner had zip tied it to the harness that comes off the battery and goes to the alternator/starter:
thanks in advance.
I suspect some of these wires were never hooked up to anything. Possibly for cruise control and other accessories my car doesn't have. In any case:
1994 R2. I pulled the motor almost 6 months ago and am just now getting her hooked back up. I followed the electrical diagrams the best I could, but I couldn't find every connector in it.
One in question was the AC clutch wire. It is described B/R. I have one wire that is black with a red stripe off the engine harness. Then (same area) I have a black wire with red stripes circling it (instead of red stripes running the length of the wire). Not sure which connects to compressor:
Then I have the following wires that I a not sure where they go. One of them is a harness with 1 connector on one end and another on the other end. Previous owner had zip tied it to the harness that comes off the battery and goes to the alternator/starter:
thanks in advance.
