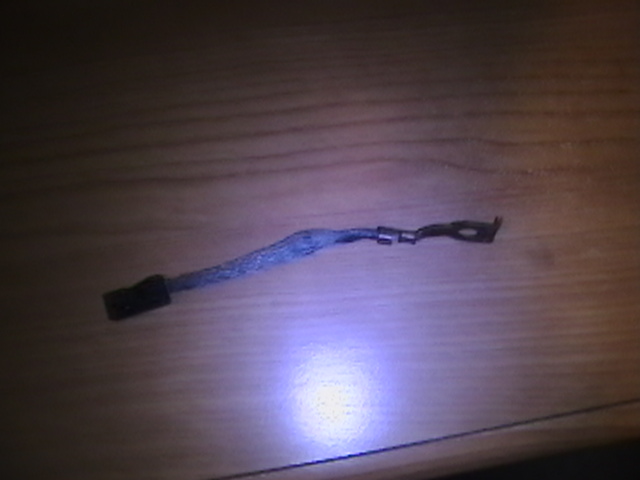

Need help identifying a ground wire
03-10-06, 10:31 PM
#3
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
gonna guess..hope you don't mind..would it go from the Transmission (from the top bolt that connects trans and engine) to the firewall..?..I know there is one there..
03-10-06, 11:19 PM
#5
Rotary Enthusiast
Join Date: Feb 2005
Location: Charlotte, NC
Posts: 1,336
Likes: 0
Received 0 Likes
on
0 Posts

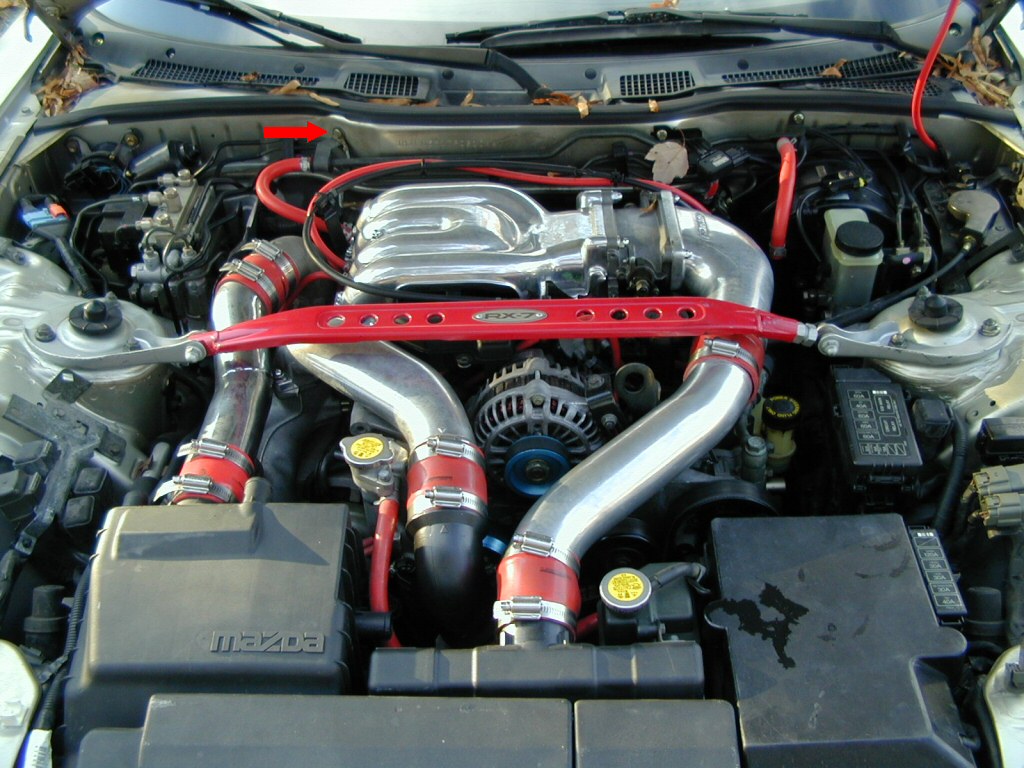

There are two bolt holes on the back of the UIM (passenger side). This wire is bolted to the UIM there, utilizing one of the holes, and then bolted to the firewall on the other end. See the red arrow in the attached photo
Joe
Joe
Last edited by quicksilver_rx7; 03-10-06 at 11:21 PM.
03-11-06, 08:12 AM
#6
RX-7 Bad Ass
iTrader: (55)

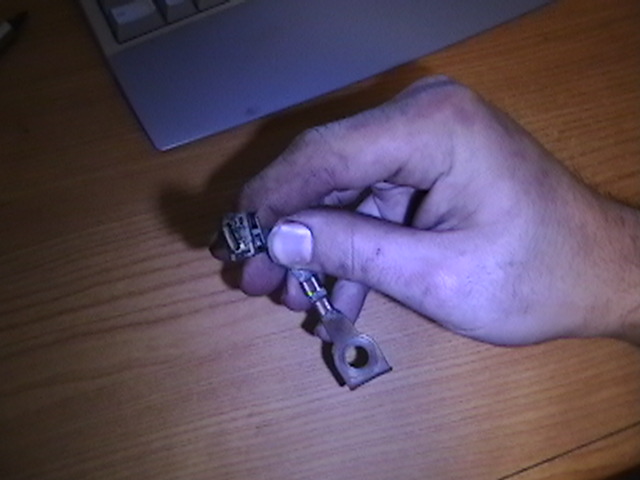

Yep. There's a metal tab on the firewall that the quick-connect end attaches to, and the ring end attaches to the intake manifold with one of the bolts that holds the rear engine hanger on.
Dale
Dale
03-11-06, 08:37 PM
#7
Ferrari Red Hotness
Thread Starter
Join Date: Nov 2005
Location: Las Vegas
Posts: 964
Likes: 0
Received 0 Likes
on
0 Posts
Thanks guys, I see where it goes now. Great pic
Engine is almost ready to start, just have to finish up a few things and on Monday I'm going to fire it up (I'm out of town this weekend)
I'll keep everyone posted
Engine is almost ready to start, just have to finish up a few things and on Monday I'm going to fire it up (I'm out of town this weekend)
I'll keep everyone posted
