Name these Connectors!!
Need a little help here.
So, I removed the upper intake manifold and throttle body for some powder coating....I put it back together and put everything back to normal except I can't figure out where this black connector goes.
I have a couple other connectors that are disconnected because my twin turbo's have been simplified & I don't have emissions to follow....so I'm not 100% it was connected before.

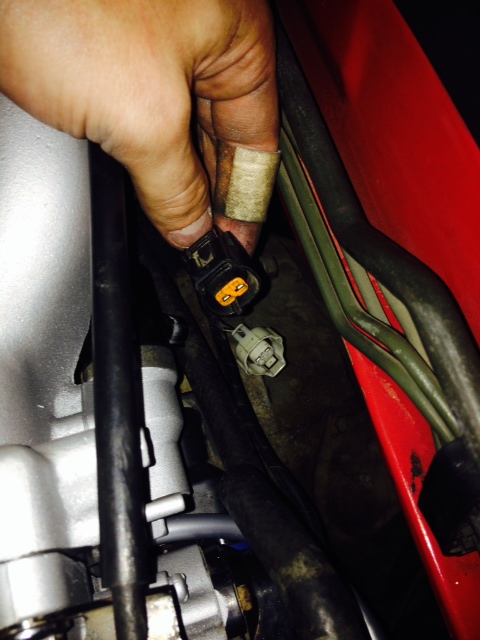

Can someone tell me what the black and white connectors shown in the picture are for?
Thanks,
Matt
So, I removed the upper intake manifold and throttle body for some powder coating....I put it back together and put everything back to normal except I can't figure out where this black connector goes.
I have a couple other connectors that are disconnected because my twin turbo's have been simplified & I don't have emissions to follow....so I'm not 100% it was connected before.
Can someone tell me what the black and white connectors shown in the picture are for?
Thanks,
Matt
04-20-14, 07:29 PM
#2
RX-7 Bad Ass
iTrader: (55)
White is the ISC, that black one is probably for the AWS.
It's all right there near your hand.
Dale
It's all right there near your hand.
Dale
