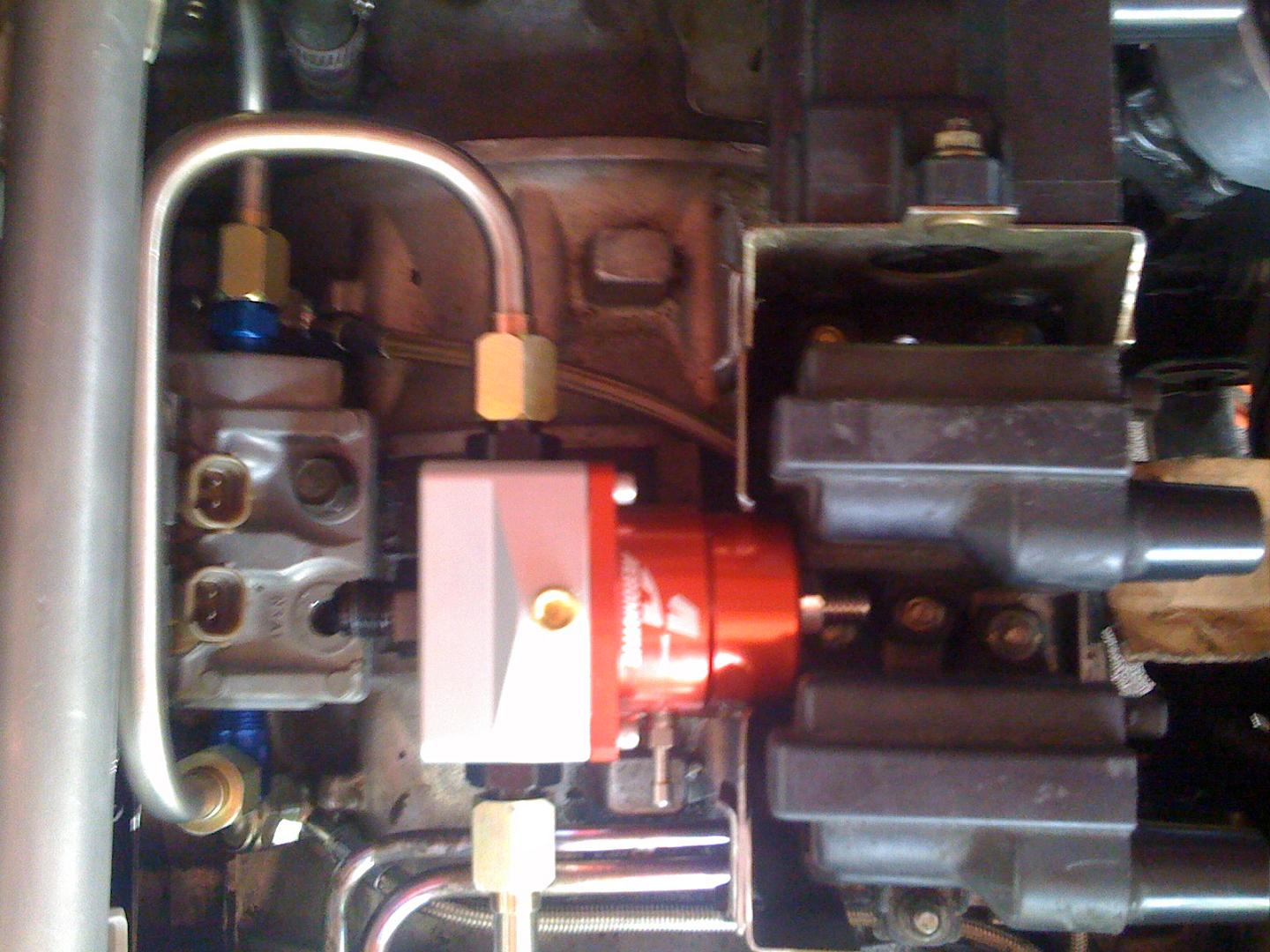

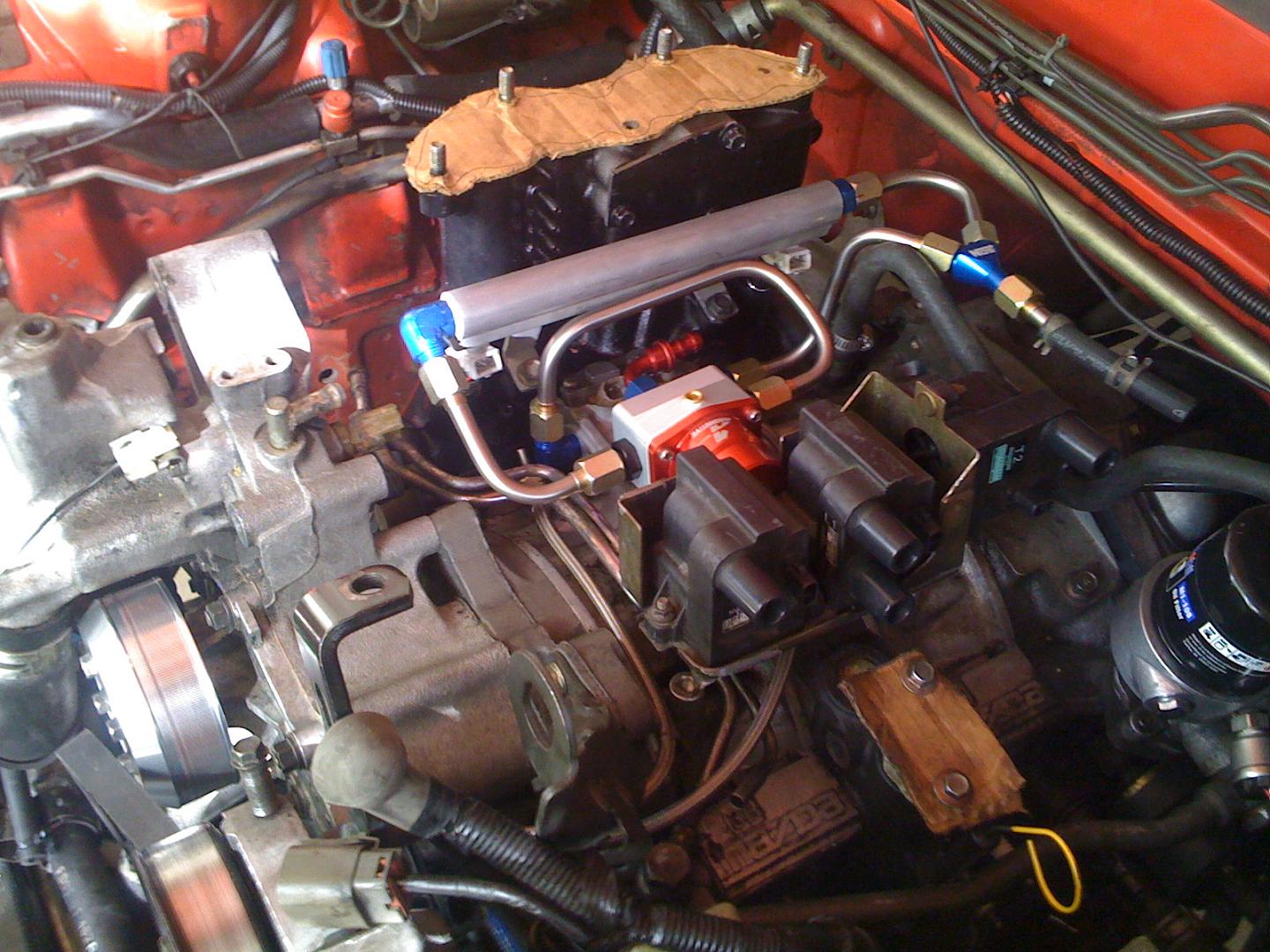

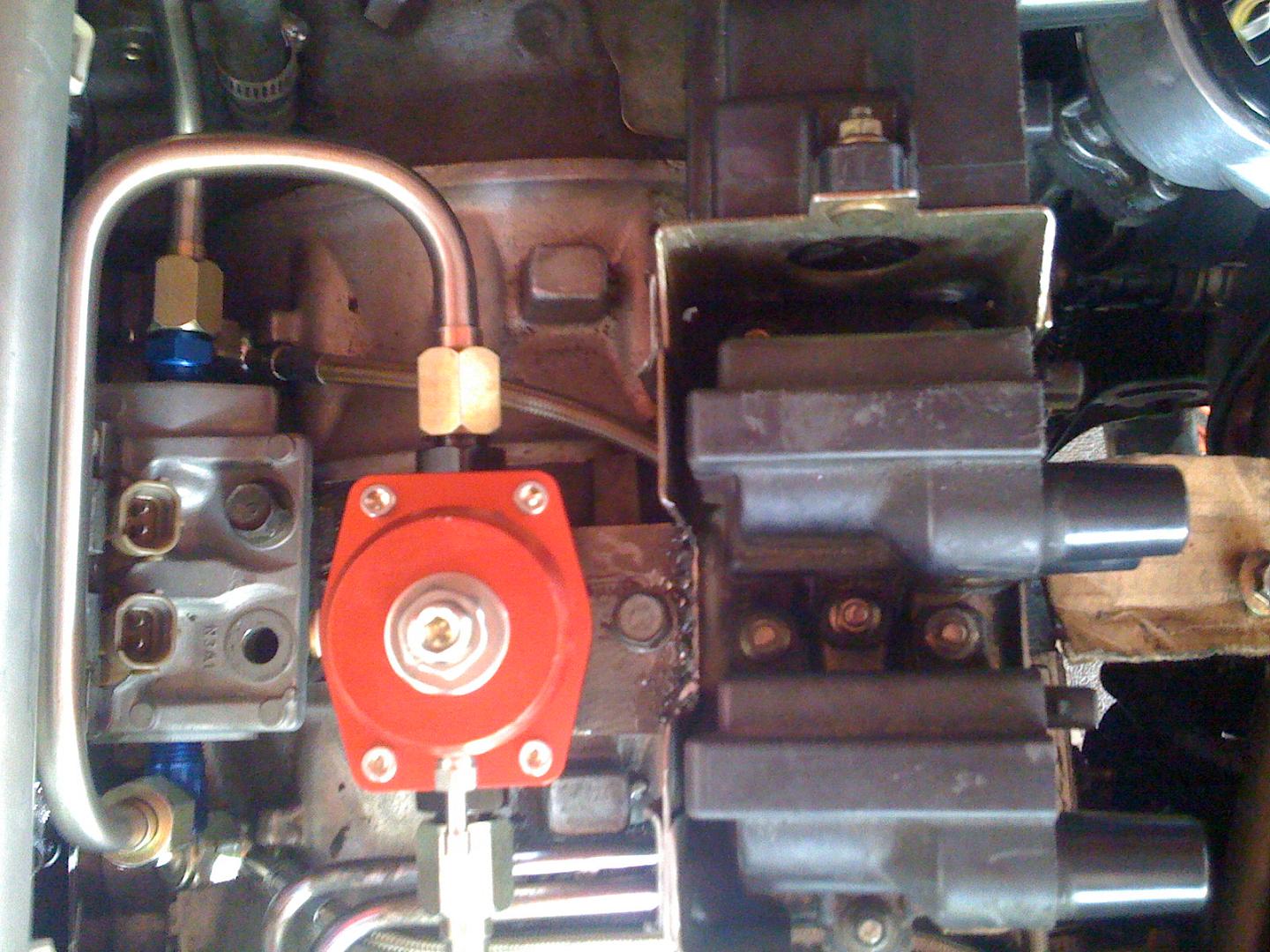

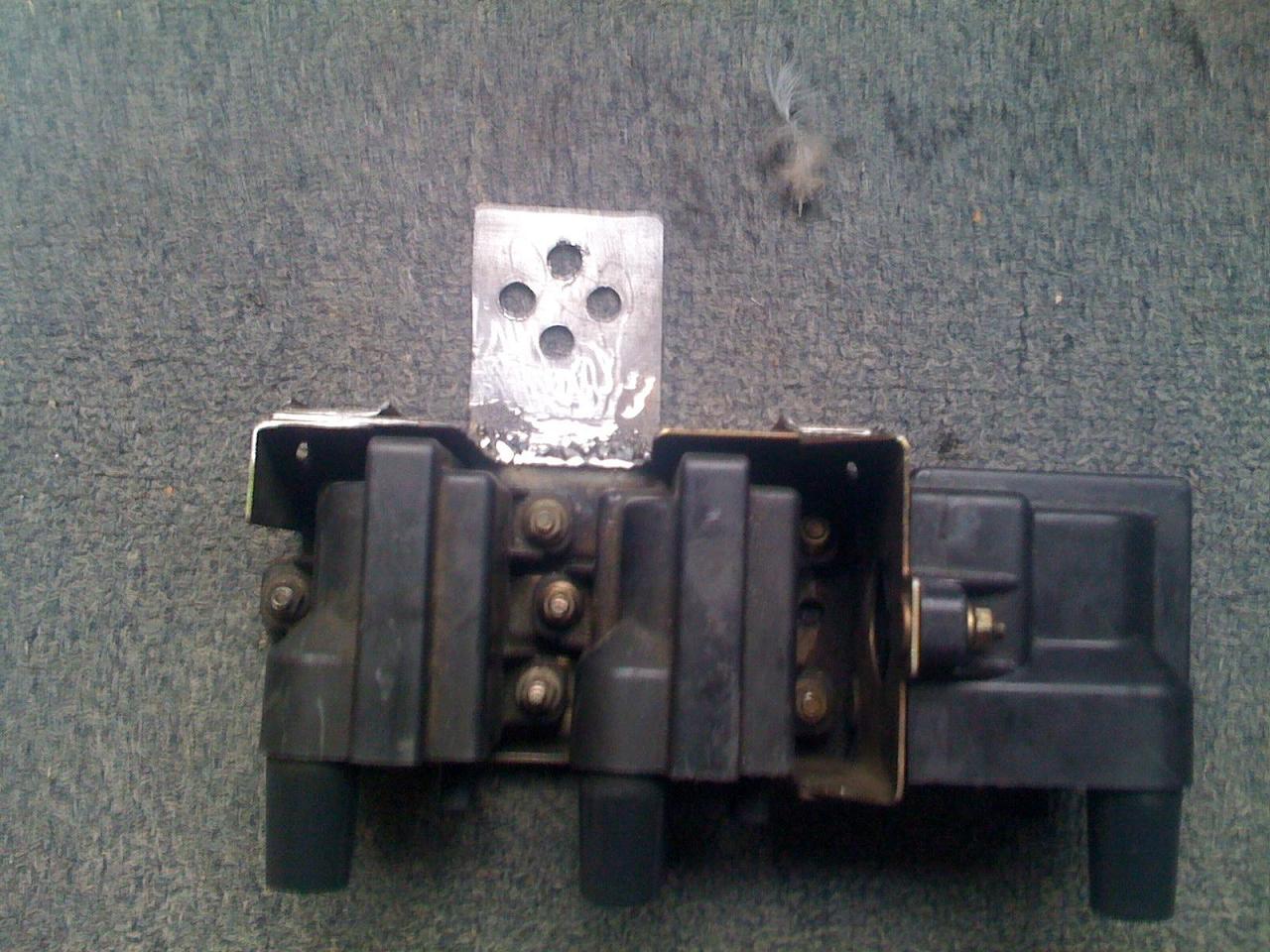

First picture I have attached was the original plan for fitting the FPR under the UIM. It worked fine but I wanted to clean things up a bit. Mounting it this way also allowed me to eliminate the bracket that was supporting the FPR and coil pack frame became the new support.

Now that I know how to do it and I have a template, doing this again would be a piece of cake.

The fittment was perfect, the FPR actually "snapped" into place. I am more than happy with the results and new configuration.



Thanks for posting, I will consider this for my mounting



How will you adjust fuel pressure?



+1??



Why would you put this under UIM? You want to CLEAR the area under UIM for less heat retention. This is why some people actually mount the coils on a bracket against the firewall or elsewhere.

I applaud your creativity but you want LESS under the UIM, not more.



Not sure about the location of the fpr but I really like those hard fuel lines.



I couldnt agreed more.

-AzEKnightz
