Mod of OMP for 2 cycle oil injection
11-21-09, 12:49 AM
#27
Unhealthy Obsession
iTrader: (3)
Join Date: May 2006
Location: NNJ
Posts: 482
Likes: 0
Received 0 Likes
on
0 Posts
Nice. Definitely a to do this over the winter.
Ive seen on my Fd and a few other rotary's the car will sometimes choke up on 2stroke when premixed through the fuel. Or at least that what i believe is happening? Usually happens during a long cruise or a prolonged idle period.
Since the 2stroke is not being injected through the fuel mixture anymore would this solve that?
Ive seen on my Fd and a few other rotary's the car will sometimes choke up on 2stroke when premixed through the fuel. Or at least that what i believe is happening? Usually happens during a long cruise or a prolonged idle period.
Since the 2stroke is not being injected through the fuel mixture anymore would this solve that?
11-23-09, 06:03 AM
#28
REPU Wanter
Thread Starter
iTrader: (1)
Join Date: Sep 2002
Location: Cherry Point / Havelock NC
Posts: 725
Likes: 0
Received 2 Likes
on
2 Posts
I've heard of two-stroke oil setling out of fuel before, but it is unlikely that would happen while driving the car (That would mean the oil would be picked up in a higher concentration at the pump), still I doubt it. I believe that too much premix is fowling the plugs which is more likely the answer.
03-19-11, 09:05 PM
#29
REPU Wanter
Thread Starter
iTrader: (1)
Join Date: Sep 2002
Location: Cherry Point / Havelock NC
Posts: 725
Likes: 0
Received 2 Likes
on
2 Posts
Still going strong with out issue. I couldn't be happier with the out come to this point. I don't have a milage update, but I have traveled out of state several times and untold gallons of two stroke oil have been combusted. One thing of note, plugs have remained unchanged for this entire modificationl.
Terry7
Terry7
03-20-11, 01:58 PM
#31
10-20-12, 08:32 AM
#32
REPU Wanter
Thread Starter
iTrader: (1)
Join Date: Sep 2002
Location: Cherry Point / Havelock NC
Posts: 725
Likes: 0
Received 2 Likes
on
2 Posts
This is a response to a message on this post.
First, the mod is doing well and Mileage is well over 10,000 miles now.
I wouldn't just block off with out drilling, read on to find out why.
To drill or not to drill?
My answer is drill. I don't know what size drill I used. I would drill a smaller hole nest time. My oil pressure is maybe 4 psi lower at idle than stock. Pressure at higher rpms is normal. I believe the slot in the cover has a lubricating purpose for the shaft which drives the omp. How much oil passes through it to lubricate the shaft I don't know the flow rate. At this point I would drill smaller, say 1/16 this will keep your idle pressure up. I think Mazda knew the flow rate through the shaft and case would be low because of tolerances between shaft and case. Pressure at into that area wasn't important, what was important was the oil presence for lubrication. I'm sure the back pressure was almost equal.
I can't see a way to make it more simple. Anytime you modify something you have to take every step to keep the original operation the same. Think of this mod as a dam with a spill way. Oil is needed to this section as part of the design. Your adding a new source of oil, but the new source is separate from the engine source. The new source just replaces the first source at the pump. Never the two shall meet. This is why I did every thing the way I did.
The second thing I would do is put a heat shield over the hose going to the pump. That is if you are running a turbo. They make these to cover hoses.
First, the mod is doing well and Mileage is well over 10,000 miles now.
I wouldn't just block off with out drilling, read on to find out why.
To drill or not to drill?
My answer is drill. I don't know what size drill I used. I would drill a smaller hole nest time. My oil pressure is maybe 4 psi lower at idle than stock. Pressure at higher rpms is normal. I believe the slot in the cover has a lubricating purpose for the shaft which drives the omp. How much oil passes through it to lubricate the shaft I don't know the flow rate. At this point I would drill smaller, say 1/16 this will keep your idle pressure up. I think Mazda knew the flow rate through the shaft and case would be low because of tolerances between shaft and case. Pressure at into that area wasn't important, what was important was the oil presence for lubrication. I'm sure the back pressure was almost equal.
I can't see a way to make it more simple. Anytime you modify something you have to take every step to keep the original operation the same. Think of this mod as a dam with a spill way. Oil is needed to this section as part of the design. Your adding a new source of oil, but the new source is separate from the engine source. The new source just replaces the first source at the pump. Never the two shall meet. This is why I did every thing the way I did.
The second thing I would do is put a heat shield over the hose going to the pump. That is if you are running a turbo. They make these to cover hoses.
Originally Posted by gonado
Hi I know its been a long time since you did this mod but I want you to guide me to do the same
First is it posible to just block the OMP front case opening without drilling the return oil line? How big is the drilling bit you used to dril the omp? What would have done different if you were doing it again to improve the mod or make it just simplier?
Does it still works without a problem? How realible is this mod?
Thanx for everything
First is it posible to just block the OMP front case opening without drilling the return oil line? How big is the drilling bit you used to dril the omp? What would have done different if you were doing it again to improve the mod or make it just simplier?
Does it still works without a problem? How realible is this mod?
Thanx for everything
10-20-12, 08:54 AM
#33
REPU Wanter
Thread Starter
iTrader: (1)
Join Date: Sep 2002
Location: Cherry Point / Havelock NC
Posts: 725
Likes: 0
Received 2 Likes
on
2 Posts
Oil leaking in to engine?
If your oil level is going down it was traveling out of the pump shaft into the shaft reservoir on the case and between the shaft and case into the oil pan.
Why? my guess is because your omp lines were disconnected allowing reverse flow. This is like when you hold your finger over a filled drink straw. The fluid doesn't come out until you remove your finger. This may depend on where the lines are off. Up on the engine or at the pump? If at the pump, I can't say how the pump works internally and why none came out there. If the pump didn't separate input from output it wouldn't work as a pump. With that said, I am sure there could be some leakage through the pump drive shaft into the case around the shaft and into the engine. So consider the condition of all these parts. Wear on the pump and also the shaft/case area. Still I think this would be very very small in amount.
One other thing is how high you placed the oil supply tank. The higher the tank the more pressure from the tank to the pump. Even though this is a gravity feed, remember higher the tank higher the pressure.
I know it has been a long time since this was posted, but I hope it helps others decide on this mod or not.
Why? my guess is because your omp lines were disconnected allowing reverse flow. This is like when you hold your finger over a filled drink straw. The fluid doesn't come out until you remove your finger. This may depend on where the lines are off. Up on the engine or at the pump? If at the pump, I can't say how the pump works internally and why none came out there. If the pump didn't separate input from output it wouldn't work as a pump. With that said, I am sure there could be some leakage through the pump drive shaft into the case around the shaft and into the engine. So consider the condition of all these parts. Wear on the pump and also the shaft/case area. Still I think this would be very very small in amount.
One other thing is how high you placed the oil supply tank. The higher the tank the more pressure from the tank to the pump. Even though this is a gravity feed, remember higher the tank higher the pressure.
I know it has been a long time since this was posted, but I hope it helps others decide on this mod or not.
I did the OMP 2 stroke conversion. I fabricated a light blocking plate, glued with gray RTV silicone to the OMP and the same at the engine side. I didn't drill the front cover return line, as the OMP feeding is the last point in the lubricating circuit, increasing internal oil pressure.
The block off plate and the 2-stroke feeding nipple are very similar to the ones depicted in this thread. I put the 2-stroke oil reservoir near the wiper motor, where the cruise control actuator was, the highest point in the engine bay.
Just after the installation, doing the leakage test, I noticed that the reservoir level was slowly but definitively lowering, but there were no external leakage. The only way oil is going out the OMP should be the injection lines feeding ports (lines were disconnected), but no oil was comming out anywere. That means 2 stroke oil is going into the engine (the one hasn't been started yet because of other jobs in progress)
How can the 2-stroke oil leak past the OMP shaft and how can be it prevented? Sould I change my oil or the 2-stroke can remain in the engine without harm?
Thanks.
The block off plate and the 2-stroke feeding nipple are very similar to the ones depicted in this thread. I put the 2-stroke oil reservoir near the wiper motor, where the cruise control actuator was, the highest point in the engine bay.
Just after the installation, doing the leakage test, I noticed that the reservoir level was slowly but definitively lowering, but there were no external leakage. The only way oil is going out the OMP should be the injection lines feeding ports (lines were disconnected), but no oil was comming out anywere. That means 2 stroke oil is going into the engine (the one hasn't been started yet because of other jobs in progress)
How can the 2-stroke oil leak past the OMP shaft and how can be it prevented? Sould I change my oil or the 2-stroke can remain in the engine without harm?
Thanks.
10-20-12, 07:01 PM
#34
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,892
Likes: 0
Received 114 Likes
on
66 Posts
Having to drill and tap for that 1/8" pipe fitting is NOT the way to go. Too difficult and easy to screw up! After I saw one that was done that way and before assembly, there had to be a better way.
A piece of small SS tube, a corresponding size drill, and JB Weld makes a simple, easier, and better looking conversion.
A piece of small SS tube, a corresponding size drill, and JB Weld makes a simple, easier, and better looking conversion.
10-21-12, 12:56 AM
#35
^cewrx7r1 did exactly what he is suggesting both to his OMP and my OMP, and both set-ups work perfectly. We have the same mod to the OMP, same diameter line from OMP to tank, same tank, same tank location, and until recently, same oil. After verifying no leaks into the engine, our set-ups, unsurprisingly, use the same amount of 2-stroke. He has more accurately documented his usage (even with different 2-strokes), I will let him chime in on that if he wants.
Not saying the pipe fitting is wrong, but it definitely allows more room for failure.
Not saying the pipe fitting is wrong, but it definitely allows more room for failure.
06-28-15, 06:36 AM
#36
Not to revive but to check in how this mod has been working..
sevensheaven,
I think this solution is truly ingenious. A few questions:
Do you think it is possible that idle oil pressure is dropping because of the relief hole you have drilled? Maybe ever so small ungasketed space between OMP and the housing was enough.
I don't know the exact clearance between protruded OMP assembly and the housing on the motor but they seem pretty tight so that small clearance is enough to push unused oil back to the return through that crack.
While I am gathering parts to do this mod or some variant of it, I am concerned if the gravity fed pressure is enough. One has to agree, stock OMP gets substantially pressurized oil from the oil pump.
I know that OMP dribbles oil into the chamber, other than "I had in my vehicle" evidence, just out of curiosity, has anyone actually checked how it is supposed to work with pressurized oil? I have read most of the articles available/found for past 5 hours including 3 series article on the OMP.
Could that pressurized oil possibly still dribble oil even if the OMP stops pumping ensuring that the motor is getting some oil; protecting the motor in limp mode?
https://www.rx7club.com/3rd-generati.../#post11437970
sevensheaven,
I think this solution is truly ingenious. A few questions:
Do you think it is possible that idle oil pressure is dropping because of the relief hole you have drilled? Maybe ever so small ungasketed space between OMP and the housing was enough.
I don't know the exact clearance between protruded OMP assembly and the housing on the motor but they seem pretty tight so that small clearance is enough to push unused oil back to the return through that crack.
While I am gathering parts to do this mod or some variant of it, I am concerned if the gravity fed pressure is enough. One has to agree, stock OMP gets substantially pressurized oil from the oil pump.
I know that OMP dribbles oil into the chamber, other than "I had in my vehicle" evidence, just out of curiosity, has anyone actually checked how it is supposed to work with pressurized oil? I have read most of the articles available/found for past 5 hours including 3 series article on the OMP.
Could that pressurized oil possibly still dribble oil even if the OMP stops pumping ensuring that the motor is getting some oil; protecting the motor in limp mode?
https://www.rx7club.com/3rd-generati.../#post11437970
06-29-15, 09:06 AM
#37
Doesn't Royaryaviation's OMP adapter do just this without all the work? This is only $125 on their website.
Oil Metering Pump Adapters - Rotary Aviation<br />.com
It's been on my "to buy" list.
Oil Metering Pump Adapters - Rotary Aviation<br />.com
It's been on my "to buy" list.
06-29-15, 01:15 PM
#38
Doesn't Royaryaviation's OMP adapter do just this without all the work? This is only $125 on their website.
Oil Metering Pump Adapters - Rotary Aviation<br />.com
It's been on my "to buy" list.
Oil Metering Pump Adapters - Rotary Aviation<br />.com
It's been on my "to buy" list.
I am trying to understand the process so that I can get my own version machined adapter with different design.
Having said that, RA adapter depends on gravity only.
06-29-15, 08:47 PM
#40
The difference is not the OMPs mating surfaces, it is the lateral thickness/width of the two different OMPs. The fixes are known and they are to hack the portion of the stock non-Mikuni OMP to fit in between the stock twin and the motor.
06-30-15, 08:37 AM
#43
Just gotta find me some space since my CAI in there.
How's your setup holding up? Did you also drill the engine side return? I am starting to wonder if it is necessary.
06-30-15, 09:41 AM
#44
If you are going to drill the loop return, it should only be as big of a hole as the total of the two oil injectors. Otherwise, it is allowing more flow than the OMP would have allowed. This could explain some of the drops in oil pressure.
But the return shouldn't be necessary, as the oil passage to the OMP is just a branch off the oil system, and as long as your plate holds the pressure, it will just dead head there and not affect the rest of the oil lubrication/cooling system.
But the return shouldn't be necessary, as the oil passage to the OMP is just a branch off the oil system, and as long as your plate holds the pressure, it will just dead head there and not affect the rest of the oil lubrication/cooling system.
Last edited by Monkman33; 06-30-15 at 09:43 AM.
06-30-15, 08:34 PM
#47
"Elusive, not deceptive!”

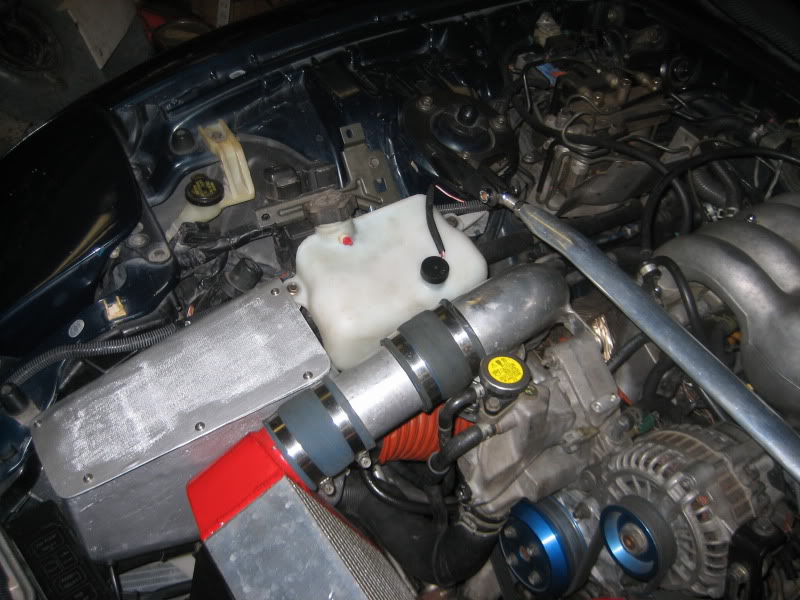

Awesome setup, I think I may end up copying your setup or at least the electrode part of tank. How is it hooked up inside? Warning light?
Just gotta find me some space since my CAI in there.
How's your setup holding up? Did you also drill the engine side return? I am starting to wonder if it is necessary.
Just gotta find me some space since my CAI in there.
How's your setup holding up? Did you also drill the engine side return? I am starting to wonder if it is necessary.
As I remember the pressure lubricates the shaft and the overflow fills a cavity on the pump face with it's excess spilling back into the front case.
The warning light is a Radio Shack LED with 12v to it and it finds a ground through the tank float.

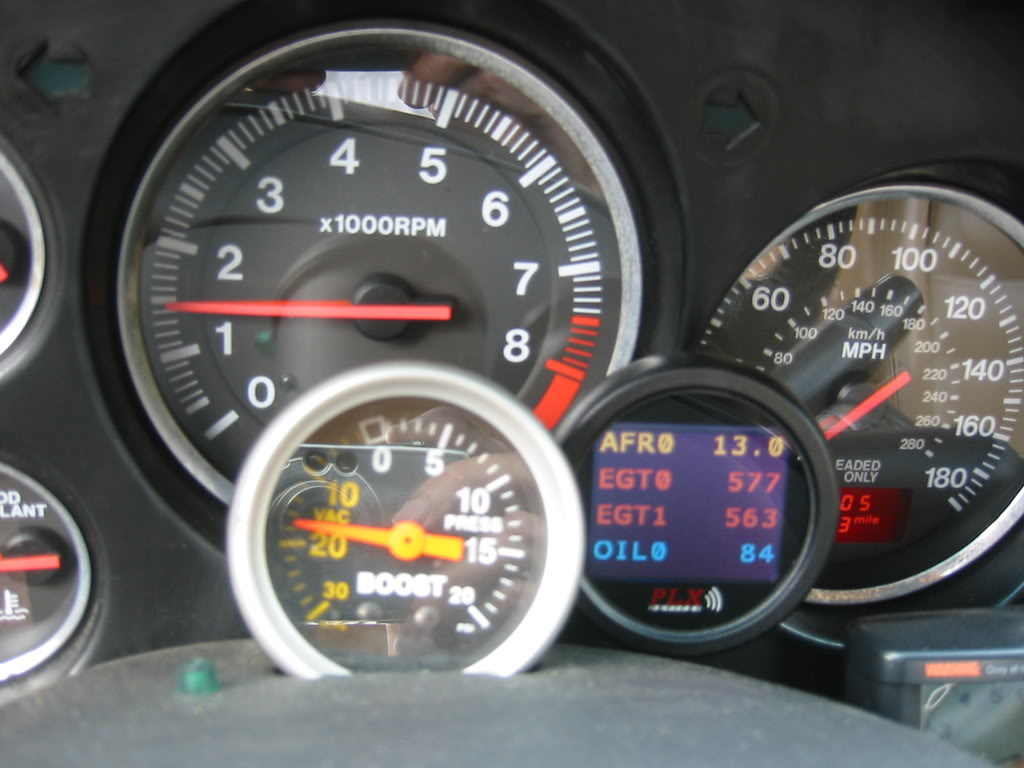

If you look closely in the picture you will see the bulb on the top of the steering column...... and the best part... it reflects in the tach face doubling its signal intensity.
This is an old picture. The green bulb is water/meth pressure and now on the other side (not shown) is a red low oil light.
07-01-15, 07:48 AM
#49
"Elusive, not deceptive!”

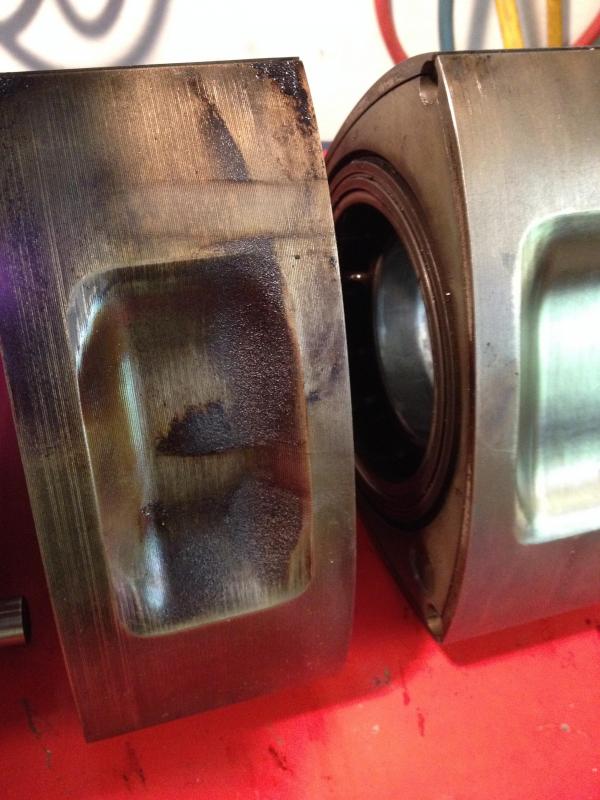

This is what 2 stroke oil looks like after about 20k miles. The ashless formula makes a soft carbon that wipes off with your finger.
Many brands of 2 stk oil are good but I use Quicksilver Premium because it meets the requirements for my fishing boat, KTM Enduro bike
and our beloved rotary engine. (about $19 at Academy and Walmart)
The tank was designed for this 2 stk oil... so no problem.
For the engine I can run any oil (synthetic or petroleum) but normally run the recommended 10w30.
Many brands of 2 stk oil are good but I use Quicksilver Premium because it meets the requirements for my fishing boat, KTM Enduro bike
and our beloved rotary engine. (about $19 at Academy and Walmart)
The tank was designed for this 2 stk oil... so no problem.
For the engine I can run any oil (synthetic or petroleum) but normally run the recommended 10w30.
07-01-15, 01:20 PM
#50
Researching and reading for hours.. Yes, it is a known issue at least from the people who has done it on FDs on stock twins.
The difference is not the OMPs mating surfaces, it is the lateral thickness/width of the two different OMPs. The fixes are known and they are to hack the portion of the stock non-Mikuni OMP to fit in between the stock twin and the motor.
The difference is not the OMPs mating surfaces, it is the lateral thickness/width of the two different OMPs. The fixes are known and they are to hack the portion of the stock non-Mikuni OMP to fit in between the stock twin and the motor.
Does anyone have any pictures of this?
