Does anyone have any pictures showing where the main vents line up compared to the engine? A shot pointing straight down through the vents would be perfect. Thank you.

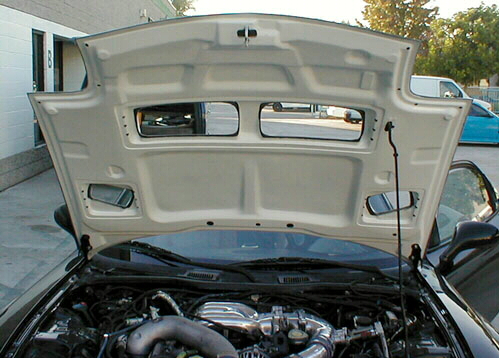

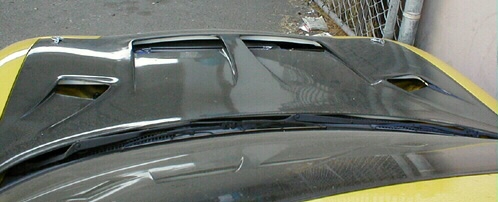

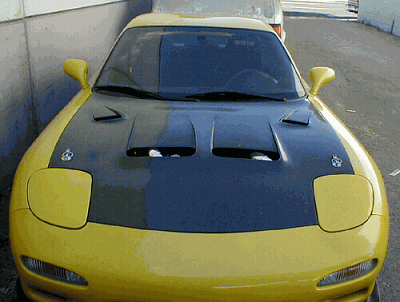

i hope this is what your looking for...

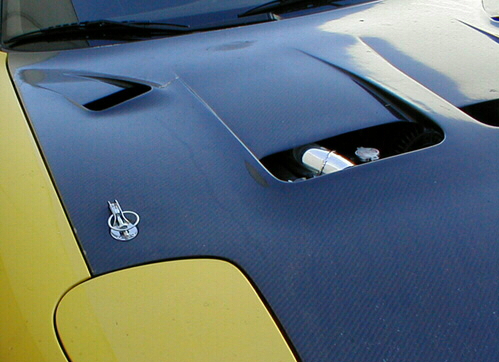

Yeah, that's perfect. Am I seeing it right, where front to back, the vent is pretty much centered on the radiator cap?

If someone has an even more downward angle, that would be great. I'm basically trying to see where the vent is located compared to the engine bay.



i believe so...so its barley missing the alternator



ok thanks a bunch.
