Installing R1 wing

Thread Tools

Search this Thread

Old 01-09-06, 08:36 AM
  #1
Damn I broke his neck!

Thread Starter

manny34711's Avatar

Join Date: Nov 2004
Location: Clermont FL
Posts: 869
Likes: 0
Received 0 Likes on 0 Posts
Installing R1 wing
ive searched, came out with http://www.scuderiaciriani.com/rx7/spoiler_install.html but the link is obviously down.


anyone have a template saved they can send me? im taking out the hatch liner right now but i need to know where to dril lthe holes, drill bit sizes etc
manny34711 is offline
Reply Like
Old 01-09-06, 09:11 AM
  #2
HDP
A Fistfull of Dollars!

iTrader: (2)

HDP's Avatar

Join Date: Nov 2002
Location: HuntsVEGAS, AL
Posts: 5,321
Received 3 Likes on 3 Posts
Originally Posted by manny34711
ive searched, came out with http://www.scuderiaciriani.com/rx7/spoiler_install.html but the link is obviously down.
Try replacing "www.scuderiaciriani.com/rx7" with "www.fd3s.net".
HDP is offline
Reply Like
Old 06-07-08, 07:21 AM
  #3
Rotary Freak

iTrader: (8)

M104-AMG's Avatar

Join Date: Oct 2004
Location: FL
Posts: 2,857
Received 5 Likes on 5 Posts
http://www.fd3s.net/spoiler_install.html

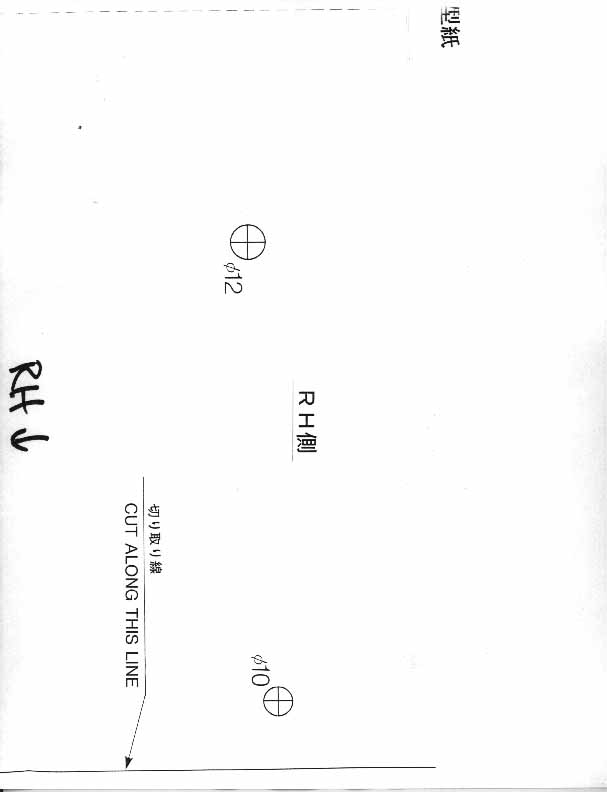

Attached Thumbnails Installing R1 wing-spoiler_template1.jpg   Installing R1 wing-spoiler_template2.jpg   Installing R1 wing-spoiler_template3.jpg   Installing R1 wing-spoiler_template4.jpg
M104-AMG is offline
Reply Like
Old 06-07-08, 07:22 AM
  #4
Rotary Freak

iTrader: (8)

M104-AMG's Avatar

Join Date: Oct 2004
Location: FL
Posts: 2,857
Received 5 Likes on 5 Posts
instructions
http://www.fd3s.net/spoiler_install.html

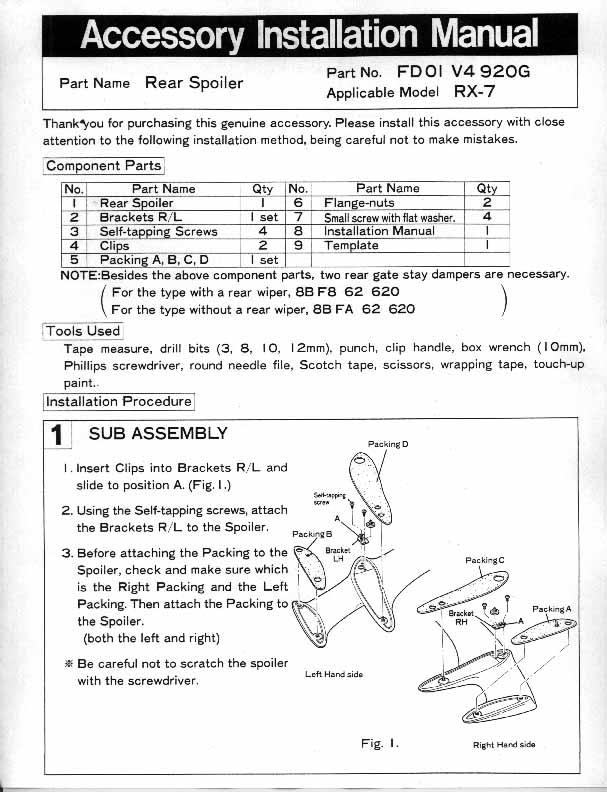

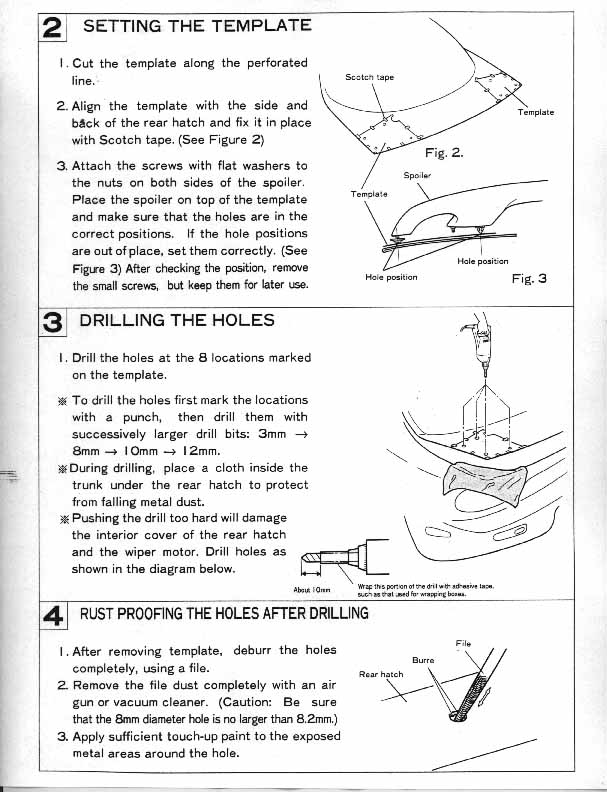

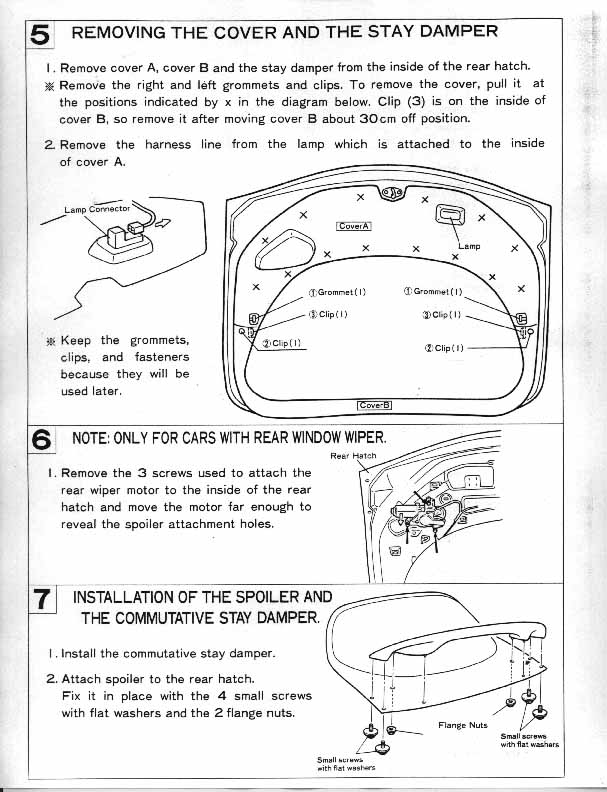

Attached Thumbnails Installing R1 wing-spoiler_install1.jpg   Installing R1 wing-spoiler_install2.jpg   Installing R1 wing-spoiler_install3.jpg   Installing R1 wing-spoiler_install4.jpg
M104-AMG is offline
Reply Like
