ignition coil fire
just tried to start car after rebuild and leading ignition coil caught fire, any ideas to what would be the cause?
rescueranger is offline
Reply Like
Old 09-27-09, 04:15 PM
  #2
Rotary ******

iTrader: (3)

lvblkjack's Avatar

Join Date: Feb 2007
Location: So*Cal
Posts: 68
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by rescueranger
just tried to start car after rebuild and leading ignition coil caught fire, any ideas to what would be the cause?
A short perhaps?
lvblkjack is offline
Reply Like
Old 09-27-09, 05:16 PM
  #3
Senior Member

Thread Starter
iTrader: (15)

rescueranger's Avatar

Join Date: Jul 2003
Location: nova
Posts: 715
Received 1 Like on 1 Post
within the system? or within the coil itself?
rescueranger is offline
Reply Like
Old 09-27-09, 05:32 PM
  #4
Senior Member

Thread Starter
iTrader: (15)

rescueranger's Avatar

Join Date: Jul 2003
Location: nova
Posts: 715
Received 1 Like on 1 Post
i guess the next question would be where do i ground it? or where is the grounding end of it?
rescueranger is offline
Reply Like
Old 09-27-09, 05:56 PM
  #5
Senior Member

Thread Starter
iTrader: (15)

rescueranger's Avatar

Join Date: Jul 2003
Location: nova
Posts: 715
Received 1 Like on 1 Post

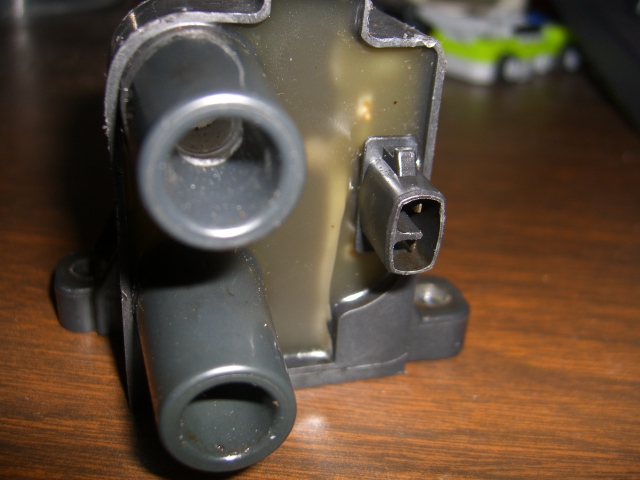

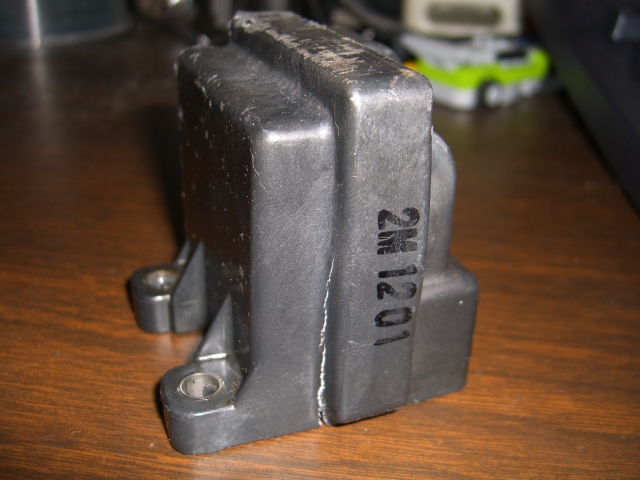

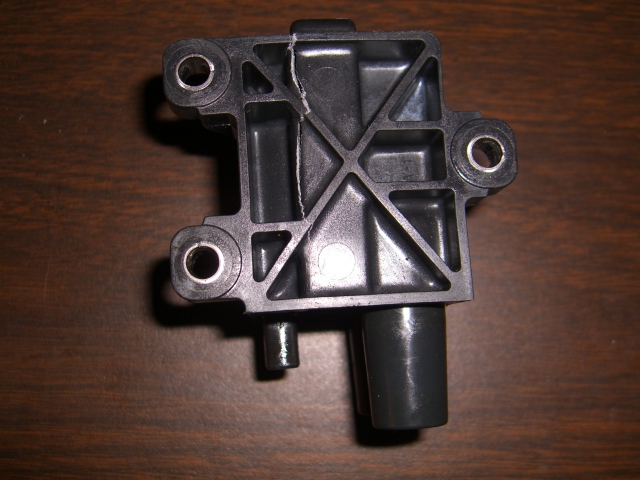

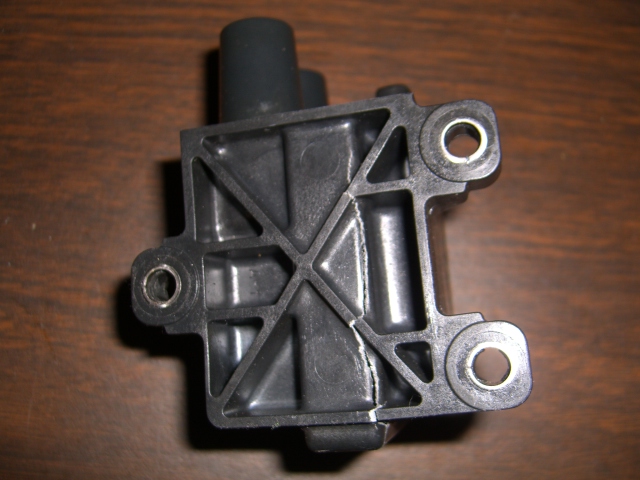

heres some pictures of it it made a buzzing sound then let out some smoke from under the uim and was extremely hot to the touch
Attached Thumbnails ignition coil fire-cimg2273.jpg   ignition coil fire-cimg2277.jpg   ignition coil fire-cimg2280.jpg   ignition coil fire-cimg2282.jpg
rescueranger is offline
Reply Like
Old 09-27-09, 06:49 PM
  #6
Senior Member

Thread Starter
iTrader: (15)

rescueranger's Avatar

Join Date: Jul 2003
Location: nova
Posts: 715
Received 1 Like on 1 Post

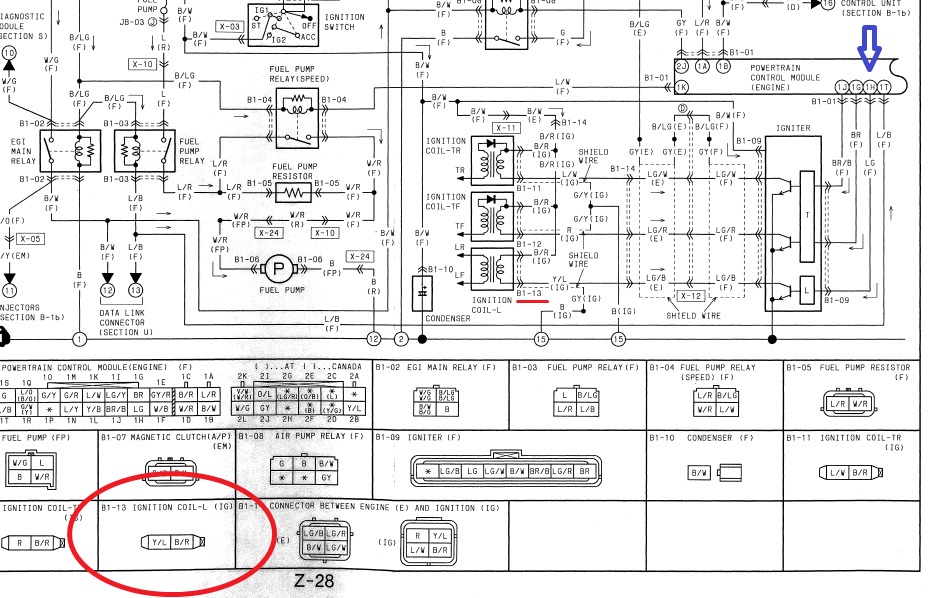

im looking through the wire diagram but i cant read/understand it .. i think the coil would be
"b1-13"
Attached Thumbnails ignition coil fire-schematics.jpg
rescueranger is offline
Reply Like
Old 09-27-09, 07:26 PM
  #7
Senior Member

Thread Starter
iTrader: (15)

rescueranger's Avatar

Join Date: Jul 2003
Location: nova
Posts: 715
Received 1 Like on 1 Post

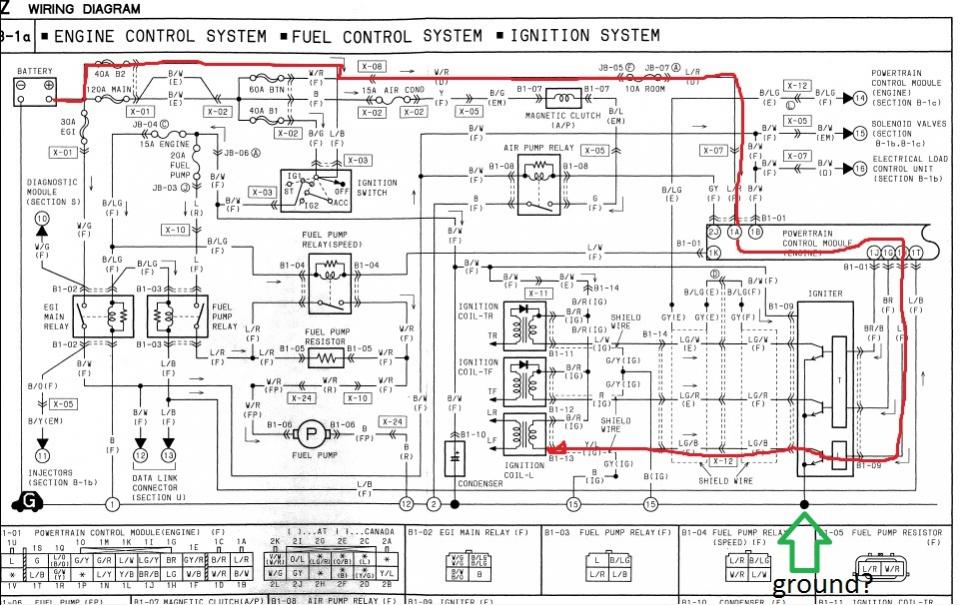

ok i think i kind of understand this, can someone verify the path of the current? i guess my question is what is an igniter and power train module?
Attached Thumbnails ignition coil fire-test.jpg
rescueranger is offline
Reply Like
