Horizontal intercooler
11-09-02, 08:46 PM
#53
Senior Member
Join Date: Nov 2001
Location: Lynchburg, VA
Posts: 674
Likes: 0
Received 0 Likes
on
0 Posts
yeah I posted teh link back on teh last post of page 2.
check it out.
Did any of you start making an intake yet.
I currently have all teh parts Ill need asside from teh intake. I'm going to make one from aluminum. the only thing holding me back right now is time.
check it out.
Did any of you start making an intake yet.
I currently have all teh parts Ill need asside from teh intake. I'm going to make one from aluminum. the only thing holding me back right now is time.
11-11-02, 09:37 PM
#59
Senior Member
Join Date: Jul 2002
Location: TX
Posts: 653
Likes: 0
Received 0 Likes
on
0 Posts
This is how I did it when I installed my radiator:
Remove battery tray
Remove IC
Unbolt the A/C condenser unit
At this point you should be able to loosen the duct, you have to play with it, bend the condenser and the lines a little to get the duct out.
Hope this helps
Remove battery tray
Remove IC
Unbolt the A/C condenser unit
At this point you should be able to loosen the duct, you have to play with it, bend the condenser and the lines a little to get the duct out.
Hope this helps
11-17-02, 01:28 PM
#61
Senior Member
Join Date: Jul 2002
Location: TX
Posts: 653
Likes: 0
Received 0 Likes
on
0 Posts
How far are you guys on the project? Have you made the brackets yet? The front of the IC is held by a L shaped peice bolted to the front but how are you going to hold the back of IC in place?
11-17-02, 10:13 PM
#64
Full Member
Join Date: Nov 2002
Location: Japan
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
i THINK that if you get a HMIC it would be more for the circuit racing, and front mount for like drag racing... or you can go with the "V" style set up .... what do you think ??
11-18-02, 07:42 AM
#65
I suppose with the v-mount you eliminate the belly pan. I think this is a bigger project than I am after. I'd also think you want an IC the same width as the radiator. The SR HMIC is narrower.
It looks like you effectively split the air between the IC and the radiator. I think you could spend a long time determining air flow characteristics with this configuration. I can control the amount of air the IC gets with ducting, and it's more similar to stock.
That being said, I think the v-mount is a good idea. Isn't this configuration fairly common in Japan?
It looks like you effectively split the air between the IC and the radiator. I think you could spend a long time determining air flow characteristics with this configuration. I can control the amount of air the IC gets with ducting, and it's more similar to stock.
That being said, I think the v-mount is a good idea. Isn't this configuration fairly common in Japan?
11-18-02, 05:56 PM
#69
Senior Member
Join Date: Jul 2002
Location: TX
Posts: 653
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by SleepR1
Yes, I'm interested in this answer as well. This seems to be the only IC that will work with Efini Y-pipe WITHOUT modifying the Y-pipe to any extent!
Yes, I'm interested in this answer as well. This seems to be the only IC that will work with Efini Y-pipe WITHOUT modifying the Y-pipe to any extent!
11-19-02, 01:12 PM
#71
Lives on the Forum
Chuck Huang
has exchanged emails with me regarding his HMIC Rotary Extreme. The IC kits are done, but the inlet ducts are not...
Chuck says the V-mounts IC/2-inch think Comp Rad are complete and available; the V-mount design is used on track in Japan FD race cars.
Chuck says the V-mounts IC/2-inch think Comp Rad are complete and available; the V-mount design is used on track in Japan FD race cars.
11-19-02, 02:19 PM
#73
Lives on the Forum
Rotary Extreme
Chuck's stuff looks serious and custom-made...
I'm anxious for them to get the inlet duct done for the HMIC...I'm sure I will order the RE HMIC, as it can be used with the Efini Y-pipe, and just about any intake.

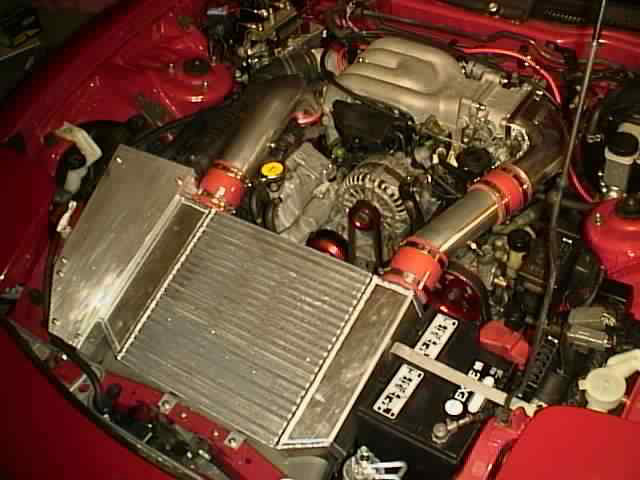

Chuck says the HMIC's couplers will not pop off like they do with the M2 Large IC's because Chuck's HMIC is rigidly mounted via a bracket. There apparently is no movement once the HMIC is in place. Without the movement, the silicone couplings will not work themselves loose like they do on the M2's couplings.
From what I've seen, the M2 is not rigidly mounted. It's held in place with the 4 silicone couplings. With the motor moving around under throttle, it's easy to see why the M2 Large IC couplings are constantly DECOUPLING, and causing boost leaks out on the road race circuits!!!
Rotary Extreme has their own CAI in the works, and I might consider that one as a nice complement to Chuck's HMIC...?
I'm anxious for them to get the inlet duct done for the HMIC...I'm sure I will order the RE HMIC, as it can be used with the Efini Y-pipe, and just about any intake.
Chuck says the HMIC's couplers will not pop off like they do with the M2 Large IC's because Chuck's HMIC is rigidly mounted via a bracket. There apparently is no movement once the HMIC is in place. Without the movement, the silicone couplings will not work themselves loose like they do on the M2's couplings.
From what I've seen, the M2 is not rigidly mounted. It's held in place with the 4 silicone couplings. With the motor moving around under throttle, it's easy to see why the M2 Large IC couplings are constantly DECOUPLING, and causing boost leaks out on the road race circuits!!!
Rotary Extreme has their own CAI in the works, and I might consider that one as a nice complement to Chuck's HMIC...?
Last edited by SleepR1; 11-19-02 at 02:22 PM.
11-19-02, 07:43 PM
#74
Senior Member
Join Date: Jul 2002
Location: TX
Posts: 653
Likes: 0
Received 0 Likes
on
0 Posts
I got a SMIC and my brand new SR HMIC is for sale if anyone is interested.
https://www.rx7club.com/forum/showth...hreadid=133979
https://www.rx7club.com/forum/showth...hreadid=133979
11-20-02, 05:25 AM
#75
Full Member
Join Date: Nov 2002
Location: Japan
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
johnchabin ... Yes i see alot of V-mounts ... but i guess its just how you plan on driving your car.... Will you be running your car hard enough for the radiator to be a big factor, or will you be on the straight away track where you need the air for the intercooler ? its all in what you are going to do ..... i guess.
