RXHEAVN

iTrader: (4)

Hi Guys

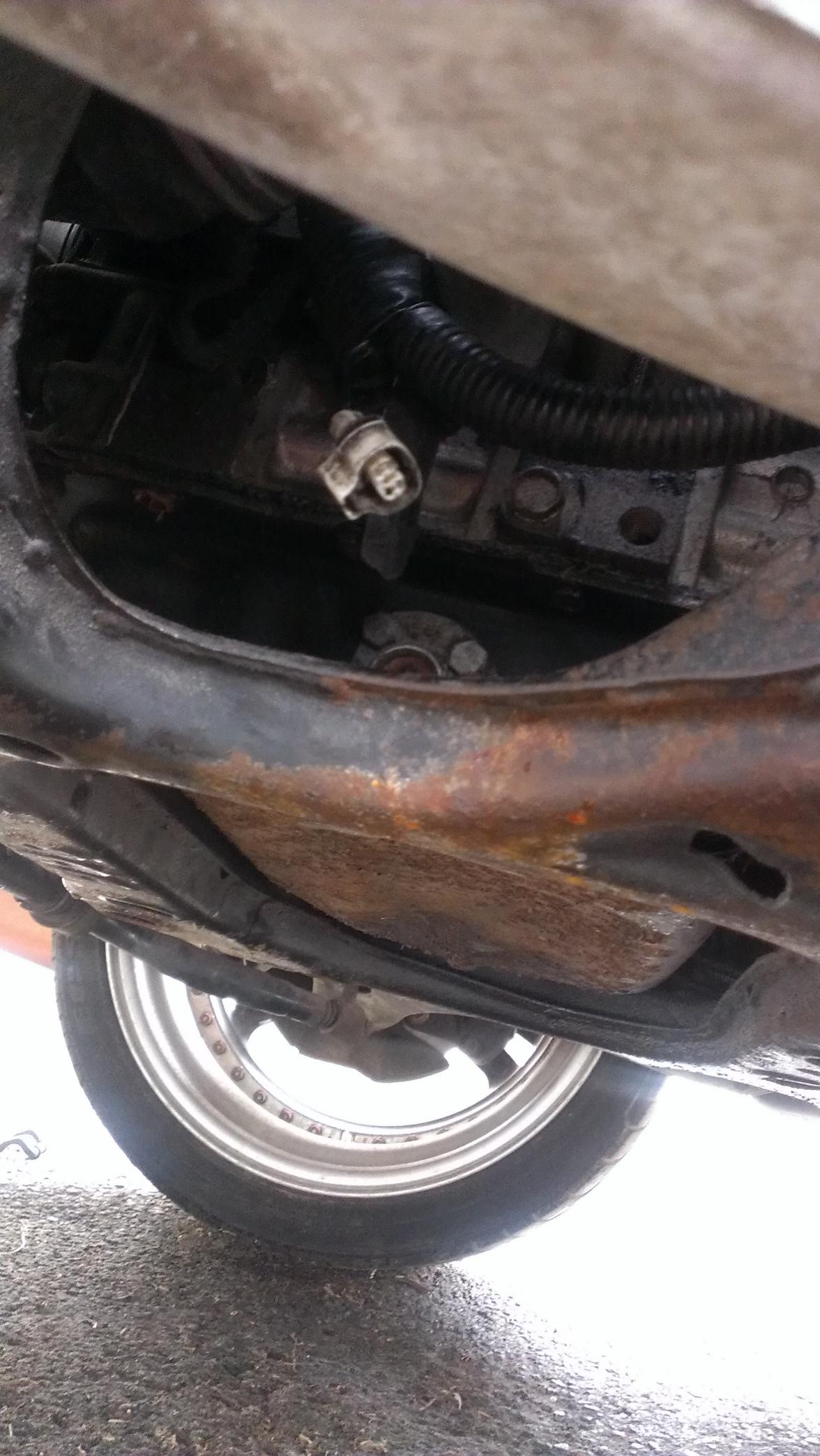

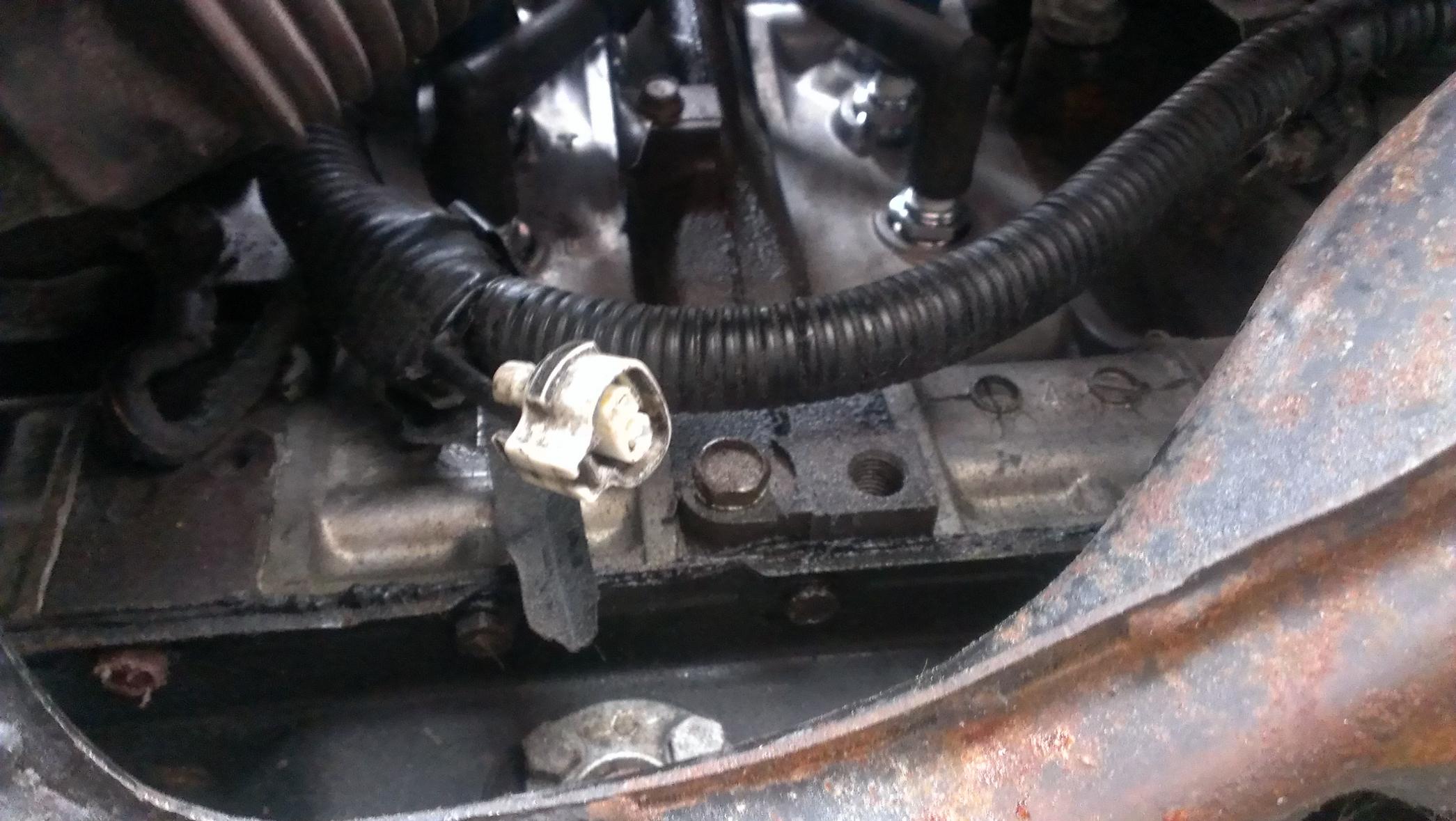

I attached pictures of a wire connection right underneath the spark plugs for a 93 rx7. It is on the driver side next to the oil pan. Does anyone know what this wire harness attaches to?

Thanks
shen

XLR8

iTrader: (52)

What color is the wire?

Almost looks like the oil lever sensor from the pan, but I don't remember a white plug. Check the wiring diagram for the engine harness.

scotty R

iTrader: (13)

that plug looks like something off your A/C do u still have A/C or have u deleted it?

RXHEAVN

iTrader: (4)

Ac is still there, my oil and fuel level is not working....the car was stripped apart and now im putting it back together.

Where is the oil and fuel level sensors?
Thanks guys

AX75F92

iTrader: (7)

Oil level is on the pan and fuel level is in the tank. That pan looks pretty banged up...

FD3S2005

iTrader: (11)

i believe that is the the wire that goes into the oil pan.. from the look of it from the second picture, there is no wire going from the oil pan so i believe thats where its from because from that angle i would of been able to see my wire coming out from the oilpan

Sgtblue

iTrader: (16)

+1. There should be a pig-tail coming off the oil level sensor on the left side of the oil pan that would plug into that connector.
