Greddy Intake Elbow mod
Ok , after hours searching at Google and at the forum , without the positive results about finding any photo ,i decide to open this one to show my last mod , but i can't thanks enough to the help at rx7club Facebook group for the help and encourage me to do it .

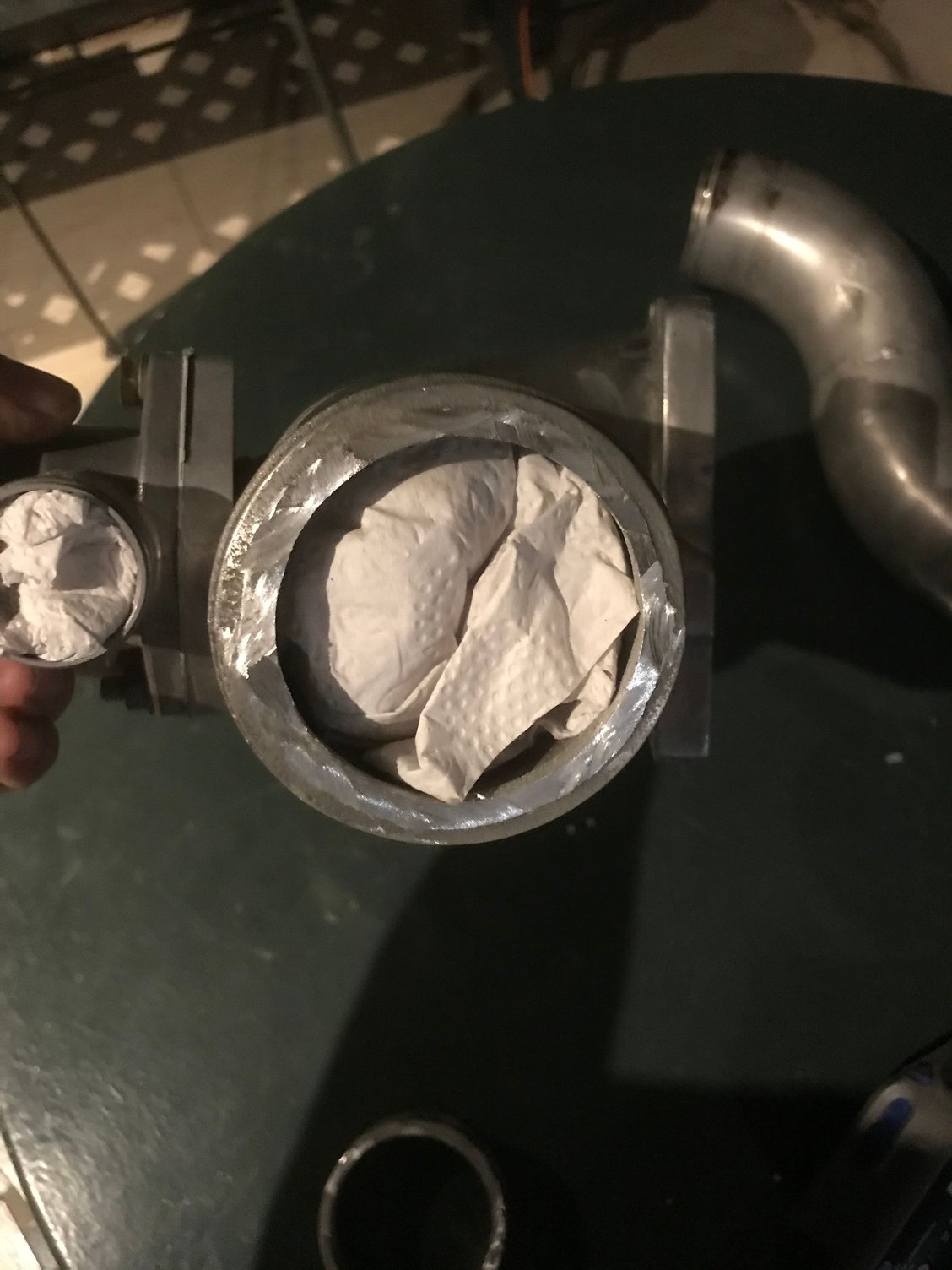

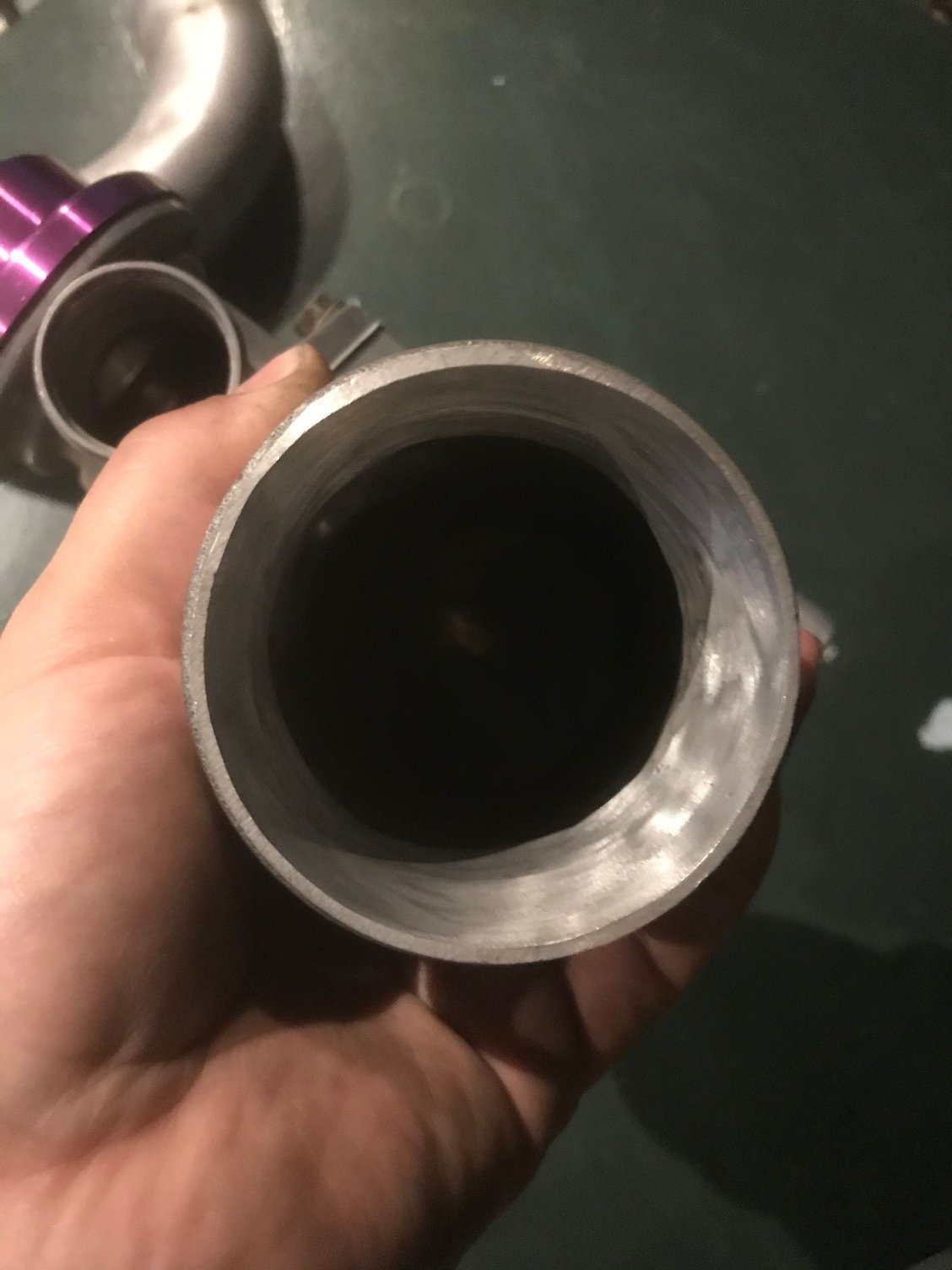

Anyways , i found a restrictor on the Greddy Intake Elbow , that restrict flow and do not look right so i decide to take it off.
So i did (photos attached)
I notice a better capacity of the engine to breath and notable gain after 7000 rpms.
Will be nice to know if somebody else have done this mod and what are your experiences.
Anyways , i found a restrictor on the Greddy Intake Elbow , that restrict flow and do not look right so i decide to take it off.
So i did (photos attached)
I notice a better capacity of the engine to breath and notable gain after 7000 rpms.
Will be nice to know if somebody else have done this mod and what are your experiences.
Last edited by rexset; 07-10-21 at 09:38 PM. Reason: Spelling
#2
RX-7 Bad Ass
iTrader: (55)
I think it's stepped down to 2 3/4" for the stock IC pipe size. If you go up you would need a reducer to go from the 2 3/4" pipe to 3".
This is an old school mod actually . I don't know how big of a difference it really makes, I think the size of the IC pipe in front of the elbow is the real factor there. But it's not hard to do.
Big thing is make sure you leave the lip on the opening so the coupler doesn't blow off or leak on you.
Dale
This is an old school mod actually . I don't know how big of a difference it really makes, I think the size of the IC pipe in front of the elbow is the real factor there. But it's not hard to do.
Big thing is make sure you leave the lip on the opening so the coupler doesn't blow off or leak on you.
Dale
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,603 Likes
on
1,847 Posts
+1 it is set up so you can run the stock 70mm size, or go to 80mm
#4
Racing Mechanic
Thread Starter
yes you are right , but the “original” transition inside the elbow was really abrupt.

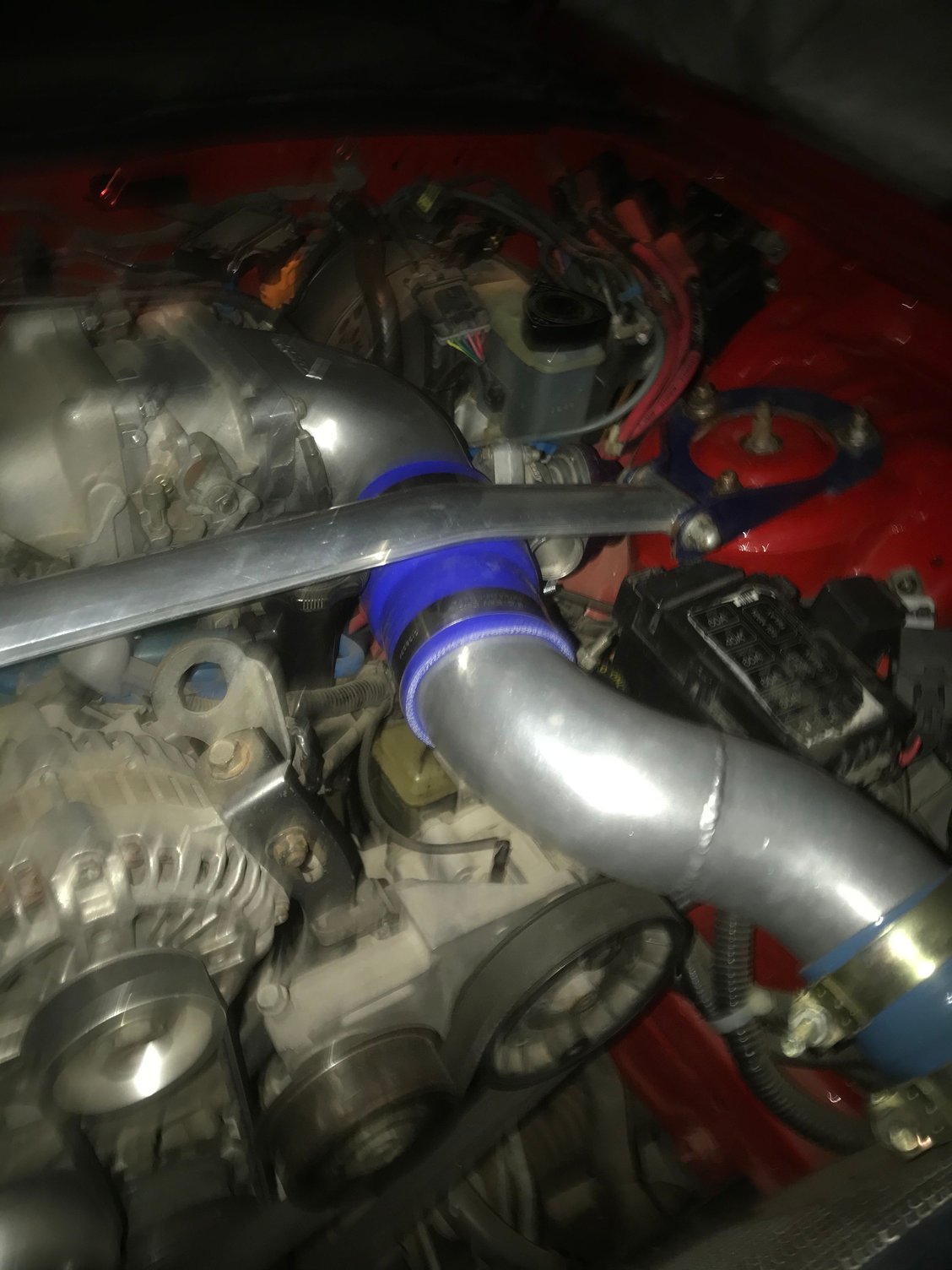

Yes was tricky to find a silicone hose for doing the 70mm to 80mm
Anyways and when i messure it inside of the Greddy “adapter” it was reducing even more because the walls of the adapter was too tick
if you compare it on the photos you can see that the intercooler pipe has a bigger internal diameter than the adaptor , but cause the adaptor have a chanfler is very hard to know till you cut it out

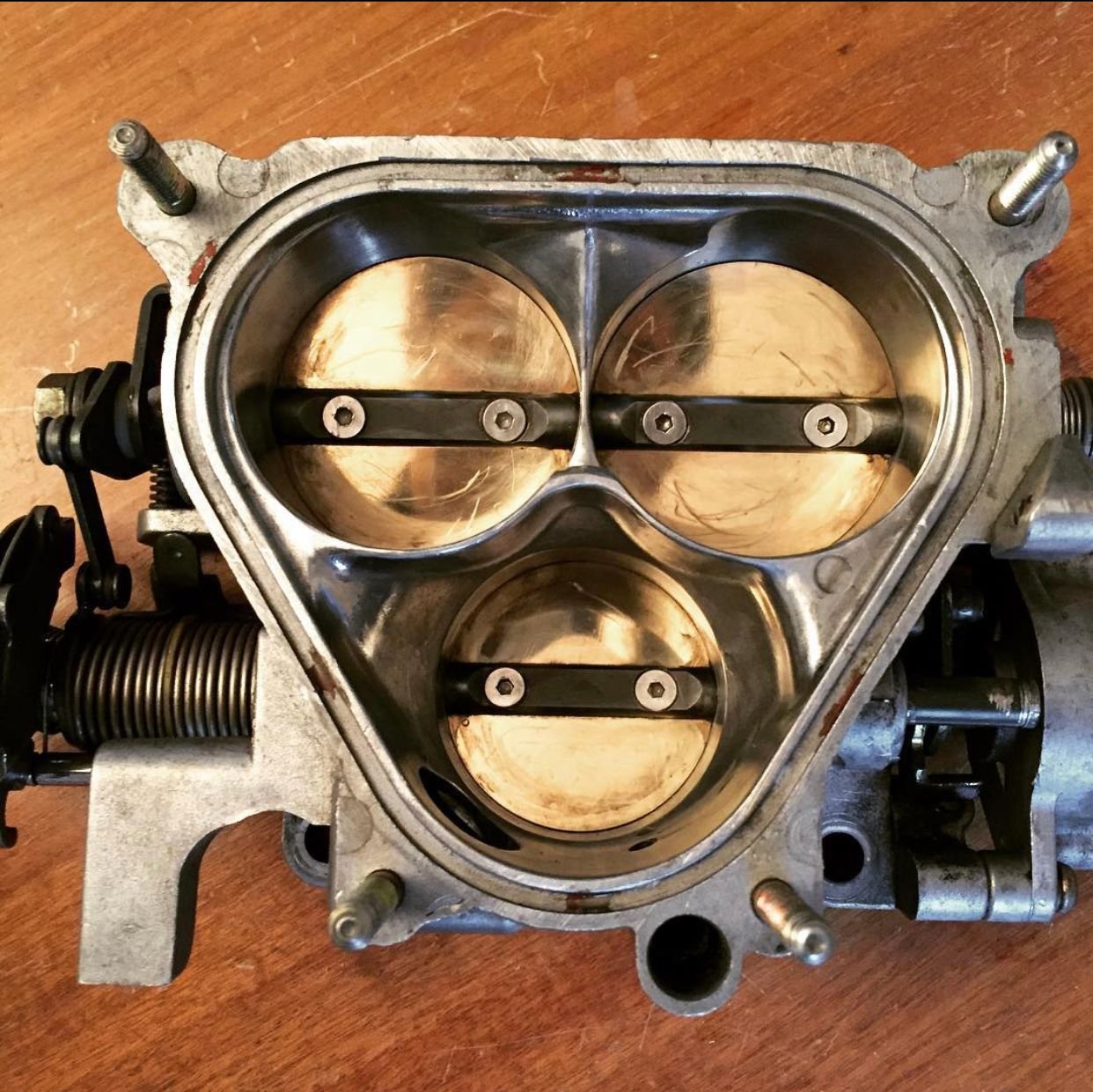

Im also using bigger throttle bodies so…
probably the nect step will be go all the way to 80mm from outside the intercooler , but i dont know how “nessesary” will be
#5
Racing Mechanic
Thread Starter
I think it's stepped down to 2 3/4" for the stock IC pipe size. If you go up you would need a reducer to go from the 2 3/4" pipe to 3".
This is an old school mod actually . I don't know how big of a difference it really makes, I think the size of the IC pipe in front of the elbow is the real factor there. But it's not hard to do.
Big thing is make sure you leave the lip on the opening so the coupler doesn't blow off or leak on you.
Dale
This is an old school mod actually . I don't know how big of a difference it really makes, I think the size of the IC pipe in front of the elbow is the real factor there. But it's not hard to do.
Big thing is make sure you leave the lip on the opening so the coupler doesn't blow off or leak on you.
Dale

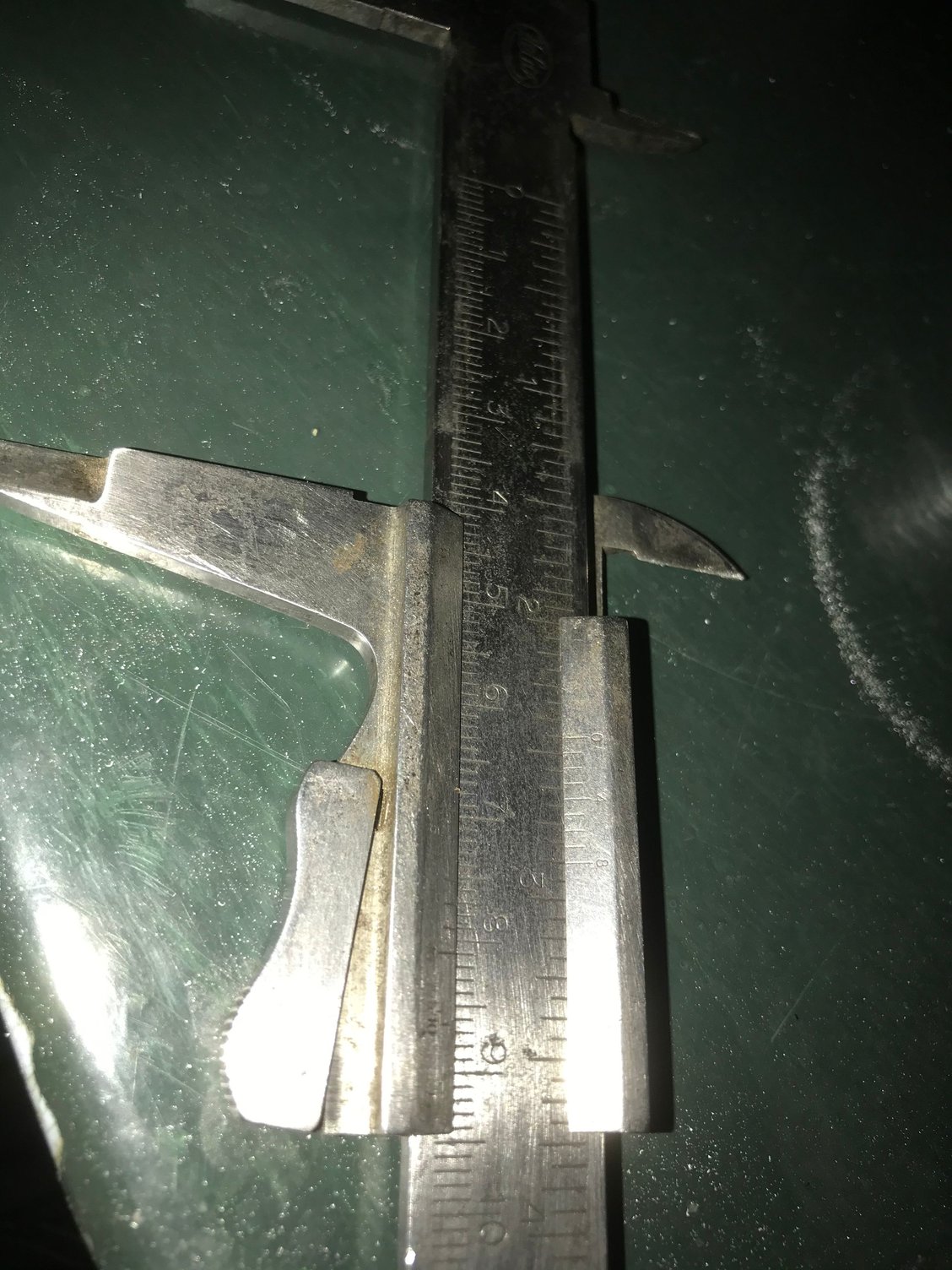

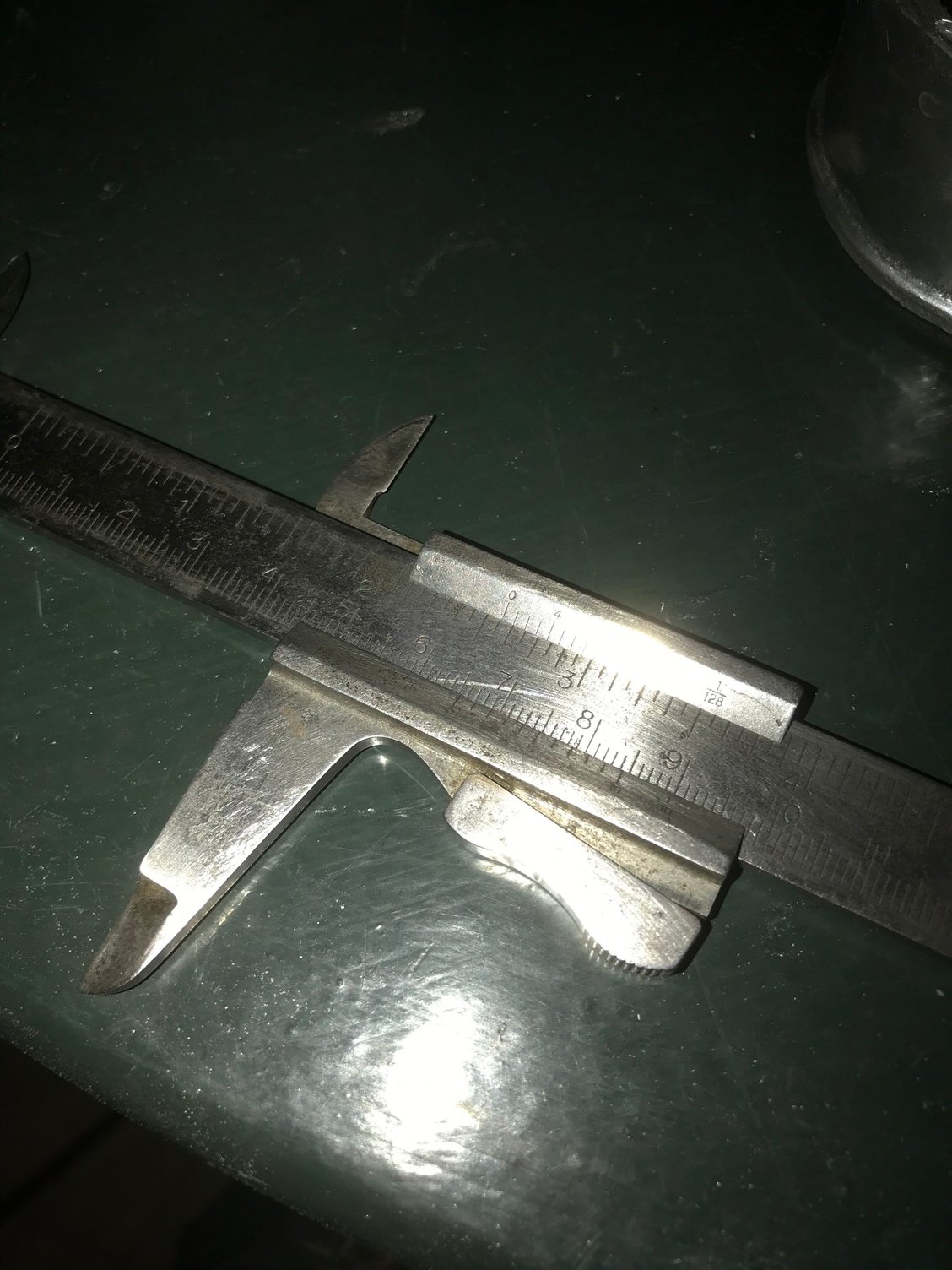

the restrictor if I remember right was all the way down to 62mm
but was hard to messure it with a caliper cause it have a chanfler at the outside.
So when i cut it i notice that.

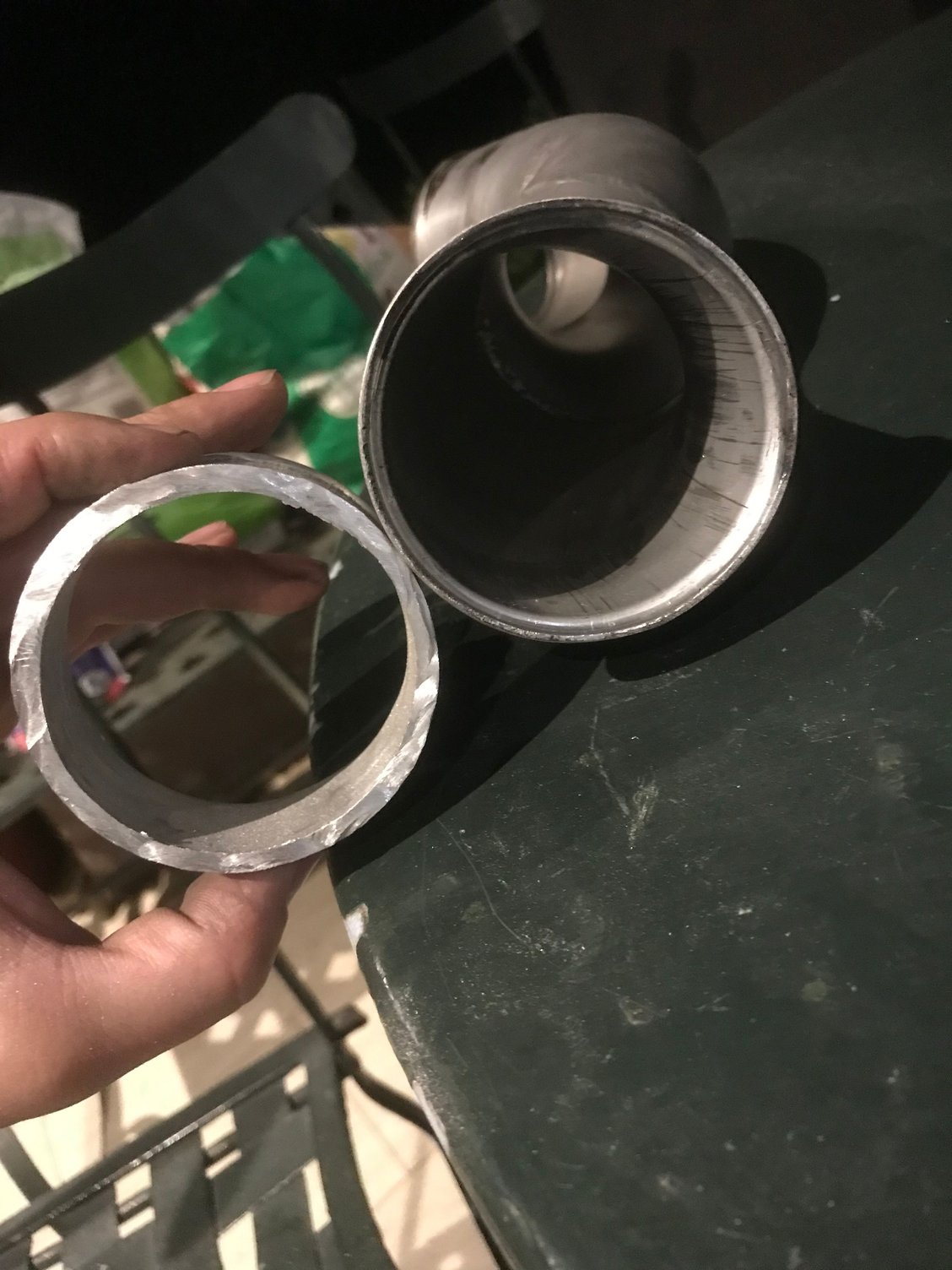

anyways i attached a photo showing that
so next guy that search on the forum or google it will take that step faster 😂
