Great O2 Sensor Deal
11-19-02, 07:33 PM
#26
Full Member
Join Date: Jun 2002
Location: florida
Posts: 74
Likes: 0
Received 0 Likes
on
0 Posts
I have a downpipe and the stock cc . The car had 45k miles on it but the air pump was making a heck of a lot of noise . Petit racing just disconnected the electrical connectio9n to the airpump and adjusted the idle and the car runs fine. Will this clog my cat or screw up my o2 sensor? It has never been replaced.
11-25-02, 02:58 PM
#27
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
Re: Great O2 Sensor Deal
Originally posted by cewrx7r1
Auto Medic Supply at http://www.oxygensensors.com/ has a great price and sensor for the FD if you want a one wire like the stock unit.
I just had one sent to me for $34.99. It has a 20" long insulated lead with a stock Mazda connector on it. It is made by NTK which also makes the stock Mazda O2 sensor.
You can find a car's sensor by make,model,and year; or even Mazda part number. I got their part number 250-21020, which is listed for a 1994 Mazda RX7 R2-1.3L.
Auto Medic Supply at http://www.oxygensensors.com/ has a great price and sensor for the FD if you want a one wire like the stock unit.
I just had one sent to me for $34.99. It has a 20" long insulated lead with a stock Mazda connector on it. It is made by NTK which also makes the stock Mazda O2 sensor.
You can find a car's sensor by make,model,and year; or even Mazda part number. I got their part number 250-21020, which is listed for a 1994 Mazda RX7 R2-1.3L.
I called and they said they will send a replacement and didn't know about the website mistake untill after it was shipped.
The wrong part number one should fit perfectly for DP's other than HKS since the O2 sensor is mounted closer than stock.
11-25-02, 07:03 PM
#30
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
Originally posted by Fish Eye
As far as splicing the connectors I heard that you are not supposed to solder them together because then it does not read right. Is this true.
As far as splicing the connectors I heard that you are not supposed to solder them together because then it does not read right. Is this true.
The only thing that will change the "accuracy" (resistance) is if you use a different gauge wire to splice or increase/decrease the length of the wire dramatically. Try to use the same gauge, never smaller. Solder has no effect, it just makes the connection more permanent so that it will never work free on it's own if the crimp fails. Don't overtighten it, just seat it gently and forget about it for 25,000 miles or so..........they last a long time.
----------------------------------
Above quote from RonKMiller on a similar thread.
My bro-in-law (20+yr Honda Tech) told me not to solder them but I have no proof either way so I purchased it with the wire.
Last edited by GoRacer; 11-25-02 at 07:06 PM.
11-25-02, 07:05 PM
#31
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
Originally posted by legendr36
get the universal bosch ones they sell at auto zone, etc for 20 bux. works great
get the universal bosch ones they sell at auto zone, etc for 20 bux. works great
11-25-02, 07:51 PM
#32
Full Member
Join Date: Oct 2002
Location: cali
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by GoRacer
Do they come with the wire and connector?
Do they come with the wire and connector?
Last edited by legendr36; 11-25-02 at 07:58 PM.
12-29-02, 02:45 PM
#33
Lives on the Forum
Re: Great O2 Sensor Deal
Chuck,
This is a great deal, and am ready to pull the buy trigger.
One question. Will the Walker oxygen sensor give my Apex Power FC the data it needs to make accurate AFR readings? I know you have the Apex PFC also, so...
Is there any other oxygen sensor I should go with besides the stock one?
Thanks for this link! I plan to order one Monday, if the Walker unit works as well as the stock oxygen sensor unit...
This is a great deal, and am ready to pull the buy trigger.
One question. Will the Walker oxygen sensor give my Apex Power FC the data it needs to make accurate AFR readings? I know you have the Apex PFC also, so...
Is there any other oxygen sensor I should go with besides the stock one?
Thanks for this link! I plan to order one Monday, if the Walker unit works as well as the stock oxygen sensor unit...
Originally posted by cewrx7r1
Auto Medic Supply at http://www.oxygensensors.com/ has a great price and sensor for the FD if you want a one wire like the stock unit.
I just had one sent to me for $34.99. It has a 20" long insulated lead with a stock Mazda connector on it. It is made by NTK which also makes the stock Mazda O2 sensor.
You can find a car's sensor by make,model,and year; or even Mazda part number. I got their part number 250-21020, which is listed for a 1994 Mazda RX7 R2-1.3L.
Auto Medic Supply at http://www.oxygensensors.com/ has a great price and sensor for the FD if you want a one wire like the stock unit.
I just had one sent to me for $34.99. It has a 20" long insulated lead with a stock Mazda connector on it. It is made by NTK which also makes the stock Mazda O2 sensor.
You can find a car's sensor by make,model,and year; or even Mazda part number. I got their part number 250-21020, which is listed for a 1994 Mazda RX7 R2-1.3L.
12-30-02, 11:14 PM
#35
Banned. I got OWNED!!!
Join Date: Feb 2001
Location: Silicon Valley Bay Area
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
I got a Bosch one from www.kragen.com for $17 bucks...... works fine and another friend got the same one......
12-31-02, 04:01 PM
#40
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
I checked out Kragen's website just to see the prices $18 - $200
Click "here" and you figure it out.
Anyhow, I was curious cause a g/f of mine works for Schucks in WA and she says she delivers to the dealers all the time and she can't wear a badge or shirt with Schucks on it because they don't want the customers to know where they buy the parts "lol".
Click "here" and you figure it out.
Anyhow, I was curious cause a g/f of mine works for Schucks in WA and she says she delivers to the dealers all the time and she can't wear a badge or shirt with Schucks on it because they don't want the customers to know where they buy the parts "lol".
Last edited by GoRacer; 12-31-02 at 04:08 PM.
01-06-03, 12:44 PM
#45
Full Member
Join Date: Apr 2002
Location: MA
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Damn that walker unit looks shorter on the tops side (anyone have a measurement?) My bung was welded inboard a little too far and the top of the o2 sensor hit the turbo housing, that one looks like it would clear, I only need a 1/4 - 1/2 inch.
01-06-03, 03:44 PM
#46
deceptive

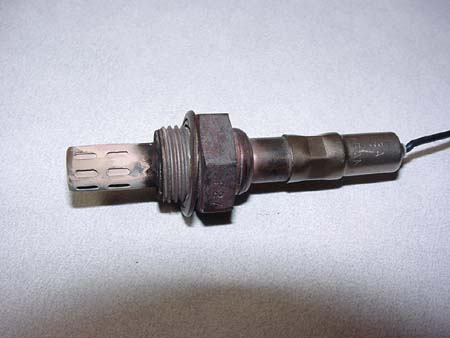

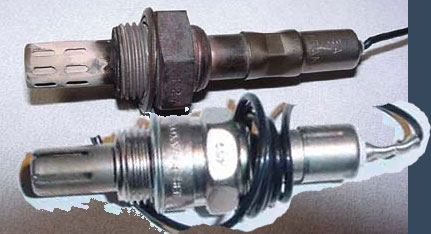

it seems shorter but it is deceptive because the bolt part is in a different spot, here is a photoshop-hacked image to compare, they are about the same zoom ratio so it is relatively accurate in comparing the length difference (relative , not absolute)
01-06-03, 04:01 PM
#47
Eats, Sleeps, Dreams Rotary
Join Date: Aug 2002
Location: Dallas, TX
Posts: 3,119
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by jkekeisen
Damn that walker unit looks shorter on the tops side (anyone have a measurement?) My bung was welded inboard a little too far and the top of the o2 sensor hit the turbo housing, that one looks like it would clear, I only need a 1/4 - 1/2 inch.
Damn that walker unit looks shorter on the tops side (anyone have a measurement?) My bung was welded inboard a little too far and the top of the o2 sensor hit the turbo housing, that one looks like it would clear, I only need a 1/4 - 1/2 inch.
01-06-03, 05:36 PM
#48
Senior Member
Join Date: Feb 2001
Location: los angeles CA
Posts: 339
Likes: 0
Received 0 Likes
on
0 Posts
In the diagram it states Ford 90-92. Does this mean there is a $35 Ford OEM O2 sensor that is the same as our $212 Mazda O2 sensor? Has anyone checked out Ford Probe O2 sensors from 90-92? I like the price of the Walker unit, but if you can get the same OEM sensor for under $50 that would be excellent.
eric
eric
01-07-03, 12:18 AM
#50
Senior Member
Join Date: Feb 2001
Location: Was SoCal
Posts: 464
Likes: 0
Received 0 Likes
on
0 Posts
Hmmm, well I received mine today:
- doesn't say NTK on it
- doesn't say Walker on it
- doesn't look like the pix that damian posted
- does have a 20" wire
- does have "JAPAN 5340 11C" stamped into it
I'll try it out this week...
- doesn't say NTK on it
- doesn't say Walker on it
- doesn't look like the pix that damian posted
- does have a 20" wire
- does have "JAPAN 5340 11C" stamped into it
I'll try it out this week...
