Gauge Pod Installation Threw The Dash
#1
Full Member
Thread Starter
Join Date: Aug 2005
Location: Auburn, Wa
Posts: 179
Likes: 0
Received 0 Likes
on
0 Posts
Gauge Pod Installation Threw The Dash
When installing this Gauge Pod do you have to take apart the whole dash or how exactly do you wire the gauges through it and all? If anyone has any experience with this please let me know.
Thanks A Lot.
Thanks A Lot.
#2
All Spooled Up
iTrader: (7)
It snaps in place where the center spkr used to reside. Make up your wiring harness from the gauges beforehand and pass them down thru the opening left from where the speaker used to be. Fish them out behind the dash and run the wires - ground, light circuit, 12 +ign, senders, etc.
tom
tom
#3
Senior Member
iTrader: (1)
Join Date: Feb 2004
Location: ohio
Posts: 688
Likes: 0
Received 0 Likes
on
0 Posts
i put a coat hanger down from the the top ....and taped the wires to it....pretty easy....and the pod like said above...just snaps in place....atleast flyrx7 gauge pods do....not sure about any other ones
#6
Full Member
Thread Starter
Join Date: Aug 2005
Location: Auburn, Wa
Posts: 179
Likes: 0
Received 0 Likes
on
0 Posts
okay thanks a lot guys. i just didnt want to have to remove the whole entire dash for the wireing. yes they are still for sale. just go to the rx7store and they have some there for 100$.
thanks again for the help.
thanks again for the help.
#7
paying to play
iTrader: (1)

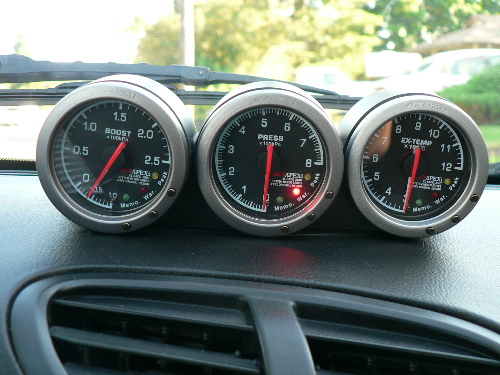

If you remove the center trim with the switch assy, there is plenty of room to work with. Some guages draw a good deal of current-make sure you don't overload on your ignition circuit. I've got the triple 60mm. FLYRX7 pod w. Apexi EL guages. Frank has been real busy but I heard him say he was considering making a new batch. Jump on one, awesome attention to detail and quality for the price! -Matt
