Fuel System Diagram

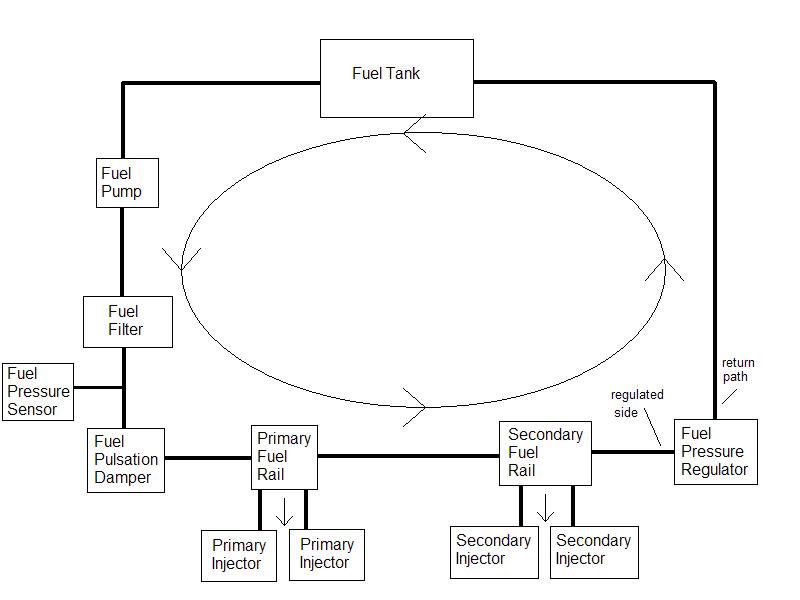

I just bought an electric fuel pressure sensor to do some data logging of fuel pressure under load. From the robinette site it seems that I should install it in the fuel hose nearest the oil dipstick. Before I start cutting into my fuel line, I wanted to be sure I understand what I am doing. So, I made the attached diagram of the fuel system. I couldn't find any clear functional diagrams such as this in the factory service manual. Two questions.

Is this diagram correct?
Is the fuel pressure sensor in the correct location for measuring regulated pressure?
Attached Thumbnails Fuel System Diagram-fuel-system.jpg
Reply
Old Aug 31, 2006 | 05:34 PM
  #2
badddrx7's Avatar
All Spooled Up
Tenured Member 15 Years
iTrader: (7)

Joined: Nov 2001
Posts: 2,752
Likes: 3
From: Ironton,ohio
Very good drawing - that is where I put my psi sensor

tom
Reply
Old Sep 1, 2006 | 10:01 AM
  #3
nicad2's Avatar
Thread Starter
HC is too high
Tenured Member 15 Years
iTrader: (3)

Joined: Nov 2005
Posts: 189
Likes: 4
From: USA
Originally Posted by badddrx7
Very good drawing - that is where I put my psi sensor

tom
Thanks. What kind of pressure are you seeing at idle and WOT? My sensor is supposed to arrive today. I have come up with a circuit to interface it to the datalogit. Total cost will be less than $40!
