ffe fuel rail injector install with pic

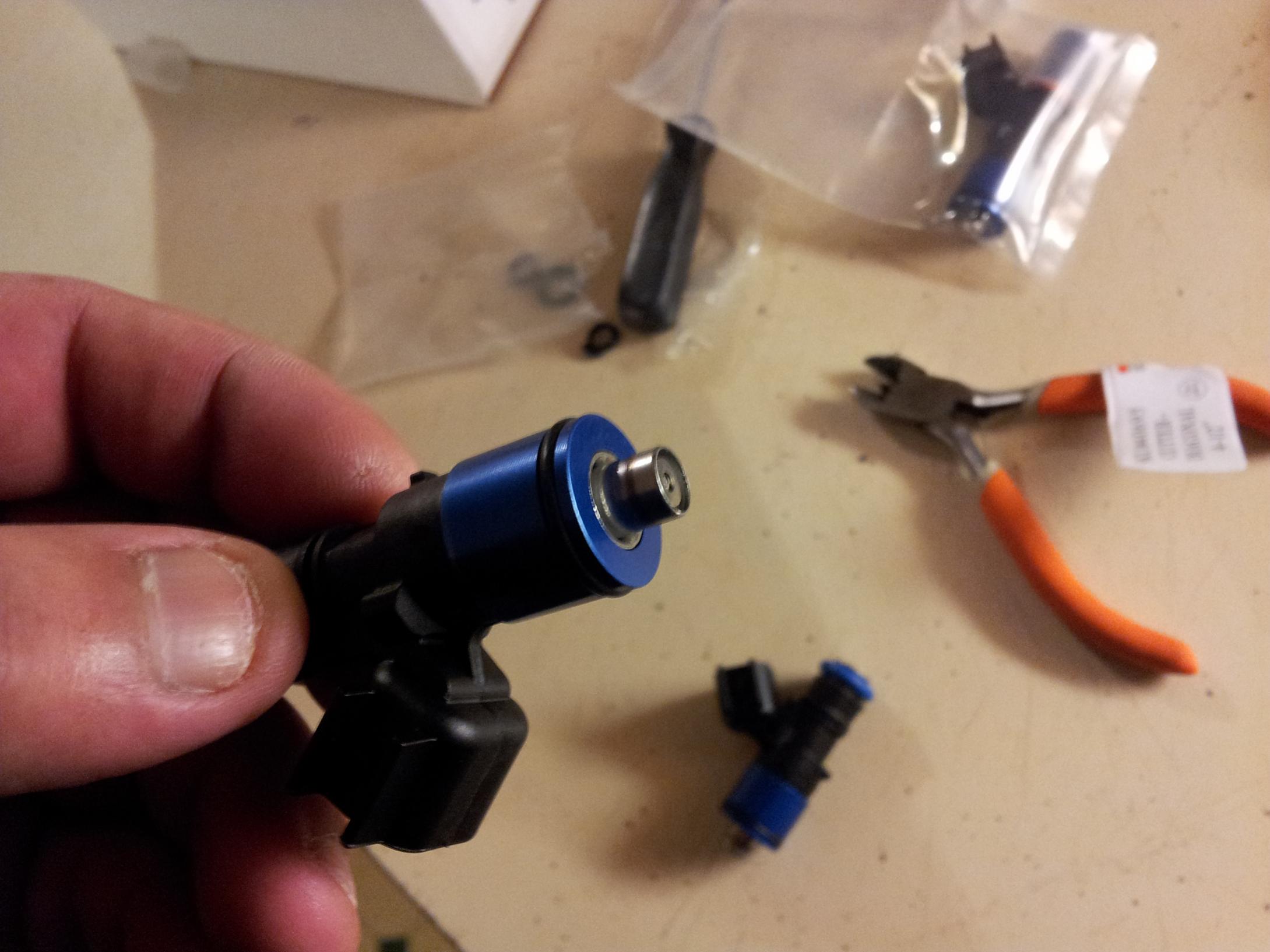

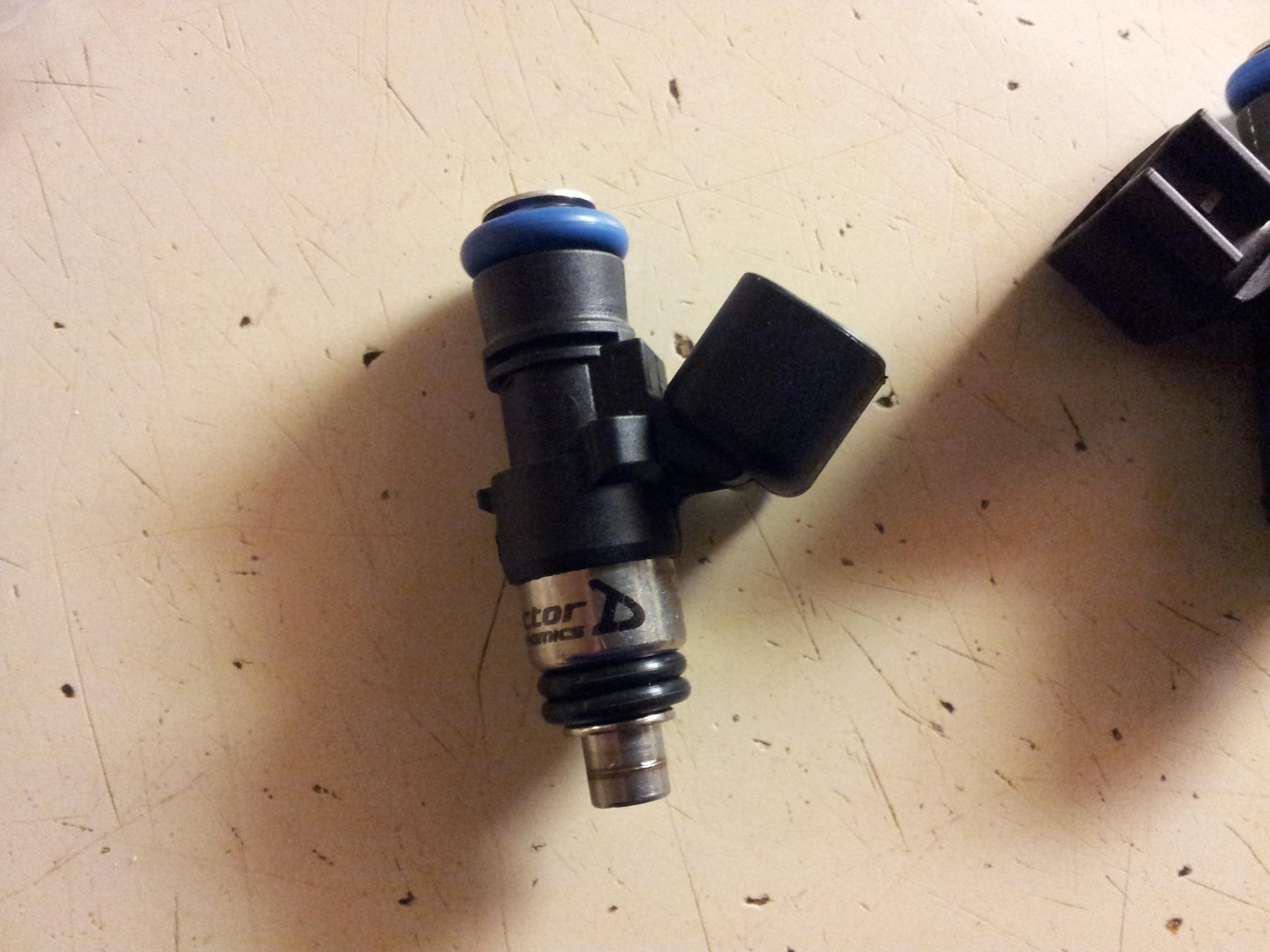

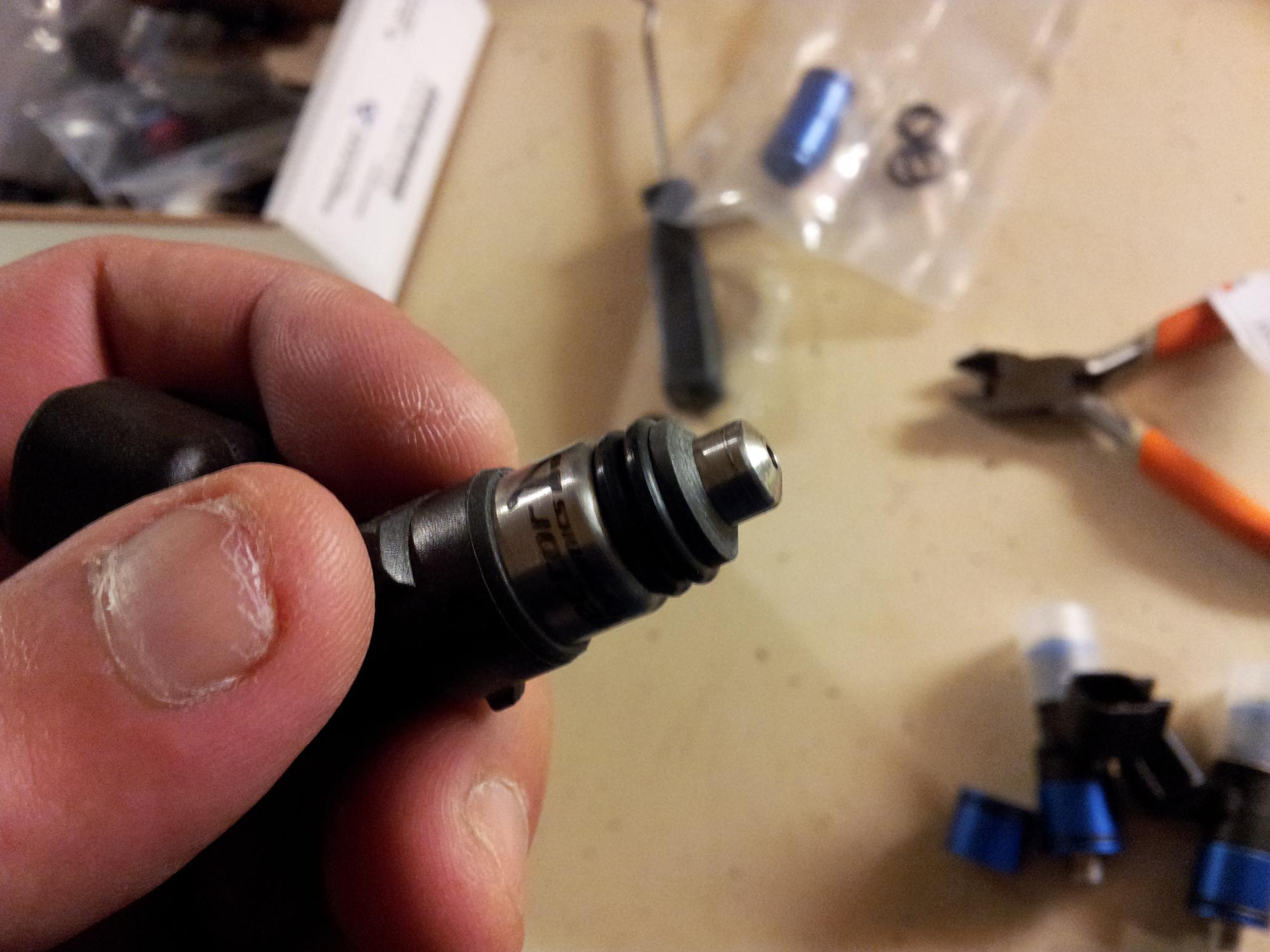

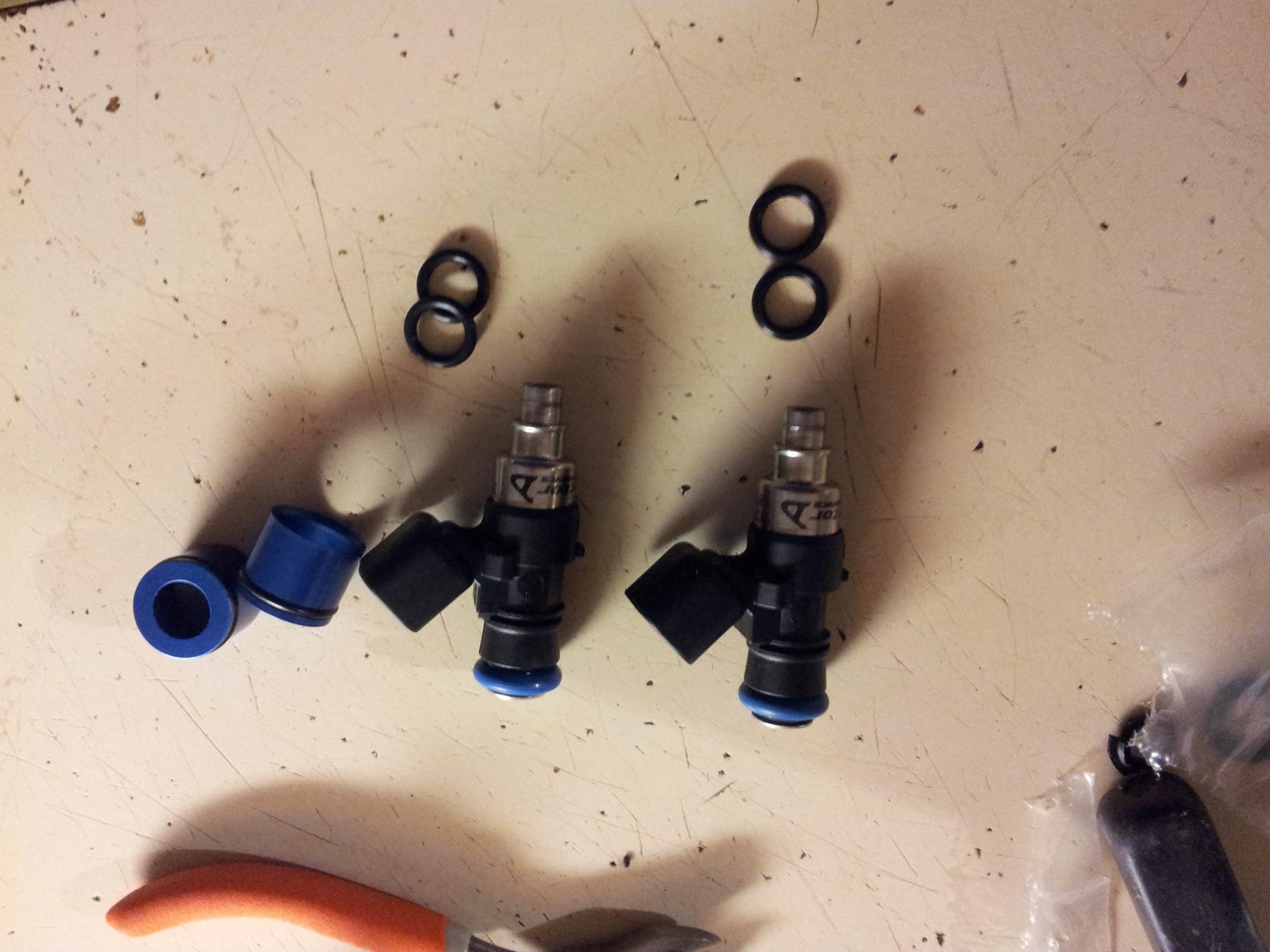

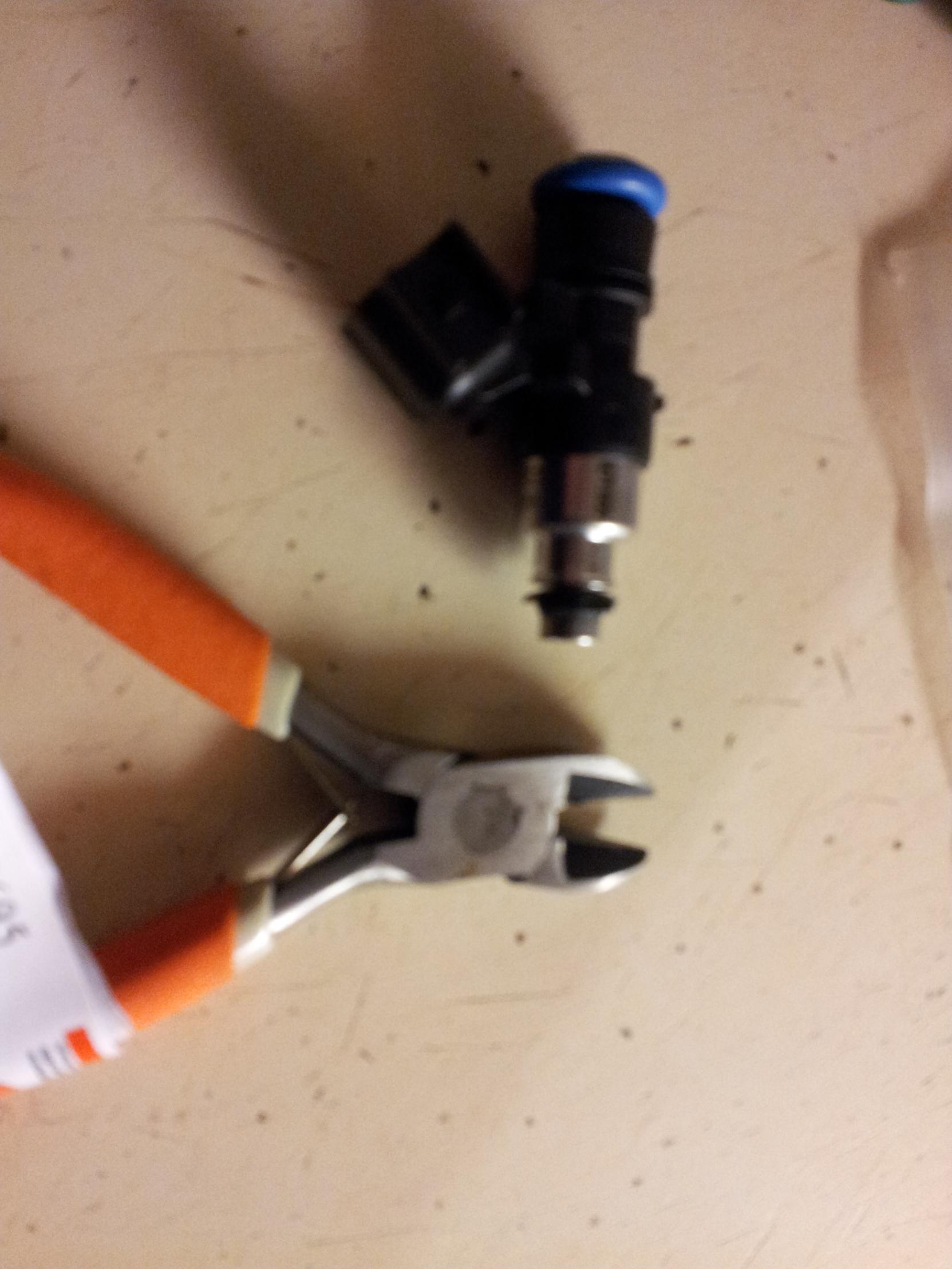

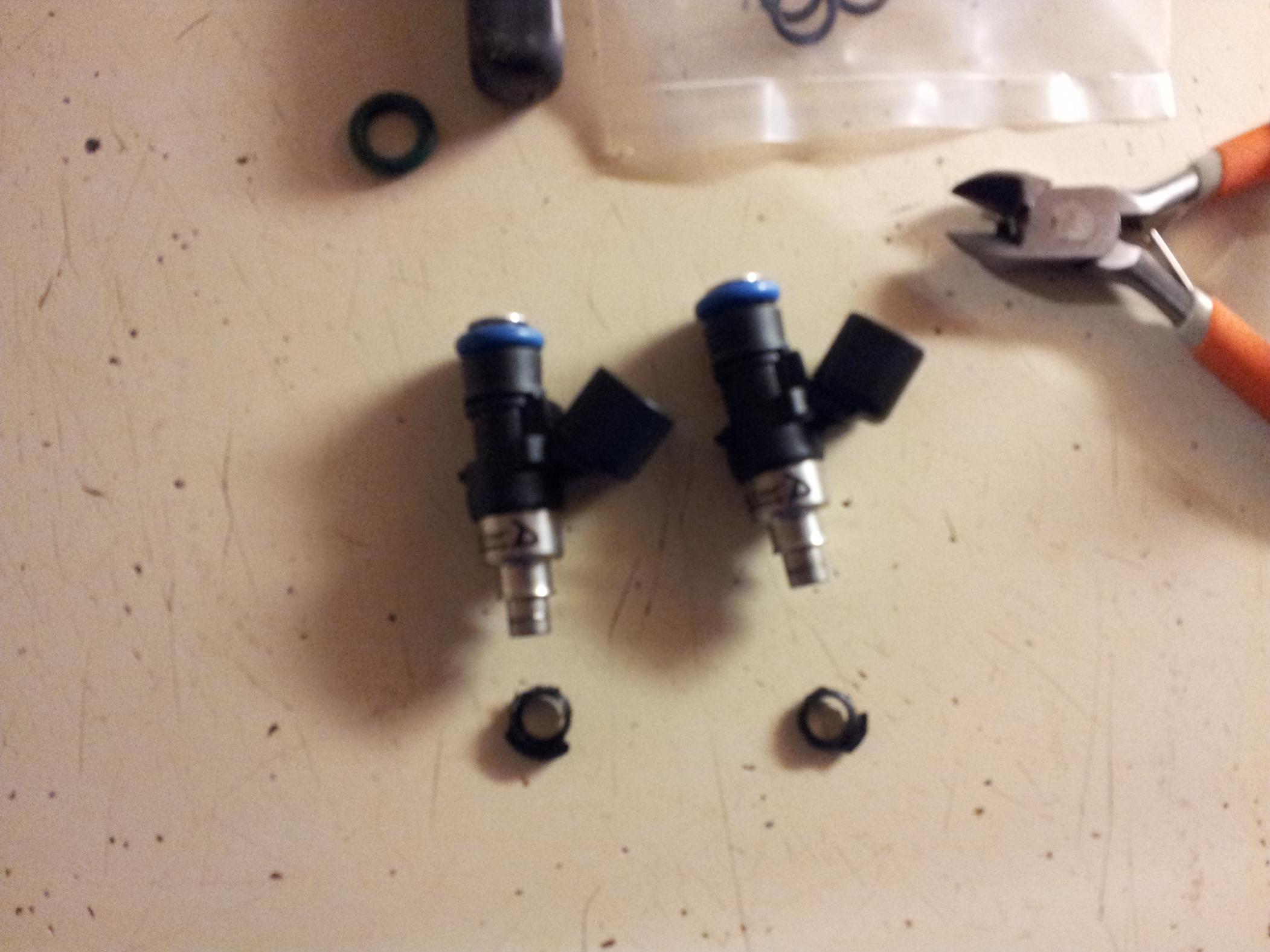

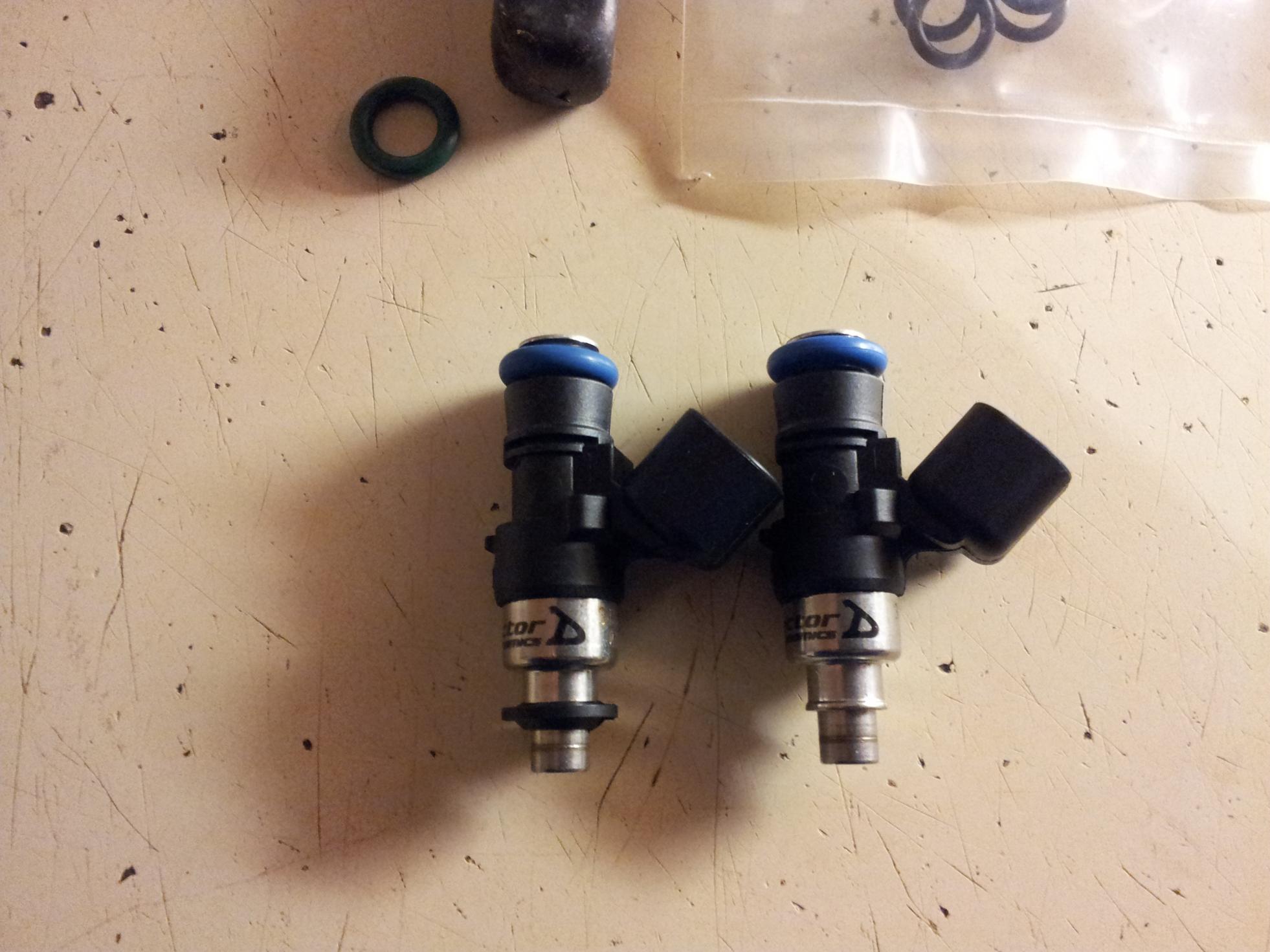

so heres what I got 725cc id and 1300cc id for my setup the way Aaron wants u to do this is for the secondary rail (mine is the 34mm rail with 34mm id 1300s)take off the bottom o ring to the injector then cut and slideout the black hard ring on the bottom of the injector (very easy to do)just do it with some small cutters now that its off put 2 orings that he supplies on the bottom of the injector and cap goes on that's it
pic below
pic below
11-12-13, 06:54 PM
#4
puerto rico
Thread Starter
Join Date: Apr 2013
Location: lancaster
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
primary rail

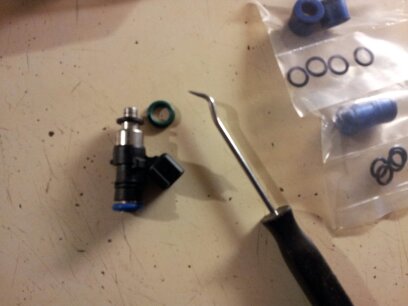

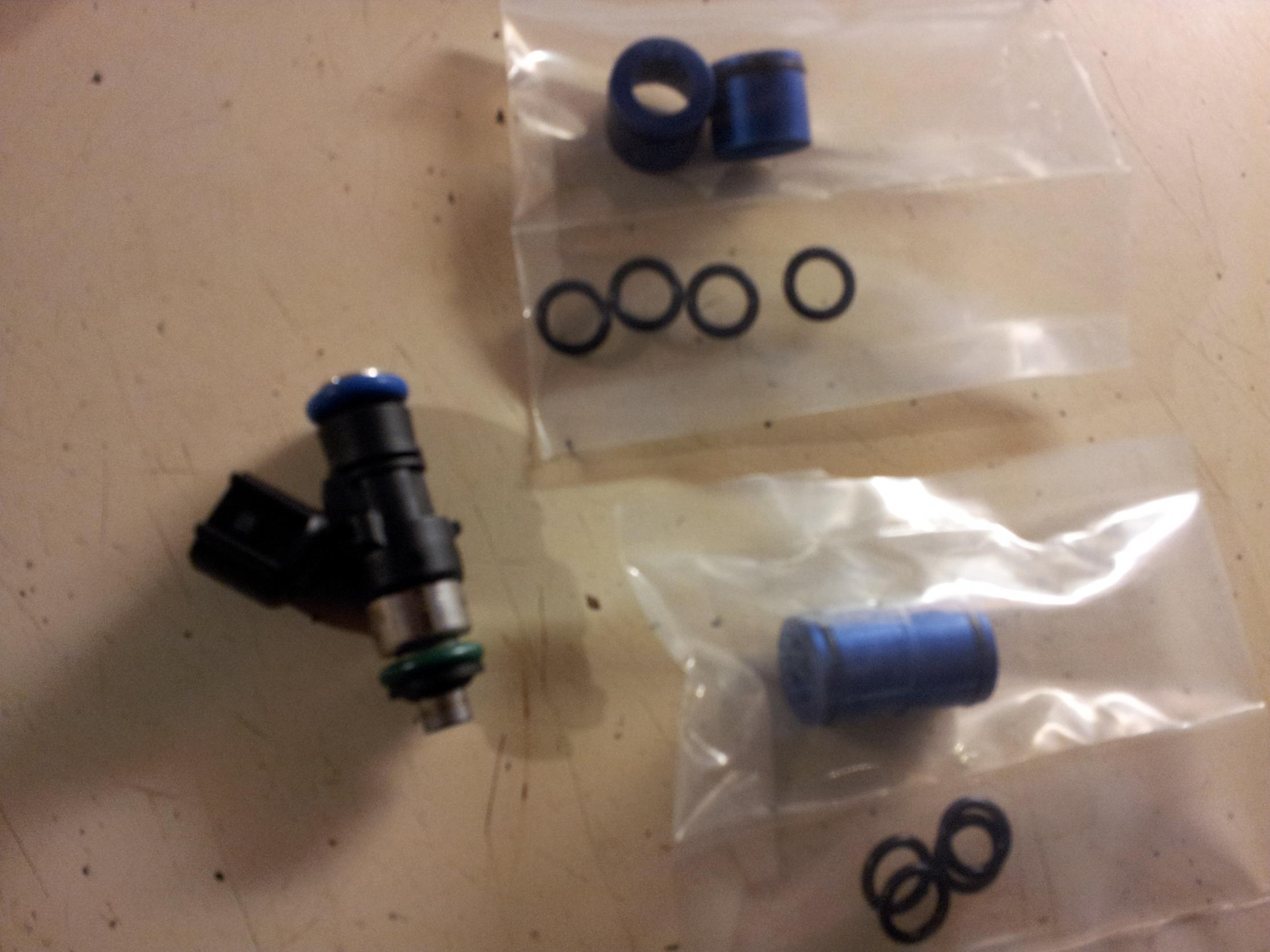

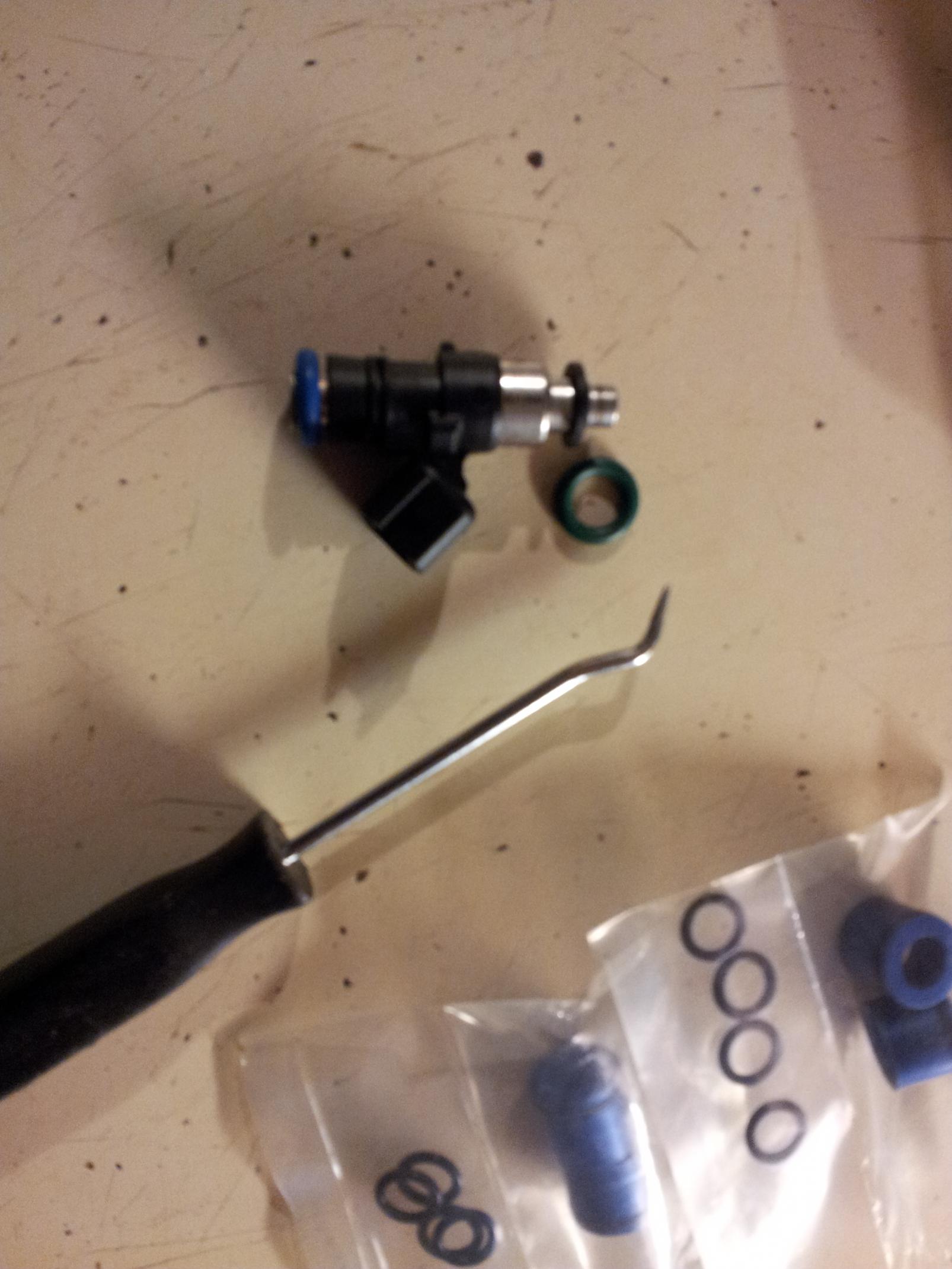

now for the primary rail (48mm injectors id 725cc is what I have) just take off bottom o ring and put the 2 orings that came with the rails DO NOT REMOVE THE HARD PLASTIC O RINGS LIKE U DID WITH THE SECONDARY RAIL now just put the lower blue caps on and your done pics below
11-12-13, 07:03 PM
#5
puerto rico
Thread Starter
Join Date: Apr 2013
Location: lancaster
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
Aaron also said for the primary u don't put the spacer that goes on the block back on thankyou Aaron from full function engineering for all the help it was a pleasure doing business with him I give him a 10 out of 10 a must have product for all rx7 owners quality is top notch
