FD seat belt receptacle/ receiver same as NB Miata

Thread Tools

Search this Thread

Old 01-22-24, 04:58 PM
  #1
needs more track time

Thread Starter
iTrader: (16)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 9,194
Received 510 Likes on 351 Posts
FD seat belt receptacle/ receiver same as NB Miata
Peep this

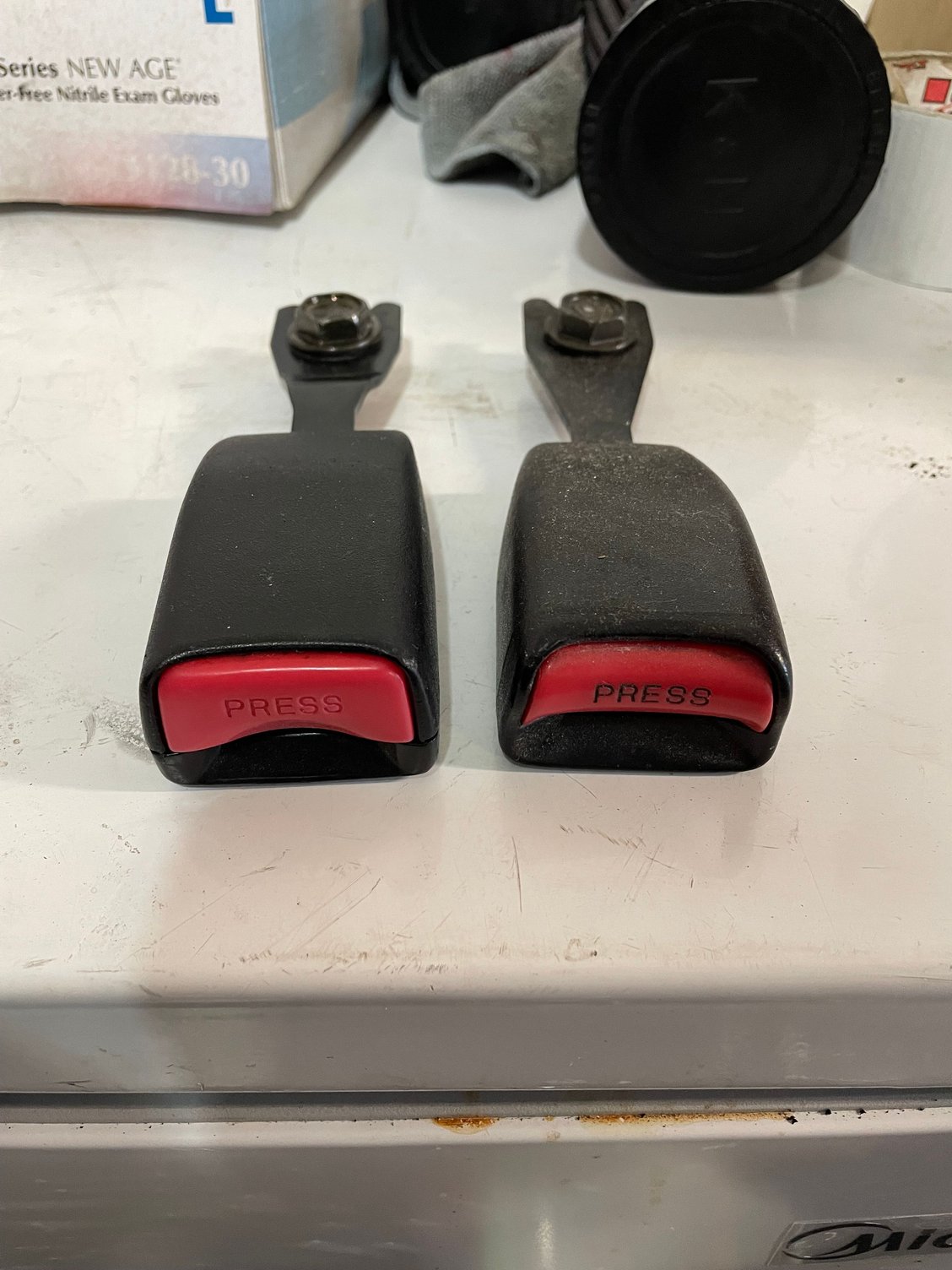

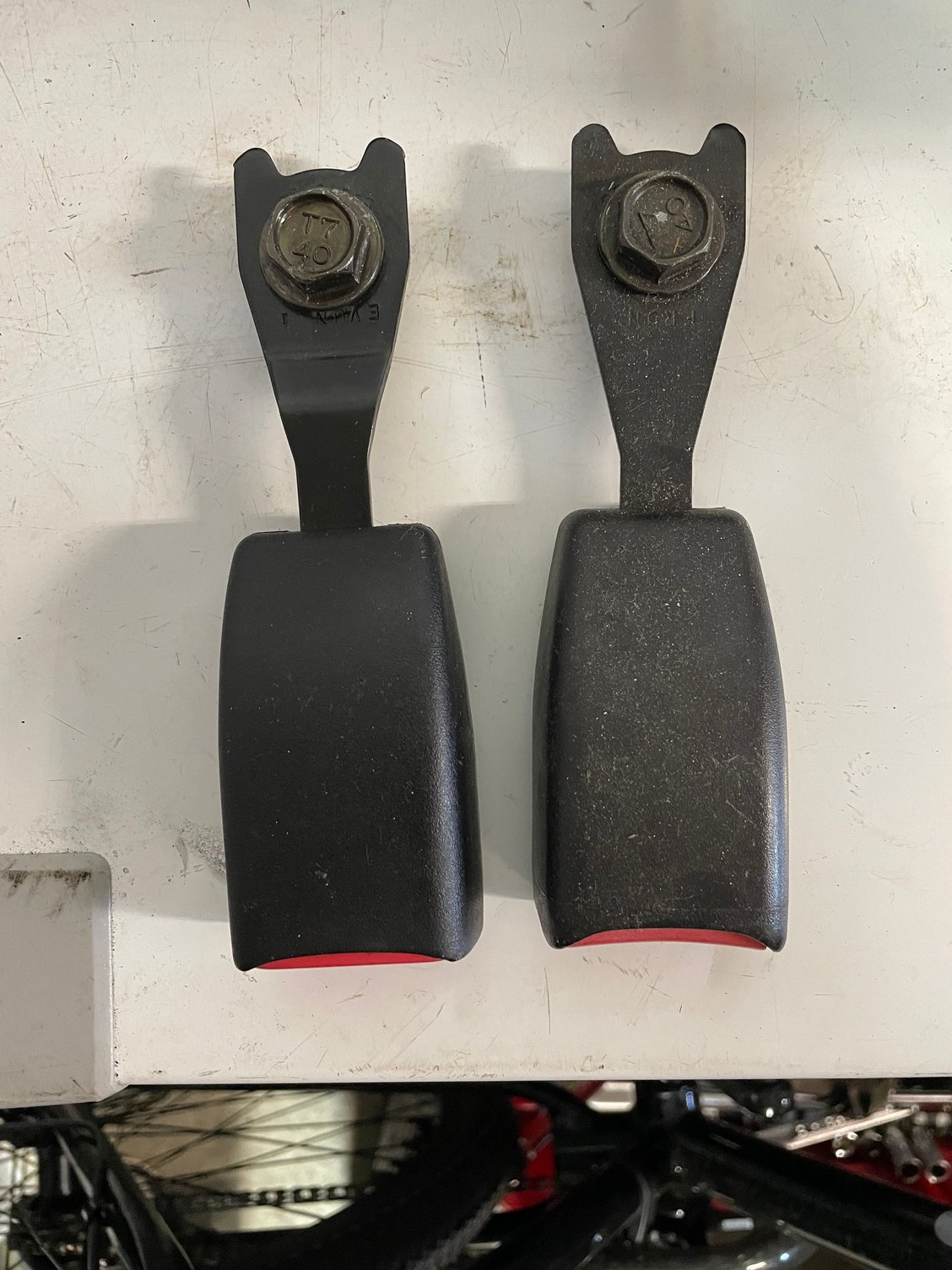

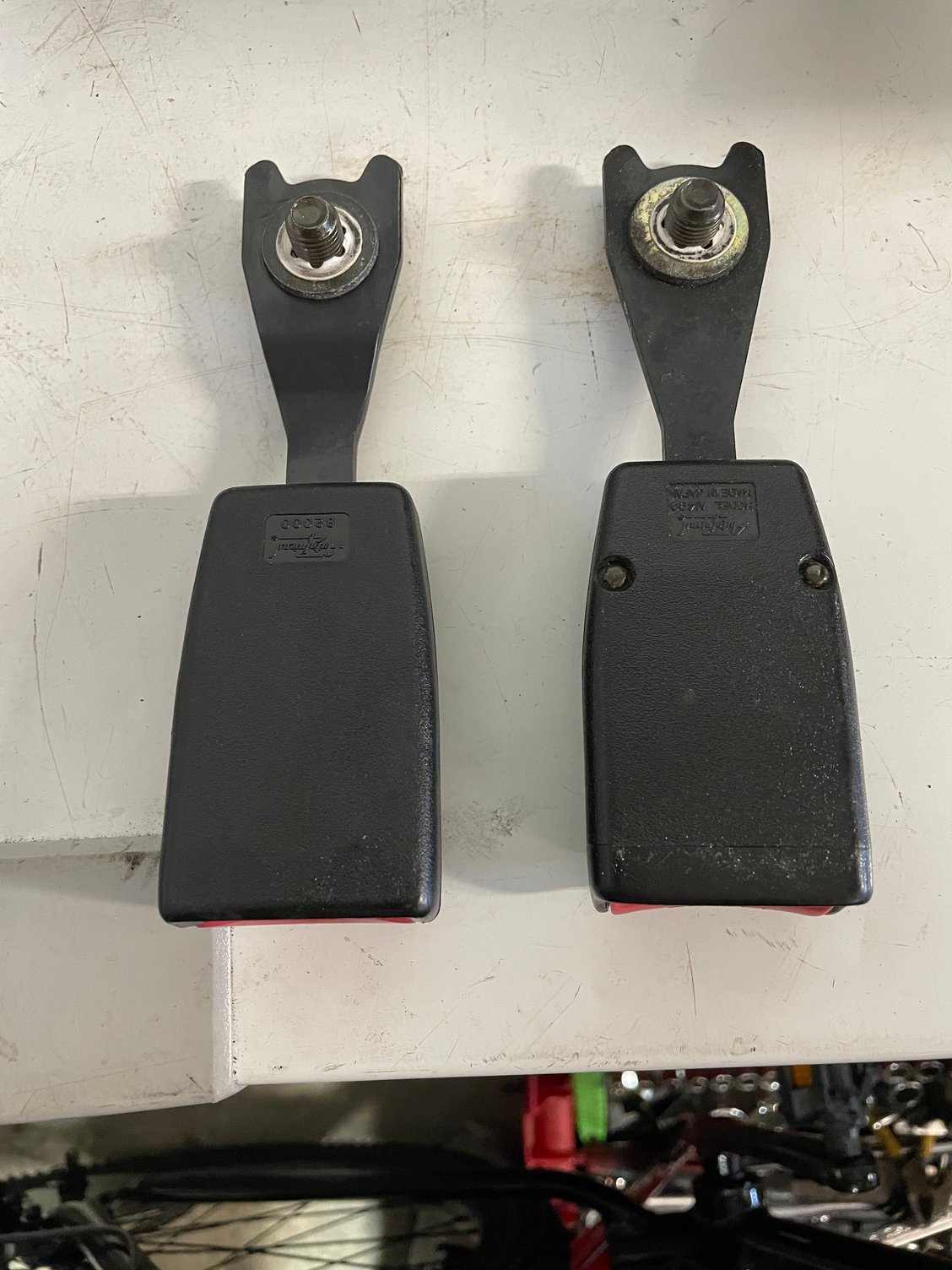

I was working on the FD and cleaning up in the garage the last few weekends and made a discovery. The seat belt receptacle of the FD is the same as the NB2 2001+ Miata. Pictured below is the FD on the right (dusty) and the NB on the left (not dusty).


Last edited by gracer7-rx7; 01-22-24 at 05:02 PM.
gracer7-rx7 is offline
Reply Like
Old 01-22-24, 05:01 PM
  #2
needs more track time

Thread Starter
iTrader: (16)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 9,194
Received 510 Likes on 351 Posts
Here they are in the Mazda parts diagram. I couldn't find the full part number for the NB Miata part for some reason but the part numbers on the parts diagram match up so I suspect it would be the same here too.
Last edited by gracer7-rx7; 01-22-24 at 05:04 PM.
gracer7-rx7 is offline
Reply Like
Old 01-22-24, 05:08 PM
  #3
needs more track time

Thread Starter
iTrader: (16)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 9,194
Received 510 Likes on 351 Posts
I just remembered... I should try this to ensure that the FD seat belt "latch plate" works on the NB receptacle / buckle.
gracer7-rx7 is offline
Reply Like
Old 01-23-24, 08:46 AM
  #4
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes on 1,848 Posts
Originally Posted by gracer7-rx7
Here they are in the Mazda parts diagram. I couldn't find the full part number for the NB Miata part for some reason but the part numbers on the parts diagram match up so I suspect it would be the same here too.
the NB Part is N066-57-620B-00 for the Left, in Black, its still available new
j9fd3s is offline
Reply Like
