FD: much smaller motor than you think
#1
Racing Rotary Since 1983
Thread Starter
iTrader: (6)
FD: much smaller motor than you think
given all FDs are turbocharged, it is so easy to make loads of hp.
it is less easy to make that output and enjoy engine longevity.
turbos come in all sizes, small medium and large and all we have to do is pick one and bolt it on.
medium is clearly understood as 400-450 hp.
here's a post from the board today that makes my point...
"So, I eventually want to upgrade my FD to single turbo...
Mods so far: downpipe, racingbeat duel tip exhaust, and upgraded airbox and ecu. All done by previous owner. I'm looking for around 500-700rwhp."
here's the point...
our motors displace 80 cubic inches
our motors displace 1.3 Liters
i have always used a number double the above as i was comparing the displacement of the combustive events in one rotation to a 4 cycle piston engine. the rotary does not have an every other non-combustive cooling event like any 4 cycle piston engine.
so, in addition to not having an every other cooling event, our motors actually are only l.3 liters actual displacement.
power is all about burning oxygen molecules.
period.
combine them w something that will burn and away you go.
turbos can cram huge amounts of oxygen into our motors.
further, while our motors are less efficient (VE) than piston motors per volume of displacement, our ports are much more efficient so we can make up for lower VE by better airflow in and out....
all of which makes our turbo efficiency really good. o k awesome.
all of which allows us to easily cram our motors w loads of oxygen.
all of which creates huge Combustion Chamber Pressure (CCP).
all of which creates huge Combustion Chamber Heat (CCH).
it is the AMOUNT of CCP and CCH which may not be fully appreciated.
let's put some numbers up. here's where the world's manufacturers in 2012 decided to draw the line. (consider being of more modern architecture all these cars have realtime ignition advance reduction under knock etc)...
Nissan twin turbo GTR 2.09 hp per cubic inch
Porsche 911 Turbo 2.15
Corvette ZR1 1.69
Mazda FD 3.18 that's stock at 255 FW hp
Mazda FD 400 rwhp (460 Flywheel hp) 5.75 hp per cubic inch
Mazda FD 500 rw (575 FW) 7.18 hp per cubic inch
Mazda FD 700 rw (805 FW) 10.06 hp per cubic inch
just to complete the picture and to show how well the rotary can flow air...
13B-REW 1000 rwhp (1150 FW) 14.37 hp per cubic inch
the obvious point here is that the turbo'd rotary, due to it's small displacement, has to be developing stratospheric amounts of CCP and CCH compared to a similar output turbo'd piston engine.
anyone who has properly modded a higher output turbo rotary has realised at some point that while the engine is extremely simple the systems needed to promote longevity are
numerous
sophisticated
expensive
if properly executed it is surprising how dependable a 4-500 hp rotary is given it's absolutely crazy state of tune.
it is tiny
it lacks an every other TDC cooling event
the rotary is not a fragile motor. as long as it is properly supported and tuned all is well but you have to know what you are doing.
recently someone lost his motor going for 500 hp. unfortunately he was running 550 and 1600s.
500 is generated by 960 CFM of air or 66 pounds of air.
at 11.3 AFR that is 5.87 pounds of fuel .92 gallons per minute or 3497 CC/Min.
injectors are rated at wide open. once they are at less than wide open they have lag, or slippage due to the mechanics... while it varies i recommend you use 15% flow loss due to lag so...
550 X 2 = 1100
1600 X 2 = 3200
4300 X .85 (lag deduct) = 3655 max net flow at 99 duty cycle
injectors tend to overheat above 85% so it is highly probable that the motor ran out of fuel.
running a 70+ pound turbo, which he was, w 550 primaries and 1600 secondaries was just asking for meltdown.
this of course is just one in a million learning experiences which many of us, including me, have acquired.
it is fortunate we have the board.
as mentioned, i have written on this before to the point where i have received some criticism (repetitive) but w the new year i thought i would trot it out again...
a 400 rwhp FD is miles past a 911 Turbo as far as state of tune. respect this or get schooled by reality.
howard
it is less easy to make that output and enjoy engine longevity.
turbos come in all sizes, small medium and large and all we have to do is pick one and bolt it on.
medium is clearly understood as 400-450 hp.
here's a post from the board today that makes my point...
"So, I eventually want to upgrade my FD to single turbo...
Mods so far: downpipe, racingbeat duel tip exhaust, and upgraded airbox and ecu. All done by previous owner. I'm looking for around 500-700rwhp."
here's the point...
our motors displace 80 cubic inches
our motors displace 1.3 Liters
i have always used a number double the above as i was comparing the displacement of the combustive events in one rotation to a 4 cycle piston engine. the rotary does not have an every other non-combustive cooling event like any 4 cycle piston engine.
so, in addition to not having an every other cooling event, our motors actually are only l.3 liters actual displacement.
power is all about burning oxygen molecules.
period.
combine them w something that will burn and away you go.
turbos can cram huge amounts of oxygen into our motors.
further, while our motors are less efficient (VE) than piston motors per volume of displacement, our ports are much more efficient so we can make up for lower VE by better airflow in and out....
all of which makes our turbo efficiency really good. o k awesome.
all of which allows us to easily cram our motors w loads of oxygen.
all of which creates huge Combustion Chamber Pressure (CCP).
all of which creates huge Combustion Chamber Heat (CCH).
it is the AMOUNT of CCP and CCH which may not be fully appreciated.
let's put some numbers up. here's where the world's manufacturers in 2012 decided to draw the line. (consider being of more modern architecture all these cars have realtime ignition advance reduction under knock etc)...
Nissan twin turbo GTR 2.09 hp per cubic inch
Porsche 911 Turbo 2.15
Corvette ZR1 1.69
Mazda FD 3.18 that's stock at 255 FW hp
Mazda FD 400 rwhp (460 Flywheel hp) 5.75 hp per cubic inch
Mazda FD 500 rw (575 FW) 7.18 hp per cubic inch
Mazda FD 700 rw (805 FW) 10.06 hp per cubic inch
just to complete the picture and to show how well the rotary can flow air...
13B-REW 1000 rwhp (1150 FW) 14.37 hp per cubic inch
the obvious point here is that the turbo'd rotary, due to it's small displacement, has to be developing stratospheric amounts of CCP and CCH compared to a similar output turbo'd piston engine.
anyone who has properly modded a higher output turbo rotary has realised at some point that while the engine is extremely simple the systems needed to promote longevity are
numerous
sophisticated
expensive
if properly executed it is surprising how dependable a 4-500 hp rotary is given it's absolutely crazy state of tune.
it is tiny
it lacks an every other TDC cooling event
the rotary is not a fragile motor. as long as it is properly supported and tuned all is well but you have to know what you are doing.
recently someone lost his motor going for 500 hp. unfortunately he was running 550 and 1600s.
500 is generated by 960 CFM of air or 66 pounds of air.
at 11.3 AFR that is 5.87 pounds of fuel .92 gallons per minute or 3497 CC/Min.
injectors are rated at wide open. once they are at less than wide open they have lag, or slippage due to the mechanics... while it varies i recommend you use 15% flow loss due to lag so...
550 X 2 = 1100
1600 X 2 = 3200
4300 X .85 (lag deduct) = 3655 max net flow at 99 duty cycle
injectors tend to overheat above 85% so it is highly probable that the motor ran out of fuel.
running a 70+ pound turbo, which he was, w 550 primaries and 1600 secondaries was just asking for meltdown.
this of course is just one in a million learning experiences which many of us, including me, have acquired.
it is fortunate we have the board.
as mentioned, i have written on this before to the point where i have received some criticism (repetitive) but w the new year i thought i would trot it out again...
a 400 rwhp FD is miles past a 911 Turbo as far as state of tune. respect this or get schooled by reality.
howard
#2
If it's fast I'm There
iTrader: (24)
Join Date: Nov 2005
Location: Waxhaw, NC
Posts: 852
Likes: 0
Received 0 Likes
on
0 Posts
This is the kind of information needed when thinking out future rwhp goals. It would make our engines more reliable and prevent people from coming away from the rotary with a bad taste in their mouth; excellent write-up as usual!
Howard, you should be the build section mod
Howard, you should be the build section mod
#4
Sharp Claws
iTrader: (30)
but unfortunately the same is true with most other engine.
even honda guys are breaking close to or over the 1k HP range with teeny tiny motors.
http://www.youtube.com/watch?v=n4bYX_dzJI0
and bikes with over 600whp.. ***** of steel sitting on something that is likely to explode at that power level.
http://www.youtube.com/watch?v=7IUone3p5Tw
granted i love the feel and smoothness of these engines and the fact that they were able to hold this power decades ago even in stock trim blocks, but even the best will be soon forgotten with factory supercars pushing over that from the factory and v8 guys twin turboing their muscle cars. we're just a niche group still and always will be, with the random suprised faces who know nothing of this "rotary engine".
even honda guys are breaking close to or over the 1k HP range with teeny tiny motors.
http://www.youtube.com/watch?v=n4bYX_dzJI0
and bikes with over 600whp.. ***** of steel sitting on something that is likely to explode at that power level.
http://www.youtube.com/watch?v=7IUone3p5Tw
granted i love the feel and smoothness of these engines and the fact that they were able to hold this power decades ago even in stock trim blocks, but even the best will be soon forgotten with factory supercars pushing over that from the factory and v8 guys twin turboing their muscle cars. we're just a niche group still and always will be, with the random suprised faces who know nothing of this "rotary engine".
Last edited by RotaryEvolution; 01-15-12 at 02:24 PM.
#5
"Elusive, not deceptive!
Another good article Howard.
Arghx, I am only running about 14 psi so my pressure is still low but I have seen a max of about 1100psi.
If you look at this chart notice a few things:
- how hot the exhaust gases are when the exhaust port opens (EO-1100 deg C).
- how fast the burn rate is (slope of purple curve).
- a double hump for climbing pressure (blue line).
Rambling thoughts-
- If we could use more advance and eliminate the double hump the peak would be higher and the exhaust gases would exit cooler. (watching out for detonation)
- If we could speed up the burn rate the EGTs would be lowered (probably the best approach).
- What we do inadvertently (or on purpose) is to keep the pressures down to save the motor by flowing more air and fuel (boost) through the motor to make big HP but not using it to its full potential.
- There is a mechanical limit that cannot be exceeded. If we knew what that pressure was we would be miles ahead. It would be great to monitor some drag rotaries for pressure.
Barry
#6
rotorhead
iTrader: (3)
If you look at this chart notice a few things:
- how hot the exhaust gases are when the exhaust port opens (EO-1100 deg C).
- how fast the burn rate is (slope of purple curve).
- a double hump for climbing pressure (blue line).
- how hot the exhaust gases are when the exhaust port opens (EO-1100 deg C).
- how fast the burn rate is (slope of purple curve).
- a double hump for climbing pressure (blue line).
With the E85 the timing did not really need to be retarded, except at very high loads to keep the cylinder pressure from exceeding 100bar so the engine wouldn't fly apart. The middle chart shows the crank angle at which 50% of the combustion chamber mass is burnt. On pump fuel it comes later and later as the timing is retarded for higher loads, while for E85 it barely changes.
- If we could use more advance and eliminate the double hump the peak would be higher and the exhaust gases would exit cooler. (watching out for detonation
Trending Topics
#10
Racing Rotary Since 1983
Thread Starter
iTrader: (6)
thanks for the kind comments...
and thanks for the two follow on posts with data.
Barry actually has been charting rotary internal combustive metrics. i note peak torque/pressure is at about 47 degrees at 14 psi boost. peak EGTs (i think the purple line is EO/EGT) peak after since they are somewhat cumulative.
it would be really interesting to see how the data moves around at 20 psi.
the data on alcohol (E85) V gasoline is amazing.... i actually am aware of alcohol's magical powers but just look at those charts...
note how alcohol retains a huge knock resistance even under significantly higher pressure as evidenced by the nearly horizontal timing advance w increased boost.
gasoline timing has to drop from 34 to 11 while E85 timing goes from 35 to 33!
timing curves are all about knock resistance and you can see how superior alcohol is in this regard...
.
while the burn rate is fairly similar...
timing alcohol at -33 gets half of the combustive pressure at 7 degrees for a 40 degree period.
gasoline timing at -10 gets it's half pressure at 27 for a 37 degree period.

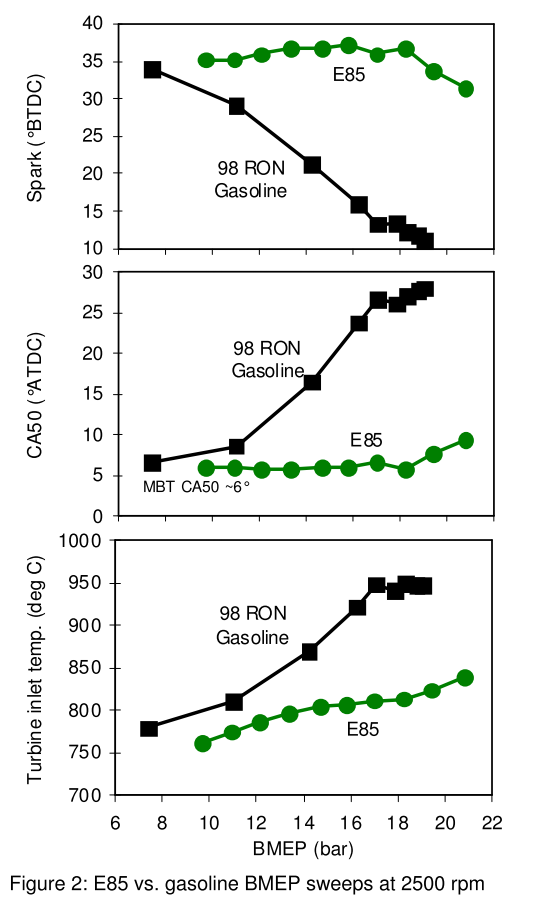

all 3 charts are related...
