Crashunit

Ok here's the story....

Currently my car is untuned and running on my old PMS EFI maps and I just recently put on about a good 2,000 miles on my new ported J-Spec motor with 3mm seal by Tri-Point (Yes, they charge you an arm and a leg, but they get the job done). Anyways me and Mark had an agreement on building my motor if I did some advertising for them, so why not. My mod list is longer then hell, so if you have any specific questions about my build up, just ask.

The reason why I dynoed my car untuned was just to see where my car stands now, and when I get it tuned in about 2 weeks, I want to see how much better my results will be as well. If I can reach my goal of atleast 360 to 380 rwhp I will be happy, and then spray it to **** (Nitrous 50 shot) and see if I can get it to over 400 rwhp just for kicks. If the turbos go, I dont care, I've had a TO4E in my garage for like almost a year now waiting to go in, just been lazy to install it.

Anyways this is basically how it stands:

My car boosts spuratically up to 12 psi, falls to 11 or 10 and holds at around that point.

My rev limiter is set at 7500 rmp (old maps)

The run was also done on 91 Pump gas, and it was freakin hot

Oh, I had ignition issues *** well, so my Torque is alittle messy, but my A/F seemed fine

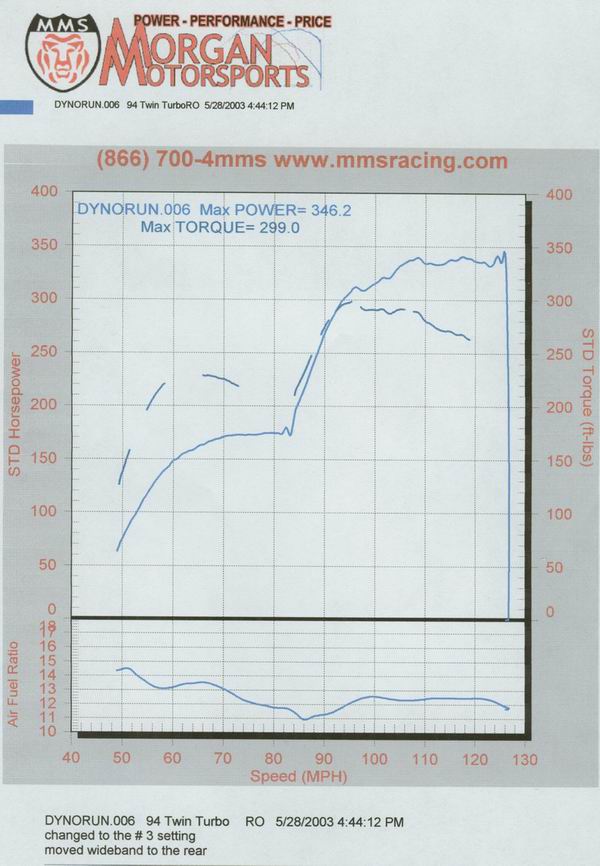

and here are the results:

pomanferrari

iTrader: (1)

Not bad, considering Rikky got 354 with similar set up.

cabaynes

iTrader: (4)

good show, but get that baby tuned would love to see what it can do!

glad to see you're still safe with your A/F's though... that's always comforting to see

Crashunit

Here are the results:



here were the conditions:



I just recently put 2,000 miles on my newly rebuilt 99 J-spec motor by Tripoint with 3mm seals, and alittle more "aggressive porting." I know they cost an arm and a leg, but when no one else can do it, they get the job done! Plus me and Mark had an agreement with my motor build-up as long as I do some advertising for them. So, since I will be getting my car tuned in about 2 weeks, I thought I might see where the car is at now, so when the car is properly tuned, hopefully it will be making somewhere from 360 to 380 rwhp, which is what Im shooting for. And if that happens I will spray the **** (Nitrous, Thanks NX!) into it and see if I can get it to or above 400 rwhp. If I lose the turbos, thats ok, I have had a To4e sitting in my garage for almost a year now waiting to go in.

Anyways, this was all done on 91 pump gas on a really freakng hot day and the car stays more on boost at around 11 psi, spiking to 12 psi and as low as 10 psi from time to time on the primary turbos (yes, Im running sequntial!) and when secondaries hit, it stays at 12 psi. My rev limit is also set at 7500 rpm ( This will be fixed should fixed to 8000 rpm after the tune) as well and I had ignition issues during the run, which is why my Torque reading skips, however, I expect it to be around 305 TQ if it would have read correctly. I am pretty pleased with the result and hopefully will have a better dyno sheet soon once I get the car tuned.

Mods: Intake, Exhaust, Rims

GoRacer

iTrader: (2)

Sweet, but aren't you running the JDM twins? I think you could hit 380hp tuned @14lbs.

Crashunit

Yes, still am, but Im going to be pushing them to 17 psi and see how they respond. I will have 3 boost settings: 12 psi, 14 psi and 16-17 psi, depending on how well the turbos can take it.

BATMAN

My mechanic got 387rwhp and I think 312rwtq on stock twins and a mild street port right around 15psi.

TTurboXfd3s

SWT haha thanks for showing me the link that's awsome man!!

mazdaspeed00

iTrader: (6)

please list your mods. i know u have down intake and exhaust but i know you have more then that if your making around 350 RWHP

Crashunit

dammit, should I start with my I.C.E? JK

HKS Super flow cold air intake
Maganacore 10mm spark plug wires
HKS Ignition Amplifier
NGK plugs
RC fuel injectors
Greddy Polished front mount IC
NX fogger
Tri-point Engineering lightened flywheel
ACT race/street clutch
Headlights
B&M short shifter
ARC blow off valve
ARC charge release valve
I clean the car everyday including sunday
Ported 99 J-Spec motor
3mm Apex and side seals
One of those really cool Type R air fresheners
ported and clipped 99’ FD3S J-spec turbo’s
milled & pinned rotors
Lead foot
Clearance rotor housing
Upgraded oil metering line
Ugraded vacuum silicone hoses
Baller Rims
Walbro 255lph high pressure fuel pump
Fuel regulator
3 ¼” Modified Tri-point Hi-Flow down pipe
3 ¼” Tri-point High flow cat
3 ¼” “RS*R EXMAG GT II Exhaust/bulit-in Resonator & silencer
Stickers
PMS EFI Engine magament system with boost controller
Nitrous Express: 35/50/75 shot EFI single fogger nitrous injection system
Additional NX fuel pumps
A Big Wing
12lb Nitrous bottle, bottle heater, safety blow down tube & purge valve
Did I mention its a 13B?
Greddy pulley kit & belts
relocated optima battery
And many more, but I was getting really bored listing everything.... sorry

rx7speed811

nice numbers. what fuel system mods (ie injectors, pump, lines) are you running? the a/f curve looks so rich before the transition. anything else besides the basic port, intake/fmic/dp/mp/cb, and untuned pms efi combo? i cant imagine what else could be on there that would make the mod list so long...

Node

iTrader: (1)

not bad, but should be very nice when tuned and boosting a little more.

Crashunit

I list my mods in my other post, which got posted twice...
yeah my car runs really rich at idle.

jspecracer7

lol...if you consider a body kit a HP modification

Marshall

Question, how is a 12.6 A/F at peak torque on 91 octane safe?

Crashunit

actually im not sure since they couldnt get a good torque reading, since I was having problems getting the wideband to read my ignition to get a more accurate torque number. Dunno if that answered your question, but if you notice the Torque gets cut off and screwy thru out the pull.

Crashunit

just incase my two post dont get merged, Id like people to actually post here:

https://www.rx7club.com/forum/showth...hreadid=191111

I guess the forum was acting up and I thought I had to do another post, sorry.

rx7speed811

i asked in the other thread, but you referred me here. im still curious, what size injectors are you running?

also, what kind of "upgraded oil metering lines" do you run? the stock plastic cathater tubing mAd sUx0rz y0!

Crashunit

I try to be vauge with my mod list just so I can feel "Special" , however, they are stock injectors for now which have been bored out by RC engineering, and I have no idea what oil metering line I put in, since I forgot .. seriously... but they are not OEM. I also have the K2rd fuel rail with the 1600 cc injectors as well, but I wont be adding it to this setup and wait till I go single...

Crashunit

Rikky was tuned, Im not.

Not taking anything away from what Rikky did and I believed his numbers from the start when people gave him ****. This just goes to show you that it can be done and possibly more.

matty

nice numbers..especially for boost level and untuned...

dubulup

I'm curious about the dangerous looking A/F??? With 91 oct.

Impressive machine, however!

2 runs - Run 004 looks real funny, but the A/F looks a lot safer. Nice curve on 006.

--------------------------------------------------------------------------------
Originally posted by stokedxiv

glad to see you're still safe with your A/F's though... that's always comforting to see
--------------------------------------------------------------------------------

in other thread...
The question (I think) was directed more towards the 12.6:1 A/F ratio in the upper rpms.

That doesn't sound safe, but what do I know? 3mm seals can handle knocking better (I think that's the purpose of them) but from what I gather 12.0:1 A/F is aggressive?!?!?!

dubulup

opps, too many threads to choose from.

dubulup

same.

rx7speed811

edit to above post: i meant to ask why the a/f looks so LEAN before transition, not rich. sorry about that. you should probably put in those 1600cc injectors early, marvin, your a/f at low rpm's looks pretty dangerous, especially since you got your new motor.
